Pentair 39010200Z filter tank o-ring, 20-7/8 in. ID, 7/16 in. thickPentair OEM Tank O-Ring 20-7/8" ID (7/16" Thick), 39010200Z In stock$6099

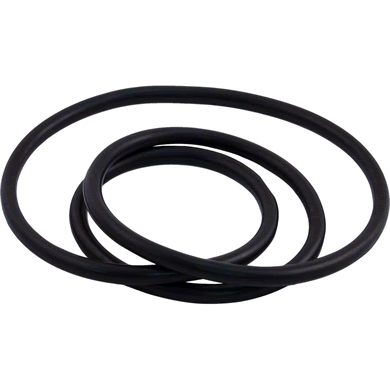

Pentair 39010200Z filter tank o-ring, 20-7/8 in. ID, 7/16 in. thick
Shop all Pentair

Pentair OEM Tank O-Ring 20-7/8" ID (7/16" Thick), 39010200Z

Ask a questionMPN 39010200Z
$6099
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Genuine Pentair the OEM tank o-ring, part 39010200Z, not a generic.
  • 20-7/8 in. ID measured across the inside; the cord cross section is 7/16 in.
  • Three filter families Clean and Clear Plus cartridge filters, Nautilus FNS Plus DE filters and the American Products RPM filters, Titan RPM DE and Quantum RPM cartridge.
  • Seals the tank it sits in the joint between the tank halves and is the only thing keeping that seam dry.
  • Replace when you see weeping a tank that drips at the seam after a cleaning usually just needs a fresh o-ring.
  • Ships parcel a single o-ring in a small package.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Pentair OEM Tank O-Ring 20-7/8" ID (7/16" Thick), 39010200Z, SKU AMP-051-1068. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Pentair OEM Tank O-Ring 20-7/8" ID (7/16" Thick), 39010200Z
Pentair

OEM Tank O-Ring 20-7/8" ID (7/16" Thick), 39010200Z

$6099
Pentair Genuine OEM High Flow Manual Air Relief Valve, 98209800
Pentair

Genuine OEM High Flow Manual Air Relief Valve, 98209800

$3899
Pentair Genuine OEM Clamp Kit with Tension Control, 190003
Pentair

Genuine OEM Clamp Kit with Tension Control, 190003

$30199
Pentair 2" Valve Kit Multiport, Side Mount DE Filters SM20-2, 261152
Pentair

2" Valve Kit Multiport, Side Mount DE Filters SM20-2, 261152

$29799
Pentair Genuine OEM FNS Plus Element Assembly Complete, 48 Sq Ft, 59023400
Pentair

Genuine OEM FNS Plus Element Assembly Complete, 48 Sq Ft, 59023400

$40199
Pentair 150 sq ft and 200 sq ft Clean & Clear Replacement Tank Lid, 178546Z
Pentair

150 sq ft and 200 sq ft Clean & Clear Replacement Tank Lid, 178546Z

$15199
Pentair 60 Sq Ft Element Assembly Complete, 59023300
Pentair

60 Sq Ft Element Assembly Complete, 59023300

$44699
Subtotal

Similar products

Other products people compare with this one.

Pentair 071439Z filter tank o-ring, 19-1/4 inch inside diameter Pentair OEM O-Ring 19-1/4" ID (1/2" Thick), Filters Made 3/03 to 7/03, 071439Z$7299 Pentair 195339 stainless steel back-up ring for PacFab filters Pentair Genuine OEM Back-Up Ring, Stainless Steel, 195339$8099 Pentair 190030Z 1-1/2 in. drain cap plug for Clean and Clear Plus, FNS Plus and Quad DE filters Pentair Genuine OEM 1-1/2 in. Drain Cap Plug, 190030Z$3599 Pentair 270100Z valve adapter kit, 2 in by 2.5 in black slip bulkhead Pentair Genuine OEM Valve Adapter Kit 2" Clean and Clear Plus, 270100Z$6399 Pentair 170030 air bleed tube assembly for the 240 sq ft Clean and Clear Plus cartridge filter Pentair Genuine OEM Air Bleed Tube Assembly, 240 sq ft, 170030$5099 Pentair 270004 genuine OEM bulkhead union kit, 1-1/2 in and 2 in, black Pentair Genuine OEM Bulkhead Union Kit, 1-1/2" and 2", Black, 270004$6399 Pentair 170028 air bleed tube assembly for Clean and Clear Plus 420 filter Pentair Genuine OEM Air Bleed Tube Assembly 420 SQFT, 170028$4899 Pentair 178733Z genuine OEM threaded half union kit Pentair Genuine OEM Threaded Half Union Kit, 178733Z$5799 Pentair 170027 top manifold for Clean and Clear Plus CCP320, CCP420 and CCP520 filters Pentair Genuine OEM Top Manifold CCP320/420/520, After 11/98, 170027$7799 Pentair 190106Z EasyClean replacement air bleeder Pentair Genuine OEM EasyClean Replacement Air Bleeder, 190106Z$3299
Pentair 192019 genuine OEM metal drain plug wrench Pentair Genuine OEM Drain Plug Wrench, 192019$5199 Pentair 170026 top manifold for the Clean and Clear Plus CCP240 cartridge filter Pentair Genuine OEM Top Manifold CCP240 After 11/98, 170026$8499 Pentair 170040 bottom manifold for Clean and Clear Plus cartridge filter Pentair Genuine OEM Bottom Manifold for Clean and Clear Plus, 170040$6199 Pentair 178583 air bleed tube assembly for Clean and Clear 520 and Quad DE 100 filters Pentair Genuine OEM Air Bleed Tube Assembly 520 SQFT, 178583$5099 Pentair 53108900Z spring barrel nut assembly for pool filter tank clamps Pentair Spring Barrel Nut Assembly, 53108900Z$4899 Pentair 79304600Z EasyClean filter body swivel Pentair EasyClean Swivel Body, 79304600Z$3099 Pentair 87300400Z tank body o-ring for Clean and Clear and Predator filters Pentair Tank Body O-Ring, Clean and Clear, 87300400Z$1599 Pentair 192320 upper bulkhead O-Ring, size 2-137 Buna N Pentair Genuine OEM Bulkhead O-Ring, 192320$899 Pentair 191474Z drain plug o-ring for Clean and Clear Plus filters Pentair Genuine OEM Drain Plug O-Ring for Clean and Clear Plus, 191474Z$599 Pentair 071426Z rubber union o-ring Pentair Genuine OEM Replacement Union O-Ring, 071426Z$599

Product details

The Pentair 39010200Z is the genuine tank o-ring for the Clean and Clear Plus cartridge filters, the Nautilus FNS Plus DE filters and the American Products RPM filters, both the Titan RPM DE and the Quantum RPM cartridge. It measures 20-7/8 in. across the inside with a 7/16 in. cross section.

What it does

The o-ring sits in the joint between the two tank halves under the clamp. Every time the tank is opened to clean cartridges or grids, that seal is disturbed, and an o-ring that has flattened, cracked or stretched will weep at the seam once the system is back under pressure.

Before you order

Measure the old ring if you can: 20-7/8 in. inside diameter and 7/16 in. thick. This is the OEM Pentair part; a generic in the same size is also available if you would rather not pay for the name.

Specifications
Brand Pentair
Manufacturer part number 39010200Z
UPC 788379693299
Inside diameter 20-7/8 in.
Cross section 7/16 in.
Fits Pentair Clean and Clear Plus cartridge, Nautilus FNS Plus DE, and RPM filters
Part type Pool filter part
Shipping weight 0.45 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

From Pentair

Your trusted source for all things pool. Pentair

Pentair equipment

Pentair SuperFlo VS 1.5 HP Variable Speed Pool Pump, 2.2 THP, EC-342001 Pentair MasterTemp 400 Natural Gas Pool Heater, EC-462028 Pentair Clean & Clear Plus 420 sq ft Cartridge Pool Filter, EC-160301 Pentair IntelliConnect Control & Monitoring System with Wi-Fi, EC-523317
Shop Pentair equipment

Genuine Pentair parts

Pentair Genuine OEM Seal Kit for WhisperFlo and IntelliFlo Pool Pumps, 356198 Pentair Genuine OEM High Flow Manual Air Relief Valve, 98209800 Pentair Genuine OEM FNS Plus Element Assembly Complete, 48 Sq Ft, 59023400 Pentair Genuine OEM MasterTemp/Max-E-Therm 6-Button Control Board Kit, 461105Z
Shop Pentair parts
Pool lighting: a backyard pool and spa lit in blue and green at nightPool water treatment: three people floating on rings in clear blue water, seen from abovePool cleaners: a toddler in flower sunglasses laughing in a yellow ring, held by her mother
Pentair makes pumps, filters, heaters, salt chlorinators, cleaners, lighting and automation for pools and spas.Shop all Pentair

Customer reviews

More from Pentair

Pentair SuperFlo VS EC-342001 1.5 HP variable speed pool pump, front view Pentair SuperFlo VS 1.5 HP Variable Speed Pool Pump, 2.2 THP, EC-342001$1,48900 Pentair SuperFlo EC-348190 single speed pool pump, 1 HP, 115/230V Pentair SuperFlo 1 HP Single Speed Pool Pump, 1.1 THP, 115/208-230V, EC-3481905.0 (1) $74800 Pentair WhisperFlo VS EC-011533 2.6 THP variable speed pool pump, top view Pentair WhisperFlo VS / VST 2.6 THP Variable Speed Pool Pump, 115/208-230V, EC-011533$1,79900 Pentair 262506 HiFlow 1.5 in. six way clamp style multiport valve Pentair Genuine OEM HiFlow Valve 1.5 in. 6-Way Clamp Style, 262506$20399 Pentair EC-520556 IntelliChlor 110/220V power center Pentair 110/220V IntelliChlor Salt Chlorine Generator Power Center, EC-520556$79900 Web Price Pentair 523769 IntelliChlor Plus and LT replacement sensor board Pentair IntelliChlor Plus and LT Replacement Sensor Board, 523769$39399 Pentair 350305S 3.2 kW 10 pole variable speed motor for IntelliFloXF and IntelliFlo 2 VST pumps Pentair 3.2 kW IntelliFloXF VSF, VSF, VS+SVRS, i1, i2 Motor, 350305S$78199 Pentair 523735-EC IntelliChlor Plus40 salt chlorine generator cell Pentair IntelliChlor Plus40 Salt Chlorine Generator Replacement Cell, 40,000 Gallons, 523735-EC$1,81900 Web Price Pentair Rainbow 320 in-line chlorinator R171096, front view Pentair Rainbow 320 In-Line Chlorinator, R171096$14699 Pentair 190003 tank clamp kit with tension control for Clean and Clear Plus, FNS Plus and Quad DE filters Pentair Genuine OEM Clamp Kit with Tension Control, 190003$30199
Pentair IntelliChlor LT25 salt chlorine generator cell 523747-EC Pentair IntelliChlor LT25 Salt Chlorine Generator Cell, 25,000 Gallons, 523747-EC$1,14900 Pentair IntelliFlo VS+SVRS variable speed pool pump, EC-011057 Pentair IntelliFlo VS+SVRS Variable Speed Pool Pump, 3 HP Max, 3.95 THP, 230V, EC-011057$2,39900 Pentair 170145 cartridge pack for Sta-Rite System 3 S7M120, inner and outer cartridges Sta-Rite 170145 System 3 S7M120 Large and Small Cartridge Set, 25021-0200S and 25022-0201S$46799 Pentair 261055 SM-20-3 2 in. side mount multiport valve kit, front view Pentair 2 in. Multiport Valve Kit for Side Mount Sand Filters, SM-20-3, 261055$29999 Pentair 523770 IntelliChlor Plus replacement controller (HMI), black Pentair IntelliChlor Plus Controller Replacement (HMI), Black, 5237705.0 (1) $38399 Pentair 261152 SM20-2 2 in. side mount multiport valve kit for DE filters Pentair 2" Valve Kit Multiport, Side Mount DE Filters SM20-2, 261152$29799 Pentair 357149 WhisperFlo and IntelliFlo volute housing replacement kit, front view Pentair WhisperFlo and IntelliFlo Volute Housing Replacement Kit, 357149$28799 Pentair MicroBrite Color LED pool light EC-620425, 12 volt, 14 watt, with 100 ft cord Pentair MicroBrite Color LED Pool Light 12 Volt, 14 Watt with 100' Cord, EC-620425$61900 Pentair 59023400 FNS Plus 48 sq ft complete DE grid assembly Pentair Genuine OEM FNS Plus Element Assembly Complete, 48 Sq Ft, 59023400$40199 Pentair Amerlite EC-602128 500W 120V inground pool light with stainless steel facering Pentair Amerlite Pool Light for Inground Pools with Stainless Steel Facering, 500W 120V 50' Cord, EC-602128$43900 Web Price

Questions and answers

What people ask about this product, answered by our pool techs.

Which filters use this o-ring?
Pentair Clean and Clear Plus cartridge filters, Nautilus FNS Plus DE filters and the RPM filters, meaning the Titan RPM DE and Quantum RPM cartridge models.
How do I check the size?
Lay the old o-ring flat and measure the inside diameter: this one is 20-7/8 in. The cord thickness is 7/16 in.
Is this the genuine part or a generic?
Genuine Pentair, part number 39010200Z. A generic in the same size is sold separately.
Does it come with the clamp?
No. This is the o-ring only.
