Swimables SW-41-053 generic thermistor for MasterTemp and Max-E-Therm pool heatersSwimables Generic Thermistor for MasterTemp Max-E-Therm Heater, SW-41-053 In stock$5099

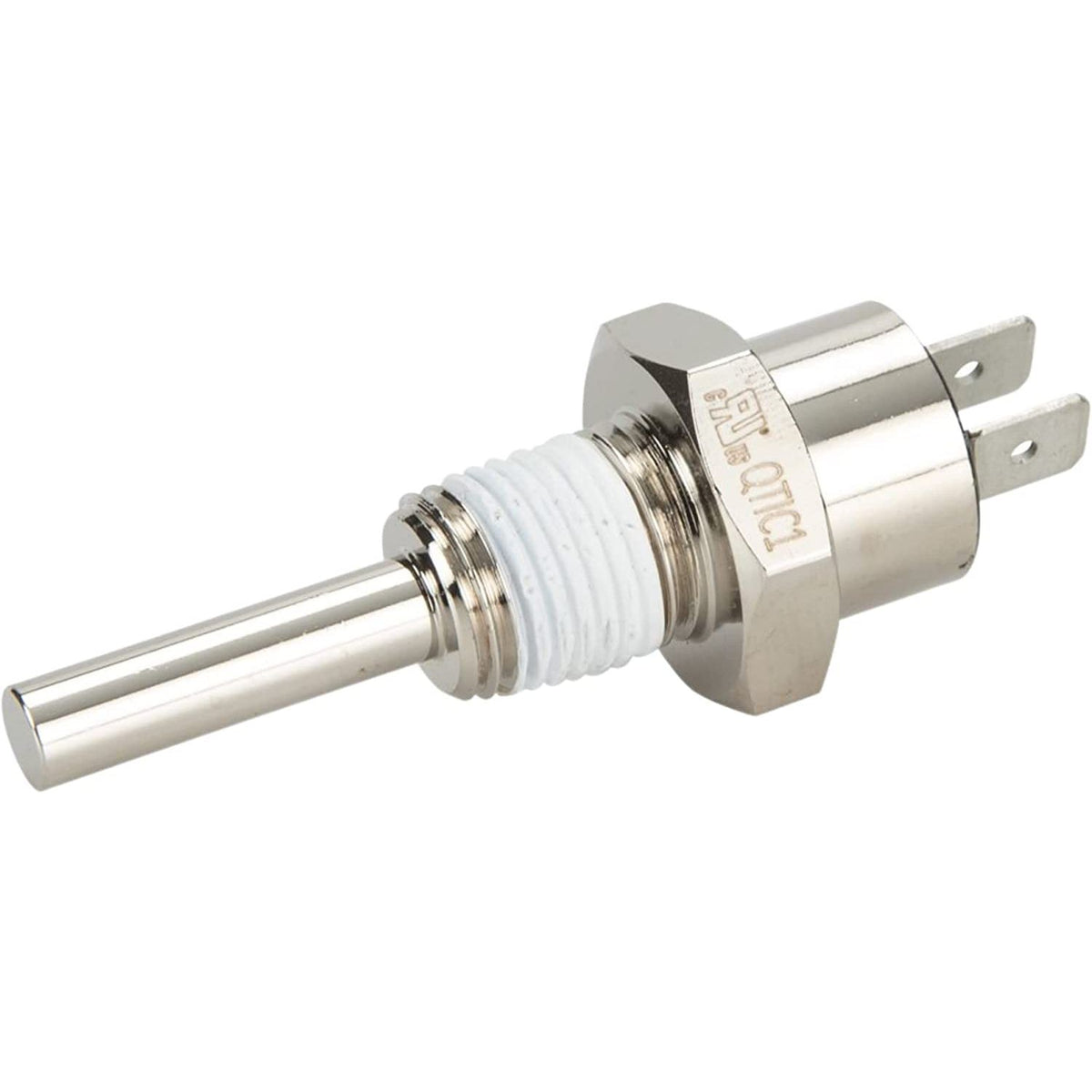

Swimables SW-41-053 generic thermistor for MasterTemp and Max-E-Therm pool heaters
Shop all Swimables

Swimables Generic Thermistor for MasterTemp Max-E-Therm Heater, SW-41-053

Ask a questionMPN SW-41-053
$5099
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Generic replacement Sold as an aftermarket thermistor rather than the original manufacturer part.
  • For MasterTemp and Max-E-Therm Listed as the thermistor for the MasterTemp and Max-E-Therm heater range.
  • Reads water temperature A thermistor is the sensor the control board uses to know how hot the water actually is.
  • A common cause of odd readings A drifting or failed thermistor makes the heater misread temperature and cycle wrongly.
  • Swimables part SW-41-053 Ordered by that part number, and cross referenced against the original sensor.
  • Genuine option exists The manufacturer thermistor for these heaters is stocked separately if you prefer the original part.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Swimables Generic Thermistor for MasterTemp Max-E-Therm Heater, SW-41-053, SKU SDC-151-0008. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Swimables Generic Thermistor for MasterTemp Max-E-Therm Heater, SW-41-053
Swimables

Generic Thermistor for MasterTemp Max-E-Therm Heater, SW-41-053

$5099
Swimables Generic Stack Flue Sensor for MasterTemp and Max-E-Therm Heaters, SW-41-024
Swimables

Generic Stack Flue Sensor for MasterTemp and Max-E-Therm Heaters, SW-41-024

$5999
Swimables Generic Thermal Regulator for MasterTemp and Max-E-Therm Heaters, SW-41-007
Swimables

Generic Thermal Regulator for MasterTemp and Max-E-Therm Heaters, SW-41-007

$6199
Raypak Genuine OEM Protek Shield Module Assembly, 017960F
Raypak

Genuine OEM Protek Shield Module Assembly, 017960F

$5199
Raypak Heat Pump Digital Control Board 9350/9353 5450-8450, 100-10000347
Raypak

Heat Pump Digital Control Board 9350/9353 5450-8450, 100-10000347

$29699
Hayward Heat Exchanger Assembly for H250FD, FDXLHXA1250
Hayward

Heat Exchanger Assembly for H250FD, FDXLHXA1250

$1,28299
Pentair Genuine OEM MasterTemp/Max-E-Therm 6-Button Control Board Kit, 461105Z
Pentair

Genuine OEM MasterTemp/Max-E-Therm 6-Button Control Board Kit, 461105Z

$53899
Subtotal

Similar products

Other products people compare with this one.

Pentair 77707-0120 manifold o-ring kit for Max-E-Therm and MasterTemp heaters Pentair Manifold O-Ring Kit for Max-E-Therm and MasterTemp Heater Burner System, 77707-0120$2999 Sta-Rite 77707-1441 natural gas to propane conversion kit for the 400 Max-E-Therm heater burner system Sta-Rite Natural Gas to Propane Conversion Kit for 400 Max-E-Therm Heater Burner System, 77707-1441$6099 Pentair 42001-0105S voltage selector plug kit for Max-E-Therm heaters Pentair Voltage Selector Plug Kit for Max-E-Therm Heater Electrical System 120/240 V, 42001-0105S$5499 Sta-Rite 77707-0111 air orifice kit for the model 200 Max-E-Therm heater Sta-Rite Air Orifice Kit for Model 200 Max-E-Therm Heater, 77707-0111$7499 Sta-Rite 42001-0063S high limit switch for Max-E-Therm SR-200, SR-333 and SR-400 heaters Sta-Rite Max-E-Therm and MasterTemp High Limit Switch, 42001-0063S$7299 Pentair 474989 thermal regulator for MasterTemp Model 125 heater water system Pentair Thermal Regulator for MasterTemp 125 Heater Water System, 474989$5999 Pentair 461063 natural gas to propane conversion kit for MasterTemp 125 heater Pentair Natural Gas to Propane Conversion Kit for 125 MasterTemp Heater, 461063$6499 Pentair MasterTemp and Sta-Rite Max-E-Therm Gas Conversion Kit | 77707-1461 Pentair MasterTemp and Sta-Rite Max-E-Therm Gas Conversion Kit | 77707-1461$5799 Pentair 77707-1421 propane to natural gas conversion kit for Sta-Rite Max-E-Therm 333K heater Pentair Propane to Natural Gas Conversion Kit for Sta-Rite Max-E-Therm 333K Heaters, 77707-1421$3799 Jandy R0457502 igniter kit for JXi 200, 260 and 400 pool heaters Jandy Igniter Kit for JXi Heater Models 200/260/400, R0457502$6299
Raypak 006736F transformer 120/240/24 V for 185A, 265A, 335A and 405A pool heaters Raypak Genuine OEM Transformer for Model 185A, 265A, 335A, 405A Pool Heater, 120/240/24 V, 006736F$7599 Raypak H000025 water pressure switch for Model 5100, 6100 and 5100ti Raypak Water Pressure Switch for Model 5100, 6100, 5100ti Pool Heater, H000025$4899 Pentair 474974 MasterTemp 1-1/2 inch heater union kit Pentair Union 1.5" Kit for MasterTemp 125, 474974$7099 Sta-Rite 42002-0025S Max-E-Therm automatic gas shut off switch Sta-Rite Max-E-Therm Automatic Gas Shut Off Switch, 42002-0025S$6199 Pentair 460745 air orifice kit for model 250 BTU heater Pentair Air Orifice Kit for Model 250 BTU Heater, 460745$6299 Jandy R0457503 igniter for the Hi-E2 pool heater Jandy Igniter for Hi-E2 Heater, R0457503$6899 Raypak 011926F pilot tube for Model 207A and 267A Low NOx pool heaters Raypak Pilot Tube for Model 207A, 267A Low NOx Pool Heater, 011926F$5799 Raypak 013492F switch and decal membrane kit for pool heater control panel Raypak Switch Decal Membrane Kit For Model 268A, 408A Pool Heater, 013492F$6699 Sta-Rite 42001-0008S display cover for Max-E-Therm heaters Pentair Sta-Rite Max-E-Therm Display Cover 42001-0008S$4999 Pentair 474952 combustion chamber o-ring kit for MasterTemp 125 heater Pentair Combustion Chamber O-Ring Kit for MasterTemp 125, 474952$4999

Product details

The Swimables SW-41-053 is a generic thermistor for MasterTemp and Max-E-Therm pool heaters. It is an aftermarket replacement, not the original manufacturer sensor.

What a thermistor does

A thermistor is a resistor whose resistance changes predictably with temperature. The heater control board reads that resistance and turns it into a water temperature. Every decision the heater makes about firing, holding and shutting down comes back to that one reading.

Why they get replaced

Sensors sitting in pool water drift and eventually fail. When they do, the heater is working from bad information: the panel shows a temperature the water is not at, the heater short cycles, will not reach setpoint, or throws a sensor fault. Replacing the thermistor is the usual first move once the wiring has been checked.

Generic or original

This is the generic version. The original manufacturer thermistor for the same heater electrical system is stocked separately if you would rather fit the factory part.

Specifications
Brand Swimables
Manufacturer part number SW-41-053
UPC 810108820383
Type Thermistor, water temperature sensor
Fits MasterTemp and Max-E-Therm heaters
Build Generic aftermarket replacement
Listed under Pentair parts
Shipping weight 0.09 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

Customer reviews

More from Swimables

Swimables SW-21-149 WhisperFlo style pump wet end with high temp unions, 0.5 to 2 HP Swimables Generic WhisperFlo Style Pump Wet End, 0.5 to 2 HP, with High Temp Unions, SW-21-149$32699 Swimables SW-41-024 stack flue sensor for MasterTemp and Max-E-Therm heaters Swimables Generic Stack Flue Sensor for MasterTemp and Max-E-Therm Heaters, SW-41-024$5999 Swimables SW-21-150 generic Whisperflo IntelliFlo style 3 HP pump wet end Swimables Generic Whisperflo IntelliFlo Style Pump Wet End, 3 HP with High Temp Unions, SW-21-150$32799 Swimables SW-26-020 multiport valve handle replacement for Pentair filter valves Swimables Multiport Valve Handle Replacement for Pentair Filters, SW-26-020$2699 Swimables SW-97-024 3-port 24V pool valve actuator Swimables 3-Port 24V Valve Actuator, SW-97-024$14699 Swimables SW-26-997 generic clamp nut for FNS Plus, Quad DE and FullFloXF filters Swimables Generic Clamp Nut Replacement for FNS Plus, Quad DE and FullFloXF Filters, SW-26-997$2099 Swimables SW-41-007 generic thermal regulator for MasterTemp and Max-E-Therm heaters Swimables Generic Thermal Regulator for MasterTemp and Max-E-Therm Heaters, SW-41-007$6199 Swimables SW-26-855 3/4 inch stainless steel air vent for Nautilus FNS and FNS Plus filters Swimables 3/4" Stainless Steel Air Vent for Nautilus FNS and FNS Plus Filters, SW-26-855$3299 Swimables SW-21-092 replacement nut for the Pentair SuperFlo pump Swimables Generic Nut Replacement for Pentair SuperFlo Pump, SW-21-092$2199 Swimables SW-10-033 three pack of stainless steel V-clips Swimables 3 Pack Stainless Steel V-Clips, SW-10-033$2899
Sina Industries Swimables SW-27-600 sand filter tank clamp for Hayward filters, product photo Sina Industries Swimables Sand Filter Clamp for Hayward® Filters, SW-27-600$2699

Questions and answers

What people ask about this product, answered by our pool techs.

Is this a genuine manufacturer part?
No. It is sold as a generic aftermarket thermistor. The original manufacturer thermistor for the Max-E-Therm and MasterTemp heater electrical system is stocked as a separate item.
Which heaters is it for?
It is listed as the thermistor for MasterTemp and Max-E-Therm heaters.
What does the thermistor do?
It is the temperature sensor. Its resistance changes with water temperature, and the control board reads that to decide when the heater should fire and when it has reached setpoint.
What are the signs it has failed?
Temperature readings that do not match the water, a heater that short cycles or will not reach setpoint, or a sensor fault shown on the control panel.
