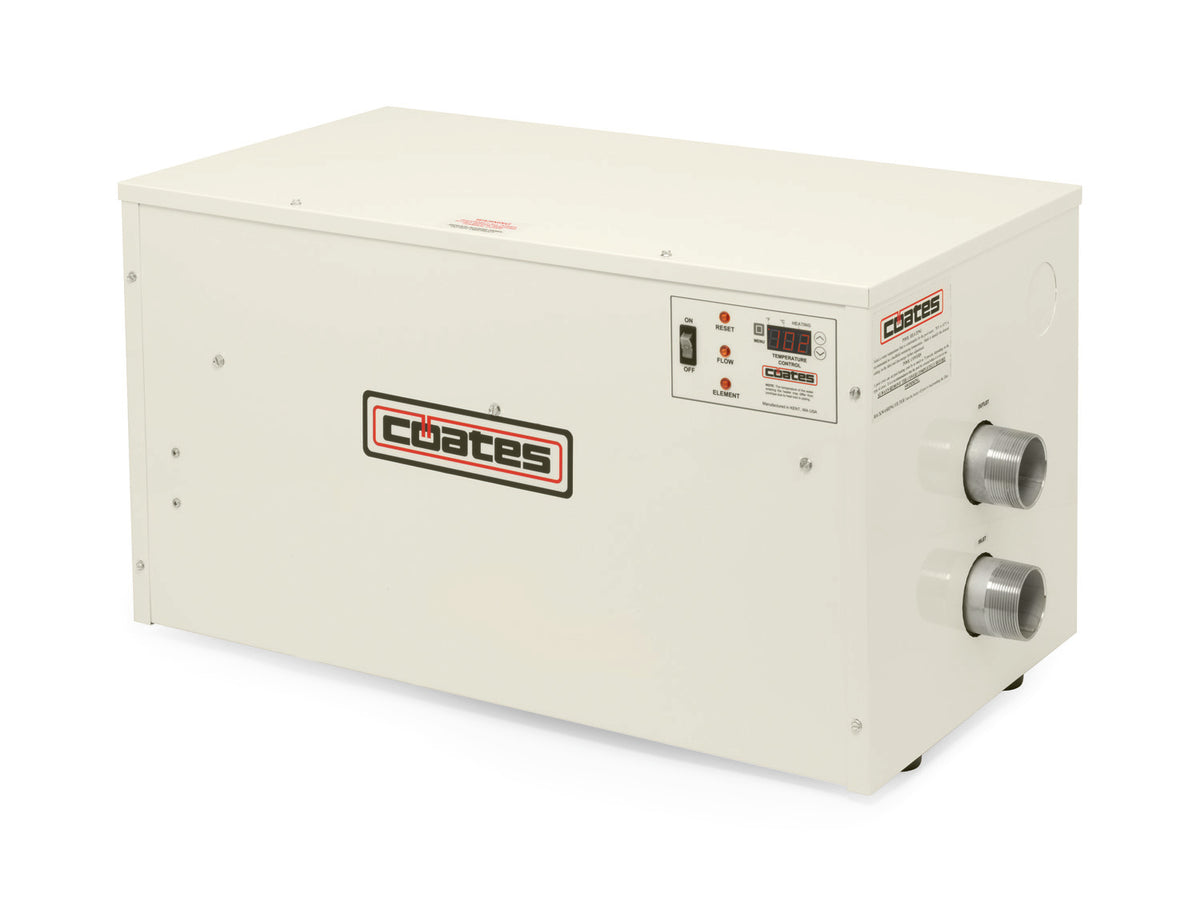

Coates Electric Heater 45kW Three Phase 480V Digital Thermostat | 34845PHSCoates PHS Series 45 kW Three Phase 480V Electric Pool and Spa Heater with Digital Thermostat, 34845PHS In stock$3,37299
Coates Electric Heater 45kW Three Phase 480V Digital Thermostat | 34845PHS
Shop all Coates

Coates PHS Series 45 kW Three Phase 480V Electric Pool and Spa Heater with Digital Thermostat, 34845PHS

Ask a questionMPN 34845PHS
$3,37299
FREE Delivery
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • 45 kW, 480V three phase Rated 45 kW at 480V three phase and 55 amps.
  • Digital thermostat The 36 to 57 kW PHS heaters add a digital thermostat for more precise control of pool water temperature.
  • Built-in flow switch Prevents operation when there is no water flow and allows flow rates from 20 GPM to 80 GPM.
  • Stainless steel tank An all stainless steel tank is standard for long life and corrosion resistance.
  • Residential or commercial Suited to both residential and commercial pool and spa applications.
  • Protection and indicators Manual reset high temperature limit, heavy duty contactors, and element, flow and high temperature on lights.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Coates PHS Series 45 kW Three Phase 480V Electric Pool and Spa Heater with Digital Thermostat, 34845PHS, SKU CHC-15-490. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Coates PHS Series 45 kW Three Phase 480V Electric Pool and Spa Heater with Digital Thermostat, 34845PHS
Coates

PHS Series 45 kW Three Phase 480V Electric Pool and Spa Heater with Digital Thermostat, 34845PHS

$3,37299
Solar Sun Rings Swimming Pool Solar Cover, Blue Sunburst, 5-Foot Diameter, 6-Pack, SSR-SB-02
Solar Sun Rings

Swimming Pool Solar Cover, Blue Sunburst, 5-Foot Diameter, 6-Pack, SSR-SB-02

$29999
Swimline Universal Solar Cover Reel Strap Kit, 5100SK
Swimline

Universal Solar Cover Reel Strap Kit, 5100SK

$3399
Rocky's Reel Systems #3A Portable Residential Reel System, End System Only with 3 in. Hubs, 307
Rocky's Reel Systems

#3A Portable Residential Reel System, End System Only with 3 in. Hubs, 307

$37099
Subtotal

Similar products

Other products people compare with this one.

Raypak 156A 150,000 BTU natural gas above ground pool and spa heater, part 014784 Raypak 156A 150K BTU Above Ground Pool and Spa Heater, Digital Controls, Electronic Ignition, Natural Gas, 0-4999 ft Elevation, 014784$2,64900 Pentair MasterTemp 250 natural gas pool heater EC-462026 Pentair MasterTemp 250 Natural Gas Pool Heater, EC-462026$3,73900 Web Price Pentair MasterTemp EC-462024 125,000 BTU natural gas pool heater Pentair MasterTemp Natural Gas 125K BTU Pool Heater, EC-462024$2,21299 Raypak 014779 106A analog natural gas above ground pool heater Raypak Analog Natural Gas Above Ground Pool Heater 105,000 BTU, P-R106A-AN-C, 014779$2,11900 Raypak 009217 P-R266A-EN-C 266K BTU natural gas digital pool heater, front view Raypak 266K BTU Natural Gas Pool Heater, Digital Ignition, Copper Heat Exchanger, 0-2000 Ft. Elevation, P-R266A-EN-C, 009217$3,37400 Raypak 009219 Digital 399K BTU natural gas pool and spa heater, model P-R406A-EN-C Raypak Pool Heater, 399K BTU, Natural Gas, Digital Ignition, Copper Heat Exchanger, 0-2000 Ft. Elevation, P-R406A-EN-C, 009219$4,42600 Pentair MasterTemp 400 natural gas pool heater EC-462028 Pentair MasterTemp 400 Natural Gas Pool Heater, EC-462028$4,17900 Pentair MasterTemp 125 EC-462025 125,000 BTU propane gas pool and spa heater Pentair MasterTemp 125 Heater 125K BTU, Propane Gas, with Cord, EC-462025$2,24900 Raypak 156A P-D156A 150,000 BTU propane above ground pool and spa heater, part 014786 Raypak 150K BTU Above Ground Pool and Spa Gas Heater, Digital Controls, Electronic Ignition, Propane Gas, 0-1999 ft Elevation, 014786$2,64900 Raypak AVIA P-R264A-EN-N 264K BTU natural gas low NOx pool heater with WiFi, front view Raypak AVIA 264K BTU Natural Gas Low NOx Pool Heater with WiFi, HD NiTek Heat Exchanger, 0-10,000 Ft. Elevation, P-R264A-EN-N, 018044$4,00700
Raypak AVIA P-R404A-EN-N 399K BTU natural gas pool and spa heater Raypak AVIA 399K BTU Natural Gas Low NOx Pool Heater with WiFi, HD Nitek Tubing, 0-10,000 ft Elevation, P-R404A-EN-N, 018045$4,92300 Raypak AVIA P-R404A-EP-N 399,000 BTU propane gas pool and spa heater with WiFi Raypak AVIA 399K BTU Propane Gas Low NOx Pool Heater with WiFi, HD Nitek Tubing, 0-4500 Ft. Elevation, P-R404A-EP-N, 018051$4,92300 Pentair MasterTemp 400,000 BTU propane gas pool heater, model EC-462029 Pentair MasterTemp Propane Gas Heater 400k BTU, EC-462029$4,78900 Web Price Raypak P-R206A-EN-X 200K BTU natural gas pool and spa heater Raypak 180K BTU Natural Gas Heater, Digital Ignition, Cupro-Nickel Heat Exchanger, 0-2000 Ft. Elevation, P-R206A-EN-X, 014938$3,39000 Raypak 009225 Digital 266K BTU propane pool heater P-R266A-EP-C Raypak 266K BTU Propane Gas In-ground Pool Heater, Digital Ignition, Copper Heat Exchanger, 0-2000 ft Elevation, P-R266A-EP-C, 009225$3,37400 Raypak 009218 digital 333K BTU natural gas pool heater, model P-R336A-EN-C Raypak Digital 333K BTU Natural Gas Pool Heater, Copper Heat Exchanger, 0-2000 Ft Elevation, P-R336A-EN-C, 009218$3,84100 Raypak P-R406A-EP-X 399K BTU propane pool and spa heater with cupro-nickel heat exchanger, front view Raypak Heater, 360K BTU, Propane Gas, Digital Ignition, Cupro-Nickel Heat Exchanger, 0-2000 Ft. Elevation, P-R406A-EP-X, 014953$4,67600 Raypak AVIA P-R264A-EP-C 264,000 BTU propane low NOx pool heater Raypak AVIA 264K BTU Propane Gas IID Low NOx Pool Heater with WiFi, Copper Tubing, 0-4500 Ft. Elevation, P-R264A-EP-C, 018038$3,49300 Raypak 009221 P-R266A-EN-C #51 high altitude 266K BTU natural gas pool heater Raypak High Altitude R266A Digital Natural Gas Heater, 266K BTU, Copper Exchanger, P-R266A-EN-C #51, 2000-6000 Ft Elevation, 009221$3,37400 Raypak Digital P-R406A-EN-X 399K BTU natural gas pool and spa heater, part 014941 Raypak 360K BTU Natural Gas Pool Heater, Digital Ignition, Cupro-Nickel Heat Exchanger, 0-2000 Ft Elevation, P-R406A-EN-X, 014941$4,67600

Product details

The Coates 34845PHS is a PHS Series electric pool and spa heater rated 45 kW at 480V three phase, with a digital thermostat, a built-in flow switch and an all stainless steel tank.

What it does

Incoloy heating elements warm the water as it passes through the stainless steel tank. The built-in flow switch prevents the heater from operating when there is no water flow and allows operation at flow rates between 20 GPM and 80 GPM. The 36 to 57 kW PHS heaters add a digital thermostat for more precise control of pool water temperature, along with a manual reset high temperature limit.

Features

The heater has heavy duty contactors and element, flow and high temperature on lights. Element fusing is included on units rated over 48 amps, and this model is rated 55 amps. Connections are 2 in. male NPT. The cabinet measures 28 in. long by 15 in. wide by 15 in. high, and the heater is UL Listed for indoor and outdoor installation. It can be used for residential or commercial applications.

Before you order

This model needs a 480V three phase supply that can carry 55 amps. Coates heaters are not recommended for use with salt chlorinators. For lower voltage or single phase supplies, Coates builds other models in the CE and PHS lines.

Specifications
Brand Coates
Manufacturer part number 34845PHS
Series PHS
Type Electric pool and spa heater
Power 45 kW
Voltage 480V
Phase Three phase
Amperage 55 amps
Thermostat Digital
Heating elements Incoloy
Tank Stainless steel
Flow rate range 20 GPM to 80 GPM
Connections 2 in. male NPT
Overall dimensions 28 in. L x 15 in. W x 15 in. H
Listing UL Listed for indoor and outdoor installation
Salt water Not recommended for use with salt chlorinators
Shipping weight 100 lb
Ships Freight

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

Customer reviews

More from Coates

Coates 32054PHS-4 electric pool heater, 54 kW, 208 V three phase Coates Electric Heater, 54 kW, 208 V Three Phase, 32054PHS-4$4,25699 Coates Electric Heater 18kW Three Phase 208V | 32018CE Coates CE Series 18 kW Three Phase 208V Electric Pool and Spa Heater, 32018CE$2,72099 Coates Electric Heater 18kW Single Phase 240V | 12418CE Coates CE Series 18 kW Single Phase 240V Electric Pool and Spa Heater, 12418CE$2,62099 Coates In-Line 1.5kW 120V Electric Heater | 1.5ILS Coates In-Line Spa Heater 1.5 kW 120V with Pressure Switch and 1-1/2 x 2 in. Unions, 1.5ILS$51199 Coates Heater 18kW Element 208V with 4-Bolt Flange & Gasket | 200060 | 20006005 Coates 18 kW 208V Heating Element with 4-Bolt Flange and Gasket for Coates Electric Heaters, 20006005$32999 Coates Heater 12kW 208V with 4-Bolt Flange & Gasket | 20006003 Coates 12 kW 208V Heating Element with 4-Bolt Flange, Gasket and 6 Leads for Coates Electric Heaters, 20006003$32999 Coates Heater 18kW Element 240V with 4-Bolt Flange & Gasket | 200060 | 20006011 Coates 18 kW 240V Heating Element with 4-Bolt Flange and Gasket for Coates Electric Heaters, 20006011$34099 Coates Heater 12kW Element 480V 4-Bolt Flange & Gasket | 20006015 Coates 12 kW 480V Heating Element with 6 Leads, 4-Bolt Flange and Gasket for CE, CPH and PHS Heaters, 20006015$32999 Coates Heater 6kW Element 240V with 4-Bolt Flange & Gasket | 20006046 Coates 6 kW 240V Heating Element with 6 Leads, 4-Bolt Flange and Gasket for CE, CPH and PHS Heaters, 20006046$29699 Coates Heater 6kW Element 480V 4-Bolt Flange & Gasket | 20006056 Coates 6 kW 480V Heating Element with 4-Bolt Flange and Gasket for CE, CPH and PHS Electric Heaters, 20006056$28799
Coates Heater 9kW Elemment 480V with 4-Bolt Flange & Gasket | 20006049 Coates 9 kW 480V Heating Element with 4-Bolt Flange and Gasket for CE, CPH and PHS Electric Heaters, 20006049$29699 Coates Heater 9kW Element 240V with 4-Bolt Flange & Gasket | 20006039 Coates 9 kW 240V Heating Element with 6 Leads, 4-Bolt Flange and Gasket for CE, CPH and PHS Heaters, 20006039$28799 Coates Heater 9KW 208V Element | 20006029 Coates 9 kW 208V Heating Element with 4-Bolt Flange and Gasket for CE, CPH and PHS Electric Heaters, 20006029$29699 Coates Heater Pilot Switch Rocker | 240V | 23001521 Coates Heater RS-2 Lighted Pilot Rocker On/Off Switch, 240V, 23001521$1699 Coates Heaters Contactor 3 Pole 50amp 240V | 21001000 Coates Heater Contactor, 3 Pole, 50 Amp, 240V, 21001000$14099 Coates Heaters 2-Pole Contactor 35 AMP 240V | 21000650 Coates Heaters 2-Pole Contactor 35 AMP 240V | 21000650$6299 Coates Heater 5.5kW Element 240V for 6ILS Heater | 20005155 Coates 5.5 kW 240V Heating Element for 6ILS Series Electric Heaters, 20005155$10599

Questions and answers

What people ask about this product, answered by our pool techs.

What power and voltage is the Coates 34845PHS heater?
The Coates 34845PHS is a PHS Series electric heater rated 45 kW at 480V three phase, 55 amps.
What flow rate does the Coates 34845PHS need?
The built-in flow switch lets the heater operate at flow rates between 20 GPM and 80 GPM and stops operation when there is no water flow.
Can the Coates 34845PHS be used with a salt chlorinator?
No. Coates heaters are not recommended for use with salt chlorinators, so this model is not listed as salt compatible.
What are the plumbing connections on the 34845PHS?
The PHS Series heater has 2 in. male NPT connections.
Ask your own question
