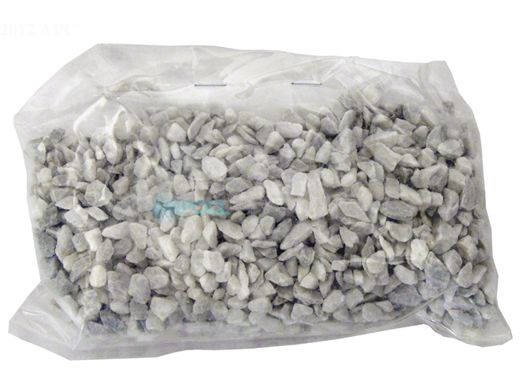

Jandy R0306200 limestone gravel condensate neutralizer for Hi-E2 heatersJandy Limestone Gravel Condensate Neutralizer for Hi-E2 and Hi-E2R Pool Heaters, R0306200 In stock$5499
Jandy R0306200 limestone gravel condensate neutralizer for Hi-E2 heaters
Shop all Jandy

Jandy Limestone Gravel Condensate Neutralizer for Hi-E2 and Hi-E2R Pool Heaters, R0306200

Ask a questionMPN R0306200
$5499
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Neutralizes acidic condensate Hi-E2 condensate typically runs pH 3.5 to 6.0 before treatment, and the limestone raises it.
  • Required in the tray Jandy calls for limestone neutralizer in the condensate tray to prevent corrosion.
  • Replace once a year The Jandy maintenance schedule calls for fresh gravel every year to keep it working.
  • Listed for the model 350 The Jandy Hi-E2 and Hi-E2R manual lists R0306200 in the parts list for the 350.
  • Blue-green color is normal Traces of copper in the condensate settle into the gravel as a blue-green deposit.
  • Refill package Replaces the neutralizer package that comes with the heater condensate assembly.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Jandy Limestone Gravel Condensate Neutralizer for Hi-E2 and Hi-E2R Pool Heaters, R0306200, SKU LAR-151-2497. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Jandy Limestone Gravel Condensate Neutralizer for Hi-E2 and Hi-E2R Pool Heaters, R0306200
Jandy

Limestone Gravel Condensate Neutralizer for Hi-E2 and Hi-E2R Pool Heaters, R0306200

$5499
Jandy Igniter Kit for JXi Heater Models 200/260/400, R0457502
Jandy

Igniter Kit for JXi Heater Models 200/260/400, R0457502

$6299
Jandy Access Door Kit for JXi Heaters, R0589600
Jandy

Access Door Kit for JXi Heaters, R0589600

$4399
Jandy JXi User Interface Kit for Model 200/260/400, R0591900
Jandy

JXi User Interface Kit for Model 200/260/400, R0591900

$24699
Jandy Pressure Switch with Siphon Loop Kit for Model 200/260/400 JXi Heaters, R0457001
Jandy

Pressure Switch with Siphon Loop Kit for Model 200/260/400 JXi Heaters, R0457001

$5899
Jandy 3-Port Manifold for Model 200, 260, 400 JXi Heaters, R0590100
Jandy

3-Port Manifold for Model 200, 260, 400 JXi Heaters, R0590100

$16999
Jandy Gasket and Seals Kit for Model 200, 260, 400 JXi Heaters, R0589500
Jandy

Gasket and Seals Kit for Model 200, 260, 400 JXi Heaters, R0589500

$9699
Subtotal

Similar products

Other products people compare with this one.

Jandy R0050800 18 piece header gasket set for Lite2 LD, LG and LJ pool heaters Jandy Header Gasket Set, 18 Pack, for Lite2 LD, LG and LJ Pool Heaters, R0050800$2799 Raypak 009487F control bezel cover for RP2100 pool heaters Raypak Genuine OEM Control Bezel Cover for RP2100, R185B and R265B Pool Heaters, 009487F$3899 Raypak 010352F pilot mounting bracket for millivolt pool and spa heaters Raypak Pilot Mounting Bracket for 206 to 406 Millivolt Pool and Spa Heaters, 010352F$3699 Pentair 471587 115 F hi-limit thermostat for MiniMax NT and MiniMax CH pool heaters Pentair Hi-Limit Thermostat, 115 F, for MiniMax NT and MiniMax CH Pool Heaters, 471587$4599 Jandy R0317200 hot surface igniter for the Lite2 LD pool heater Jandy Hot Surface Igniter for Lite2 LD Pool Heaters, R0317200$5399 Raypak 007617F burner for 992, 1262, and 1532 pool heaters, product photo Raypak Burner for 992, 1262, and 1532 Pool Heaters, 007617F$8209 Swimables SW-41-024 stack flue sensor for MasterTemp and Max-E-Therm heaters Swimables Generic Stack Flue Sensor for MasterTemp and Max-E-Therm Heaters, SW-41-024$5999 Raypak H000043 50 amp contactor for model 5100, 6100 and 5100Ti pool heaters Raypak 50 Amp Contactor for Model 5100, 6100, 5100Ti Pool Heaters, H000043$6299 Jandy R0590005 manifold backplate for JXi Model 400 pool heater Jandy R0590005 Manifold Backplate for Model 400 JXi Heaters$6599 Jandy R0460105 air chamber cover for LXi 400 Low NOx pool and spa heater Jandy Air Chamber Cover for LXi 400 Low NOx Pool/Spa Heater, R0460105$4299
Raypak 017045F burner for 207A to 407A swimming pool heaters Raypak 017045F Burner for 207A-407A Swimming Pool Heaters$6599 Swimables SW-41-007 generic thermal regulator for MasterTemp and Max-E-Therm heaters Swimables Generic Thermal Regulator for MasterTemp and Max-E-Therm Heaters, SW-41-007$6199 Raypak 006736F transformer 120/240/24 V for 185A, 265A, 335A and 405A pool heaters Raypak Genuine OEM Transformer for Model 185A, 265A, 335A, 405A Pool Heater, 120/240/24 V, 006736F$7599 Hayward FDXLEGL1930 exhaust gas temperature limit for H-Series pool heaters Hayward Exhaust Gas Temperature Limit for H-Series Heaters, FDXLEGL1930$3699 Raypak H000025 water pressure switch for Model 5100, 6100 and 5100ti Raypak Water Pressure Switch for Model 5100, 6100, 5100ti Pool Heater, H000025$4899 Sta-Rite 77707-0011 blower and adapter plate gasket kit for Max-E-Therm and MasterTemp Sta-Rite Adapter Plate Gasket Kit for Max-E-Therm and MasterTemp Heater Burner System, 77707-0011$7799 Raypak H000078 low pressure switch for heat pump pool heaters Raypak H000078 Low Pressure Switch for 2350, 3350, 4350, 5350, 6350 and 8350 Heat Pumps$6799 Pentair 77707-0120 manifold o-ring kit for Max-E-Therm and MasterTemp heaters Pentair Manifold O-Ring Kit for Max-E-Therm and MasterTemp Heater Burner System, 77707-0120$2999 Jandy R0457503 igniter for the Hi-E2 pool heater Jandy Igniter for Hi-E2 Heater, R0457503$6899 Raypak 011926F pilot tube for Model 207A and 267A Low NOx pool heaters Raypak Pilot Tube for Model 207A, 267A Low NOx Pool Heater, 011926F$5799

Product details

The Jandy R0306200 is the replacement limestone gravel for the condensate tray of Pro Series Hi-E2 and Hi-E2R gas pool and spa heaters. The Jandy parts list names it the condensate neutralizer for the model 350.

What it does

The Hi-E2 is a high efficiency heater that cools its combustion gases so far that water condenses out of them, and Jandy notes that very cold pool water can produce 2 or 3 gallons of condensate an hour. That water is mildly acidic, typically pH 3.5 to 6.0 before treatment. It drains into the trap and neutralizer assembly, where the limestone raises the pH. Jandy calls the neutralizer necessary to prevent corrosion.

When to replace it

Jandy's schedule is once a year. At that service, check that condensate drains freely and that the tray holds enough neutralizer and water to keep the water seal in the trap. A blue-green deposit in old gravel is normal: small traces of copper settle out as the limestone raises the pH.

Installing the refill

Spread the gravel evenly through the tray and around the drain tubes, and make sure no pebble blocks a tube. Add water up to the level of the overflow, then put the tray cover back on.

Specifications
Brand Jandy
Manufacturer part number R0306200
UPC 052337013772
Type Limestone gravel condensate neutralizer
Fits Jandy Pro Series Hi-E2 and Hi-E2R (Model EHE) gas pool and spa heaters, model 350
Location Condensate tray of the trap and neutralizer assembly
Replacement interval Once a year
Related parts Condensate trap assembly R0303300, condensate trap cover R0213300, combustion air filter R0308000
Shipping weight 2.65 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

From Jandy

A swimmer diving from the blocks in a dark pool. Everything you need for the perfect pool. Jandy

Jandy equipment

Jandy AquaLink AquaPure 3-Port 14-Blade Replacement Salt Cell Kit, 40K Gallons, 16' Cable, PLC1400 Jandy 2" Side Mount Multi-Port Valve with Unions for DEV48/60, JS60-SM or JS100-SM, BWVL-MPV-80 Jandy TruGuard Mineral Sanitizer Replacement Cartridge, TRUGUARDR Jandy 1-1/2 in. x 2 in. Neverlube Positive Seal 3-Port Diverter Valve, 4715
Shop Jandy equipment

Genuine Jandy parts

Jandy R0693900 TruClear PCB Cell Replacement Assembly for Pro Series Chlorine Generator Jandy Lid & Lock-Ring Assembly with Seal, PHPF/PHPM, R0448800 Jandy Genuine Replacement Gauge with Air Release Assembly, R0357200 Jandy Replacement Bottom Tank Assembly for CL & DEV Model Filters, R0466500
Shop Jandy parts
Heater parts: a Jandy JXi heaterPump parts: a Jandy VS FloPro variable speed pumpSalt systems: a Jandy AquaPure salt cell
Jandy makes pumps, filters, heaters, salt chlorinators, valves, lighting and automation for pools and spas.Shop all Jandy

Customer reviews

More from Jandy

Jandy R0693900 TruClear PCB replacement assembly Jandy R0693900 TruClear PCB Cell Replacement Assembly for Pro Series Chlorine Generator$75499 Jandy R0452500 new style port sensor kit for 3 port AquaPure cell with 16 ft cable Jandy Port Sensor Kit for 3 Port Cell with 16' Cable, R0452500$24599 Jandy R0448800 clear pump lid and black lock ring assembly with seal, PHPF/PHPM Jandy Lid & Lock-Ring Assembly with Seal, PHPF/PHPM, R0448800$7899 Jandy PLC1400 AquaPure 3 port 14 blade replacement salt cell kit with 16 ft cable Jandy AquaLink AquaPure 3-Port 14-Blade Replacement Salt Cell Kit, 40K Gallons, 16' Cable, PLC1400$1,39500 Jandy R0452400 AquaPure PureLink 3-port 14-blade replacement salt cell Jandy AquaPure PureLink 3-Port 14-Blade 1400 Replacement Salt Cell Kit for 40,000 Gallon Pools, R0452400$1,22900 Jandy R0466500 replacement bottom tank assembly for CL and DEV filters with unions, outlet elbow and retaining ring Jandy Replacement Bottom Tank Assembly for CL & DEV Model Filters, R0466500$67399 Jandy R0984100 AquaPure power interface PCB large backboard with screws Jandy R0984100 AquaPure Power Interface PCB, Large Backboard with Screws$23999 Zodiac R0503000 Nature2 Fusion Soft 1400 replacement cell kit for pools to 40,000 gallons Zodiac Nature2 Fusion Soft 1400 Cell Kit for 40,000-Gallon Pools, R0503000$1,04900 Jandy BWVL-MPV-80 2 in. side mount multiport valve with unions Jandy 2" Side Mount Multi-Port Valve with Unions for DEV48/60, JS60-SM or JS100-SM, BWVL-MPV-80$32799 Jandy R0357200 pressure gauge with air release assembly, front view Jandy Genuine Replacement Gauge with Air Release Assembly, R0357200$7999
Jandy R0445800 pump lid and locking ring assembly with o-ring for Stealth and ePump pumps Jandy Lid & Locking Ring Assembly with O-Ring, R0445800$11799 Jandy R0554700 tank top for CV, CL, DEV and DEL series filters Jandy CV Series Cartridge Filter Tank Top R0554700$52299 Jandy R0402800 16 ft AquaPure PureLink DC cell cord for the 3-port cell Jandy 16' AquaPure PureLink DC Cell Cord, R0402800$2599 Jandy R0452300 AquaPure PureLink 3-port 7-blade replacement salt cell kit with 16 ft cord Jandy AquaPure PureLink 3-Port 7-Blade Replacement Cell Kit, R0452300$70099 Jandy 4424 JVA 24V valve actuator Jandy Valve Actuator JVA 24V, 4424$23399 Jandy R0479800 pump housing body for FloPro FHPM and VS FloPro pumps Jandy Pump Housing Body for FHPM FloPro & VS FloPro, R0479800$24899 Jandy R0461900 gray top housing assembly for CS100 and CS150 cartridge filters Jandy Top Housing Assembly CS100, CS150, R0461900$33199 Jandy TRUGUARDR TruGuard mineral sanitizer replacement cartridge Jandy TruGuard Mineral Sanitizer Replacement Cartridge, TRUGUARDR$24899 Jandy R0445601 pump body for Stealth SHPF/SHPM, WaterFall SWF and ePump JEP, rear view Jandy Pump Body for Stealth SHPF/SHPM Pumps, R0445601$38199 Jandy R0663800 cover assembly with user interface for the TruClear chlorine generating system Jandy Cover Assembly with User Interface for TruClear Chlorine Generating System, R0663800$41999

Questions and answers

What people ask about this product, answered by our pool techs.

Will R0306200 fit my Jandy Hi-E2 heater?
The current Jandy Hi-E2 and Hi-E2R manual lists R0306200 as the limestone gravel for the model 350. If your rating plate shows a different model, check the parts list in that heater's manual before ordering.
How often should Hi-E2 limestone gravel be replaced?
Once a year. Jandy says the Hi-E2 needs limestone neutralizer in the condensate tray to prevent corrosion and calls for replacing it annually, so R0306200 belongs on the yearly service list with the R0308000 combustion air filter.
How do I install the new limestone gravel?
Spread the R0306200 gravel evenly through the condensate tray and around the drain tubes, making sure no pebble plugs a tube. Add water until it reaches the height of the overflow, then put the tray cover back on.
Why is the old gravel blue-green?
A blue-green deposit in used R0306200 limestone gravel is normal. Hi-E2 condensate carries very small amounts of copper, and as the limestone raises the pH the copper settles out and stays in the gravel.
