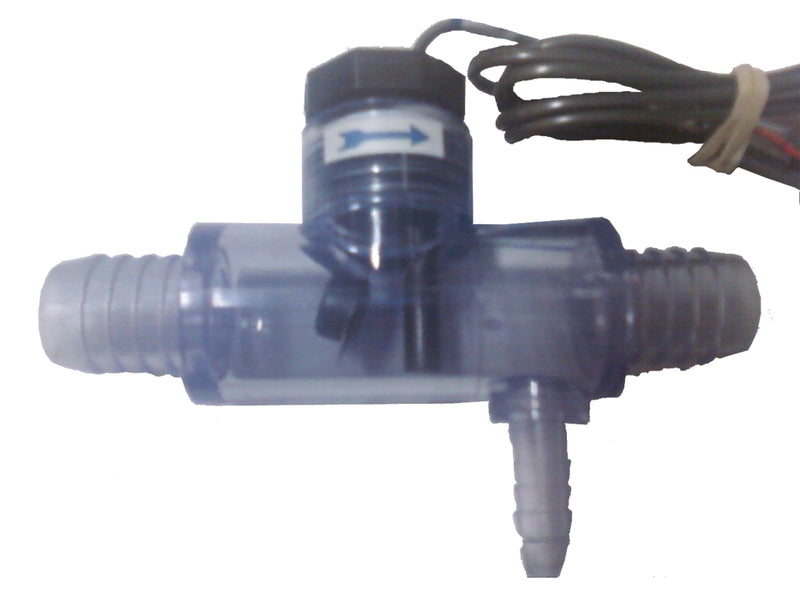

Harwil Q-12DS-C2/SUN860 flow switch with teeHarwil Flow Switch with Tee In stock$8799
Harwil Q-12DS-C2/SUN860 flow switch with tee
Shop all Harwil

Harwil Flow Switch with Tee

Ask a questionMPN Q-12DS-C2/SUN860
$8799
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Tee included The switch ships with the tee it threads into, so the plumbing fitting is not a separate purchase.
  • SPNO contacts Single pole normally open, so the circuit closes only once water is moving.
  • Wide flow window Rated from 0.7 gpm up to 590 gpm, which covers small feature loops and full circulation lines.
  • Rated to 250 psi The pressure rating leaves plenty of headroom over normal pool system pressure.
  • Standard 1/2 inch MPT Threads into the supplied tee on a 1/2 inch male pipe thread.
  • Low voltage and line voltage Contacts are rated 300 VAC and 350 VDC at 0.5 A, 50 W.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Harwil Flow Switch with Tee, SKU HWL-851-1003. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Harwil Flow Switch with Tee
Harwil

Flow Switch with Tee

$8799
Jandy R0693900 TruClear PCB Cell Replacement Assembly for Pro Series Chlorine Generator
Jandy

R0693900 TruClear PCB Cell Replacement Assembly for Pro Series Chlorine Generator

$75499
Jandy Port Sensor Kit for 3 Port Cell with 16' Cable, R0452500
Jandy

Port Sensor Kit for 3 Port Cell with 16' Cable, R0452500

$24599
Hayward CL200EF In-Line Automatic Pool Chlorinator, 9 lb Chemical Feeder
Hayward

CL200EF In-Line Automatic Pool Chlorinator, 9 lb Chemical Feeder

$12999
Jandy R0984100 AquaPure Power Interface PCB, Large Backboard with Screws
Jandy

R0984100 AquaPure Power Interface PCB, Large Backboard with Screws

$23999
Jandy AquaLink AquaPure 3-Port 14-Blade Replacement Salt Cell Kit, 40K Gallons, 16' Cable, PLC1400
Jandy

AquaLink AquaPure 3-Port 14-Blade Replacement Salt Cell Kit, 40K Gallons, 16' Cable, PLC1400

$1,39500
Jandy AquaPure PureLink 3-Port 14-Blade 1400 Replacement Salt Cell Kit for 40,000 Gallon Pools, R0452400
Jandy

AquaPure PureLink 3-Port 14-Blade 1400 Replacement Salt Cell Kit for 40,000 Gallon Pools, R0452400

$1,22900
Subtotal

Similar products

Other products people compare with this one.

Hayward GLX-FLO-RP replacement flow switch, 1/2 in. MPT with 15 ft cord Hayward 1/2 in. MPT Replacement Flow Switch with 15' Cord, GLX-FLO-RP$10699 Solaxx GNR00003 flow switch with round connector for Saltron Reliant Solaxx Flow Switch with Round Connector, GNR00003$12099 Hayward Goldline P-KIT Aqua Rite flow switch and union plumbing kit Hayward Flow Switch with Unions, Aquarite Plumbing Kit, P-KIT$8099 Pentair 523100 iChlor flow switch Pentair iChlor Flow Switch, 523100$9499 Hayward Goldline GLX-FLO-RP AquaRite flow switch with 15 ft cable Hayward OEM Flow Switch Kit, 15' Cable, GLX-FLO-RP$10999 Solaxx FLW-BL-D digital flow switch Solaxx Digital Flow Switch FLW-BL-D$11899 AutoPilot 952-SVC 12 ft salt cell cord with 3-pin connector AutoPilot 12' Salt Cell Cord with 3-Pin Connector, 952-SVC$5599 Jandy R0840300 TruClear 11K cell side cable assembly with wire connector Jandy TruClear Cable Assembly and Cell Side Wire Connector, R0840300$11199 Jandy R0621900 winterizing cap for the Pro Series TruClear chlorine generating system Jandy Winterizing Cap for Pro Series TruClear Chlorine Generating System, R0621900$7199 CompuPool JD363102Z clear electrode housing body for CPSC series salt chlorinators CompuPool Clear Electrode Housing Body for CPSC Series, JD363102Z$5899
CaliMar CMARSGH clear housing for SGS Wave and Breeze and CMP PowerClean systems CaliMar Clear Housing for SGS Wave and Breeze and CMP PowerClean Systems, CMARSGH$12900 Web Price Eco-Matic M2679 cell cord for all ESC model chlorinators Eco-Matic 10' Cell Cord for All ESC Models, M2679$9799 Pentair 523102 iChlor spacer kit Pentair iChlor Spacer Kit, 523102$9299 Pentair 520595 IntelliChlor replacement unions, set of 2 with O-rings, couplers and nuts Pentair IntelliChlor Replacement Unions, Set of 2, 520595$4799 AutoPilot STK0066 wire and cable replacement kit for Nano and Nano Plus Cubby AutoPilot Nano and Nano+ Wire and Cable Replacement Kit, STK0066$8399 CMP PowerClean Salt Ultra winterizing cell cap kit CMP PowerClean Salt Ultra Winterizing Cell Cap Kit, 52000-120-120$8799 Hayward GLX-CELLSTAND T-Cell salt cell cleaning stand Hayward T-Cell Salt Cell Cleaning Stand, GLX-CELLSTAND$5999 Pentair 520588 IntelliChlor pass-through cell for winter Pentair IntelliChlor Pass-through Cell for Winter, 520588$7399 Hayward GLX-DIY-UNION Salt & Swim Pro replacement union kit Hayward Salt & Swim Pro Replacement Union Kit, GLX-DIY-UNION$6299 AutoPilot 952-ST/DIG-SVC 12 foot salt cell cord for DIG and ST control panels AutoPilot Salt Cell Cord for DIG & ST Control Panels, 12-Foot$12399

Product details

The Harwil Q-12DS-C2/SUN860 is a flow switch supplied together with the tee it mounts into. It proves that water is actually moving in the line before the equipment it protects is allowed to run.

Ratings

The contacts are single pole normally open and rated 300 VAC and 350 VDC at 0.5 A, 50 W. The body is rated to 250 psi and the switch responds across a flow range of 0.7 to 590 gpm, so it suits both small loops and full size circulation plumbing.

Fitting

The connection is 1/2 inch MPT into the included tee. Because the tee is part of the package, a replacement swap needs no extra plumbing fitting, only the pipe work to bring the tee into the line.

From Pool School

When to Replace a Salt CellThe life each manufacturer prints, what looks like a dead cell and is not, and choosing the next one. Read How to Clean a Salt CellHose first, acid only on scale that stays, and each manufacturer's own mix and time limit. Read
Specifications
Brand Harwil
Manufacturer part number Q-12DS-C2/SUN860
Type SPNO flow switch with tee
Contact configuration SPNO
Voltage rating 300 VAC/350 VDC
Current rating 0.5 A
Power rating 50 W
Pressure rating 250 psi
Flow range 0.7 to 590 gpm
Connection 1/2 Inch MPT
Shipping weight 1 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

Customer reviews

Questions and answers

What people ask about this product, answered by our pool techs.

Does the tee come with the switch?
Yes. This listing is the Q-12DS-C2/SUN860 flow switch supplied with its tee.
What does SPNO mean here?
Single pole normally open. The contacts sit open with no flow and close once water moves through the tee, so the switch proves flow before equipment is allowed to run.
What flow does it respond to?
The switch is rated for a range of 0.7 to 590 gpm.
What thread size do I need in the plumbing?
The switch uses a 1/2 inch MPT connection into the supplied tee.
