Jandy Half Union Kit with Drain Plug Cap (Set of 3), R0461800

Ask a questionMPN R0461800
$10899
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

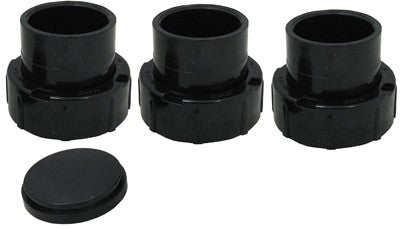

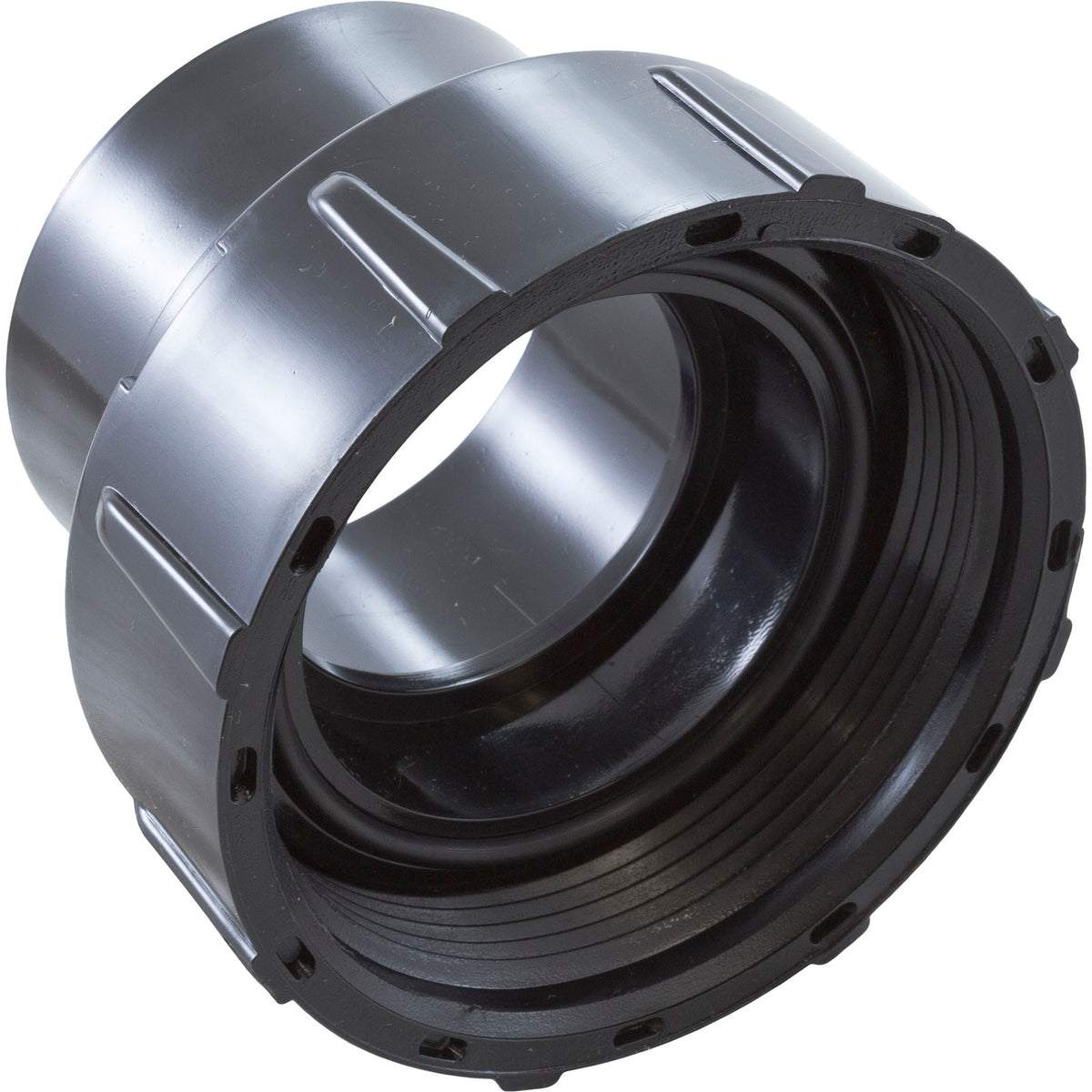

  • Three half unions Three union nuts marked A0578900, three 2-1/2 in. slip tailpieces marked A0578800 and three union o-rings.

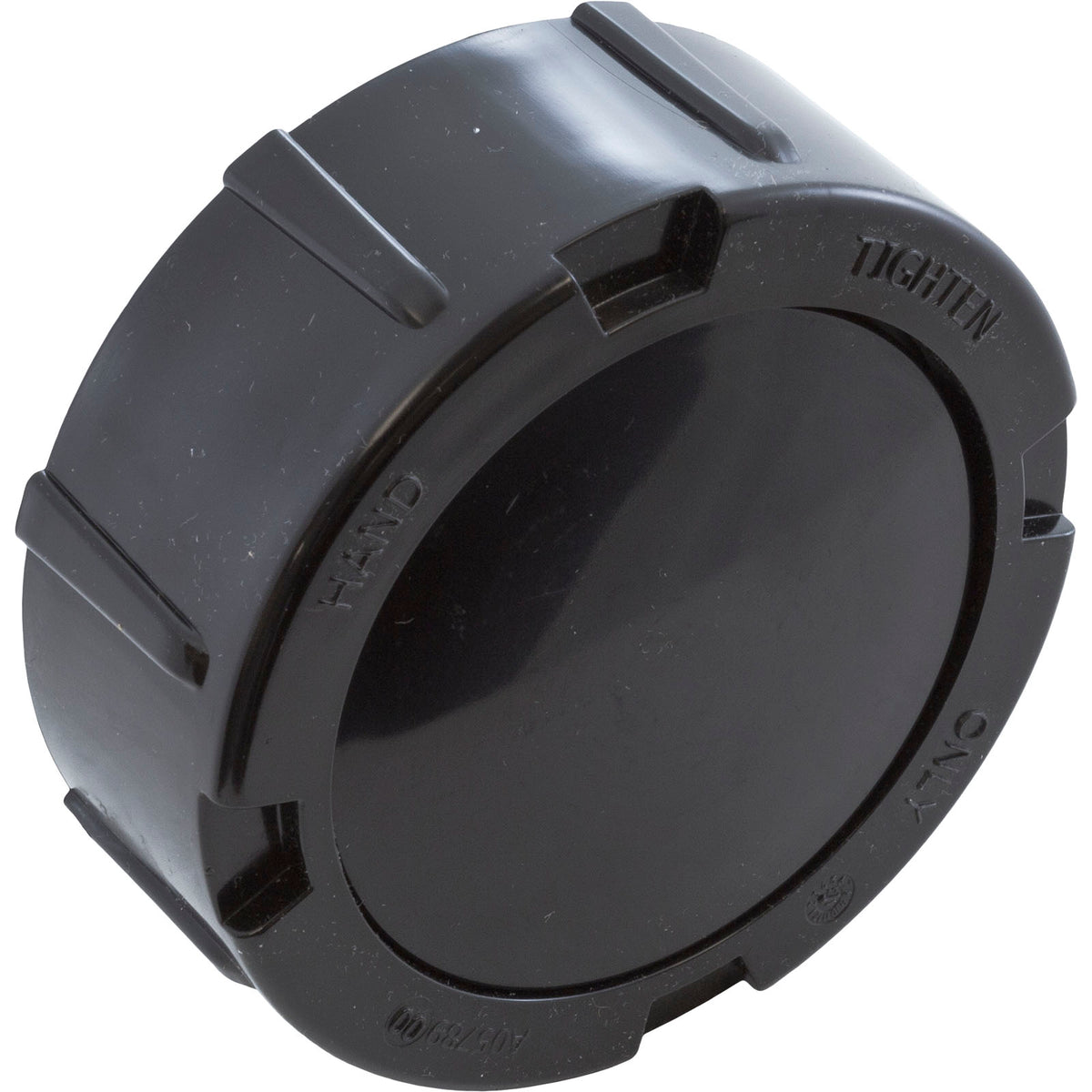

  • Drain cap included One drain cap end, marked A0118300, for the filter drain.
  • O-ring size 2-7/8 in. OD by 2-5/8 in. ID, one per union.
  • Fits six Jandy filter families CV340, CV460, CV580, CL340, CL460, CL580, CS150, CS200, CS250, CJ200, CJ250, DEV48, DEV60, DEL48 and DEL60.
  • 2 in. by 2-1/2 in. The union size used on these cartridge and DE filters.
  • Genuine Jandy Part number R0461800, UPC 052337023771.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Jandy Half Union Kit with Drain Plug Cap (Set of 3), R0461800, SKU TLD-051-5573. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Jandy Half Union Kit with Drain Plug Cap (Set of 3), R0461800
Jandy

Half Union Kit with Drain Plug Cap (Set of 3), R0461800

$10899
Jandy Replacement Bottom Tank Assembly for CL & DEV Model Filters, R0466500
Jandy

Replacement Bottom Tank Assembly for CL & DEV Model Filters, R0466500

$69499
Jandy Genuine Replacement Gauge with Air Release Assembly, R0357200
Jandy

Genuine Replacement Gauge with Air Release Assembly, R0357200

$8299
Jandy 2" Side Mount Multi-Port Valve with Unions for DEV48/60, JS60-SM or JS100-SM, BWVL-MPV-80
Jandy

2" Side Mount Multi-Port Valve with Unions for DEV48/60, JS60-SM or JS100-SM, BWVL-MPV-80

$32799
Jandy CV Series Cartridge Filter Tank Top R0554700
Jandy

CV Series Cartridge Filter Tank Top R0554700

$53899
Jandy Top Housing Assembly CS100, CS150, R0461900
Jandy

Top Housing Assembly CS100, CS150, R0461900

$33699
Jandy Tank Body O-Ring, R0357800
Jandy

Tank Body O-Ring, R0357800

$6399
Subtotal

Similar products

Other products people compare with this one.

Jandy R0358800 drain plug with O-ring for DEL series filters Jandy Drain Plug with O-Ring for DEL48/60 Filters, R0358800$7199 Jandy R0358400 inlet elbow with o-ring for DEV series DE filters Jandy Inlet Elbow with O-Ring, R0358400$8599 Jandy R0359000 manifold assembly for DEV48, DEV60, DEL48 and DEL60 DE filters Jandy Genuine OEM Manifold Assembly for DEV48/60 and DEL48/60 DE Filters, R0359000$12099 Jandy R0359500 D.E. grid support for DEV and DEL Series filters Jandy D.E. Grid Support, R0359500$9599 Jandy R0405200 filter tank retaining ring Jandy Tank Retaining Ring, R0405200$12199 Jandy SEFL1002 sweep elbow Flowlink with 1/2 inch plug Jandy Sweep Elbow Flowlink with Plug, SEFL1002$3699 Jandy R0358000 O-ring replacement kit for DEV Series DE filters Jandy O-Ring Replacement Kit, R0358000$3499 Jandy R0552000 tank adapter with o-ring Jandy Tank Adapter with O-Ring, R0552000$3399 Jandy R0358700 breather tube assembly kit for CV, CL, DEV and DEL filters Jandy Breather Tube Assembly Replacement Kit, R0358700$2799 Jandy R0405100 top spacer collar for DE filters Jandy Top Spacer Collar, R0405100$3899
Jandy R0359700 DE grid top spacer for DEL and DEV series filters Jandy DE Grid Top Spacer for DEL and DEV Filters, R0359700$2999 Jandy R0359400 tie rod knob for DEV and DEL series DE filters Jandy Tie Rod Knob, R0359400$2699

Product details

The Jandy R0461800 is the half union and drain cap set used on the Jandy CV and DEV filters and their relatives. It is sold as a set of three unions, so every connection on the filter can be refreshed in one go.

What is in the box

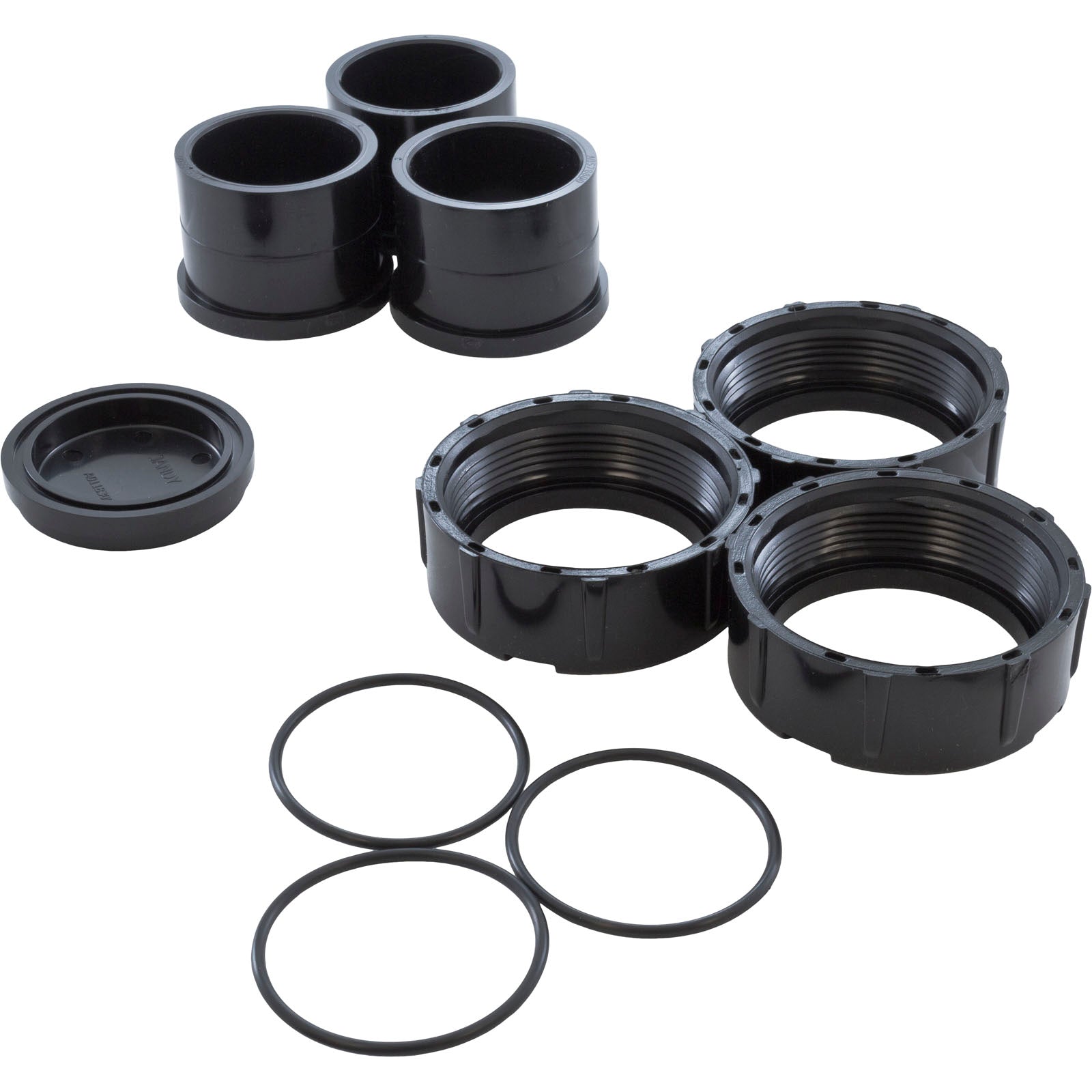

Three union nuts marked A0578900, three 2-1/2 in. slip tailpieces marked A0578800, three union o-rings at 2-7/8 in. OD by 2-5/8 in. ID, and one drain cap end marked A0118300.

Fit

The kit fits the CV340, CV460 and CV580, the CL340, CL460 and CL580, the CS150, CS200 and CS250, the CJ200 and CJ250, the DEV48 and DEV60 and the DEL48 and DEL60. The union size is 2 in. by 2-1/2 in.

When to order it

Cracked union nuts, tailpieces that will not seal and o-rings that have gone flat are the usual reasons. Because it is the filter side of the union, the pipe side can stay glued in place.

Specifications
Brand Jandy
Manufacturer part number R0461800
UPC 052337023771
Type Half union kit with drain plug cap
Size 2 in. x 2-1/2 in.
Union nuts 3, marked A0578900
Tailpieces 3, 2-1/2 in. slip, marked A0578800
Union o-rings 3, 2-7/8 in. OD x 2-5/8 in. ID
Drain cap end 1, marked A0118300
Fits Jandy CV340, CV460, CV580, CL340, CL460, CL580, CS150, CS200, CS250, CJ200, CJ250, DEV48, DEV60, DEL48, DEL60 filters
Shipping weight 1.6 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

From Jandy

A swimmer diving from the blocks in a dark pool. Everything you need for the perfect pool. Jandy

Jandy equipment

Jandy AquaLink AquaPure 3-Port 14-Blade Replacement Salt Cell Kit, 40K Gallons, 16' Cable, PLC1400 Jandy 2" Side Mount Multi-Port Valve with Unions for DEV48/60, JS60-SM or JS100-SM, BWVL-MPV-80 Jandy TruGuard Mineral Sanitizer Replacement Cartridge, TRUGUARDR Jandy 1-1/2 in. x 2 in. Neverlube Positive Seal 3-Port Diverter Valve, 4715
Shop Jandy equipment

Genuine Jandy parts

Jandy R0693900 TruClear PCB Cell Replacement Assembly for Pro Series Chlorine Generator Jandy Lid & Lock-Ring Assembly with Seal, PHPF/PHPM, R0448800 Jandy Genuine Replacement Gauge with Air Release Assembly, R0357200 Jandy Replacement Bottom Tank Assembly for CL & DEV Model Filters, R0466500
Shop Jandy parts
Heater parts: a Jandy JXi heaterPump parts: a Jandy VS FloPro variable speed pumpSalt systems: a Jandy AquaPure salt cell
Jandy makes pumps, filters, heaters, salt chlorinators, valves, lighting and automation for pools and spas.Shop all Jandy

Customer reviews

More from Jandy

Jandy R0693900 TruClear PCB replacement assembly Jandy R0693900 TruClear PCB Cell Replacement Assembly for Pro Series Chlorine Generator$76799 Jandy R0452500 new style port sensor kit for 3 port AquaPure cell with 16 ft cable Jandy Port Sensor Kit for 3 Port Cell with 16' Cable, R0452500$24599 Jandy R0448800 clear pump lid and black lock ring assembly with seal, PHPF/PHPM Jandy Lid & Lock-Ring Assembly with Seal, PHPF/PHPM, R0448800$7899 Jandy PLC1400 AquaPure 3 port 14 blade replacement salt cell kit with 16 ft cable Jandy AquaLink AquaPure 3-Port 14-Blade Replacement Salt Cell Kit, 40K Gallons, 16' Cable, PLC1400$1,39500 Jandy R0452400 AquaPure PureLink 3-port 14-blade replacement salt cell Jandy AquaPure PureLink 3-Port 14-Blade 1400 Replacement Salt Cell Kit for 40,000 Gallon Pools, R0452400$1,22900 Jandy R0466500 replacement bottom tank assembly for CL and DEV filters with unions, outlet elbow and retaining ring Jandy Replacement Bottom Tank Assembly for CL & DEV Model Filters, R0466500$69499 Jandy R0984100 AquaPure power interface PCB large backboard with screws Jandy R0984100 AquaPure Power Interface PCB, Large Backboard with Screws$23999 Zodiac R0503000 Nature2 Fusion Soft 1400 replacement cell kit for pools to 40,000 gallons Zodiac Nature2 Fusion Soft 1400 Cell Kit for 40,000-Gallon Pools, R0503000$1,04900 Jandy BWVL-MPV-80 2 in. side mount multiport valve with unions Jandy 2" Side Mount Multi-Port Valve with Unions for DEV48/60, JS60-SM or JS100-SM, BWVL-MPV-80$32799 Jandy R0357200 pressure gauge with air release assembly, front view Jandy Genuine Replacement Gauge with Air Release Assembly, R0357200$8299
Jandy R0445800 pump lid and locking ring assembly with o-ring for Stealth and ePump pumps Jandy Lid & Locking Ring Assembly with O-Ring, R0445800$12099 Jandy R0554700 tank top for CV, CL, DEV and DEL series filters Jandy CV Series Cartridge Filter Tank Top R0554700$53899 Jandy R0402800 16 ft AquaPure PureLink DC cell cord for the 3-port cell Jandy 16' AquaPure PureLink DC Cell Cord, R0402800$2699 Jandy R0452300 AquaPure PureLink 3-port 7-blade replacement salt cell kit with 16 ft cord Jandy AquaPure PureLink 3-Port 7-Blade Replacement Cell Kit, R0452300$72299 Jandy 4424 JVA 24V valve actuator Jandy Valve Actuator JVA 24V, 4424$23399 Jandy R0479800 pump housing body for FloPro FHPM and VS FloPro pumps Jandy Pump Housing Body for FHPM FloPro & VS FloPro, R0479800$25699 Jandy R0461900 gray top housing assembly for CS100 and CS150 cartridge filters Jandy Top Housing Assembly CS100, CS150, R0461900$33699 Jandy TRUGUARDR TruGuard mineral sanitizer replacement cartridge Jandy TruGuard Mineral Sanitizer Replacement Cartridge, TRUGUARDR$25599 Jandy R0445601 pump body for Stealth SHPF/SHPM, WaterFall SWF and ePump JEP, rear view Jandy Pump Body for Stealth SHPF/SHPM Pumps, R0445601$39399 Jandy R0663800 cover assembly with user interface for the TruClear chlorine generating system Jandy Cover Assembly with User Interface for TruClear Chlorine Generating System, R0663800$43299

Questions and answers

What people ask about this product, answered by our pool techs.

What comes in the kit?
Three union nuts marked A0578900, three 2-1/2 in. slip tailpieces marked A0578800, three union o-rings at 2-7/8 in. OD by 2-5/8 in. ID, and one drain cap end marked A0118300.
Which filters does it fit?
The Jandy CV340, CV460 and CV580, CL340, CL460 and CL580, CS150, CS200 and CS250, CJ200 and CJ250, DEV48 and DEV60, and DEL48 and DEL60.
Why three unions?
It covers the union connections on the filter plus the drain, so one kit refreshes every connection at once.
Are these the filter side of the union only?
Yes. These are half unions: the nut, the tailpiece and the o-ring that mate to the filter. They glue to 2-1/2 in. pipe on the slip end.
