Waterway 1 THP 2-Speed Pump with 22" Clearwater Sand Filter Complete Aboveground Pool Equipment System, 522-5247-6S In stock$62799
Waterway 1 THP 2-Speed Pump with 22" Clearwater Sand Filter Complete Aboveground Pool Equipment System, 522-5247-6S
$62799
FREE Delivery
Typically ships within 0 days This item ships directly from the manufacturer.
In stock
30 day returns · Easy, with prepaid labels provided
Quick overview
- Filter and pump together Sold as one aboveground equipment system rather than as separate filter and pump purchases.
- Large 22 inch sand filter The bigger Clearwater tank holds more media, which is what buys longer runs between backwashes.
- High flow laterals Durable laterals inside the tank carry the flow rate the Hi-Flo II pump pushes.
- Two speed pump The 1 THP Hi-Flo II runs low for everyday filtering and high when the pool needs turnover or a backwash.
- Large 6 inch pump trap A 6 inch trap with a two piece lid means fewer basket emptying trips and easier access when it is time.
- Union connection on the multiport The multiport valve lands on a union, so the filter can be broken loose for service without cutting pipe.
Need a hand?
Bilingual support from pool professionals.
Similar products
Other products people compare with this one.
Swimline 18' Round Liberty 52" Uni-Bead Liner, Heavy Gauge, LI1852LTU25$50499
Swimline 33' Round 54" Wall Mystri Gold Unibead Above Ground Liner, 25 mil, LI3354MGU25$93799
Swimline 18' Round Boulder Swirl 54" Uni-Bead Liner, Heavy Gauge, LI1854BSU25$32999
Wilbar Ledge Cover, Outer, 1490830$2199
IMC Pretium 15' Round 52" Steel Wall Pool Only | PPRE-1552SSSTSSFC0$1,23299
IMC Pretium 21' Round 52" Steel Wall Pool Only | PPRE-2152SSSTSSFC0$1,48399
Trendium Pretium 27 ft. Round, 52 in. Deep Above Ground Pool, PPRE-2752SSSTSSFC0$1,72899
Trendium Magnus 15' Round, 54" Deep Above Ground Pool, PMAGELL-1554RSRSRSB11-TS$1,89699
Trendium Regency LX 15' Round, 54" Deep Above Ground Pool, PREGLX-1552RSRRRRF41$1,89999
CaliFun Soft Sided Frame Above Ground Swimming Pool Package, 10 ft x 18 ft Rectangle, 52 in. Tall, CF-1018 Kit$1,90399
Trendium Pretium 12'x21' Oval Above Ground Pool, 52 in. Deep, PPREGLX-CH121852SSSTSSFBO$1,99699
Trendium Pretium 12'x24' Oval, 52" Deep Above Ground Pool, PPRE-CH122452SSSTSSFC0$2,06499
Trevi 12'x18' Oval Essex Above Ground Pool Package, 52" Wall, Blue Overlap Liner, 16" Sand Filter System, 3/4 HP Pump, A-Frame Ladder and Skimmer$2,09399
IMC Pretium 30' Round 52" Steel Wall Pool Only | PPRE-3052SSSTSSFC0$2,03299
Trendium Pretium 15'x30' Oval Above Ground Pool, 52 in. Deep, PPRE-CH153052SSSTSSFC0$2,21799
Trendium Pretium 18'x33' Oval, 52" Deep Above Ground Pool, PPRE-CH183352SSSTSSFC0$2,38599
Trevi 16'x32' Oval Essex Above Ground Pool Package, 52 in. Wall, PW163252ECHO$3,80699
Trendium Magnus 18' x 33' Oval, 54 in. Deep Above Ground Pool, PMAGELL-YE183354RSRSRSB11-TS$4,20199
Gladon 4' Peel-N-Stick Above Ground Pool Cove, PNP192XL$1399
Gladon Sure Seam Tape, 2 in. x 180 ft. Roll, SS260$2799
From Waterway
Waterway equipment
Waterway Power Defender Variable Speed Pump 1.65HP 230V, PD-165
Waterway 150 Sq. Ft. 1.5 HP 2 Speed Clearwater Cartridge Filter System, 522-5167-6S
Waterway Complete Renegade Vinyl Skimmer, Wide Mouth, 9 in. Throat, White, 540-8500
Waterway 3/4 HP Booster Pump, SG3810430-1PDA
Waterway parts
Waterway Renegade Pool Skimmer Basket, 542-3240
Waterway 6 in. Pump Trap Assembly, 2 in. x 2 in. Ports, 310-6600
Waterway Adjustable Spa Jet, Gunite, 210-3400
Waterway Poly Gunite Jet Assembly 1.5" x 2" Tee Body, 210-3700
Waterway makes pumps, filters, skimmers, jets, valves and fittings for pools, spas and baths.Shop all Waterway
Product details

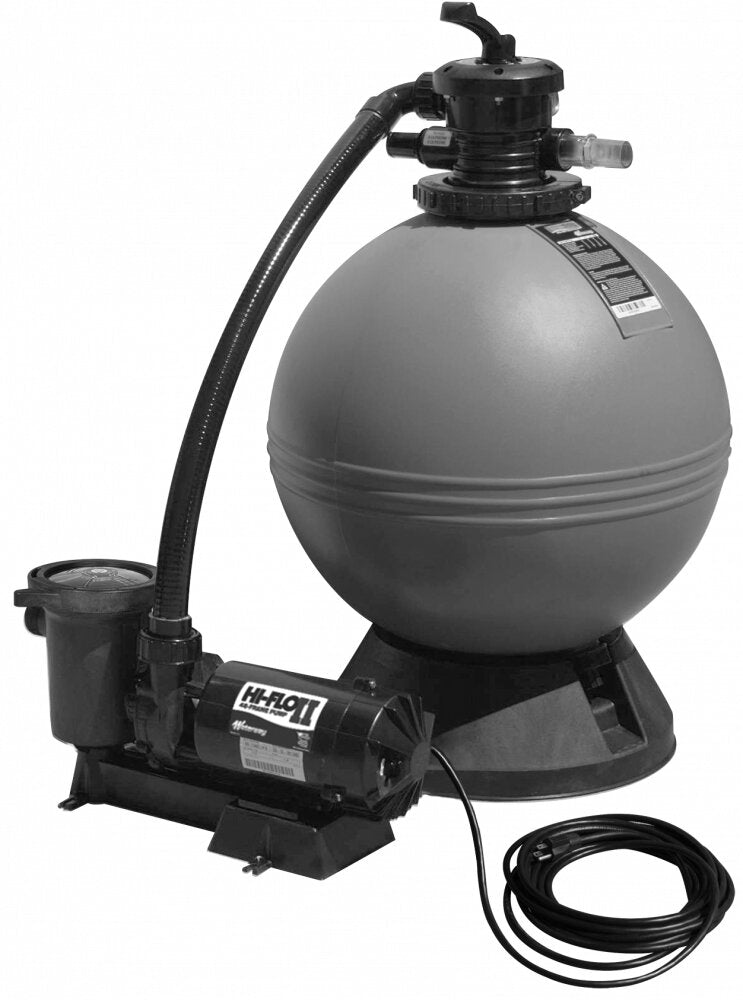

The Waterway 522-5247-6S is a complete aboveground pool equipment system: a 22 inch Clearwater sand filter and a 1 THP two speed Hi-Flo II pump, supplied as one package with a 3 foot NEMA cord.
The filter side
Twenty two inches is the larger Clearwater tank, which means more sand in the bed and more surface for the water to pass through. Inside, high flow laterals collect the filtered water without choking the rate the pump can move. The multiport valve connects through a union, so the whole filter can be unbolted and rolled out of the way when it needs service.
The pump side
The Hi-Flo II is Waterway high performance aboveground pump, here at 1 THP with two speeds. Low speed handles routine filtration hours quietly and cheaply. High speed is on hand when the pool needs a full turnover, a vacuum or a backwash. The pump carries a large 6 inch trap with a two piece lid, so the basket holds more debris and takes less effort to reach.
Who it suits
This is the straightforward answer for an aboveground pool that needs both halves of its equipment replaced at once, or for a new install where matching a pump to a filter by hand is more work than it is worth.
| Brand | Waterway |
|---|---|
| Manufacturer part number | 522-5247-6S |
| UPC | 806105478030 |
| Type | Complete aboveground pool equipment system |
| Filter | 22" Clearwater sand filter |
| Pump | Hi-Flo II high performance, 1 THP |
| Pump speeds | 2 speed |
| Cord | 3 ft NEMA |
| Pump trap | 6" trap with 2 piece lid |
| Multiport connection | Union connection |
| Laterals | High flow |
| Shipping weight | 87 lb |
| Ships | Freight |
Request a quote
Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.
Customer reviews
Verified store reviews
SHOPPER APPROVED
See all reviews →
More from Waterway
Waterway Tank Body, Crystal Water, Gray, with Label, 550-4407$45699
Waterway 6 in. Pump Trap Assembly, 2 in. x 2 in. Ports, 310-6600$7099
Waterway Lock Ring, Pro Clean Plus, 550-0701B$9099
Waterway 150 Sq. Ft. 1.5 HP 2 Speed Clearwater Cartridge Filter System, 522-5167-6S$89999
Waterway 100 SqFt ClearWater II Cartridge Filter System for Above Ground Pool 1.5HP, 520-5147-6S$74599
Waterway Renegade Pool Skimmer Basket, 542-3240$2199
Waterway Poly Gunite Jet Assembly 1.5" x 2" Tee Body, 210-3700$2199
Waterway Adjustable Spa Jet, Gunite, 210-3400$2999
Waterway Tank Lid with Lock Ring, Pro Clean Plus 125/150 sq ft, 550-0621$25499
Waterway Wall Fitting Escutcheon, Gray, for In-Ground Vinyl Liner Return Fittings, 218-1447$699
Waterway Thread-in 5-Scallop Twin Roto Poly Storm Gunite Jet Internal, Gray, 229-8127$1999
Waterway Crystal Water Tank O-Ring, 805-0000$3299
Waterway 1-1/2" x 1-1/2" S Union MPT, 400-4030$1599
Waterway Complete Renegade Vinyl Skimmer, Wide Mouth, 9 in. Throat, White, 540-8500$16299
Waterway 10" Tru Flo Cover and Frame, White, 640-1900 V$3899
Waterway Filter Collar Valve Wrench, 505-1970$1999
Waterway Roto Deluxe Jet, White, 210-6090$3299
Waterway Lid Diverter Assembly with Gasket, 600-9600$9699
Waterway 2" Union, Male Pipe Thread by Female Slip, 400-5080$1899
Waterway Universal Grate, 12 in. x 12 in., White, 640-4740 V$6699
Questions and answers
What people ask about this product, answered by our pool techs.
Does the system include the pump?
Yes. Waterway 522-5247-6S is a complete aboveground equipment system: the 22 inch Clearwater sand filter and the 1 THP two speed Hi-Flo II pump.
Why choose the two speed pump?
Low speed covers ordinary filtering hours at a fraction of the energy, and high speed is there for turnover, vacuuming and backwashing.
Is sand included?
The listing describes the filter, pump and their connections. Filter media is not listed as part of the system, so plan on buying sand separately.
How is it plumbed to the pool?
The pump feeds the filter and the multiport valve lands on a union connection, which is what makes the filter removable later without cutting into the plumbing.
