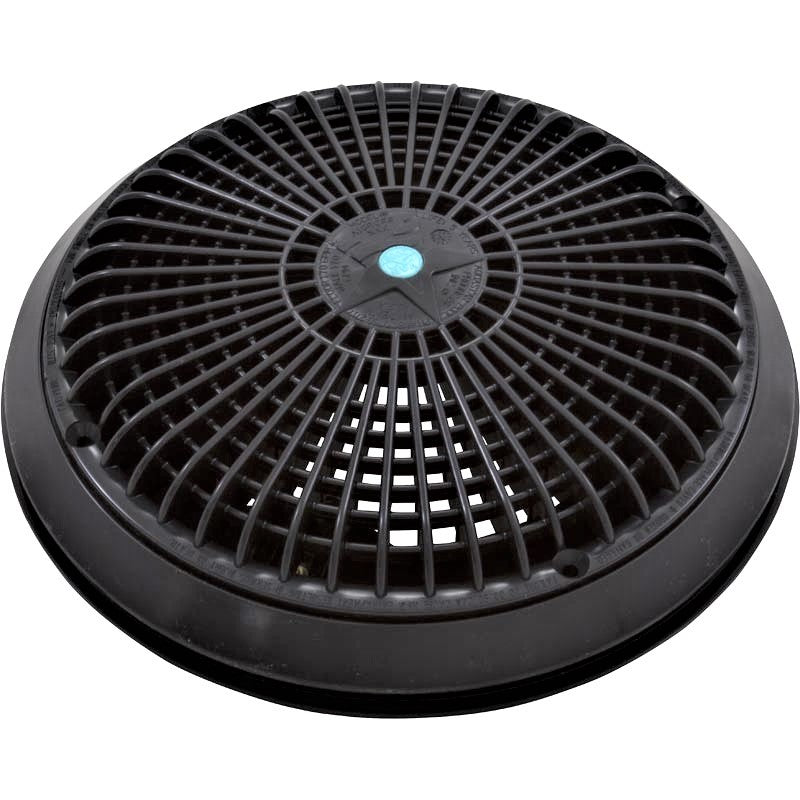

AquaStar A10RCFR102 10 inch universal round main drain cover in black with universal adapter kitAquaStar 10" Universal Round Main Drain Cover with Universal Adapter Kit, Black, A10RCFR102 In stock$6399
AquaStar A10RCFR102 10 inch universal round main drain cover in black with universal adapter kit
Shop all AquaStar

AquaStar 10" Universal Round Main Drain Cover with Universal Adapter Kit, Black, A10RCFR102

Ask a questionMPN A10RCFR102
$6399
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • No sump required Rated as a sumpless cover, so it can go over a flat floor or wall opening. Follow the installation instructions for the detail.
  • Rated 170 GPM Single sumpless, floor or wall: 170 GPM at 1.7 fps through 31.5 square inches of open area.
  • Retrofit or new build The universal adapter frame fits existing frames and sumps up to 10 inches round, and a mud frame version is available for new construction.
  • VGB compliance you can see A trademarked compliance button on the face identifies VGB 2008 compliance from the deck.
  • Tested to the standards Cover, adapter plate, frame and screws meet or exceed ANSI/APSP 16-2011 and NSF/ANSI 50-2009a, with ASTM G154 UV exposure testing.
  • Five year service life Drain covers are replaced every five years from the date of installation, so note the date when you fit it.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About AquaStar 10" Universal Round Main Drain Cover with Universal Adapter Kit, Black, A10RCFR102, SKU API-25-3102. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item AquaStar 10" Universal Round Main Drain Cover with Universal Adapter Kit, Black, A10RCFR102
AquaStar

10" Universal Round Main Drain Cover with Universal Adapter Kit, Black, A10RCFR102

$6399
Hayward Cover O-Ring for SP0714T Vari-Flo XL Valve, SPX0714L
Hayward

Cover O-Ring for SP0714T Vari-Flo XL Valve, SPX0714L

$1799
Hayward Paralevel Startup Kit, 004-760-2921-00
Hayward

Paralevel Startup Kit, 004-760-2921-00

$5799
Hayward 1-1/2" Combo Hose Adapter for Filters, Pumps, Skimmers and Chlorine Feeders (2 Pack), SPX1091Z7
Hayward

1-1/2" Combo Hose Adapter for Filters, Pumps, Skimmers and Chlorine Feeders (2 Pack), SPX1091Z7

$899
Hayward Genuine OEM SP1082 Skimmer Basket, SPX1082CA
Hayward

Genuine OEM SP1082 Skimmer Basket, SPX1082CA

$2399
Paramount 6 Port Water Valve Module, 004-302-4408-00
Paramount

6 Port Water Valve Module, 004-302-4408-00

$34999
Hayward Auto-Skim Skimmer for Vinyl/Fiberglass Pools, 1.5" FPT, Square Lid, White, SP10841
Hayward

Auto-Skim Skimmer for Vinyl/Fiberglass Pools, 1.5" FPT, Square Lid, White, SP10841

$19299
Subtotal

Similar products

Other products people compare with this one.

Hayward WGX1048E 8 inch anti-vortex main drain cover in white Hayward 8" Anti-Vortex Main Drain Cover, White, WGX1048E$3399 AquaStar 6HPHA101 6 inch hockey puck suction outlet cover, white AquaStar 6" Suction Outlet Cover with Screws, VGB Series, White, 6HPHA101$3599 Paramount SDX2 main drain grate for concrete pools, white, part 004-192-2231-01 Paramount SDX2 Main Drain Grate for Concrete Pools, White, 004-192-2231-01$5699 Hayward WG1030AVBLKPAK2 black round drain cover with frame for dual suction flow drain Hayward Round Cover with Frame for Dual Suction Flow Drain, 8 Inch Diameter, Black, WG1030AVBLKPAK2$5099 Pentair 500103 StarGuard 8 inch white main drain cover with short ring Pentair 8" StarGuard Main Drain Cover with Short Ring, White, 500103$4899 Waterway 640-4740 V universal grate, 12 in. x 12 in., white Waterway Universal Grate, 12 in. x 12 in., White, 640-4740 V$6699 Pentair StarGuard 500140 8 inch white main drain cover with long ring, 2 pack Pentair 8" StarGuard Main Drain Cover with Long Ring, White, 2 Pack, 500140$8199 AquaStar R8MF101 8 inch white round retrofit MoFlow suction outlet cover AquaStar 8" White Round Retrofit MoFlow Suction Outlet Cover, R8MF101$3499 Hayward 9 by 9 inch high flow replacement drain cover with inner frame Hayward 9" x 9" High Flow Replacement Cover and Inner Frame, WGX1031BHF2$7199 Waterway 640-2130 V 10 in. Ultra-Retro drain suction outlet in white Waterway 10" Ultra-Retro Drain Suction Outlet, 640-2130 V$5799
Paramount 005-252-2087-01 retro VGB SDX hi-flow drain cover, white Paramount Retro VGB SDX Hi-Flow Drain Cover, White, 005-252-2087-01$5399 Hayward Paramount SDX2 white retro safety drain for concrete pools Hayward SDX2 Retro Safety Drain for Concrete Pools, White, 004192221301$6199 Hayward WG1054AVPAK2 8 inch dual suction outlet main drains with sump and grate, set of 2 Hayward Main Drain Assembly with Sump and Grate, 2" Threaded (Set of 2), WG1054AVPAK2$8899 AquaStar 10AVR101 10 inch white round anti-entrapment suction outlet cover AquaStar 10" White Round Anti-Entrapment Suction Outlet Cover, 10AVR101$3999 AquaStar 10AVR103 10 inch round light gray anti-entrapment suction outlet cover AquaStar 10" Light Gray Round Anti-Entrapment Suction Outlet Cover, 10AVR103$3599 AquaStar 10AVR105 10 inch round dark gray anti-entrapment suction outlet cover with riser ring and mud frame AquaStar 10 Inch Dark Gray Round Anti-Entrapment Suction Outlet Cover, 10AVR105$3599 Waterway 640-2750 V complete main drain for vinyl liner pools with cover and sump Waterway Main Drain for Vinyl Liner Pools, 640-2750 V$3699 CMP 25520-000-000 white main drain sump with 2 inch by 1.5 inch FIP porting CMP 2 in x 1.5 in FIP White Main Drain Sump, Bottom Port, 25520-000-000$4299 AquaStar 12MF101 12 inch square MoFlow suction outlet cover and mud frame in white AquaStar 12" Square MoFlow Suction Outlet Cover and Mud Frame, White, 12MF101$8799 AquaStar 9MF101 MoFlow 9 inch square white suction outlet cover with mud frame AquaStar 9" Square MoFlow Suction Outlet Cover and Mud Frame, White, 9MF101$6299

Product details

The AquaStar A10RCFR102 is a 10 inch round sumpless suction outlet cover in black, supplied with the universal adapter kit. It is built for single or multiple drain use and can go into a retrofit or a new build.

Sumpless, and what that means

No sump is required behind this cover. As a single sumpless cover on a floor or wall it is rated at 170 GPM with a flow velocity of 1.7 fps, through 31.5 square inches of open area. The rating depends on the cover being installed the way AquaStar specifies, so read the instructions before you cut anything.

Fitting to what is already there

The universal adapter frame is designed to retrofit existing frames and sumps up to 10 inches round. A mud frame version is available where the work is new construction. For odd sized or non structured frames and sumps, AquaStar lists the Brass Anchor Kit, part BIK4.

Compliance and materials

The cover carries a trademarked compliance button so VGB 2008 compliance can be read from the deck. Every component, cover, adapter plate, frame and screws, meets or exceeds ANSI/APSP 16-2011 and NSF/ANSI 50-2009a, and the engineered polymer is UV resistant and tested to ASTM G154. The screws are #316 stainless steel.

Replace it on schedule

Drain covers are consumables with a fixed life. Replace this one five years from the date of installation, and write the date down somewhere you will find it.

Specifications
Brand AquaStar
Manufacturer part number A10RCFR102
UPC 883612064017
Type Round sumpless suction outlet cover with universal adapter kit
Color Black
Frame size 10 inch
Material UV-resistant engineered polymer
Open area 31.5 square inches
Flow rating Single sumpless, floor or wall: 170 GPM at 1.7 fps
Sump No sump required, see installation instructions
Use Single or multiple drain use
Includes 10 inch universal adapter frame, 10 inch round suction outlet drain
Screws #316 stainless steel
Standards ANSI/APSP 16-2011, NSF/ANSI 50-2009a, ASTM G154 UV testing exposure
Compliance Virginia Graeme Baker Pool and Spa Safety Act, trademarked VGB 2008 compliance button
Optional Can be used with Brass Anchor Kit p/n BIK4 for odd sized or non structured frames and sumps
Replacement interval Every five years from the date of installation
Shipping weight 2.5 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

Customer reviews

More from AquaStar

AquaStar PLF35000 PipeLine cartridge filter AquaStar PipeLine Cartridge Filter for Pools up to 35,000 Gallons, PLF35000$1,00000 AquaStar DIV0101 2 in. x 1.5 in. white return diverter plate AquaStar 2 in. x 1.5 in. White Return Diverter Plate, DIV0101$1699 AquaStar PF35CART 250 sq ft replacement cartridge for the Pipeline PF35000 filter AquaStar Pipeline 250 sqft 31" Cartridge Filter Replacement, PF35CART$17799 AquaStar A10RCFR101 10 inch white universal round main drain cover with adapter kit AquaStar 10" Universal Round Main Drain Cover with Universal Adapter Kit, White, A10RCFR101$6799 AquaStar PF27CART 200 sq ft replacement cartridge for the PipeLine PF27000 filter AquaStar Pipeline 200 Sq Ft 24 in. Filter Cartridge Replacement, PF27CART$16199 AquaStar WAV9WR101 9 inch by 9 inch white Wave suction cover with frame and riser AquaStar 9" x 9" Wave Suction Cover with Frame and Riser, White, WAV9WR101$14499 AquaStar SKWD105 Flow Star skimmer weir plate assembly in dark gray AquaStar Flow Star Skimmer Weir, Dark Gray, SKWD105$2299 AquaStar 6HPHA101 6 inch hockey puck suction outlet cover, white AquaStar 6" Suction Outlet Cover with Screws, VGB Series, White, 6HPHA101$3599 AquaStar UNHT20 high temperature 2 inch threaded union AquaStar High Temperature 2" Threaded Union, UNHT20$2999 AquaStar SKZ214 ZarStar large skimmer basket AquaStar ZarStar Skimmer Basket, SKZ214$8899
AquaStar SKWD101 Flow Star skimmer weir plate assembly in white AquaStar Flow Star Skimmer Weir Plate, SKWD101$2399 AquaStar WAV18WRNF101 18 by 18 inch white Square Wave suction outlet cover set AquaStar 18" x 18" White Square Wave Suction Outlet Cover Set, WAV18WRNF101$52899 AquaStar 8MF101 8 inch white round MoFlow suction outlet cover with mud frame AquaStar 8" White Round MoFlow Suction Outlet Cover and Mud Frame, 8MF101$3099 AquaStar GV14 14 inch Gyro-Vac Flex multi directional pool vacuum head AquaStar 14" Gyro-Vac Flex Vacuum Head, GV14$19799 AquaStar R9MF101 9 inch square white MoFlow retrofit suction outlet cover AquaStar 9" Square White MoFlow Retrofit Suction Outlet Cover, R9MF101$7399 AquaStar 32CDFLNFK101 32 in. white channel drain flat grate suction outlet AquaStar 32 in. White Channel Drain Flat Grate Suction Outlet, Without Frame, 32CDFLNFK101$13199 AquaStar SK6 white skimmer basket with stainless steel handle AquaStar Skimmer Basket with Stainless Steel Handle$1899 AquaStar GV22 22 inch Gyro-Vac Flex vacuum head AquaStar 22" Gyro-Vac Flex Vacuum Head, GV22$28799 AquaStar 10AVR105 10 inch round dark gray anti-entrapment suction outlet cover with riser ring and mud frame AquaStar 10 Inch Dark Gray Round Anti-Entrapment Suction Outlet Cover, 10AVR105$3599 AquaStar R8MF101 8 inch white round retrofit MoFlow suction outlet cover AquaStar 8" White Round Retrofit MoFlow Suction Outlet Cover, R8MF101$3499

Questions and answers

What people ask about this product, answered by our pool techs.

Does my drain need a sump?
No. This cover is rated sumpless for single drain floor or wall use. Read the installation instructions before you fit it, because the rating depends on following them.
Will it fit the frame already in my pool?
The universal adapter frame is made to retrofit existing frames and sumps up to 10 inches round. For odd sized or non structured frames and sumps, AquaStar lists the Brass Anchor Kit, part BIK4.
How much flow will it pass?
As a single sumpless cover on a floor or wall it is rated 170 GPM at 1.7 fps, through 31.5 square inches of open area.
How do I show an inspector it is compliant?
The face carries a trademarked VGB compliance button that identifies VGB 2008 compliance from the pool or spa deck. The cover, adapter plate, frame and screws meet or exceed ANSI/APSP 16-2011 and NSF/ANSI 50-2009a.
Ask your own question
