AquaStar 12 in. Black Square Anti-Entrapment Suction Cover, VGB Series, WAV12WR102

Ask a questionMPN WAV12WR102
$13399
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • 12 in. square, black The WAV12WR102 is a 12 inch square suction outlet cover in black.
  • VGB Series It is part of the AquaStar VGB anti-entrapment cover series.
  • Includes riser ring and mud frame It comes with a vented riser ring and mud frame.
  • Rated 361 GPM The cover is rated for 361 GPM at 1.3 fps in single floor or wall use.
  • Retrofits existing 12 in. frames It retrofits most brands' existing 12 inch square, 3/4 inch deep frames.
  • Meets ANSI/APSP 16-2011 and NSF/ANSI 50-2009a It is built to meet these national safety standards.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About AquaStar 12 in. Black Square Anti-Entrapment Suction Cover, VGB Series, WAV12WR102, SKU API-25-1941. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item AquaStar 12 in. Black Square Anti-Entrapment Suction Cover, VGB Series, WAV12WR102
AquaStar

12 in. Black Square Anti-Entrapment Suction Cover, VGB Series, WAV12WR102

$13399
Paramount 6 Port Water Valve Module, 004-302-4408-00
Paramount

6 Port Water Valve Module, 004-302-4408-00

$36099
Hayward Paralevel Startup Kit, 004-760-2921-00
Hayward

Paralevel Startup Kit, 004-760-2921-00

$5999
Hayward Auto-Skim Skimmer for Vinyl/Fiberglass Pools, 1.5" FPT, Square Lid, White, SP10841
Hayward

Auto-Skim Skimmer for Vinyl/Fiberglass Pools, 1.5" FPT, Square Lid, White, SP10841

$19199
Hayward Cover O-Ring for SP0714T Vari-Flo XL Valve, SPX0714L
Hayward

Cover O-Ring for SP0714T Vari-Flo XL Valve, SPX0714L

$1799
Hayward Genuine OEM SP1082 Skimmer Basket, SPX1082CA
Hayward

Genuine OEM SP1082 Skimmer Basket, SPX1082CA

$2499
Hide 12" Pool Deck Skimmer Lid Kit, 1" to 1-1/4" Material Depth (3 cm), HSL12-1.2
Hide

12" Pool Deck Skimmer Lid Kit, 1" to 1-1/4" Material Depth (3 cm), HSL12-1.2

$30000 Web Price Some manufacturers don’t allow us to publicly display their best prices online. When you request an Unadvertised Deal, you’re asking us to unlock a special offer that isn’t shown on the site.
Get your unadvertised price ›
Subtotal

Similar products

Other products people compare with this one.

Paramount 004-302-4408-00 6 port water valve module for in-floor cleaning systems Paramount 6 Port Water Valve Module, 004-302-4408-00$36099 Paralevel Startup Kit, part number 004-760-2921-00 Hayward Paralevel Startup Kit, 004-760-2921-00$5999 Hayward SP10841 Auto-Skim skimmer for vinyl and fiberglass pools, white with square lid Hayward Auto-Skim Skimmer for Vinyl/Fiberglass Pools, 1.5" FPT, Square Lid, White, SP10841$19199 Hayward SPX0714L cover o-ring for SP0714T Vari-Flo XL valve Hayward Cover O-Ring for SP0714T Vari-Flo XL Valve, SPX0714L$1799 Hayward SPX1082CA genuine OEM skimmer basket, 7 in. top diameter Hayward Genuine OEM SP1082 Skimmer Basket, SPX1082CA$2499 Hide HSL12-1.2 12 in. square pool deck skimmer lid kit for 1 to 1-1/4 in. inlay Hide 12" Pool Deck Skimmer Lid Kit, 1" to 1-1/4" Material Depth (3 cm), HSL12-1.2$30000 Web Price Hide HSL12-2.5 12 in. square pool deck skimmer lid kit with paver inlay Hide 12" Pool Deck Skimmer Lid Kit, 2-1/4" to 2-1/2" Material Depth (6 cm), HSL12-2.5$30000 Hayward SPX1091Z7 1-1/2 in. combo hose adapter, 2 pack Hayward 1-1/2" Combo Hose Adapter for Filters, Pumps, Skimmers and Chlorine Feeders (2 Pack), SPX1091Z7$1099 Hayward SPX0740BA key cover and handle assembly for SP740DE multiport valve Hayward OEM Key Cover and Handle Assembly for SP740DE, SPX0740BA$20399 Sta-Rite 08428-0125 SwimQuip white inlet face plate and eyeball kit with screws Sta-Rite Face Plate Inlet Eyeball Kit with Screws, 08428-0125$3699
CMP 27182-352-000 FlowSkim heavy duty skimmer basket with 12 inch handle for Hayward SP-1082 skimmers CMP FlowSkim HD Skimmer Basket with 12" Handle for Hayward SP-1082 Skimmers, 27182-352-000$3399 H2Flow Controls FV-J-R FlowVis retrofit for Jandy 2 in. by 2-1/2 in. check valve body H2Flow Controls FlowVis Retrofit for Jandy 2 in. by 2-1/2 in. Check Valve Body, FV-J-R$14799 Kafko 19-0165-1 Equator 1008 skimmer lid, 9-1/2 in. outside diameter Kafko Equator 1008 Skimmer Lid 9-1/2" OD, 19-0165-1$2499 Jandy 4715 Neverlube 3-port diverter valve, 1-1/2 in. x 2 in., top view Jandy 1-1/2 in. x 2 in. Neverlube Positive Seal 3-Port Diverter Valve, 4715$7399 Pentair Compool 263028 three port diverter valve, 2 in. x 2.5 in. Pentair Three Port Diverter Valve 2" x 2.5", 263028$5999 Baker Hydro WC624070A replacement skimmer weir door with clips Baker Hydro Replacement Weir Door, WC624070A$5199 Jandy 7056 check valve flapper assembly rebuild kit Jandy Check Valve Kit for 1.5 in. to 2.5 in. Check Valve Body, 7056$7399 Hayward SP1084 complete skimmer for vinyl and fiberglass pools with white square lid Hayward Complete Skimmer Vinyl/Fiberglass 2" FPT, Square Lid, White, SP1084$20399 Infusion VRFTHWH venturi return inlet fitting, white, front view Infusion Inlet Fitting, Return Line Venturi Jet, White, VRFTHWH$2399 Hayward SPX1082K skimmer weir flap door, 7-3/4 in. wide Hayward Pool Skimmer Weir Flap Door 7-3/4 in., SPX1082K$3199

Product details

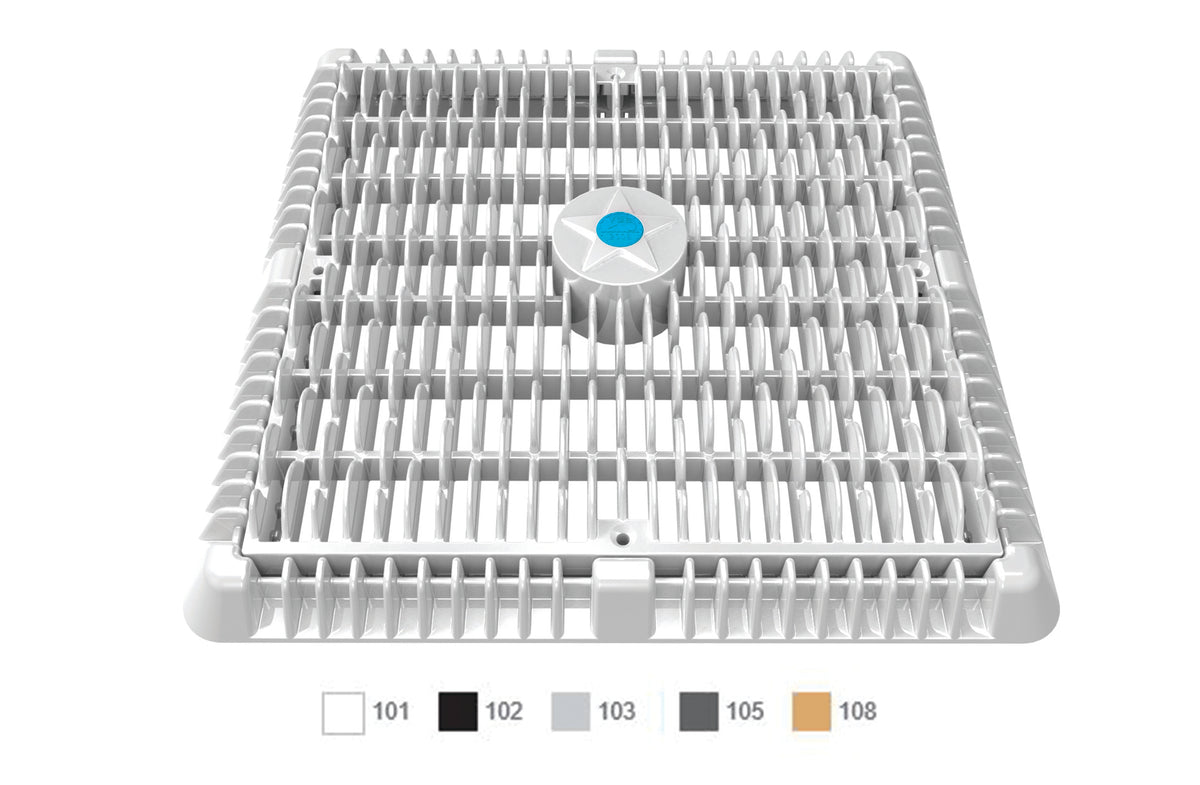

The AquaStar WAV12WR102 is a 12 inch square black anti-entrapment suction outlet cover from the AquaStar VGB Series, supplied with a vented riser ring and mud frame.

What it does

The cover sits over a pool drain to meet anti-entrapment safety standards while allowing water to flow into the suction line. This one is rated for 361 GPM at 1.3 fps in single floor or wall use, with a 90.8 square inch opening, and retrofits most brands' existing 12 inch square, 3/4 inch deep drain frames.

Standards and construction

The cover is made of UV-resistant engineered polymer and is assembled with number 316 stainless steel screws. It meets ANSI/APSP 16-2011 and NSF/ANSI 50-2009a national standards and passes ASTM G154 ultraviolet exposure testing.

Before you order

AquaStar specifies replacing this cover every five years from the date of installation. Confirm your existing frame is a standard 12 inch square, 3/4 inch deep pattern before ordering.

Specifications
Brand AquaStar
Manufacturer part number WAV12WR102
UPC 883612024776
Type Anti-entrapment suction outlet cover, VGB Series
Size 12 in. square
Color Black
Material UV-resistant engineered polymer
Flow rating 361 GPM at 1.3 fps, single floor or wall
Opening size 90.8 sq in.
Includes Vented riser ring, mud frame, number 316 stainless steel screws
Standards ANSI/APSP 16-2011, NSF/ANSI 50-2009a, ASTM G154 UV tested
Replacement interval Every 5 years from date of installation
Shipping weight 3.75 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

Customer reviews

More from AquaStar

AquaStar PLF35000 PipeLine cartridge filter AquaStar PipeLine Cartridge Filter for Pools up to 35,000 Gallons, PLF35000$106499 AquaStar DIV0101 2 in. x 1.5 in. white return diverter plate AquaStar 2 in. x 1.5 in. White Return Diverter Plate, DIV0101$1699 AquaStar PF35CART 250 sq ft replacement cartridge for the Pipeline PF35000 filter AquaStar Pipeline 250 sqft 31" Cartridge Filter Replacement, PF35CART$18399 AquaStar A10RCFR101 10 inch white universal round main drain cover with adapter kit AquaStar 10" Universal Round Main Drain Cover with Universal Adapter Kit, White, A10RCFR101$6999 AquaStar PF27CART 200 sq ft replacement cartridge for the PipeLine PF27000 filter AquaStar Pipeline 200 Sq Ft 24 in. Filter Cartridge Replacement, PF27CART$16699 AquaStar WAV9WR101 9 inch by 9 inch white Wave suction cover with frame and riser AquaStar 9" x 9" Wave Suction Cover with Frame and Riser, White, WAV9WR101$14999 AquaStar SKWD105 Flow Star skimmer weir plate assembly in dark gray AquaStar Flow Star Skimmer Weir, Dark Gray, SKWD105$2399 AquaStar 6HPHA101 6 inch hockey puck suction outlet cover, white AquaStar 6" Suction Outlet Cover with Screws, VGB Series, White, 6HPHA101$3699 AquaStar UNHT20 high temperature 2 inch threaded union AquaStar High Temperature 2" Threaded Union, UNHT20$3099 AquaStar SKZ214 ZarStar large skimmer basket AquaStar ZarStar Skimmer Basket, SKZ214$9099
AquaStar SKWD101 Flow Star skimmer weir plate assembly in white AquaStar Flow Star Skimmer Weir Plate, SKWD101$2399 AquaStar WAV18WRNF101 18 by 18 inch white Square Wave suction outlet cover set AquaStar 18" x 18" White Square Wave Suction Outlet Cover Set, WAV18WRNF101$54499 AquaStar 8MF101 8 inch white round MoFlow suction outlet cover with mud frame AquaStar 8" White Round MoFlow Suction Outlet Cover and Mud Frame, 8MF101$2499 AquaStar GV14 14 inch Gyro-Vac Flex multi directional pool vacuum head AquaStar 14" Gyro-Vac Flex Vacuum Head, GV14$20499 AquaStar R9MF101 9 inch square white MoFlow retrofit suction outlet cover AquaStar 9" Square White MoFlow Retrofit Suction Outlet Cover, R9MF101$7699 AquaStar 32CDFLNFK101 32 in. white channel drain flat grate suction outlet AquaStar 32 in. White Channel Drain Flat Grate Suction Outlet, Without Frame, 32CDFLNFK101$13599 AquaStar SK6 white skimmer basket with stainless steel handle AquaStar Skimmer Basket with Stainless Steel Handle$1999 AquaStar 10AVR105 10 inch round dark gray anti-entrapment suction outlet cover with riser ring and mud frame AquaStar 10 Inch Dark Gray Round Anti-Entrapment Suction Outlet Cover, 10AVR105$3699 AquaStar R8MF101 8 inch white round retrofit MoFlow suction outlet cover AquaStar 8" White Round Retrofit MoFlow Suction Outlet Cover, R8MF101$3799 AquaStar PipeLine PLF27000 cartridge filter for pools up to 27,000 gallons AquaStar PipeLine Cartridge Filter for Pools up to 27,000 Gallons, PLF27000$93000 Web Price

Questions and answers

What people ask about this product, answered by our pool techs.

What size drain does the AquaStar WAV12WR102 fit?
It fits most brands' existing 12 inch square, 3/4 inch deep drain frames.
What does the WAV12WR102 come with?
It comes with a vented riser ring and mud frame.
What is the flow rating of the WAV12WR102?
It is rated for 361 GPM at 1.3 fps in single floor or wall use, with a 90.8 square inch opening.
How often should this cover be replaced?
AquaStar specifies replacing this cover every five years from the date of installation.
