Aqua-Flo Flo-Master XP2, Side Discharge, 48-Frame 115V 2.0 HP 1.5 OPHP 2-Speed, 06115000-1040 In stock$387⁹⁹

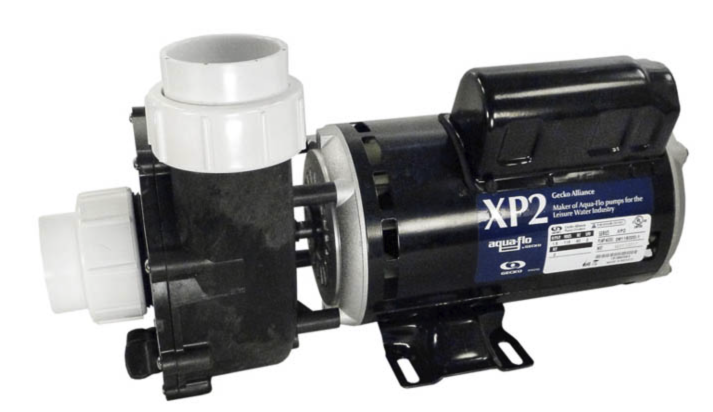

Aqua-Flo 06115000-1040 Flo-Master XP2 side discharge 48-frame two speed pump

Aqua-Flo Flo-Master XP2, Side Discharge, 48-Frame 115V 2.0 HP 1.5 OPHP 2-Speed, 06115000-1040

Name: Aqua-Flo Flo-Master XP2, Side Discharge, 48-Frame 115V 2.0 HP 1.5 OPHP 2-Speed, 06115000-1040
Brand: Allied Innovations
SKU: AQF-10-372
Price: 387.99 USD
Availability: InStock

Ask a questionMPN 06115000-1040

$387⁹⁹

FREE Delivery

In stock

Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

Side discharge The XP2 body puts the discharge on the side, so it drops into plumbing laid out for that pattern.
48-frame Built on a 48-frame motor, the frame size to check first against the pump coming out.
115V Single voltage at 115V, so no 230V circuit is needed at the pack.
Two speed Low speed carries the circulation hours cheaply, high speed is there when the jets need it.
2.0 HP, 1.5 OPHP Rated 2.0 HP with a 1.5 open flow horsepower figure.
Aqua-Flo 06115000-1040 The Flo-Master XP2 as Gecko Alliance builds it, by part number.

Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.

(888) 751-8084Call Chat with a techChat Email usEmail

Frequently bought together

Current item Select Aqua-Flo Flo-Master XP2, Side Discharge, 48-Frame 115V 2.0 HP 1.5 OPHP 2-Speed, 06115000-1040

Allied Innovations

Aqua-Flo Flo-Master XP2, Side Discharge, 48-Frame 115V 2.0 HP 1.5 OPHP 2-Speed, 06115000-1040

$387⁹⁹

Select

Pentair

SuperFlo 1 HP Single Speed Pool Pump, 115/230V, EC-348190

$748⁰⁰

Select

Pentair

SuperFlo VS 1.5 HP Variable Speed Pool Pump, EC-342001

$1,489⁰⁰

Select

Pentair

WhisperFlo VS 2.6 THP Variable Speed Pool Pump, 115/208-230V, EC-011533

$1,799⁰⁰

Select

Pentair

IntelliFlo VS+SVRS Variable Speed Pool Pump, EC-011057

$2,399⁰⁰

Select

Polaris

3/4 HP Booster Pump, Complete, PB4-60

$575⁹⁹

Select

Pentair

WhisperFlo 1 HP 115-230V Total Enclosed Fan Cooled Pump, EC-015583

$959⁰⁰

Subtotal

Similar products

Other products people compare with this one.

Balboa 1070021 one speed spa circulation pump, 0.25 HP 230 V, front view

Balboa 1070021 Spa Circulation Pump, 1-Speed, 0.25 HP, 230V, 1.1A, 60Hz$346⁹⁹

Balboa 5235212-S Ultimax spa pump, 4HP 230V two speed with 2 in. suction port

Balboa Ultimax Pump, 4HP 230V, 12.0 Amp, 2 Speed, 5235212-S$368⁹⁹

Aqua-Flo FMXP2E 05340009-5040 spa pump, 5 HP 230V two speed

Aqua-Flo FMXP2E Spa Pump, 5 HP 230V 2 Speed, 05340009-5040$512⁹⁹

Waterway Executive 5 HP two speed 56 frame 230 volt spa pump, part 3722021-1D

Waterway Executive 5 HP 2 Speed 2" 56 Frame 230 Volt Pump, 3722021-1D$465⁹⁹

Waterway 3420610-1A Executive 1.5HP two speed spa pump, 115V 48 frame

Waterway 1.5HP Executive Spa Pump, 2 Speed, 115v, 48fr, 2", 3420610-1A$420⁹⁹

Balboa 4239113-S Dura-Jet 2.0 HP two speed 48 frame spa pump, 115V

Balboa Dura-Jet Pump, 48 Frame 2.0 HP 2 Speed 115V, 4239113-S$319⁹⁹

Waterway 3410030-1E Iron Might 1/15 HP circulation pump, 115V, 48 frame

Waterway 1/15 HP Iron Might Circulation Pump, Single Speed, 115V, 3410030-1E$297⁹⁹

Aqua-Flo 02115000-1010 Flo-Master FMHP 1.5 HP 115V two speed spa pump

Aqua-Flo Flo-Master FMHP Spa Pump 1.5 HP 115V 2 Speed, 02115000-1010$475⁹⁹

Aqua-Flo 02115005-1010 Flo-Master FMHP 1-1/2 HP two speed 230V pump

Aqua-Flo 1-1/2 HP 2-Speed Flo-Master FMHP Pump, 230V, 02115005-1010$429⁹⁹

Aqua-Flo Flo-Master FMCP 1 HP two speed spa pump with center top discharge

Aqua-Flo 1 HP 2-Speed FMCP Spa Pump, 120V, 02610000-1010$434⁹⁹

Waterway Tiny Might complete spa circulating pump, 1/16 HP single speed, 1 inch union, 230V

Waterway Tiny Might Complete Spa Circulating Pump, 1" Union, 230V, 3312620-14$252⁹⁹

Waterway 3722021-13 Executive 5 HP spa pump, 2 speed, 2-1/2" x 2", 56 frame, 230V

Waterway 5 HP Executive Spa Pump, 2 Speed, 2-1/2" x 2", 56 Frame, 230V, 3722021-13$502⁹⁹

Aqua-Flo Flo-Master FMCP 48 frame spa pump, 1.5 HP 115 V

Aqua-Flo Flo-Master FMCP 48 Frame Pump, 1.5 in., 1.5 HP, 115 V, 14.4 Amp, 02615000-1010$415⁹⁹

Aqua-Flo Flo-Master FMHP 02120000-1010 side discharge 48 frame pump, 2 HP two speed 230 V

Aqua-Flo Flo-Master FMHP Side Discharge 48 Frame Pump, 2 HP, 2-Speed, 230 V, 02120000-1010$574⁹⁹

Aqua-Flo FloMaster XP2e 05320761-2040 two speed 3 HP 230V spa pump

Aqua-Flo FloMaster XP2e Spa Pump, 2 Speed, 3 HP, 230V, 05320761-2040$393⁹⁹

Hayward Super Pump W3SP2607X10, 1 HP max rated in-ground pool pump, side view

Hayward Super Pump 1 HP Max Rated 115/230V, W3SP2607X10$849⁰⁰ Web Price

Polaris R0617100 new style quick connect install kit for Polaris booster pumps

Polaris Quick Connect Install Kit for Booster Pumps, New Style, R0617100$64⁹⁹

CaliMar CMARVSP3.0 3HP variable speed pool pump with 2 in. threaded ports, black

CaliMar Variable Speed Pool Pump, 2" Threaded Ports, 3HP, CMARVSP3.0$799⁰⁰ Web Price

CaliMar CMARVSP1.0 variable speed pool pump with clear strainer lid, 2 in. union connections and top mounted drive housing

1 HP Variable Speed 2 in. Threaded Ports CaliMar Pool Pump, 230V, CMARVSP1.0$649⁰⁰ Web Price

Pentair SuperFlo VST 342002 variable speed pool pump, TradeGrade

Pentair SuperFlo VST Pool Pump, TradeGrade, 342002$1,294²⁴

Product details

The Aqua-Flo Flo-Master XP2, part number 06115000-1040, is a side discharge pump on a 48-frame 115V motor, rated 2.0 HP with 1.5 OPHP and wired for two speeds.

Matching the pump you are replacing

Three things decide whether a spa pump drops straight in: the frame size, the discharge position and the voltage. This one is 48-frame, side discharge and 115V. Check all three against what is fitted now, because a center discharge or 230V unit of the same horsepower will not simply swap over.

Two speeds, two jobs

Low speed handles the long filtration and circulation hours at a fraction of the power draw. High speed is there when the jets need real flow. On a spa the low speed hours are where a two speed pump pays for itself.

On the horsepower rating

The pump carries two numbers, 2.0 HP and 1.5 OPHP, and different listings lead with one or the other. Both refer to this same part, 06115000-1040.

Specifications
Brand	Aqua-Flo
Manufacturer part number	06115000-1040
Series	Flo-Master XP2
Discharge	Side discharge
Frame	48-Frame
Voltage	115V
Horsepower	2.0 HP
OPHP	1.5 OPHP
Speeds	2-Speed
Shipping weight	34.55 lb
Ships	Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

Customer reviews

More from Allied Innovations

Gecko IN.K300-1OP LCD spa keypad control and overlay, 4 button 1 pump

Gecko IN.K300-1OP LCD Spa Keypad Control and Overlay, 1 Pump 4-Button 10' Cable, 0607-008039$118⁹⁹

Aqua-Flo FMXP2E Spa Pump, 5 HP 230V 2 Speed, 05340009-5040$512⁹⁹

Gecko Alliance 91694150 impeller for 1.5 HP XP2 pumps

Gecko Impeller for 1.5 HP XP2 Pumps, 91694150$35⁹⁹

Aqua-Flo Flo-Master FMHP Spa Pump 1.5 HP 115V 2 Speed, 02115000-1010$475⁹⁹

Aqua-Flo 02107000-1010 Flo-Master FMHP side discharge 48 frame 2 speed pump

Aqua-Flo Flo-Master FMHP Side Discharge, 48-Frame, 115V, 1.0 HP, .75 OPHP, 2-Speed, 02107000-1010$327⁹⁹

Aqua-Flo Flo-Master FMCP 48 Frame Pump, 1.5 in., 1.5 HP, 115 V, 14.4 Amp, 02615000-1010$415⁹⁹

Aqua-Flo Flo-Master FMHP Side Discharge 48 Frame Pump, 2 HP, 2-Speed, 230 V, 02120000-1010$574⁹⁹

Aqua-Flo 1-1/2 HP 2-Speed Flo-Master FMHP Pump, 230V, 02115005-1010$429⁹⁹

Len Gordon 2-05-0047 2 inch pump split union nut

Len Gordon 2" Pump Split Union Nut, 2-05-0047$6⁹⁹

Aqua-Flo FloMaster XP2e Spa Pump, 2 Speed, 3 HP, 230V, 05320761-2040$393⁹⁹

Allied Innovations Generic Wet End 4HP Side Discharge | 1215007$86⁹⁹

Questions and answers

What people ask about this product, answered by our pool techs.

Is this a 2 HP pump or a 1.5 HP pump?

It is listed both ways. The full rating is 2.0 HP with 1.5 OPHP, and some descriptions quote the 1.5 figure on its own. Match the frame, voltage and discharge position to the pump you are replacing rather than going by the horsepower label alone.

What does side discharge mean?

The discharge port sits on the side of the pump body. A center discharge pump of the same horsepower will not line up with plumbing built for side discharge.

What voltage does it need?

115V. This is not the 230V version, so confirm the circuit at the pack before ordering.

Is it an Aqua-Flo or a Gecko pump?

Both names apply. Aqua-Flo is the pump line and Gecko Alliance is the manufacturer behind it, so you will see the Flo-Master XP2 listed under either name.
