Waterway Executive 56 Frame | 3HP 2-Speed | 3721221-1DWaterway Executive 56 Frame 3 HP 2-Speed 230V Spa Pump, 2 in. Intake and Discharge, ME-30226-20 In stock$38899
Waterway Executive 56 Frame | 3HP 2-Speed | 3721221-1D
Shop all Waterway

Waterway Executive 56 Frame 3 HP 2-Speed 230V Spa Pump, 2 in. Intake and Discharge, ME-30226-20

Ask a questionMPN ME-30226-20
$38899
FREE Delivery
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Two speed motor The 3 HP motor has four sets of insulated windings for increased efficiency on two speeds.
  • 56 frame motor The Executive wet end is designed specifically for 56 frame motors, which add strength and run cooler for longer motor life.
  • 2 in. intake and discharge The large 2 in. intake improves flow performance and reduces noise.
  • Corrosion resistant parts Silicon carbide seals, Viton bellows and a 316 stainless steel casing sit alongside copper windings.
  • Bearings and protection Two double shielded ball bearings with moisture resistant grease, plus thermal protection to extend motor life.
  • Cord and rotation An 8 ft cord with a 4-pin AMP connector, and a wet end that can be rotated every 90 degrees.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Waterway Executive 56 Frame 3 HP 2-Speed 230V Spa Pump, 2 in. Intake and Discharge, ME-30226-20, SKU WWP-10-1454. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Waterway Executive 56 Frame 3 HP 2-Speed 230V Spa Pump, 2 in. Intake and Discharge, ME-30226-20
Waterway

Executive 56 Frame 3 HP 2-Speed 230V Spa Pump, 2 in. Intake and Discharge, ME-30226-20

$38899
Pentair SuperFlo 1 HP Single Speed Pool Pump, 1.1 THP, 115/208-230V, EC-348190
Pentair

SuperFlo 1 HP Single Speed Pool Pump, 1.1 THP, 115/208-230V, EC-348190

$75699
Pentair SuperFlo VS 1.5 HP Variable Speed Pool Pump, 2.2 THP, EC-342001
Pentair

SuperFlo VS 1.5 HP Variable Speed Pool Pump, 2.2 THP, EC-342001

$1,48900
Pentair WhisperFlo VS / VST 2.6 THP Variable Speed Pool Pump, 115/208-230V, EC-011533
Pentair

WhisperFlo VS / VST 2.6 THP Variable Speed Pool Pump, 115/208-230V, EC-011533

$1,79900
Pentair IntelliFlo VS+SVRS Variable Speed Pool Pump, 3 HP Max, 3.95 THP, 230V, EC-011057
Pentair

IntelliFlo VS+SVRS Variable Speed Pool Pump, 3 HP Max, 3.95 THP, 230V, EC-011057

$2,67299
Polaris 3/4 HP Booster Pump, Complete, PB4-60
Polaris

3/4 HP Booster Pump, Complete, PB4-60

$55899
Pentair WhisperFlo 1 HP Pool Pump, 1.1 THP, Totally Enclosed Fan Cooled, 115-230V, EC-015583
Pentair

WhisperFlo 1 HP Pool Pump, 1.1 THP, Totally Enclosed Fan Cooled, 115-230V, EC-015583

$95900
Subtotal

Similar products

Other products people compare with this one.

Balboa 5235212-S Ultimax spa pump, 4HP 230V two speed with 2 in. suction port Balboa Ultimax Pump, 4HP 230V, 12.0 Amp, 2 Speed, 5235212-S$33299 Balboa 4239110-S Dura-Jet 1HP two speed 48 frame 115V spa pump Balboa Dura-Jet Spa Pump, 1HP 2-Speed 48 Frame 115V, 4239110-S$30399 Aqua-Flo FMXP2E 05340009-5040 spa pump, 5 HP 230V two speed Aqua-Flo FMXP2E Spa Pump, 5 HP 230V 2 Speed, 05340009-5040$49699 Waterway Executive 5 HP two speed 56 frame 230 volt spa pump, part 3722021-1D Waterway Executive 5 HP 2 Speed 2" 56 Frame 230 Volt Pump, 3722021-1D$48499 Balboa 4239113-S Dura-Jet 2.0 HP two speed 48 frame spa pump, 115V Balboa Dura-Jet Pump, 48 Frame 2.0 HP 2 Speed 115V, 4239113-S$30999 Waterway 3420610-1A Executive 1.5HP two speed spa pump, 115V 48 frame Waterway 1.5HP Executive Spa Pump, 2 Speed, 115v, 48fr, 2", 3420610-1A$40799 Aqua-Flo 06115000-1040 Flo-Master XP2 side discharge 48-frame two speed pump Aqua-Flo Flo-Master XP2, Side Discharge, 48-Frame 115V 2.0 HP 1.5 OPHP 2-Speed, 06115000-1040$37599 Aqua-Flo Flo-Master XP2 2 HP two speed 230V spa pump Aqua-Flo Flo-Master XP2 2 HP 2 Speed 230V, 06120500-2040$41999 Aqua-Flo 02115000-1010 Flo-Master FMHP 1.5 HP 115V two speed spa pump Aqua-Flo Flo-Master FMHP Spa Pump 1.5 HP 115V 2 Speed, 02115000-1010$48899 Aqua-Flo Flo-Master XP2 spa pump, 1.5 HP 230 V 2 speed Aqua-Flo Flo-Master XP2 Pump, 1.5 HP, 230 V, 2 Speed, 06115517-2040$37799
Aqua-Flo 02115005-1010 Flo-Master FMHP 1-1/2 HP two speed 230V pump Aqua-Flo 1-1/2 HP 2-Speed Flo-Master FMHP Pump, 230V, 02115005-1010$45799 Aqua-Flo Flo-Master FMCP 1 HP two speed spa pump with center top discharge Aqua-Flo 1 HP 2-Speed FMCP Spa Pump, 120V, 02610000-1010$42199 Waterway 3722021-13 Executive 5 HP spa pump, 2 speed, 2-1/2" x 2", 56 frame, 230V Waterway 5 HP Executive Spa Pump, 2 Speed, 2-1/2" x 2", 56 Frame, 230V, 3722021-13$48799 Waterway Tiny Might complete spa circulating pump, 1/16 HP single speed, 1 inch union, 230V Waterway Tiny Might Complete Spa Circulating Pump, 1" Union, 230V, 3312620-14$26199 Aqua-Flo Flo-Master FMCP 48 frame spa pump, 1.5 HP 115 V Aqua-Flo Flo-Master FMCP 48 Frame Pump, 1.5 in., 1.5 HP, 115 V, 14.4 Amp, 02615000-1010$40399 Aqua-Flo FloMaster XP2e 05320761-2040 two speed 3 HP 230V spa pump Aqua-Flo FloMaster XP2e Spa Pump, 2 Speed, 3 HP, 230V, 05320761-2040$38599 Gecko Aqua-Flo Circ-Master CMCP | Center Discharge | 02593000-2010 Gecko Aqua-Flo Circ-Master CMCP Single Speed Spa Circulation Pump, 1/15 HP 115V, Center Discharge, 02593000-2010$28899 Gecko Aqua-Flo Flo-Master FMHP Offset Discharge | 02110000-1010 Gecko Aqua-Flo Flo-Master FMHP 2-Speed Side Discharge 48 Frame Pump, 115V, 02110000-1010$41299 Waterway Executive 56 Frame 5HP 2" Intake 2" Discharge | 3712021-1D Waterway Executive 56 Frame 5 HP 1-Speed 230V Spa Pump, 2 in. Intake and Discharge, 3712021-1D$49699 Gecko Aqua-Flo Flo-Master FMCP Center Discharge | 02615005-1010 Gecko Aqua-Flo Flo-Master FMCP Center Discharge Pump, 2 HP 230V 2-Speed, 02615005-1010$26799

From Waterway

A Waterway pump and filter on an equipment pad beside an infinity pool. Engineered for pool, spa and bath. Waterway

Waterway equipment

Waterway Power Defender Variable Speed Pump 1.65HP 230V, PD-165 Waterway 150 Sq. Ft. 1.5 HP 2 Speed Clearwater Cartridge Filter System, 522-5167-6S Waterway Complete Renegade Vinyl Skimmer, Wide Mouth, 9 in. Throat, White, 540-8500 Waterway 3/4 HP Booster Pump, SG3810430-1PDA
Shop Waterway equipment

Waterway parts

Waterway Renegade Pool Skimmer Basket, 542-3240 Waterway 6 in. Pump Trap Assembly, 2 in. x 2 in. Ports, 310-6600 Waterway Adjustable Spa Jet, Gunite, 210-3400 Waterway Poly Gunite Jet Assembly 1.5" x 2" Tee Body, 210-3700
Shop Waterway parts
Pool filters: a Waterway cartridge filter and pumpFittings and valves: a white Waterway PVC fitting
Waterway makes pumps, filters, skimmers, jets, valves and fittings for pools, spas and baths.Shop all Waterway

Product details

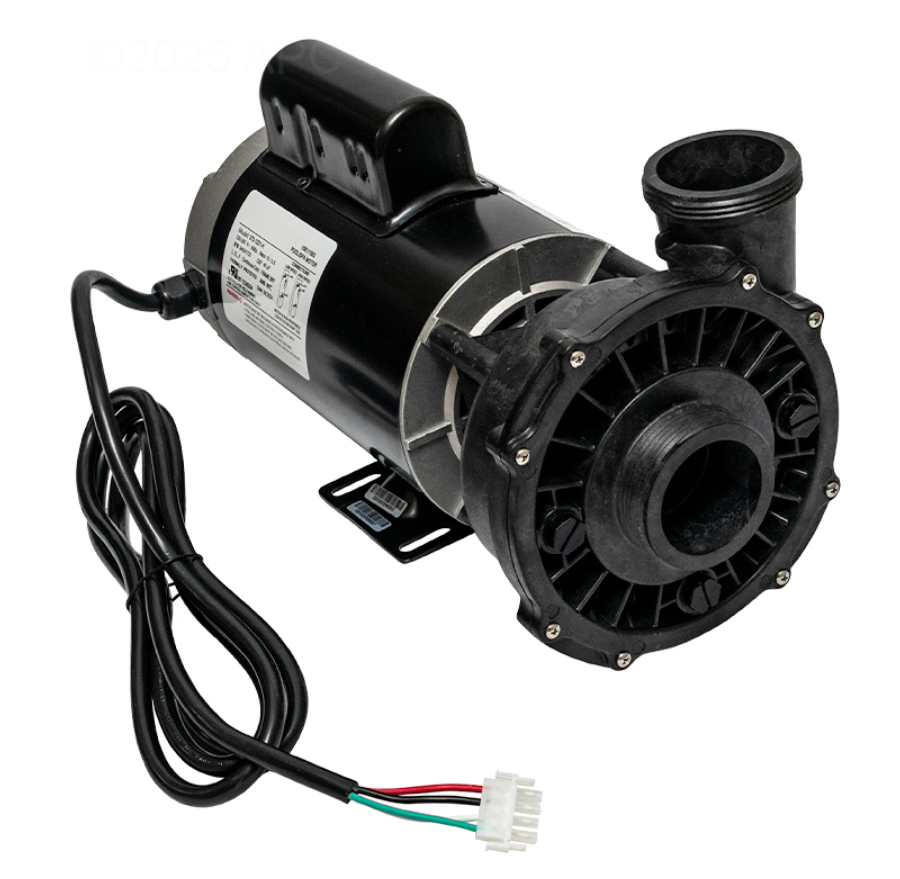

The Waterway Executive ME-30226-20 is a 3 HP, 2-speed, 230V spa pump on a 56 frame motor, with a 2 inch intake, a 2 inch discharge and an 8 foot cord.

What it does

The Executive wet end is designed specifically for 56 frame motors. The two speed motor has four sets of insulated windings for increased efficiency, and it draws 10.0 amps on high speed and 3.4 amps on low speed at 230V and 60 Hz. The large 2 inch intake improves flow performance and reduces noise, and the large 6-1/2 inch diameter wet end supports higher head pressure.

Construction

The pump uses copper windings, silicon carbide seals, Viton bellows and a corrosion resistant 316 stainless steel casing. Two double shielded ball bearings with moisture resistant grease give quieter operation and longer life, the split capacitor (start and run) uses less energy, and thermal protection extends the life expectancy of the motor. The 56 frame motor adds strength and runs cooler. The pump is CE and TUV certified.

Before you order

The wet end can be rotated every 90 degrees, and the 8 foot cord ends in a 4-pin AMP connector. Confirm that your equipment pad has 230V power and 2 inch plumbing. The manufacturer covers the motor and wet end for three years. This pump is also listed as 3721221-1D.

Specifications
Brand Waterway
Manufacturer part number ME-30226-20
UPC 806105682437
Type Executive spa pump, complete
Also listed as 3721221-1D
Horsepower 3 HP
Speed 2 speed
Voltage 230 V, 60 Hz
Amperage 10.0 A on high speed, 3.4 A on low speed
Motor frame 56 frame
Intake size 2 in.
Discharge size 2 in.
Wet end diameter 6-1/2 in.
Cord 8 ft with 4-pin AMP connector
Materials Copper windings, silicon carbide seals, Viton bellows, 316 stainless steel casing
Certifications CE and TUV
Warranty 3 years on motor and wet end
Shipping weight 40 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

Customer reviews

More from Waterway

Waterway 550-4407 Crystal Water filter tank body, gray, with label Waterway Tank Body, Crystal Water, Gray, with Label, 550-4407$45699 Waterway 310-6600 6 in. pump trap assembly with 2 in. x 2 in. ports, front view Waterway 6 in. Pump Trap Assembly, 2 in. x 2 in. Ports, 310-6600$7099 Waterway 550-0701B lock ring for Pro Clean Plus 125 and 150 sq ft filters Waterway Lock Ring, Pro Clean Plus, 550-0701B$9099 Waterway 522-5167-6S ClearWater II 150 sq. ft. cartridge filter system with 1.5 HP Hi-Flo II two speed pump Waterway 150 Sq. Ft. 1.5 HP 2 Speed Clearwater Cartridge Filter System, 522-5167-6S$89999 Waterway ClearWater II 520-5147-6S 100 sq ft cartridge filter system with 1.5 HP pump Waterway 100 SqFt ClearWater II Cartridge Filter System for Above Ground Pool 1.5HP, 520-5147-6S$74599 Waterway 542-3240 Renegade pool skimmer basket Waterway Renegade Pool Skimmer Basket, 542-3240$2199 Waterway 210-3700 poly gunite jet assembly with 1.5 inch by 2 inch tee body Waterway Poly Gunite Jet Assembly 1.5" x 2" Tee Body, 210-3700$2199 Waterway 210-3400 adjustable gunite spa jet Waterway Adjustable Spa Jet, Gunite, 210-3400$3199 Waterway 550-0621 tank lid with lock ring and pressure gauge for Pro Clean Plus 125 and 150 sq ft filters Waterway Tank Lid with Lock Ring, Pro Clean Plus 125/150 sq ft, 550-0621$25499 Waterway 218-1447 gray wall fitting escutcheon for vinyl liner pool returns Waterway Wall Fitting Escutcheon, Gray, for In-Ground Vinyl Liner Return Fittings, 218-1447$699
Waterway 550-0611B ProClean Plus filter lid and lock-ring assembly Waterway ProClean Plus Filter Lid and Lock-Ring Assembly, 75 to 100 Sq. Ft., 550-0611B$24999 Waterway 229-8127 thread-in 5-scallop twin roto Poly Storm gunite jet internal in gray Waterway Thread-in 5-Scallop Twin Roto Poly Storm Gunite Jet Internal, Gray, 229-8127$1999 Waterway 805-0000 Crystal Water filter tank o-ring Waterway Crystal Water Tank O-Ring, 805-0000$3299 Waterway 400-4030 1-1/2 inch union, male pipe thread by female slip Waterway 1-1/2" x 1-1/2" S Union MPT, 400-4030$1399 Waterway 540-8500 Renegade wide mouth vinyl liner skimmer, 9 in. throat, white Waterway Complete Renegade Vinyl Skimmer, Wide Mouth, 9 in. Throat, White, 540-8500$16299 Waterway 640-1900 V 10 inch Tru Flo cover and frame in white Waterway 10" Tru Flo Cover and Frame, White, 640-1900 V$4099 Waterway 505-1970 filter collar valve wrench for split-nut threaded sand filters Waterway Filter Collar Valve Wrench, 505-1970$2199 Waterway 210-6090 Roto Deluxe Jet in white Waterway Roto Deluxe Jet, White, 210-6090$3299 Waterway 600-9600 valve lid diverter assembly with spider gasket Waterway Lid Diverter Assembly with Gasket, 600-9600$9699 Waterway 400-5080 2 in. union, male pipe thread by female slip Waterway 2" Union, Male Pipe Thread by Female Slip, 400-5080$1399

Questions and answers

What people ask about this product, answered by our pool techs.

What is the Waterway ME-30226-20?
It is the Waterway Executive 3 HP, 2-speed, 230V pump for 56 frame applications, with a 2 in. intake and discharge and an 8 ft cord. The wet end is designed specifically for 56 frame motors.
What are the electrical requirements of the Waterway ME-30226-20?
It runs on 230V at 60 Hz and draws 10.0 amps on high speed and 3.4 amps on low speed.
Can I change the position of the wet end on the Executive pump?
Yes. The wet end of the ME-30226-20 can be rotated every 90 degrees, which gives flexible installation options.
How long is the warranty on the Waterway ME-30226-20?
The Waterway Executive ME-30226-20 carries a three year warranty on the motor and wet end.
