Aqua-Flo FloMaster XP2e 05320761-2040 two speed 3 HP 230V spa pumpAqua-Flo FloMaster XP2e Spa Pump, 2 Speed, 3 HP, 230V, 05320761-2040 In stock$38199
Aqua-Flo FloMaster XP2e 05320761-2040 two speed 3 HP 230V spa pump
Shop all Allied Innovations

Aqua-Flo FloMaster XP2e Spa Pump, 2 Speed, 3 HP, 230V, 05320761-2040

Ask a questionMPN 05320761-2040
$38199
FREE Delivery
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Two speed Low speed for quiet daily filtration and circulation, high speed when you want the jets at full flow.
  • 3.0 HP, 2.0 OPHP Rated 3.0 horsepower with a 2.0 operating horsepower figure, which is the number spa builders usually compare.
  • 56 frame motor Built on a 56 frame, the full size spa pump motor frame.
  • 230 volt Wired for a 230 volt supply, so check what your spa pack is set up for before ordering.
  • FloMaster XP2e The XP2e version of the Aqua-Flo FloMaster line, part number 05320761-2040.
  • Cheaper to run on low Holding low speed for the bulk of the day draws far less power than leaving a single speed pump on high.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Aqua-Flo FloMaster XP2e Spa Pump, 2 Speed, 3 HP, 230V, 05320761-2040, SKU AQF-10-601. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Aqua-Flo FloMaster XP2e Spa Pump, 2 Speed, 3 HP, 230V, 05320761-2040
Allied Innovations

Aqua-Flo FloMaster XP2e Spa Pump, 2 Speed, 3 HP, 230V, 05320761-2040

$38199
Pentair SuperFlo 1 HP Single Speed Pool Pump, 115/230V, EC-348190
Pentair

SuperFlo 1 HP Single Speed Pool Pump, 115/230V, EC-348190

$74800
Pentair SuperFlo VS 1.5 HP Variable Speed Pool Pump, EC-342001
Pentair

SuperFlo VS 1.5 HP Variable Speed Pool Pump, EC-342001

$1,48900
Pentair WhisperFlo VS 2.6 THP Variable Speed Pool Pump, 115/208-230V, EC-011533
Pentair

WhisperFlo VS 2.6 THP Variable Speed Pool Pump, 115/208-230V, EC-011533

$1,79900
Pentair IntelliFlo VS+SVRS Variable Speed Pool Pump, EC-011057
Pentair

IntelliFlo VS+SVRS Variable Speed Pool Pump, EC-011057

$2,39900
Polaris 3/4 HP Booster Pump, Complete, PB4-60
Polaris

3/4 HP Booster Pump, Complete, PB4-60

$55899
Pentair WhisperFlo 1 HP 115-230V Total Enclosed Fan Cooled Pump, EC-015583
Pentair

WhisperFlo 1 HP 115-230V Total Enclosed Fan Cooled Pump, EC-015583

$95900
Subtotal

Similar products

Other products people compare with this one.

Balboa 1070021 one speed spa circulation pump, 0.25 HP 230 V, front view Balboa 1070021 Spa Circulation Pump, 1-Speed, 0.25 HP, 230V, 1.1A, 60Hz$33599 Balboa 5235212-S Ultimax spa pump, 4HP 230V two speed with 2 in. suction port Balboa Ultimax Pump, 4HP 230V, 12.0 Amp, 2 Speed, 5235212-S$33899 Aqua-Flo FMXP2E 05340009-5040 spa pump, 5 HP 230V two speed Aqua-Flo FMXP2E Spa Pump, 5 HP 230V 2 Speed, 05340009-5040$49699 Waterway Executive 5 HP two speed 56 frame 230 volt spa pump, part 3722021-1D Waterway Executive 5 HP 2 Speed 2" 56 Frame 230 Volt Pump, 3722021-1D$45199 Waterway 3420610-1A Executive 1.5HP two speed spa pump, 115V 48 frame Waterway 1.5HP Executive Spa Pump, 2 Speed, 115v, 48fr, 2", 3420610-1A$40799 Balboa 4239113-S Dura-Jet 2.0 HP two speed 48 frame spa pump, 115V Balboa Dura-Jet Pump, 48 Frame 2.0 HP 2 Speed 115V, 4239113-S$30999 Aqua-Flo 06115000-1040 Flo-Master XP2 side discharge 48-frame two speed pump Aqua-Flo Flo-Master XP2, Side Discharge, 48-Frame 115V 2.0 HP 1.5 OPHP 2-Speed, 06115000-1040$37599 Aqua-Flo Flo-Master XP2 2 HP two speed 230V spa pump Aqua-Flo Flo-Master XP2 2 HP 2 Speed 230V, 06120500-2040$41999 Waterway 3410030-1E Iron Might 1/15 HP circulation pump, 115V, 48 frame Waterway 1/15 HP Iron Might Circulation Pump, Single Speed, 115V, 3410030-1E$28899 Aqua-Flo 02115000-1010 Flo-Master FMHP 1.5 HP 115V two speed spa pump Aqua-Flo Flo-Master FMHP Spa Pump 1.5 HP 115V 2 Speed, 02115000-1010$46199
Aqua-Flo Flo-Master XP2 spa pump, 1.5 HP 230 V 2 speed Aqua-Flo Flo-Master XP2 Pump, 1.5 HP, 230 V, 2 Speed, 06115517-2040$34499 Aqua-Flo 02115005-1010 Flo-Master FMHP 1-1/2 HP two speed 230V pump Aqua-Flo 1-1/2 HP 2-Speed Flo-Master FMHP Pump, 230V, 02115005-1010$41799 Aqua-Flo Flo-Master FMCP 1 HP two speed spa pump with center top discharge Aqua-Flo 1 HP 2-Speed FMCP Spa Pump, 120V, 02610000-1010$42199 Waterway Tiny Might complete spa circulating pump, 1/16 HP single speed, 1 inch union, 230V Waterway Tiny Might Complete Spa Circulating Pump, 1" Union, 230V, 3312620-14$24499 Waterway 3722021-13 Executive 5 HP spa pump, 2 speed, 2-1/2" x 2", 56 frame, 230V Waterway 5 HP Executive Spa Pump, 2 Speed, 2-1/2" x 2", 56 Frame, 230V, 3722021-13$48799 Aqua-Flo Flo-Master FMCP 48 frame spa pump, 1.5 HP 115 V Aqua-Flo Flo-Master FMCP 48 Frame Pump, 1.5 in., 1.5 HP, 115 V, 14.4 Amp, 02615000-1010$40399 Aqua-Flo Flo-Master FMHP 02120000-1010 side discharge 48 frame pump, 2 HP two speed 230 V Aqua-Flo Flo-Master FMHP Side Discharge 48 Frame Pump, 2 HP, 2-Speed, 230 V, 02120000-1010$55699 Hayward Super Pump W3SP2607X10, 1 HP max rated in-ground pool pump, side view Hayward Super Pump 1 HP Max Rated 115/230V, W3SP2607X10$84900 Web Price CaliMar CMARVSP3.0 3HP variable speed pool pump with 2 in. threaded ports, black CaliMar Variable Speed Pool Pump, 2" Threaded Ports, 3HP, CMARVSP3.0$79900 Web Price CaliMar CMARVSP1.0 variable speed pool pump with clear strainer lid, 2 in. union connections and top mounted drive housing 1 HP Variable Speed 2 in. Threaded Ports CaliMar Pool Pump, 230V, CMARVSP1.0$64900 Web Price

Product details

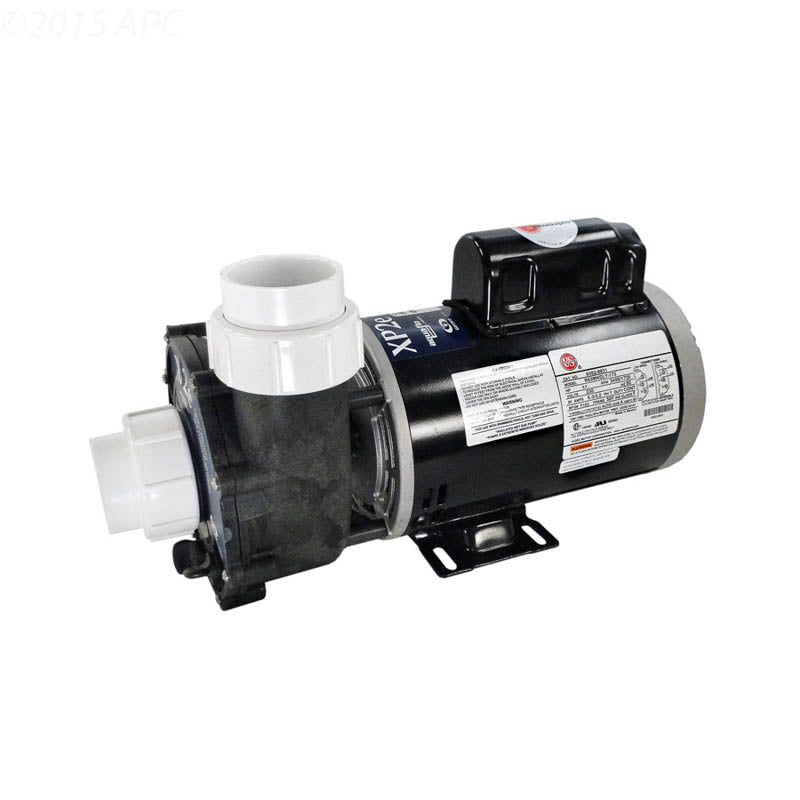

The Aqua-Flo FloMaster XP2e, part 05320761-2040, is a two speed spa pump on a 56 frame motor, rated 3.0 HP with a 2.0 OPHP figure and wired for 230 volts.

What two speeds buy you

A spa asks a pump to do two very different jobs. Filtration wants a slow, steady flow through the cartridge for hours a day. Jets want everything the pump has for twenty minutes. A two speed pump splits those, running low for the long filtration cycles and stepping up to high when the spa is in use. The result is a quieter spa room and a smaller share of the power bill.

Matching a replacement

Spa pumps are unforgiving about the details, so check three things against your old pump: the voltage, the motor frame and the horsepower rating. This one is 230 volt, 56 frame, 3.0 HP with a 2.0 OPHP rating. If any of those differ from what is in the spa now, the pump will either not fit the wet end plumbing or will not suit the pack that controls it.

Specifications
Brand Aqua-Flo
Manufacturer part number 05320761-2040
UPC 053207612040
Series FloMaster XP2e
Type Two speed spa pump
Horsepower 3.0 HP
Operating horsepower 2.0 OPHP
Speeds 2-Speed
Voltage 230V
Motor frame 56-Frame
Shipping weight 34.55 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

Customer reviews

More from Allied Innovations

Gecko IN.K300-1OP LCD spa keypad control and overlay, 4 button 1 pump Gecko IN.K300-1OP LCD Spa Keypad Control and Overlay, 1 Pump 4-Button 10' Cable, 0607-008039$11599 Aqua-Flo FMXP2E 05340009-5040 spa pump, 5 HP 230V two speed Aqua-Flo FMXP2E Spa Pump, 5 HP 230V 2 Speed, 05340009-5040$49699 Gecko Alliance 91694150 impeller for 1.5 HP XP2 pumps Gecko Impeller for 1.5 HP XP2 Pumps, 91694150$3499 Aqua-Flo 06115000-1040 Flo-Master XP2 side discharge 48-frame two speed pump Aqua-Flo Flo-Master XP2, Side Discharge, 48-Frame 115V 2.0 HP 1.5 OPHP 2-Speed, 06115000-1040$37599 Aqua-Flo 02115000-1010 Flo-Master FMHP 1.5 HP 115V two speed spa pump Aqua-Flo Flo-Master FMHP Spa Pump 1.5 HP 115V 2 Speed, 02115000-1010$46199 Aqua-Flo 02107000-1010 Flo-Master FMHP side discharge 48 frame 2 speed pump Aqua-Flo Flo-Master FMHP Side Discharge, 48-Frame, 115V, 1.0 HP, .75 OPHP, 2-Speed, 02107000-1010$35399 Aqua-Flo Flo-Master FMCP 48 frame spa pump, 1.5 HP 115 V Aqua-Flo Flo-Master FMCP 48 Frame Pump, 1.5 in., 1.5 HP, 115 V, 14.4 Amp, 02615000-1010$40399 Aqua-Flo Flo-Master FMHP 02120000-1010 side discharge 48 frame pump, 2 HP two speed 230 V Aqua-Flo Flo-Master FMHP Side Discharge 48 Frame Pump, 2 HP, 2-Speed, 230 V, 02120000-1010$55699 Aqua-Flo 02115005-1010 Flo-Master FMHP 1-1/2 HP two speed 230V pump Aqua-Flo 1-1/2 HP 2-Speed Flo-Master FMHP Pump, 230V, 02115005-1010$41799 Len Gordon 2-05-0047 2 inch pump split union nut Len Gordon 2" Pump Split Union Nut, 2-05-0047$599
Allied Innovations Generic Wet End 4HP Side Discharge | 1215007 Allied Innovations Generic Wet End 4HP Side Discharge | 1215007$8499

Questions and answers

What people ask about this product, answered by our pool techs.

What does OPHP mean?
Operating horsepower. This pump is rated 3.0 HP with a 2.0 OPHP figure, and OPHP is the rating many spa builders and code bodies work from.
Will it run on 115 volts?
No. This version is built for a 230 volt supply.
Is this the same as the FloMaster XP2?
It is the XP2e version of the FloMaster line. The two are close relatives but not identical, so match part number 05320761-2040 to replace like for like.
Why choose a two speed pump?
Low speed handles the daily turnover quietly and at much lower power draw, and high speed is available for full jet flow. A single speed pump has to do both jobs on high.
