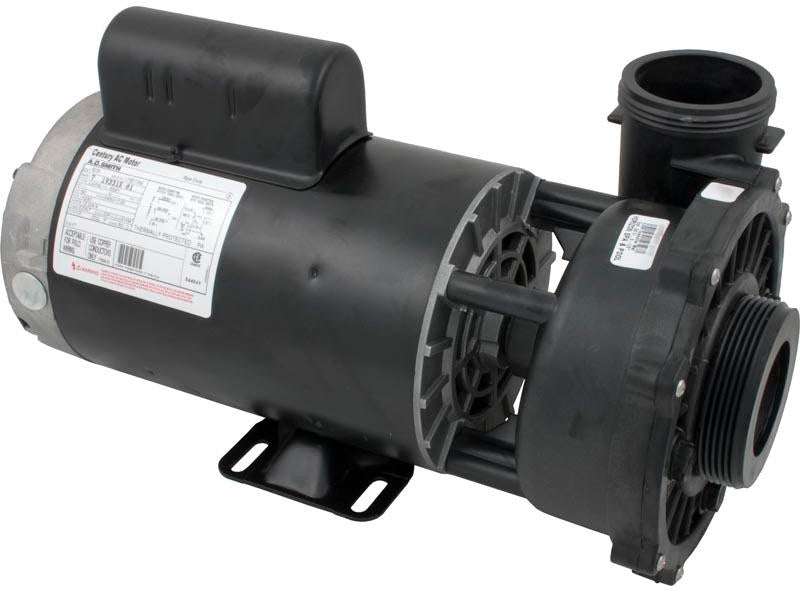

Waterway 3722021-13 Executive 5 HP spa pump, 2 speed, 2-1/2" x 2", 56 frame, 230VWaterway 5 HP Executive Spa Pump, 2 Speed, 2-1/2" x 2", 56 Frame, 230V, 3722021-13 In stock$48799
Waterway 3722021-13 Executive 5 HP spa pump, 2 speed, 2-1/2" x 2", 56 frame, 230V
Shop all Waterway

Waterway 5 HP Executive Spa Pump, 2 Speed, 2-1/2" x 2", 56 Frame, 230V, 3722021-13

Ask a questionMPN 3722021-13
$48799
FREE Delivery
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Waterway Executive Part 3722021-13 from the Waterway Executive spa pump series.
  • Two speed A two speed motor, so the pump can run at low output or full output.
  • 5 HP Rated 5 HP, the top of the Executive range for demanding jet loads.
  • 230V Wired for a 230 volt supply.
  • 56 frame Built on a 56 frame motor, the full size spa pump format.
  • Connections 2-1/2" x 2" Plumbing connections are sized 2-1/2 in and 2 in.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Waterway 5 HP Executive Spa Pump, 2 Speed, 2-1/2" x 2", 56 Frame, 230V, 3722021-13, SKU WWP-10-1451. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Waterway 5 HP Executive Spa Pump, 2 Speed, 2-1/2" x 2", 56 Frame, 230V, 3722021-13
Waterway

5 HP Executive Spa Pump, 2 Speed, 2-1/2" x 2", 56 Frame, 230V, 3722021-13

$48799
Pentair SuperFlo 1 HP Single Speed Pool Pump, 115/230V, EC-348190
Pentair

SuperFlo 1 HP Single Speed Pool Pump, 115/230V, EC-348190

$74800
Pentair SuperFlo VS 1.5 HP Variable Speed Pool Pump, EC-342001
Pentair

SuperFlo VS 1.5 HP Variable Speed Pool Pump, EC-342001

$1,48900
Pentair WhisperFlo VS 2.6 THP Variable Speed Pool Pump, 115/208-230V, EC-011533
Pentair

WhisperFlo VS 2.6 THP Variable Speed Pool Pump, 115/208-230V, EC-011533

$1,79900
Pentair IntelliFlo VS+SVRS Variable Speed Pool Pump, EC-011057
Pentair

IntelliFlo VS+SVRS Variable Speed Pool Pump, EC-011057

$2,39900
Polaris 3/4 HP Booster Pump, Complete, PB4-60
Polaris

3/4 HP Booster Pump, Complete, PB4-60

$55899
Pentair WhisperFlo 1 HP 115-230V Total Enclosed Fan Cooled Pump, EC-015583
Pentair

WhisperFlo 1 HP 115-230V Total Enclosed Fan Cooled Pump, EC-015583

$95900
Subtotal

Similar products

Other products people compare with this one.

Balboa 1070021 one speed spa circulation pump, 0.25 HP 230 V, front view Balboa 1070021 Spa Circulation Pump, 1-Speed, 0.25 HP, 230V, 1.1A, 60Hz$33599 Balboa 5235212-S Ultimax spa pump, 4HP 230V two speed with 2 in. suction port Balboa Ultimax Pump, 4HP 230V, 12.0 Amp, 2 Speed, 5235212-S$33899 Aqua-Flo FMXP2E 05340009-5040 spa pump, 5 HP 230V two speed Aqua-Flo FMXP2E Spa Pump, 5 HP 230V 2 Speed, 05340009-5040$49699 Waterway Executive 5 HP two speed 56 frame 230 volt spa pump, part 3722021-1D Waterway Executive 5 HP 2 Speed 2" 56 Frame 230 Volt Pump, 3722021-1D$45199 Waterway 3420610-1A Executive 1.5HP two speed spa pump, 115V 48 frame Waterway 1.5HP Executive Spa Pump, 2 Speed, 115v, 48fr, 2", 3420610-1A$40799 Balboa 4239113-S Dura-Jet 2.0 HP two speed 48 frame spa pump, 115V Balboa Dura-Jet Pump, 48 Frame 2.0 HP 2 Speed 115V, 4239113-S$30999 Aqua-Flo 06115000-1040 Flo-Master XP2 side discharge 48-frame two speed pump Aqua-Flo Flo-Master XP2, Side Discharge, 48-Frame 115V 2.0 HP 1.5 OPHP 2-Speed, 06115000-1040$37599 Aqua-Flo Flo-Master XP2 2 HP two speed 230V spa pump Aqua-Flo Flo-Master XP2 2 HP 2 Speed 230V, 06120500-2040$41999 Waterway 3410030-1E Iron Might 1/15 HP circulation pump, 115V, 48 frame Waterway 1/15 HP Iron Might Circulation Pump, Single Speed, 115V, 3410030-1E$28899 Aqua-Flo 02115000-1010 Flo-Master FMHP 1.5 HP 115V two speed spa pump Aqua-Flo Flo-Master FMHP Spa Pump 1.5 HP 115V 2 Speed, 02115000-1010$46199
Aqua-Flo Flo-Master XP2 spa pump, 1.5 HP 230 V 2 speed Aqua-Flo Flo-Master XP2 Pump, 1.5 HP, 230 V, 2 Speed, 06115517-2040$34499 Aqua-Flo 02115005-1010 Flo-Master FMHP 1-1/2 HP two speed 230V pump Aqua-Flo 1-1/2 HP 2-Speed Flo-Master FMHP Pump, 230V, 02115005-1010$41799 Aqua-Flo Flo-Master FMCP 1 HP two speed spa pump with center top discharge Aqua-Flo 1 HP 2-Speed FMCP Spa Pump, 120V, 02610000-1010$42199 Waterway Tiny Might complete spa circulating pump, 1/16 HP single speed, 1 inch union, 230V Waterway Tiny Might Complete Spa Circulating Pump, 1" Union, 230V, 3312620-14$24499 Aqua-Flo Flo-Master FMCP 48 frame spa pump, 1.5 HP 115 V Aqua-Flo Flo-Master FMCP 48 Frame Pump, 1.5 in., 1.5 HP, 115 V, 14.4 Amp, 02615000-1010$40399 Aqua-Flo Flo-Master FMHP 02120000-1010 side discharge 48 frame pump, 2 HP two speed 230 V Aqua-Flo Flo-Master FMHP Side Discharge 48 Frame Pump, 2 HP, 2-Speed, 230 V, 02120000-1010$55699 Aqua-Flo FloMaster XP2e 05320761-2040 two speed 3 HP 230V spa pump Aqua-Flo FloMaster XP2e Spa Pump, 2 Speed, 3 HP, 230V, 05320761-2040$38199 Hayward Super Pump W3SP2607X10, 1 HP max rated in-ground pool pump, side view Hayward Super Pump 1 HP Max Rated 115/230V, W3SP2607X10$84900 Web Price CaliMar CMARVSP3.0 3HP variable speed pool pump with 2 in. threaded ports, black CaliMar Variable Speed Pool Pump, 2" Threaded Ports, 3HP, CMARVSP3.0$79900 Web Price CaliMar CMARVSP1.0 variable speed pool pump with clear strainer lid, 2 in. union connections and top mounted drive housing 1 HP Variable Speed 2 in. Threaded Ports CaliMar Pool Pump, 230V, CMARVSP1.0$64900 Web Price

From Waterway

A Waterway pump and filter on an equipment pad beside an infinity pool. Engineered for pool, spa and bath. Waterway

Waterway equipment

Waterway Power Defender Variable Speed Pump 1.65HP 230V, PD-165 Waterway 150 Sq. Ft. 1.5 HP 2 Speed Clearwater Cartridge Filter System, 522-5167-6S Waterway Complete Renegade Vinyl Skimmer, Wide Mouth, 9 in. Throat, White, 540-8500 Waterway 3/4 HP Booster Pump, SG3810430-1PDA
Shop Waterway equipment

Waterway parts

Waterway Renegade Pool Skimmer Basket, 542-3240 Waterway 6 in. Pump Trap Assembly, 2 in. x 2 in. Ports, 310-6600 Waterway Adjustable Spa Jet, Gunite, 210-3400 Waterway Poly Gunite Jet Assembly 1.5" x 2" Tee Body, 210-3700
Shop Waterway parts
Pool filters: a Waterway cartridge filter and pumpFittings and valves: a white Waterway PVC fitting
Waterway makes pumps, filters, skimmers, jets, valves and fittings for pools, spas and baths.Shop all Waterway

Product details

The Waterway Executive 3722021-13 is a 5 HP two speed spa pump on a 56 frame motor, wired for 230V, with 2-1/2 in and 2 in plumbing connections. It is the large end of the Executive line, intended for spas and hot tubs rather than for small portable units.

Why two speeds

A two speed pump gives you a low setting and a full output setting from one motor. That is what lets a spa circulate quietly for filtration and then come up to full jet output on demand, without a second pump in the pack.

Before you order

Three things have to match on a spa pump swap: the voltage, the motor frame and the plumbing. This one is 230V, 56 frame, and 2-1/2" x 2". Check all three against what is in the equipment bay, because a pump that is right on two of them and wrong on the third still will not go in.

Order by part number 3722021-13 to get this exact configuration from the Executive range.

Specifications
Brand Waterway
Manufacturer part number 3722021-13
UPC 806105078667
Type Spa pump
Series Executive
Horsepower 5 HP
Speeds 2 speed
Voltage 230V
Motor frame 56 frame
Connections 2-1/2" x 2"
Pool type Spa/Hot Tub
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

Customer reviews

More from Waterway

Waterway 550-4407 Crystal Water filter tank body, gray, with label Waterway Tank Body, Crystal Water, Gray, with Label, 550-4407$45699 Waterway 310-6600 6 in. pump trap assembly with 2 in. x 2 in. ports, front view Waterway 6 in. Pump Trap Assembly, 2 in. x 2 in. Ports, 310-6600$7099 Waterway 550-0701B lock ring for Pro Clean Plus 125 and 150 sq ft filters Waterway Lock Ring, Pro Clean Plus, 550-0701B$9099 Waterway 522-5167-6S ClearWater II 150 sq. ft. cartridge filter system with 1.5 HP Hi-Flo II two speed pump Waterway 150 Sq. Ft. 1.5 HP 2 Speed Clearwater Cartridge Filter System, 522-5167-6S$89999 Waterway ClearWater II 520-5147-6S 100 sq ft cartridge filter system with 1.5 HP pump Waterway 100 SqFt ClearWater II Cartridge Filter System for Above Ground Pool 1.5HP, 520-5147-6S$74599 Waterway 542-3240 Renegade pool skimmer basket Waterway Renegade Pool Skimmer Basket, 542-3240$2199 Waterway 210-3700 poly gunite jet assembly with 1.5 inch by 2 inch tee body Waterway Poly Gunite Jet Assembly 1.5" x 2" Tee Body, 210-3700$2199 Waterway 210-3400 adjustable gunite spa jet Waterway Adjustable Spa Jet, Gunite, 210-3400$2999 Waterway 550-0621 tank lid with lock ring and pressure gauge for Pro Clean Plus 125 and 150 sq ft filters Waterway Tank Lid with Lock Ring, Pro Clean Plus 125/150 sq ft, 550-0621$25499 Waterway 218-1447 gray wall fitting escutcheon for vinyl liner pool returns Waterway Wall Fitting Escutcheon, Gray, for In-Ground Vinyl Liner Return Fittings, 218-1447$699
Waterway 229-8127 thread-in 5-scallop twin roto Poly Storm gunite jet internal in gray Waterway Thread-in 5-Scallop Twin Roto Poly Storm Gunite Jet Internal, Gray, 229-8127$1999 Waterway 805-0000 Crystal Water filter tank o-ring Waterway Crystal Water Tank O-Ring, 805-0000$3299 Waterway 400-4030 1-1/2 inch union, male pipe thread by female slip Waterway 1-1/2" x 1-1/2" S Union MPT, 400-4030$1599 Waterway 540-8500 Renegade wide mouth vinyl liner skimmer, 9 in. throat, white Waterway Complete Renegade Vinyl Skimmer, Wide Mouth, 9 in. Throat, White, 540-8500$16299 Waterway 640-1900 V 10 inch Tru Flo cover and frame in white Waterway 10" Tru Flo Cover and Frame, White, 640-1900 V$3899 Waterway 505-1970 filter collar valve wrench for split-nut threaded sand filters Waterway Filter Collar Valve Wrench, 505-1970$1999 Waterway 210-6090 Roto Deluxe Jet in white Waterway Roto Deluxe Jet, White, 210-6090$3299 Waterway 600-9600 valve lid diverter assembly with spider gasket Waterway Lid Diverter Assembly with Gasket, 600-9600$9699 Waterway 400-5080 2 in. union, male pipe thread by female slip Waterway 2" Union, Male Pipe Thread by Female Slip, 400-5080$1899 Waterway 640-4740 V universal grate, 12 in. x 12 in., white Waterway Universal Grate, 12 in. x 12 in., White, 640-4740 V$6699

Questions and answers

What people ask about this product, answered by our pool techs.

What voltage does it need?
230V. It is not a dual voltage pump on this listing, so confirm the supply at the spa pack before ordering.
What are the plumbing connections?
2-1/2" x 2".
Is it a two speed pump?
Yes. The motor is two speed, so it can run at low output or at full output.
What motor frame is it?
56 frame, which is the full size spa pump format rather than the smaller 48 frame.
Ask your own question
