Gecko Aqua-Flo Flo-Master FMHP Offset Discharge | 02110000-1010Gecko Aqua-Flo Flo-Master FMHP 2-Speed Side Discharge 48 Frame Pump, 115V, 02110000-1010 In stock$41299
Gecko Aqua-Flo Flo-Master FMHP Offset Discharge | 02110000-1010
Shop all Gecko

Gecko Aqua-Flo Flo-Master FMHP 2-Speed Side Discharge 48 Frame Pump, 115V, 02110000-1010

Ask a questionMPN 02110000-1010
$41299
FREE Delivery
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • 2-speed motor A 2-speed, 115 V, 48 frame motor drawing 9.8 amps on high and 3.8 amps on low.
  • High flow Rated at 85 GPM with a high-performance impeller built for strong flow.
  • 1-1/2 in. ports 1-1/2 in. intake and discharge with a through bolt flange.
  • Quick release fittings Two compression fittings are included for easy installation or maintenance.
  • Mechanical seal A compact, unitized single spring elastomer bellows mechanical seal.
  • Where it is used Made for portable spas, whirlpools, hot tubs or above ground pools, and suited to larger multi-jetted tubs.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Gecko Aqua-Flo Flo-Master FMHP 2-Speed Side Discharge 48 Frame Pump, 115V, 02110000-1010, SKU AQF-10-368. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Gecko Aqua-Flo Flo-Master FMHP 2-Speed Side Discharge 48 Frame Pump, 115V, 02110000-1010
Gecko

Aqua-Flo Flo-Master FMHP 2-Speed Side Discharge 48 Frame Pump, 115V, 02110000-1010

$41299
Pentair SuperFlo 1 HP Single Speed Pool Pump, 1.1 THP, 115/208-230V, EC-348190
Pentair

SuperFlo 1 HP Single Speed Pool Pump, 1.1 THP, 115/208-230V, EC-348190

$75699
Pentair SuperFlo VS 1.5 HP Variable Speed Pool Pump, 2.2 THP, EC-342001
Pentair

SuperFlo VS 1.5 HP Variable Speed Pool Pump, 2.2 THP, EC-342001

$1,48900
Pentair WhisperFlo VS / VST 2.6 THP Variable Speed Pool Pump, 115/208-230V, EC-011533
Pentair

WhisperFlo VS / VST 2.6 THP Variable Speed Pool Pump, 115/208-230V, EC-011533

$1,79900
Pentair IntelliFlo VS+SVRS Variable Speed Pool Pump, 3 HP Max, 3.95 THP, 230V, EC-011057
Pentair

IntelliFlo VS+SVRS Variable Speed Pool Pump, 3 HP Max, 3.95 THP, 230V, EC-011057

$2,67299
Polaris 3/4 HP Booster Pump, Complete, PB4-60
Polaris

3/4 HP Booster Pump, Complete, PB4-60

$55899
Pentair WhisperFlo 1 HP Pool Pump, 1.1 THP, Totally Enclosed Fan Cooled, 115-230V, EC-015583
Pentair

WhisperFlo 1 HP Pool Pump, 1.1 THP, Totally Enclosed Fan Cooled, 115-230V, EC-015583

$95900
Subtotal

Similar products

Other products people compare with this one.

Balboa 5235212-S Ultimax spa pump, 4HP 230V two speed with 2 in. suction port Balboa Ultimax Pump, 4HP 230V, 12.0 Amp, 2 Speed, 5235212-S$33299 Balboa 4239110-S Dura-Jet 1HP two speed 48 frame 115V spa pump Balboa Dura-Jet Spa Pump, 1HP 2-Speed 48 Frame 115V, 4239110-S$30399 Aqua-Flo FMXP2E 05340009-5040 spa pump, 5 HP 230V two speed Aqua-Flo FMXP2E Spa Pump, 5 HP 230V 2 Speed, 05340009-5040$49699 Waterway Executive 5 HP two speed 56 frame 230 volt spa pump, part 3722021-1D Waterway Executive 5 HP 2 Speed 2" 56 Frame 230 Volt Pump, 3722021-1D$48499 Balboa 4239113-S Dura-Jet 2.0 HP two speed 48 frame spa pump, 115V Balboa Dura-Jet Pump, 48 Frame 2.0 HP 2 Speed 115V, 4239113-S$30999 Waterway 3420610-1A Executive 1.5HP two speed spa pump, 115V 48 frame Waterway 1.5HP Executive Spa Pump, 2 Speed, 115v, 48fr, 2", 3420610-1A$40799 Aqua-Flo 06115000-1040 Flo-Master XP2 side discharge 48-frame two speed pump Aqua-Flo Flo-Master XP2, Side Discharge, 48-Frame 115V 2.0 HP 1.5 OPHP 2-Speed, 06115000-1040$37599 Aqua-Flo Flo-Master XP2 2 HP two speed 230V spa pump Aqua-Flo Flo-Master XP2 2 HP 2 Speed 230V, 06120500-2040$41999 Aqua-Flo 02115000-1010 Flo-Master FMHP 1.5 HP 115V two speed spa pump Aqua-Flo Flo-Master FMHP Spa Pump 1.5 HP 115V 2 Speed, 02115000-1010$48899 Aqua-Flo Flo-Master XP2 spa pump, 1.5 HP 230 V 2 speed Aqua-Flo Flo-Master XP2 Pump, 1.5 HP, 230 V, 2 Speed, 06115517-2040$37799
Aqua-Flo 02115005-1010 Flo-Master FMHP 1-1/2 HP two speed 230V pump Aqua-Flo 1-1/2 HP 2-Speed Flo-Master FMHP Pump, 230V, 02115005-1010$45799 Aqua-Flo Flo-Master FMCP 1 HP two speed spa pump with center top discharge Aqua-Flo 1 HP 2-Speed FMCP Spa Pump, 120V, 02610000-1010$42199 Waterway 3722021-13 Executive 5 HP spa pump, 2 speed, 2-1/2" x 2", 56 frame, 230V Waterway 5 HP Executive Spa Pump, 2 Speed, 2-1/2" x 2", 56 Frame, 230V, 3722021-13$48799 Waterway Tiny Might complete spa circulating pump, 1/16 HP single speed, 1 inch union, 230V Waterway Tiny Might Complete Spa Circulating Pump, 1" Union, 230V, 3312620-14$26199 Aqua-Flo Flo-Master FMCP 48 frame spa pump, 1.5 HP 115 V Aqua-Flo Flo-Master FMCP 48 Frame Pump, 1.5 in., 1.5 HP, 115 V, 14.4 Amp, 02615000-1010$40399 Aqua-Flo Flo-Master FMHP 02120000-1010 side discharge 48 frame pump, 2 HP two speed 230 V Aqua-Flo Flo-Master FMHP Side Discharge 48 Frame Pump, 2 HP, 2-Speed, 230 V, 02120000-1010$58999 Aqua-Flo FloMaster XP2e 05320761-2040 two speed 3 HP 230V spa pump Aqua-Flo FloMaster XP2e Spa Pump, 2 Speed, 3 HP, 230V, 05320761-2040$38599 Gecko Aqua-Flo Circ-Master CMCP | Center Discharge | 02593000-2010 Gecko Aqua-Flo Circ-Master CMCP Single Speed Spa Circulation Pump, 1/15 HP 115V, Center Discharge, 02593000-2010$28899 Waterway Executive 56 Frame | 3HP 2-Speed | 3721221-1D Waterway Executive 56 Frame 3 HP 2-Speed 230V Spa Pump, 2 in. Intake and Discharge, ME-30226-20$38899 Waterway Executive 56 Frame 5HP 2" Intake 2" Discharge | 3712021-1D Waterway Executive 56 Frame 5 HP 1-Speed 230V Spa Pump, 2 in. Intake and Discharge, 3712021-1D$49699

Product details

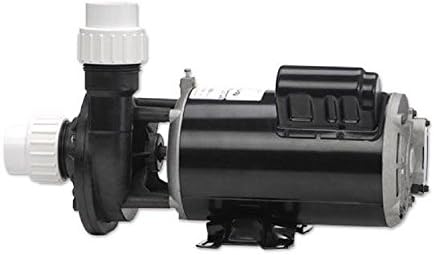

The Gecko Aqua-Flo Flo-Master FMHP 02110000-1010 is a 2-speed, 115 V, 48 frame side discharge pump with 1-1/2 inch ports, for portable spas, hot tubs and above ground pools.

What it does

The Flo-Master FMHP is a high-performance pump with a unique impeller designed for strong flow, rated at 85 GPM. It is suited to larger, multi-jetted tubs or similar applications that need greater output, and its flow can allow a lower horsepower pump to do the same job, which reduces operating cost.

Specifications

The motor is 2-speed on 115 V, drawing 9.8 amps on high and 3.8 amps on low. The motor is a 48 frame, listed as 1.5 HP with 1.0 output horsepower. Intake and discharge are both 1-1/2 in., and the flange is through bolt. A compact, unitized single spring elastomer bellows mechanical seal is used for durability.

Before you order

Two quick release compression fittings are included for easy installation or maintenance. The 1-1/2 in. pump thread measures approximately 2-3/8 in. outside diameter. The pump comes without a cord.

Specifications
Brand Gecko Aqua-Flo
Manufacturer part number 02110000-1010
Series Flo-Master FMHP
Type Side discharge pump
Horsepower 1.0 output HP, listed as 1.5 HP
Speed 2-speed
Voltage 115 V
Amperage 9.8 / 3.8 amps
Motor frame 48 frame
Flow 85 GPM, hi-flow
Inlet size 1-1/2 in.
Outlet size 1-1/2 in.
Flange Through bolt
Seal Single spring elastomer bellows mechanical seal
Includes Two compression fittings, cord not included
Shipping weight 25.45 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

Customer reviews

More from Gecko

Gecko 92200300 volute O-ring for Aqua-Flo Flo-Master XP and XP2 pumps Gecko Volute O-Ring for Aqua-Flo Pumps, 92200300$1399 Gecko 91694251 impeller for 2.5 HP XP2 pumps Gecko Impeller for 2.5 HP XP2 Pumps, 91694251$3499 Gecko 91694200 impeller for 2 HP XP2 pumps Gecko Impeller for 2 HP XP2 Pump, 91694200$3499 Gecko Aqua-Flo Flo-Master FMCP Center Discharge | 02615005-1010 Gecko Aqua-Flo Flo-Master FMCP Center Discharge Pump, 2 HP 230V 2-Speed, 02615005-1010$26799 Gecko Aqua-Flo Circ-Master CMCP | Center Discharge | 02593000-2010 Gecko Aqua-Flo Circ-Master CMCP Single Speed Spa Circulation Pump, 1/15 HP 115V, Center Discharge, 02593000-2010$28899 Gecko Wet End Assy Compl 2HP FMCP | 91040840-000 Gecko Wet End Assy Compl 2HP FMCP | 91040840-000$9099 Gecko Aqua-Flo 2" 2.5HP XP2E 48 Frame Wet End | 91041825-000 Gecko Aqua-Flo 2" 2.5HP XP2E 48 Frame Wet End | 91041825-000$9699 Gecko Aqua-Flo 2" 2HP XP2E 56FR Wet End | 91041920-000 Gecko Aqua-Flo 2" 2HP XP2E 56FR Wet End | 91041920-000$12899 Gecko Aqua-Flo Flo-Master HP 2HP Wet End 91040730 | 91040730-000 Gecko Aqua-Flo Flo-Master HP 2HP Wet End 91040730 | 91040730-000$9099 Gecko Aqua-Flo Flo-Master HP 1HP Wet End 91040700 | 91040700-000 Gecko Aqua-Flo Flo-Master HP 1HP Wet End 91040700 | 91040700-000$9099
Gecko Aqua-Flo Flo-Master HP 1.5HP Wet End | 91040720-000 Gecko Alliance Aqua-Flo Flo-Master HP 1.5 HP Wet End Assembly for 48 Frame Pumps, 91040720-000$9099 Gecko Aqua-Flo Flo-Master CP .75HP Wet End | 91040800-000 Gecko Aqua-Flo Flo-Master CP .75HP Wet End | 91040800-000$11099 Gecko Aqua-Flo Flo-Master CP 1HP Wet End 91040810 | 91040810-000 Gecko Aqua-Flo Flo-Master CP 1HP Wet End 91040810 | 91040810-000$9699 Gecko Geko O-Ring 230 | 92200210 Gecko Pump Union O-Ring #230, Seal for Pump Unions, 92200210$1399 Gecko Geko O-Ring Volute 158 FMHP | 92200090 Gecko Geko O-Ring Volute 158 FMHP | 92200090$1399 Gecko O-Ring Volute 251 FMCP/TMCP | 92200270 Gecko O-Ring Volute 251 FMCP/TMCP | 92200270$1299 Gecko Aqua-Flo 2" 3HP XP2E 48 Frame Wet End | 91041830-000 Gecko Aqua-Flo 2" 3HP XP2E 48 Frame Wet End | 91041830-000$12699

Questions and answers

What people ask about this product, answered by our pool techs.

What is the Gecko Aqua-Flo 02110000-1010 pump used for?
It is a Flo-Master FMHP high-performance pump for portable spas, whirlpools, hot tubs and above ground pools, and suits larger multi-jetted tubs that need greater output.
What are the electrical specs of the 02110000-1010?
It is a 2-speed 115 V pump with a 48 frame motor that draws 9.8 amps on high speed and 3.8 amps on low. The motor is listed as 1.5 HP with 1.0 output horsepower.
What size are the ports on the 02110000-1010?
Both the intake and the discharge are 1-1/2 in. The pump thread measures approximately 2-3/8 in. outside diameter, and two compression fittings are included.
Does the 02110000-1010 come with a power cord?
No. Every pump comes with two compression fittings but without a cord.
