Waterway Executive 5 HP two speed 56 frame 230 volt spa pump, part 3722021-1DWaterway Executive 5 HP 2 Speed 2" 56 Frame 230 Volt Pump, 3722021-1D In stock$45199

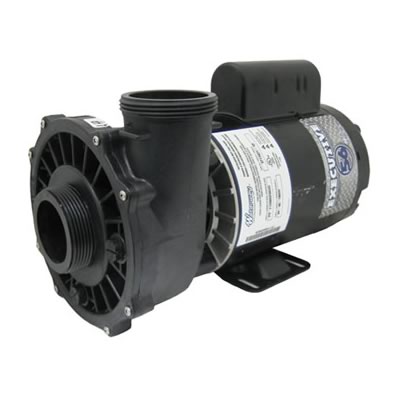

Waterway Executive 5 HP two speed 56 frame 230 volt spa pump, part 3722021-1D
Shop all Waterway

Waterway Executive 5 HP 2 Speed 2" 56 Frame 230 Volt Pump, 3722021-1D

Ask a questionMPN 3722021-1D
$45199
FREE Delivery
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Two speed Low speed for circulation and filtering, high speed when the jets are called for.
  • 56 frame The heavier 56 frame motor rather than the lighter 48 frame.
  • 2 inch plumbing 2 inch intake and 2 inch discharge, the common size on full size spa systems.
  • 230/240 volt Draws 16.4 amps on high and 4.8 amps on low.
  • Executive series Waterway Executive, the 5 HP rating in this family.
  • Also listed as PF-50-2N22C The same pump is referenced under that number, useful when cross checking an old label.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Waterway Executive 5 HP 2 Speed 2" 56 Frame 230 Volt Pump, 3722021-1D, SKU WWP-10-1423. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Waterway Executive 5 HP 2 Speed 2" 56 Frame 230 Volt Pump, 3722021-1D
Waterway

Executive 5 HP 2 Speed 2" 56 Frame 230 Volt Pump, 3722021-1D

$45199
Pentair SuperFlo 1 HP Single Speed Pool Pump, 1.1 THP, 115/208-230V, EC-348190
Pentair

SuperFlo 1 HP Single Speed Pool Pump, 1.1 THP, 115/208-230V, EC-348190

$74800
Pentair SuperFlo VS 1.5 HP Variable Speed Pool Pump, 2.2 THP, EC-342001
Pentair

SuperFlo VS 1.5 HP Variable Speed Pool Pump, 2.2 THP, EC-342001

$1,48900
Pentair WhisperFlo VS / VST 2.6 THP Variable Speed Pool Pump, 115/208-230V, EC-011533
Pentair

WhisperFlo VS / VST 2.6 THP Variable Speed Pool Pump, 115/208-230V, EC-011533

$1,79900
Pentair IntelliFlo VS+SVRS Variable Speed Pool Pump, 3 HP Max, 3.95 THP, 230V, EC-011057
Pentair

IntelliFlo VS+SVRS Variable Speed Pool Pump, 3 HP Max, 3.95 THP, 230V, EC-011057

$2,39900
Polaris 3/4 HP Booster Pump, Complete, PB4-60
Polaris

3/4 HP Booster Pump, Complete, PB4-60

$55899
Pentair WhisperFlo 1 HP Pool Pump, 1.1 THP, Totally Enclosed Fan Cooled, 115-230V, EC-015583
Pentair

WhisperFlo 1 HP Pool Pump, 1.1 THP, Totally Enclosed Fan Cooled, 115-230V, EC-015583

$95900
Subtotal

Similar products

Other products people compare with this one.

Balboa 1070021 one speed spa circulation pump, 0.25 HP 230 V, front view Balboa 1070021 Spa Circulation Pump, 1-Speed, 0.25 HP, 230V, 1.1A, 60Hz$30999 Balboa 5235212-S Ultimax spa pump, 4HP 230V two speed with 2 in. suction port Balboa Ultimax Pump, 4HP 230V, 12.0 Amp, 2 Speed, 5235212-S$33899 Balboa 4239110-S Dura-Jet 1HP two speed 48 frame 115V spa pump Balboa Dura-Jet Spa Pump, 1HP 2-Speed 48 Frame 115V, 4239110-S$30399 Aqua-Flo FMXP2E 05340009-5040 spa pump, 5 HP 230V two speed Aqua-Flo FMXP2E Spa Pump, 5 HP 230V 2 Speed, 05340009-5040$49699 Waterway 3420610-1A Executive 1.5HP two speed spa pump, 115V 48 frame Waterway 1.5HP Executive Spa Pump, 2 Speed, 115v, 48fr, 2", 3420610-1A$40799 Balboa 4239113-S Dura-Jet 2.0 HP two speed 48 frame spa pump, 115V Balboa Dura-Jet Pump, 48 Frame 2.0 HP 2 Speed 115V, 4239113-S$30999 Aqua-Flo 06115000-1040 Flo-Master XP2 side discharge 48-frame two speed pump Aqua-Flo Flo-Master XP2, Side Discharge, 48-Frame 115V 2.0 HP 1.5 OPHP 2-Speed, 06115000-1040$37599 Aqua-Flo Flo-Master XP2 2 HP two speed 230V spa pump Aqua-Flo Flo-Master XP2 2 HP 2 Speed 230V, 06120500-2040$41999 Waterway 3410030-1E Iron Might 1/15 HP circulation pump, 115V, 48 frame Waterway 1/15 HP Iron Might Circulation Pump, Single Speed, 115V, 3410030-1E$28899 Aqua-Flo 02115000-1010 Flo-Master FMHP 1.5 HP 115V two speed spa pump Aqua-Flo Flo-Master FMHP Spa Pump 1.5 HP 115V 2 Speed, 02115000-1010$48899
Aqua-Flo Flo-Master XP2 spa pump, 1.5 HP 230 V 2 speed Aqua-Flo Flo-Master XP2 Pump, 1.5 HP, 230 V, 2 Speed, 06115517-2040$34499 Aqua-Flo 02115005-1010 Flo-Master FMHP 1-1/2 HP two speed 230V pump Aqua-Flo 1-1/2 HP 2-Speed Flo-Master FMHP Pump, 230V, 02115005-1010$41799 Aqua-Flo Flo-Master FMCP 1 HP two speed spa pump with center top discharge Aqua-Flo 1 HP 2-Speed FMCP Spa Pump, 120V, 02610000-1010$42199 Waterway 3722021-13 Executive 5 HP spa pump, 2 speed, 2-1/2" x 2", 56 frame, 230V Waterway 5 HP Executive Spa Pump, 2 Speed, 2-1/2" x 2", 56 Frame, 230V, 3722021-13$48799 Waterway Tiny Might complete spa circulating pump, 1/16 HP single speed, 1 inch union, 230V Waterway Tiny Might Complete Spa Circulating Pump, 1" Union, 230V, 3312620-14$24999 Aqua-Flo Flo-Master FMCP 48 frame spa pump, 1.5 HP 115 V Aqua-Flo Flo-Master FMCP 48 Frame Pump, 1.5 in., 1.5 HP, 115 V, 14.4 Amp, 02615000-1010$40399 Aqua-Flo Flo-Master FMHP 02120000-1010 side discharge 48 frame pump, 2 HP two speed 230 V Aqua-Flo Flo-Master FMHP Side Discharge 48 Frame Pump, 2 HP, 2-Speed, 230 V, 02120000-1010$58999 Aqua-Flo FloMaster XP2e 05320761-2040 two speed 3 HP 230V spa pump Aqua-Flo FloMaster XP2e Spa Pump, 2 Speed, 3 HP, 230V, 05320761-2040$38199 Hayward Super Pump W3SP2607X10, 1 HP max rated in-ground pool pump, side view Hayward Super Pump 1 HP Max Rated 115/230V, W3SP2607X10$84900 Web Price CaliMar CMARVSP3.0 3HP variable speed pool pump with 2 in. threaded ports, black CaliMar Variable Speed Pool Pump, 3 HP, 230V, 2 in. Ports, CMARVSP3.0$79900 Web Price

From Waterway

A Waterway pump and filter on an equipment pad beside an infinity pool. Engineered for pool, spa and bath. Waterway

Waterway equipment

Waterway Power Defender Variable Speed Pump 1.65HP 230V, PD-165 Waterway 150 Sq. Ft. 1.5 HP 2 Speed Clearwater Cartridge Filter System, 522-5167-6S Waterway Complete Renegade Vinyl Skimmer, Wide Mouth, 9 in. Throat, White, 540-8500 Waterway 3/4 HP Booster Pump, SG3810430-1PDA
Shop Waterway equipment

Waterway parts

Waterway Renegade Pool Skimmer Basket, 542-3240 Waterway 6 in. Pump Trap Assembly, 2 in. x 2 in. Ports, 310-6600 Waterway Adjustable Spa Jet, Gunite, 210-3400 Waterway Poly Gunite Jet Assembly 1.5" x 2" Tee Body, 210-3700
Shop Waterway parts
Pool filters: a Waterway cartridge filter and pumpFittings and valves: a white Waterway PVC fitting
Waterway makes pumps, filters, skimmers, jets, valves and fittings for pools, spas and baths.Shop all Waterway

Product details

The Waterway Executive 3722021-1D is a 5 HP two speed spa pump on a 56 frame motor, plumbed 2 inch on both the intake and the discharge and wired for 230/240 volts. It draws 16.4 amps on high speed and 4.8 amps on low.

Why two speeds

A single speed pump runs flat out whether the spa is filtering or in use. Two speeds split that job: the low speed turns the water over quietly and cheaply through the filter cycle, and the high speed is there when the jets are on. On a system plumbed for it, that is the difference between a pump that runs all day and a power bill that does the same.

Sizing and fit

This is the 56 frame version, which is the heavier motor frame, and it is a 2 inch by 2 inch pump. Check the frame size, the port sizes and the voltage on the pump you are replacing before ordering, because 48 frame and 56 frame units do not swap freely on a spa base.

Cross reference

The pump is also referenced as PF-50-2N22C. If that is the number on the old label, compare the voltage, amperage and port sizes here against it.

Specifications
Brand Waterway
Manufacturer part number 3722021-1D
UPC 806105078711
Alternate part number PF-50-2N22C
Series Executive
Type Dual speed spa pump
Horsepower 5 HP
Speeds 2 speed
Frame 56 frame
Intake 2 in.
Discharge 2 in.
Voltage 230/240V
Amperage 16.4/4.8 amps
Shipping weight 28 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

Customer reviews

More from Waterway

Waterway 550-4407 Crystal Water filter tank body, gray, with label Waterway Tank Body, Crystal Water, Gray, with Label, 550-4407$45699 Waterway 310-6600 6 in. pump trap assembly with 2 in. x 2 in. ports, front view Waterway 6 in. Pump Trap Assembly, 2 in. x 2 in. Ports, 310-6600$7099 Waterway 550-0701B lock ring for Pro Clean Plus 125 and 150 sq ft filters Waterway Lock Ring, Pro Clean Plus, 550-0701B$9099 Waterway 522-5167-6S ClearWater II 150 sq. ft. cartridge filter system with 1.5 HP Hi-Flo II two speed pump Waterway 150 Sq. Ft. 1.5 HP 2 Speed Clearwater Cartridge Filter System, 522-5167-6S$89999 Waterway ClearWater II 520-5147-6S 100 sq ft cartridge filter system with 1.5 HP pump Waterway 100 SqFt ClearWater II Cartridge Filter System for Above Ground Pool 1.5HP, 520-5147-6S$74599 Waterway 542-3240 Renegade pool skimmer basket Waterway Renegade Pool Skimmer Basket, 542-3240$2199 Waterway 210-3700 poly gunite jet assembly with 1.5 inch by 2 inch tee body Waterway Poly Gunite Jet Assembly 1.5" x 2" Tee Body, 210-3700$2199 Waterway 210-3400 adjustable gunite spa jet Waterway Adjustable Spa Jet, Gunite, 210-3400$3199 Waterway 550-0621 tank lid with lock ring and pressure gauge for Pro Clean Plus 125 and 150 sq ft filters Waterway Tank Lid with Lock Ring, Pro Clean Plus 125/150 sq ft, 550-0621$25499 Waterway 218-1447 gray wall fitting escutcheon for vinyl liner pool returns Waterway Wall Fitting Escutcheon, Gray, for In-Ground Vinyl Liner Return Fittings, 218-1447$699
Waterway 229-8127 thread-in 5-scallop twin roto Poly Storm gunite jet internal in gray Waterway Thread-in 5-Scallop Twin Roto Poly Storm Gunite Jet Internal, Gray, 229-8127$1999 Waterway 805-0000 Crystal Water filter tank o-ring Waterway Crystal Water Tank O-Ring, 805-0000$3299 Waterway 400-4030 1-1/2 inch union, male pipe thread by female slip Waterway 1-1/2" x 1-1/2" S Union MPT, 400-4030$1399 Waterway 540-8500 Renegade wide mouth vinyl liner skimmer, 9 in. throat, white Waterway Complete Renegade Vinyl Skimmer, Wide Mouth, 9 in. Throat, White, 540-8500$16299 Waterway 640-1900 V 10 inch Tru Flo cover and frame in white Waterway 10" Tru Flo Cover and Frame, White, 640-1900 V$3899 Waterway 505-1970 filter collar valve wrench for split-nut threaded sand filters Waterway Filter Collar Valve Wrench, 505-1970$2199 Waterway 210-6090 Roto Deluxe Jet in white Waterway Roto Deluxe Jet, White, 210-6090$3299 Waterway 600-9600 valve lid diverter assembly with spider gasket Waterway Lid Diverter Assembly with Gasket, 600-9600$9699 Waterway 400-5080 2 in. union, male pipe thread by female slip Waterway 2" Union, Male Pipe Thread by Female Slip, 400-5080$1399 Waterway 640-4740 V universal grate, 12 in. x 12 in., white Waterway Universal Grate, 12 in. x 12 in., White, 640-4740 V$6699

Questions and answers

What people ask about this product, answered by our pool techs.

What voltage does this pump run on?
230/240V. It draws 16.4 amps on high speed and 4.8 amps on low.
What size are the connections?
2 inch intake and 2 inch discharge.
Is this a 48 frame or a 56 frame pump?
56 frame. The two are not interchangeable on a spa base without checking the mounting and shaft, so confirm what is in the equipment bay before ordering.
I have a label reading PF-50-2N22C. Is this the right pump?
That number is listed alongside Waterway part 3722021-1D for this pump, so it is worth comparing against the rest of your old label, particularly the voltage and the port sizes.
