Waterway Tiny Might complete spa circulating pump, 1/16 HP single speed, 1 inch union, 230VWaterway Tiny Might Complete Spa Circulating Pump, 1" Union, 230V, 3312620-14 In stock$24999
Waterway Tiny Might complete spa circulating pump, 1/16 HP single speed, 1 inch union, 230V
Shop all Waterway

Waterway Tiny Might Complete Spa Circulating Pump, 1" Union, 230V, 3312620-14

Ask a questionMPN 3312620-14
$24999
FREE Delivery
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Complete pump Supplied as the genuine Waterway Tiny Might pump and motor, not a wet end alone.
  • Insulated wet end The Tiny Might insulated wet end construction that the model is known for.
  • 1/16 HP, single speed A circulation pump, sized to keep water moving rather than to run jets.
  • 230V Wired for 230V at 50 or 60 Hz, so check your spa pack voltage before ordering.
  • 1 inch threaded union The outside connection is a 1 inch threaded union that measures 1-7/8 inches.
  • Widely used Fitted in many spas and hot tubs including Sundance and Sunbelt.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Waterway Tiny Might Complete Spa Circulating Pump, 1" Union, 230V, 3312620-14, SKU WWP-10-1430. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Waterway Tiny Might Complete Spa Circulating Pump, 1" Union, 230V, 3312620-14
Waterway

Tiny Might Complete Spa Circulating Pump, 1" Union, 230V, 3312620-14

$24999
Pentair SuperFlo 1 HP Single Speed Pool Pump, 1.1 THP, 115/208-230V, EC-348190
Pentair

SuperFlo 1 HP Single Speed Pool Pump, 1.1 THP, 115/208-230V, EC-348190

$74800
Pentair SuperFlo VS 1.5 HP Variable Speed Pool Pump, 2.2 THP, EC-342001
Pentair

SuperFlo VS 1.5 HP Variable Speed Pool Pump, 2.2 THP, EC-342001

$1,48900
Pentair WhisperFlo VS / VST 2.6 THP Variable Speed Pool Pump, 115/208-230V, EC-011533
Pentair

WhisperFlo VS / VST 2.6 THP Variable Speed Pool Pump, 115/208-230V, EC-011533

$1,79900
Pentair IntelliFlo VS+SVRS Variable Speed Pool Pump, 3 HP Max, 3.95 THP, 230V, EC-011057
Pentair

IntelliFlo VS+SVRS Variable Speed Pool Pump, 3 HP Max, 3.95 THP, 230V, EC-011057

$2,39900
Polaris 3/4 HP Booster Pump, Complete, PB4-60
Polaris

3/4 HP Booster Pump, Complete, PB4-60

$55899
Pentair WhisperFlo 1 HP Pool Pump, 1.1 THP, Totally Enclosed Fan Cooled, 115-230V, EC-015583
Pentair

WhisperFlo 1 HP Pool Pump, 1.1 THP, Totally Enclosed Fan Cooled, 115-230V, EC-015583

$95900
Subtotal

Similar products

Other products people compare with this one.

Balboa 1070021 one speed spa circulation pump, 0.25 HP 230 V, front view Balboa 1070021 Spa Circulation Pump, 1-Speed, 0.25 HP, 230V, 1.1A, 60Hz$30999 Balboa 5235212-S Ultimax spa pump, 4HP 230V two speed with 2 in. suction port Balboa Ultimax Pump, 4HP 230V, 12.0 Amp, 2 Speed, 5235212-S$33899 Balboa 4239110-S Dura-Jet 1HP two speed 48 frame 115V spa pump Balboa Dura-Jet Spa Pump, 1HP 2-Speed 48 Frame 115V, 4239110-S$30399 Balboa 4239113-S Dura-Jet 2.0 HP two speed 48 frame spa pump, 115V Balboa Dura-Jet Pump, 48 Frame 2.0 HP 2 Speed 115V, 4239113-S$30999 Waterway 3410030-1E Iron Might 1/15 HP circulation pump, 115V, 48 frame Waterway 1/15 HP Iron Might Circulation Pump, Single Speed, 115V, 3410030-1E$28899 Aqua-Flo Flo-Master XP2 spa pump, 1.5 HP 230 V 2 speed Aqua-Flo Flo-Master XP2 Pump, 1.5 HP, 230 V, 2 Speed, 06115517-2040$34499 Aqua-Flo 06115000-1040 Flo-Master XP2 side discharge 48-frame two speed pump Aqua-Flo Flo-Master XP2, Side Discharge, 48-Frame 115V 2.0 HP 1.5 OPHP 2-Speed, 06115000-1040$37599 Aqua-Flo FloMaster XP2e 05320761-2040 two speed 3 HP 230V spa pump Aqua-Flo FloMaster XP2e Spa Pump, 2 Speed, 3 HP, 230V, 05320761-2040$38199 Aqua-Flo Flo-Master FMCP 48 frame spa pump, 1.5 HP 115 V Aqua-Flo Flo-Master FMCP 48 Frame Pump, 1.5 in., 1.5 HP, 115 V, 14.4 Amp, 02615000-1010$40399 Waterway 3420610-1A Executive 1.5HP two speed spa pump, 115V 48 frame Waterway 1.5HP Executive Spa Pump, 2 Speed, 115v, 48fr, 2", 3420610-1A$40799
Aqua-Flo 02115005-1010 Flo-Master FMHP 1-1/2 HP two speed 230V pump Aqua-Flo 1-1/2 HP 2-Speed Flo-Master FMHP Pump, 230V, 02115005-1010$41799 Aqua-Flo Flo-Master XP2 2 HP two speed 230V spa pump Aqua-Flo Flo-Master XP2 2 HP 2 Speed 230V, 06120500-2040$41999 Aqua-Flo Flo-Master FMCP 1 HP two speed spa pump with center top discharge Aqua-Flo 1 HP 2-Speed FMCP Spa Pump, 120V, 02610000-1010$42199 Waterway Executive 5 HP two speed 56 frame 230 volt spa pump, part 3722021-1D Waterway Executive 5 HP 2 Speed 2" 56 Frame 230 Volt Pump, 3722021-1D$45199 Waterway 3722021-13 Executive 5 HP spa pump, 2 speed, 2-1/2" x 2", 56 frame, 230V Waterway 5 HP Executive Spa Pump, 2 Speed, 2-1/2" x 2", 56 Frame, 230V, 3722021-13$48799 Aqua-Flo 02115000-1010 Flo-Master FMHP 1.5 HP 115V two speed spa pump Aqua-Flo Flo-Master FMHP Spa Pump 1.5 HP 115V 2 Speed, 02115000-1010$48899 Aqua-Flo FMXP2E 05340009-5040 spa pump, 5 HP 230V two speed Aqua-Flo FMXP2E Spa Pump, 5 HP 230V 2 Speed, 05340009-5040$49699 Aqua-Flo Flo-Master FMHP 02120000-1010 side discharge 48 frame pump, 2 HP two speed 230 V Aqua-Flo Flo-Master FMHP Side Discharge 48 Frame Pump, 2 HP, 2-Speed, 230 V, 02120000-1010$58999 Hayward Super Pump W3SP2607X10, 1 HP max rated in-ground pool pump, side view Hayward Super Pump 1 HP Max Rated 115/230V, W3SP2607X10$84900 Web Price CaliMar CMARVSP3.0 3HP variable speed pool pump with 2 in. threaded ports, black CaliMar Variable Speed Pool Pump, 3 HP, 230V, 2 in. Ports, CMARVSP3.0$79900 Web Price

From Waterway

A Waterway pump and filter on an equipment pad beside an infinity pool. Engineered for pool, spa and bath. Waterway

Waterway equipment

Waterway Power Defender Variable Speed Pump 1.65HP 230V, PD-165 Waterway 150 Sq. Ft. 1.5 HP 2 Speed Clearwater Cartridge Filter System, 522-5167-6S Waterway Complete Renegade Vinyl Skimmer, Wide Mouth, 9 in. Throat, White, 540-8500 Waterway 3/4 HP Booster Pump, SG3810430-1PDA
Shop Waterway equipment

Waterway parts

Waterway Renegade Pool Skimmer Basket, 542-3240 Waterway 6 in. Pump Trap Assembly, 2 in. x 2 in. Ports, 310-6600 Waterway Adjustable Spa Jet, Gunite, 210-3400 Waterway Poly Gunite Jet Assembly 1.5" x 2" Tee Body, 210-3700
Shop Waterway parts
Pool filters: a Waterway cartridge filter and pumpFittings and valves: a white Waterway PVC fitting
Waterway makes pumps, filters, skimmers, jets, valves and fittings for pools, spas and baths.Shop all Waterway

Product details

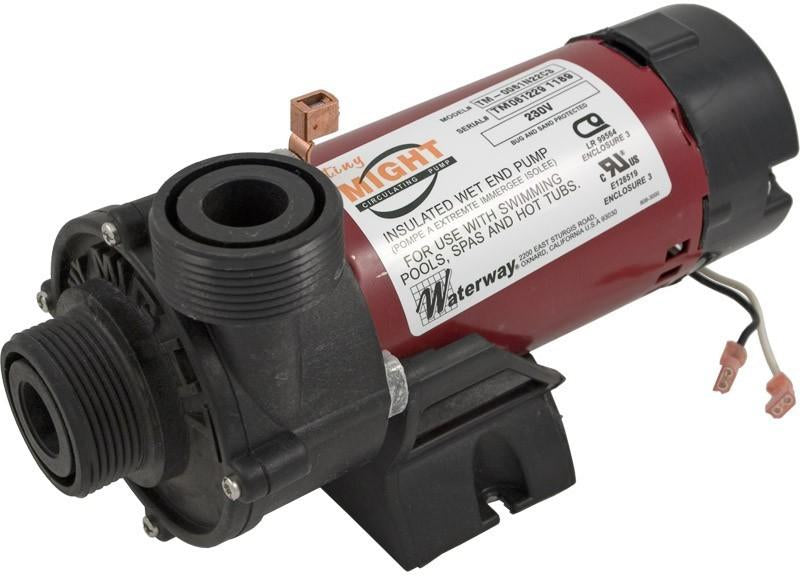

This is the Waterway Tiny Might complete spa circulating pump in the 230V, 1 inch union configuration. It is supplied as the genuine Waterway pump and motor with the insulated wet end, listed under model TM-0061N22C3 and JF1GO74N.

What a circulation pump is for

At 1/16 HP and a single speed, this pump is not there to drive jets. It keeps water moving continuously through the spa so that heat is distributed evenly and sanitizer reaches the whole body of water rather than sitting in a stagnant corner. That constant low flow is also why circulation pumps run far more hours than a jet pump and eventually wear out.

Check before you order

Two things decide whether this is the right pump. The first is voltage: this one is 230V at 50 or 60 Hz, and the same Tiny Might is built in 115V as well. The second is the plumbing. The source gives the inside connection as 1/2 inch slip and the outside as a 1 inch threaded union measuring 1-7/8 inches, while the image caption reads 1 inch slip by 1 inch union, so measure what is on your spa rather than assume.

Where it was fitted

The Tiny Might turned up in a great many spas and hot tubs, Sundance and Sunbelt among them. If your old pump carries the TM-0061N22C3 or JF1GO74N marking, this is its replacement.

Specifications
Brand Waterway
Manufacturer part number 3312620-14
UPC 806105066152
Model TM-0061N22C3, JF1GO74N
Type Complete insulated wet end spa circulating pump
Horsepower 1/16HP
Speed 1 Speed
Voltage 230V (50/60hZ)
Connection, inside 1/2" SLIP
Connection, outside 1" Threaded Union (Measures 1-7/8")
Also listed as 1" SLIP x 1" Union
Application Swimming pools, spas and hot tubs
Shipping weight 6.2 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

Customer reviews

More from Waterway

Waterway 550-4407 Crystal Water filter tank body, gray, with label Waterway Tank Body, Crystal Water, Gray, with Label, 550-4407$45699 Waterway 310-6600 6 in. pump trap assembly with 2 in. x 2 in. ports, front view Waterway 6 in. Pump Trap Assembly, 2 in. x 2 in. Ports, 310-6600$7099 Waterway 550-0701B lock ring for Pro Clean Plus 125 and 150 sq ft filters Waterway Lock Ring, Pro Clean Plus, 550-0701B$9099 Waterway 522-5167-6S ClearWater II 150 sq. ft. cartridge filter system with 1.5 HP Hi-Flo II two speed pump Waterway 150 Sq. Ft. 1.5 HP 2 Speed Clearwater Cartridge Filter System, 522-5167-6S$89999 Waterway ClearWater II 520-5147-6S 100 sq ft cartridge filter system with 1.5 HP pump Waterway 100 SqFt ClearWater II Cartridge Filter System for Above Ground Pool 1.5HP, 520-5147-6S$74599 Waterway 542-3240 Renegade pool skimmer basket Waterway Renegade Pool Skimmer Basket, 542-3240$2199 Waterway 210-3700 poly gunite jet assembly with 1.5 inch by 2 inch tee body Waterway Poly Gunite Jet Assembly 1.5" x 2" Tee Body, 210-3700$2199 Waterway 210-3400 adjustable gunite spa jet Waterway Adjustable Spa Jet, Gunite, 210-3400$3199 Waterway 550-0621 tank lid with lock ring and pressure gauge for Pro Clean Plus 125 and 150 sq ft filters Waterway Tank Lid with Lock Ring, Pro Clean Plus 125/150 sq ft, 550-0621$25499 Waterway 218-1447 gray wall fitting escutcheon for vinyl liner pool returns Waterway Wall Fitting Escutcheon, Gray, for In-Ground Vinyl Liner Return Fittings, 218-1447$699
Waterway 229-8127 thread-in 5-scallop twin roto Poly Storm gunite jet internal in gray Waterway Thread-in 5-Scallop Twin Roto Poly Storm Gunite Jet Internal, Gray, 229-8127$1999 Waterway 805-0000 Crystal Water filter tank o-ring Waterway Crystal Water Tank O-Ring, 805-0000$3299 Waterway 400-4030 1-1/2 inch union, male pipe thread by female slip Waterway 1-1/2" x 1-1/2" S Union MPT, 400-4030$1399 Waterway 540-8500 Renegade wide mouth vinyl liner skimmer, 9 in. throat, white Waterway Complete Renegade Vinyl Skimmer, Wide Mouth, 9 in. Throat, White, 540-8500$16299 Waterway 640-1900 V 10 inch Tru Flo cover and frame in white Waterway 10" Tru Flo Cover and Frame, White, 640-1900 V$3899 Waterway 505-1970 filter collar valve wrench for split-nut threaded sand filters Waterway Filter Collar Valve Wrench, 505-1970$2199 Waterway 210-6090 Roto Deluxe Jet in white Waterway Roto Deluxe Jet, White, 210-6090$3299 Waterway 600-9600 valve lid diverter assembly with spider gasket Waterway Lid Diverter Assembly with Gasket, 600-9600$9699 Waterway 400-5080 2 in. union, male pipe thread by female slip Waterway 2" Union, Male Pipe Thread by Female Slip, 400-5080$1399 Waterway 640-4740 V universal grate, 12 in. x 12 in., white Waterway Universal Grate, 12 in. x 12 in., White, 640-4740 V$6699

Questions and answers

What people ask about this product, answered by our pool techs.

Is this the complete pump or just the wet end?
The complete pump. It is the genuine Waterway Tiny Might pump and motor together.
What voltage is it?
230V at 50 or 60 Hz. Waterway also makes the same Tiny Might circulating pump in 115V, so confirm what your spa pack supplies before ordering.
What are the connection sizes?
The source gives the inside connection as 1/2 inch slip and the outside as a 1 inch threaded union that measures 1-7/8 inches. The product image is captioned 1 inch slip by 1 inch union, so measure your existing plumbing before ordering.
Which spas used this pump?
It was fitted in many spas and hot tubs including Sundance and Sunbelt. The model numbers to check against are TM-0061N22C3 and JF1GO74N.
