Product details

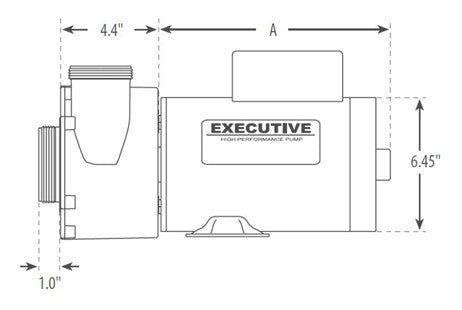

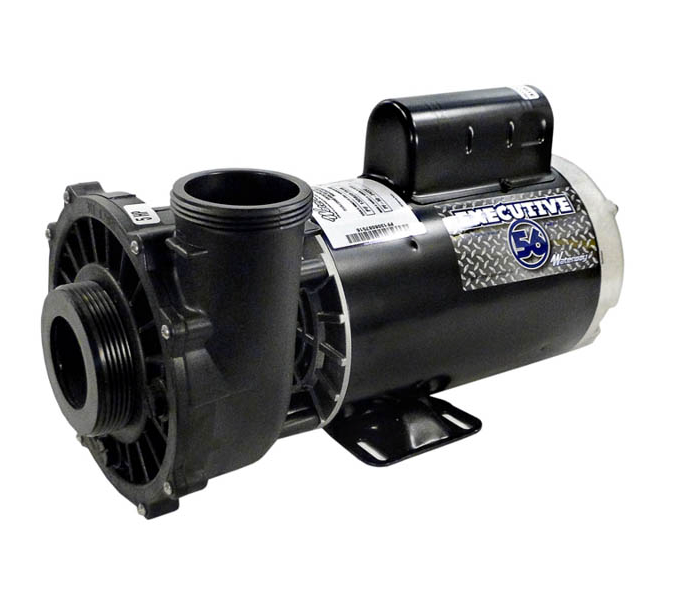

The Waterway Executive 3712021-1D is a 5 HP, single speed, 230V spa pump on a 56 frame motor, with a 2 inch intake and a 2 inch discharge.

What it does

The Executive wet end is designed specifically for 56 frame motors. The motor runs on 230V at 60 Hz and draws 16.4 amps. The large 2 inch intake improves flow performance and reduces noise, and the large 6-1/2 inch diameter wet end supports higher head pressure. The wet end can be rotated every 90 degrees, which makes it adaptable to different plumbing layouts.

Construction

Two double shielded ball bearings with moisture resistant grease give quieter operation and longer life. The 56 frame motor adds strength, runs at a cooler operating temperature and extends motor life. A split capacitor (start and run) uses less energy, the motor is thermally protected to extend life expectancy, and the pump uses Viton seals.

Before you order

Confirm that your equipment pad has 230V power that can supply 16.4 amps, and that your plumbing is 2 inch. This is a single speed pump, so choose a two speed Executive model if you want a low speed setting.

Specifications
Brand Waterway
Manufacturer part number 3712021-1D
UPC 806105076472
Type Executive spa pump, complete
Horsepower 5 HP
Speed 1 speed
Voltage 230 V, 60 Hz
Amperage 16.4 A
Motor frame 56 frame
Intake size 2 in.
Discharge size 2 in.
Wet end diameter 6-1/2 in.
Bearings Two double shielded ball bearings
Seals Viton
Shipping weight 43.35 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

Customer reviews

More from Waterway

Waterway 550-4407 Crystal Water filter tank body, gray, with label Waterway Tank Body, Crystal Water, Gray, with Label, 550-4407$45699 Waterway 310-6600 6 in. pump trap assembly with 2 in. x 2 in. ports, front view Waterway 6 in. Pump Trap Assembly, 2 in. x 2 in. Ports, 310-6600$7099 Waterway 550-0701B lock ring for Pro Clean Plus 125 and 150 sq ft filters Waterway Lock Ring, Pro Clean Plus, 550-0701B$9099 Waterway 522-5167-6S ClearWater II 150 sq. ft. cartridge filter system with 1.5 HP Hi-Flo II two speed pump Waterway 150 Sq. Ft. 1.5 HP 2 Speed Clearwater Cartridge Filter System, 522-5167-6S$89999 Waterway ClearWater II 520-5147-6S 100 sq ft cartridge filter system with 1.5 HP pump Waterway 100 SqFt ClearWater II Cartridge Filter System for Above Ground Pool 1.5HP, 520-5147-6S$74599 Waterway 542-3240 Renegade pool skimmer basket Waterway Renegade Pool Skimmer Basket, 542-3240$2199 Waterway 210-3700 poly gunite jet assembly with 1.5 inch by 2 inch tee body Waterway Poly Gunite Jet Assembly 1.5" x 2" Tee Body, 210-3700$2199 Waterway 210-3400 adjustable gunite spa jet Waterway Adjustable Spa Jet, Gunite, 210-3400$3199 Waterway 550-0621 tank lid with lock ring and pressure gauge for Pro Clean Plus 125 and 150 sq ft filters Waterway Tank Lid with Lock Ring, Pro Clean Plus 125/150 sq ft, 550-0621$25499 Waterway 218-1447 gray wall fitting escutcheon for vinyl liner pool returns Waterway Wall Fitting Escutcheon, Gray, for In-Ground Vinyl Liner Return Fittings, 218-1447$699
Waterway 550-0611B ProClean Plus filter lid and lock-ring assembly Waterway ProClean Plus Filter Lid and Lock-Ring Assembly, 75 to 100 Sq. Ft., 550-0611B$24999 Waterway 229-8127 thread-in 5-scallop twin roto Poly Storm gunite jet internal in gray Waterway Thread-in 5-Scallop Twin Roto Poly Storm Gunite Jet Internal, Gray, 229-8127$1999 Waterway 805-0000 Crystal Water filter tank o-ring Waterway Crystal Water Tank O-Ring, 805-0000$3299 Waterway 400-4030 1-1/2 inch union, male pipe thread by female slip Waterway 1-1/2" x 1-1/2" S Union MPT, 400-4030$1399 Waterway 540-8500 Renegade wide mouth vinyl liner skimmer, 9 in. throat, white Waterway Complete Renegade Vinyl Skimmer, Wide Mouth, 9 in. Throat, White, 540-8500$16299 Waterway 640-1900 V 10 inch Tru Flo cover and frame in white Waterway 10" Tru Flo Cover and Frame, White, 640-1900 V$4099 Waterway 505-1970 filter collar valve wrench for split-nut threaded sand filters Waterway Filter Collar Valve Wrench, 505-1970$2199 Waterway 210-6090 Roto Deluxe Jet in white Waterway Roto Deluxe Jet, White, 210-6090$3299 Waterway 600-9600 valve lid diverter assembly with spider gasket Waterway Lid Diverter Assembly with Gasket, 600-9600$9699 Waterway 400-5080 2 in. union, male pipe thread by female slip Waterway 2" Union, Male Pipe Thread by Female Slip, 400-5080$1399

Questions and answers

What people ask about this product, answered by our pool techs.

What is the Waterway 3712021-1D?
It is the Waterway Executive 5 HP, single speed, 230V spa pump on a 56 frame motor, with a 2 in. intake and a 2 in. discharge.
What are the electrical requirements of the Waterway 3712021-1D?
It runs on 230V at 60 Hz and draws 16.4 amps. It is a single speed pump.
Can I rotate the wet end on the Executive 3712021-1D?
Yes. The Executive wet end can be rotated every 90 degrees, so the pump can be positioned to suit the plumbing.
What size plumbing does the Waterway 3712021-1D use?
It has a 2 in. intake and a 2 in. discharge, so it connects to 2 in. pipe.
