Jandy R0457501 hot surface ignitor for the Legacy LRZE pool and spa heaterJandy OEM Hot Surface Ignitor for Legacy LRZE Pool and Spa Heater, R0457501 In stock$26699
Jandy R0457501 hot surface ignitor for the Legacy LRZE pool and spa heater
Shop all Jandy

Jandy OEM Hot Surface Ignitor for Legacy LRZE Pool and Spa Heater, R0457501

Ask a questionMPN R0457501
$26699
FREE Delivery
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Genuine Jandy Factory OEM part R0457501.
  • For the Legacy LRZE The hot surface ignitor used on the Legacy model LRZE pool and spa heater.
  • A common no light cause An aged or cracked ignitor is one of the first things a tech checks when a heater will not fire.
  • Handle with care Hot surface ignitors are brittle. Do not touch the element with bare fingers and do not force it into position.
  • Direct replacement Fits in place of the original ignitor with no modification.
  • Ships parcel A small part that goes out by parcel carrier.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Jandy OEM Hot Surface Ignitor for Legacy LRZE Pool and Spa Heater, R0457501, SKU LAR-151-1124. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Jandy OEM Hot Surface Ignitor for Legacy LRZE Pool and Spa Heater, R0457501
Jandy

OEM Hot Surface Ignitor for Legacy LRZE Pool and Spa Heater, R0457501

$26699
Teledyne Laars Transformer 115V-220V/24V, R0061100
Teledyne Laars

Transformer 115V-220V/24V, R0061100

$10099
Jandy Vent Fusible Link, 240 C, R0524300
Jandy

Vent Fusible Link, 240 C, R0524300

$2499
Jandy Flame Sensor Rod, R0458601
Jandy

Flame Sensor Rod, R0458601

$9699
Jandy Air Chamber Cover for LXi 400 Low NOx Pool/Spa Heater, R0460105
Jandy

Air Chamber Cover for LXi 400 Low NOx Pool/Spa Heater, R0460105

$4299
Teledyne Laars Fusible Link R0012200
Teledyne Laars

Fusible Link R0012200

$1999
Teledyne Laars Power Distribution Circuit Board, R0458100
Teledyne Laars

Power Distribution Circuit Board, R0458100

$14999
Subtotal

Similar products

Other products people compare with this one.

Zodiac Jandy Laars LXi Hot Surface Ignitor | R0457500 Zodiac Jandy Laars LXi Hot Surface Ignitor | R0457500$16199 Jandy R0454200 rear header for the LXi Low NOx pool heater Jandy Rear Header for LXi Low NOx Heater, R0454200$27699 Zodiac R0331405 9 inch indoor vent collar for LX and LT 400 Low NOx pool heaters Zodiac 9 in. Indoor Vent Collar for LX and LT 400 Low NOx Pool Heaters, R0331405$14199 Jandy R0494500 natural gas valve for Legacy LRZE pool and spa heaters Jandy LRZE Gas Valve, Natural, R0494500$39499 Zodiac LXi Temp Sensor With Sleeve & Gskt | R0456500 Zodiac LXi Temp Sensor With Sleeve & Gskt | R0456500$13999 Jandy R0386900 hot surface ignitor for LX and LT Low NOx pool heaters Jandy LX/LT Hot Surface Ignitor for Low NOx Heater, R0386900$12199 Jandy R0453600 polymer front header with hardware and gaskets for LXi Low NOx pool heaters Jandy Front Header with Hardware and Gaskets for LXi Low NOx Pool Heaters, R0453600$58599 Zodiac Jandy Pressure Relief Valve for LX-LT Heaters | R0336100 Zodiac Jandy Pressure Relief Valve for LX-LT Heaters | R0336100$8599 Zodiac Zodiak Pool Systems LXI Flame Sensor | R0458600 Zodiac Zodiak Pool Systems LXI Flame Sensor | R0458600$10399 Zodiac LRZM LRZE FUSIBLE LINK BRACKET | R0337200 Zodiac LRZM LRZE FUSIBLE LINK BRACKET | R0337200$1899
Zodiac LRZM LRZE TEMP SENSOR PLUG | R0456800 Zodiac LRZM LRZE TEMP SENSOR PLUG | R0456800$1799 Teledyne Laars R0471500 pilot generator for LRZM pool and spa heaters Teledyne Laars LRZM Pilot Generator, R0471500$11799 Zodiac LXI SERIES HIGH LIMIT SET | R0457200 Zodiac LXI SERIES HIGH LIMIT SET | R0457200$11399 Teledyne Laars R0327300 coupling nut kit with flange Teledyne Laars Coupling Nut Kit with Flange, R0327300$7799 Teledyne Laars R0037000 pilot tubing for Jandy Laars pool heaters Teledyne Laars Pilot Tubing, R0037000$3799 Zodiac SENSOR STUD LX/LT REPL KIT | R0383200 Zodiac SENSOR STUD LX/LT REPL KIT | R0383200$3099 Zodiac LXi Blower Assembly with Gaskets | R0455600 Zodiac LXi Blower Assembly with Gaskets | R0455600$82299

Product details

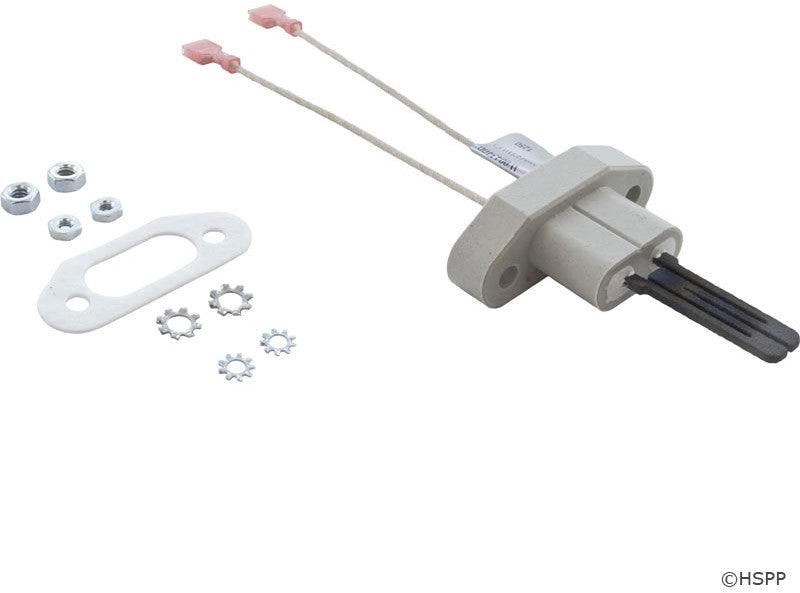

This is the Jandy R0457501 hot surface ignitor for the Legacy model LRZE pool and spa heater. It is the genuine Jandy OEM part.

What a hot surface ignitor does

Instead of a standing pilot, the heater energizes a ceramic element that glows hot enough to light the gas at the burner. It is a wear part. The element degrades over years of heating and cooling, and eventually it no longer reaches ignition temperature, so the heater goes through its sequence and never lights.

Before you replace it

Watch the ignitor through a start cycle if you can. If it never glows, or glows dull and uneven, it is the part. If it glows properly and the heater still will not light, look at the gas supply and the control side instead.

Fitting

Handle the ignitor by its bracket. The ceramic element is brittle and skin oils shorten its life, so keep your fingers off it and never force it into the mounting.

Specifications
Brand Jandy
Manufacturer part number R0457501
UPC 052337037228
Type Hot surface ignitor
Fits Jandy Legacy model LRZE pool and spa heater
Shipping weight 0.65 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

From Jandy

A swimmer diving from the blocks in a dark pool. Everything you need for the perfect pool. Jandy

Jandy equipment

Jandy AquaLink AquaPure 3-Port 14-Blade Replacement Salt Cell Kit, 40K Gallons, 16' Cable, PLC1400 Jandy 2" Side Mount Multi-Port Valve with Unions for DEV48/60, JS60-SM or JS100-SM, BWVL-MPV-80 Jandy TruGuard Mineral Sanitizer Replacement Cartridge, TRUGUARDR Jandy 1-1/2 in. x 2 in. Neverlube Positive Seal 3-Port Diverter Valve, 4715
Shop Jandy equipment

Genuine Jandy parts

Jandy R0693900 TruClear PCB Cell Replacement Assembly for Pro Series Chlorine Generator Jandy Lid & Lock-Ring Assembly with Seal, PHPF/PHPM, R0448800 Jandy Genuine Replacement Gauge with Air Release Assembly, R0357200 Jandy Replacement Bottom Tank Assembly for CL & DEV Model Filters, R0466500
Shop Jandy parts
Heater parts: a Jandy JXi heaterPump parts: a Jandy VS FloPro variable speed pumpSalt systems: a Jandy AquaPure salt cell
Jandy makes pumps, filters, heaters, salt chlorinators, valves, lighting and automation for pools and spas.Shop all Jandy

Customer reviews

More from Jandy

Jandy R0693900 TruClear PCB replacement assembly Jandy R0693900 TruClear PCB Cell Replacement Assembly for Pro Series Chlorine Generator$75499 Jandy R0452500 new style port sensor kit for 3 port AquaPure cell with 16 ft cable Jandy Port Sensor Kit for 3 Port Cell with 16' Cable, R0452500$24599 Jandy R0448800 clear pump lid and black lock ring assembly with seal, PHPF/PHPM Jandy Lid & Lock-Ring Assembly with Seal, PHPF/PHPM, R0448800$7899 Jandy PLC1400 AquaPure 3 port 14 blade replacement salt cell kit with 16 ft cable Jandy AquaLink AquaPure 3-Port 14-Blade Replacement Salt Cell Kit, 40K Gallons, 16' Cable, PLC1400$1,39500 Jandy R0452400 AquaPure PureLink 3-port 14-blade replacement salt cell Jandy AquaPure PureLink 3-Port 14-Blade 1400 Replacement Salt Cell Kit for 40,000 Gallon Pools, R0452400$1,22900 Jandy R0466500 replacement bottom tank assembly for CL and DEV filters with unions, outlet elbow and retaining ring Jandy Replacement Bottom Tank Assembly for CL & DEV Model Filters, R0466500$76899 Jandy R0984100 AquaPure power interface PCB large backboard with screws Jandy R0984100 AquaPure Power Interface PCB, Large Backboard with Screws$23999 Zodiac R0503000 Nature2 Fusion Soft 1400 replacement cell kit for pools to 40,000 gallons Zodiac Nature2 Fusion Soft 1400 Cell Kit for 40,000-Gallon Pools, R0503000$1,04900 Jandy BWVL-MPV-80 2 in. side mount multiport valve with unions Jandy 2" Side Mount Multi-Port Valve with Unions for DEV48/60, JS60-SM or JS100-SM, BWVL-MPV-80$32799 Jandy R0357200 pressure gauge with air release assembly, front view Jandy Genuine Replacement Gauge with Air Release Assembly, R0357200$7999
Jandy R0445800 pump lid and locking ring assembly with o-ring for Stealth and ePump pumps Jandy Lid & Locking Ring Assembly with O-Ring, R0445800$11799 Jandy R0554700 tank top for CV, CL, DEV and DEL series filters Jandy CV Series Cartridge Filter Tank Top R0554700$52299 Jandy R0402800 16 ft AquaPure PureLink DC cell cord for the 3-port cell Jandy 16' AquaPure PureLink DC Cell Cord, R0402800$2499 Jandy R0452300 AquaPure PureLink 3-port 7-blade replacement salt cell kit with 16 ft cord Jandy AquaPure PureLink 3-Port 7-Blade Replacement Cell Kit, R0452300$91399 Jandy 4424 JVA 24V valve actuator Jandy Valve Actuator JVA 24V, 4424$23399 Jandy R0479800 pump housing body for FloPro FHPM and VS FloPro pumps Jandy Pump Housing Body for FHPM FloPro & VS FloPro, R0479800$24999 Jandy R0461900 gray top housing assembly for CS100 and CS150 cartridge filters Jandy Top Housing Assembly CS100, CS150, R0461900$33199 Jandy TRUGUARDR TruGuard mineral sanitizer replacement cartridge Jandy TruGuard Mineral Sanitizer Replacement Cartridge, TRUGUARDR$24899 Jandy R0445601 pump body for Stealth SHPF/SHPM, WaterFall SWF and ePump JEP, rear view Jandy Pump Body for Stealth SHPF/SHPM Pumps, R0445601$38199 Jandy R0663800 cover assembly with user interface for the TruClear chlorine generating system Jandy Cover Assembly with User Interface for TruClear Chlorine Generating System, R0663800$41999

Questions and answers

What people ask about this product, answered by our pool techs.

Which heater does this fit?
The Jandy Legacy LRZE pool and spa heater. Part number R0457501.
My heater clicks but never lights. Is this the part?
It is a strong candidate. A hot surface ignitor has to glow hot enough to light the gas, and they lose that ability as they age or crack. Confirm the ignitor is not glowing before you replace it, because gas supply and the control board can produce the same symptom.
Do I need to be careful installing it?
Yes. The element is brittle ceramic. Handle it by the bracket, keep your fingers off the element and never force it into the mounting.
Is it a genuine Jandy part?
Yes. It is Jandy OEM part R0457501.
Ask your own question
