Jandy Rear Header for LXi Low NOx Heater, R0454200 In stock$27699
Jandy Rear Header for LXi Low NOx Heater, R0454200
$27699
FREE Delivery
Typically ships within 0 days This item ships directly from the manufacturer.
In stock
30 day returns · Easy, with prepaid labels provided
Quick overview
- Genuine Jandy Factory part number R0454200 for the LXi heater.
- Hardware and gaskets included The header comes with the fasteners and gaskets for the job, not as a bare casting.
- LXi Low NOx Listed for the Jandy LXi Low NOx pool heater.
- Rear header This is the rear header. The front header is a separate part, so confirm which end is leaking.
- For a cracked or corroded header Water under the back of the heater, or a header face that has corroded through, is what this part answers.
- Fit the new gaskets Use the gaskets supplied. Old gaskets that have been crushed once will not seal a second time.
Need a hand?
Bilingual support from pool professionals.
Frequently bought together
Current item
Jandy
Rear Header for LXi Low NOx Heater, R0454200
$27699
Subtotal
Similar products
Other products people compare with this one.
Jandy Laars LXi Low NOx Pool Heater Hot Surface Ignitor, R0457500$16399
Jandy Laars Temperature Sensor Kit with Sleeve and Gasket for JXi, LXi and Legacy Heaters, R0456500$13999
Zodiac 9 in. Indoor Vent Collar for LX and LT 400 Low NOx Pool Heaters, R0331405$14199
Jandy LRZE Gas Valve, Natural, R0494500$39499
Teledyne Laars Power Distribution Circuit Board, R0458100$14999
Jandy Front Header with Hardware and Gaskets for LXi Low NOx Pool Heaters, R0453600$58599
Jandy LX/LT Hot Surface Ignitor for Low NOx Heater, R0386900$12199
Zodiac Jandy Pressure Relief Valve for LX-LT Heaters | R0336100$8599
Zodiac LXI SERIES HIGH LIMIT SET | R0457200$11399
Zodiac Zodiak Pool Systems LXI Flame Sensor | R0458600$10499
Zodiac LXi Blower Assembly with Gaskets | R0455600$82299
Teledyne Laars LRZM Pilot Generator, R0471500$11799
Teledyne Laars Coupling Nut Kit with Flange, R0327300$7799
Teledyne Laars Pilot Tubing, R0037000$3799
Zodiac SENSOR STUD LX/LT REPL KIT | R0383200$3099
Zodiac LRZM LRZE FUSIBLE LINK BRACKET | R0337200$1899
Zodiac LRZM LRZE TEMP SENSOR PLUG | R0456800$1799
Product details

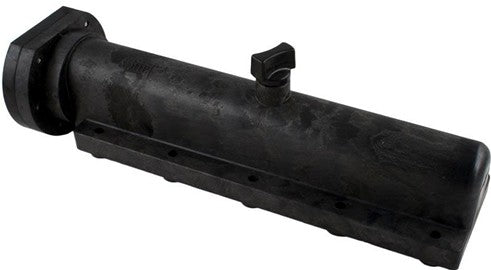

The Jandy R0454200 is the rear header for the LXi Low NOx pool heater, supplied with the hardware and gaskets needed to fit it. It is the genuine part.
What the header does
The headers close off each end of the heat exchanger and route pool water through it. They see every gallon that passes through the heater, at temperature, which is why they are the part that corrodes and cracks rather than the tubes themselves. Low pH water, high salt levels and a poorly bonded system all shorten their life.
Front or rear
This is the rear header. The front header is a separate part, so trace the leak before ordering rather than guessing from where the water reaches the pad. Water travels along the base of a heater and can appear a long way from the actual crack.
Fitting
Use the gaskets that come with it. A gasket that has been compressed once has taken its set and will not seal again, and a header joint that weeps after reassembly means the whole job comes apart a second time.
| Brand | Jandy |
|---|---|
| Manufacturer part number | R0454200 |
| UPC | 052337023030 |
| Type | Rear header |
| Included | Hardware and gaskets |
| Fits | Jandy LXi Low NOx heater |
| Part type | Pool heater part |
| Shipping weight | 3 lb |
| Ships | Parcel |
Request a quote
Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.
From Jandy
Jandy equipment
Jandy AquaLink AquaPure 3-Port 14-Blade Replacement Salt Cell Kit, 40K Gallons, 16' Cable, PLC1400
Jandy 2" Side Mount Multi-Port Valve with Unions for DEV48/60, JS60-SM or JS100-SM, BWVL-MPV-80
Jandy TruGuard Mineral Sanitizer Replacement Cartridge, TRUGUARDR
Jandy 1-1/2 in. x 2 in. Neverlube Positive Seal 3-Port Diverter Valve, 4715
Genuine Jandy parts
Jandy TruClear PCB Cell Replacement Assembly for Pro Series Chlorine Generator, R0693900
Jandy Lid & Lock-Ring Assembly with Seal, PHPF/PHPM, R0448800
Jandy Genuine Replacement Gauge with Air Release Assembly, R0357200
Jandy Replacement Bottom Tank Assembly for CL & DEV Model Filters, R0466500
Jandy makes pumps, filters, heaters, salt chlorinators, valves, lighting and automation for pools and spas.Shop all Jandy
Customer reviews
Verified store reviews
SHOPPER APPROVED
See all reviews →
More from Jandy
Jandy TruClear PCB Cell Replacement Assembly for Pro Series Chlorine Generator, R0693900$75499
Jandy Port Sensor Kit for 3 Port Cell with 16' Cable, R0452500$29999
Jandy Lid & Lock-Ring Assembly with Seal, PHPF/PHPM, R0448800$7499
Jandy AquaLink AquaPure 3-Port 14-Blade Replacement Salt Cell Kit, 40K Gallons, 16' Cable, PLC1400$1,39500
Jandy AquaPure PureLink 3-Port 14-Blade 1400 Replacement Salt Cell Kit for 40,000 Gallon Pools, R0452400$1,22900
Jandy Replacement Bottom Tank Assembly for CL & DEV Model Filters, R0466500$76899
Jandy AquaPure Power Interface PCB, Large Backboard with Screws, R0984100$23999
Zodiac Nature2 Fusion Soft 1400 Cell Kit for 40,000-Gallon Pools, R0503000$1,17999
Jandy 2" Side Mount Multi-Port Valve with Unions for DEV48/60, JS60-SM or JS100-SM, BWVL-MPV-80$32799
Jandy Genuine Replacement Gauge with Air Release Assembly, R0357200$7999
Jandy Lid & Locking Ring Assembly with O-Ring, R0445800$11799
Jandy CV Series Cartridge Filter Tank Top R0554700$52299
Jandy 16' AquaPure PureLink DC Cell Cord, R0402800$2499
Jandy AquaPure PureLink 3-Port 7-Blade Replacement Cell Kit, R0452300$91399
Jandy Valve Actuator JVA 24V, 4424$23399
Jandy Pump Housing Body for FHPM FloPro & VS FloPro, R0479800$24999
Jandy Top Housing Assembly CS100, CS150, R0461900$33199
Jandy TruGuard Mineral Sanitizer Replacement Cartridge, TRUGUARDR$24899
Jandy Pump Body for Stealth SHPF/SHPM Pumps, R0445601$38199
Jandy Cover Assembly with User Interface for TruClear Chlorine Generating System, R0663800$41999
Questions and answers
What people ask about this product, answered by our pool techs.
Which heater does this fit?
The Jandy LXi Low NOx heater. It is Jandy part R0454200.
Does it come with gaskets?
Yes. The header is supplied with hardware and gaskets.
Is this the front or the rear header?
The rear. The front header is a different part, so work out which end of the heat exchanger is leaking before you order.
Why do headers fail?
They carry pool water at temperature, so they take the brunt of aggressive chemistry and any galvanic corrosion in the system. A header that is weeping or corroded through does not get repaired, it gets replaced.
