Nidec ASB841A square flange 56Y pool pump motor in almondNidec Replacement Square Flange Motor for Pentair Pumps, 115V/208/230V 1HP, ASB841A In stock$35199

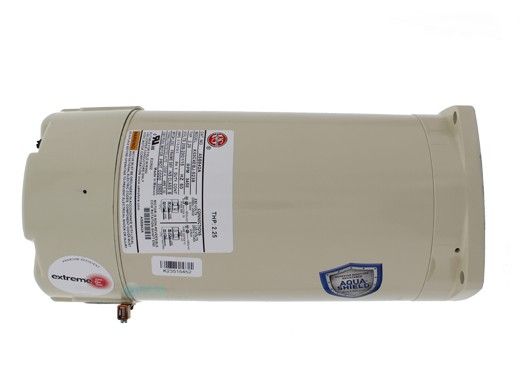

Nidec ASB841A square flange 56Y pool pump motor in almond
Shop all Nidec

Nidec Replacement Square Flange Motor for Pentair Pumps, 115V/208/230V 1HP, ASB841A

Ask a questionMPN ASB841A
$35199
FREE Delivery
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Square flange 56Y The square flange 56Y frame that Pentair square flange wet ends bolt to.
  • Listed for WhisperFlo Given for use with the WhisperFlo High Performance pump, models WFE-4 and WFE-26.
  • Single speed One speed, single phase, 60 Hz.
  • Dual voltage Rated 115/208-230 V, so it suits either supply.
  • Open drip proof ODP construction in almond, the standard finish on this family.
  • Two horsepower figures given The source lists it both as 1 HP and as 1.65 total horsepower, so check the plate on the motor you are replacing.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Nidec Replacement Square Flange Motor for Pentair Pumps, 115V/208/230V 1HP, ASB841A, SKU EMR-60-7254. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Nidec Replacement Square Flange Motor for Pentair Pumps, 115V/208/230V 1HP, ASB841A
Nidec

Replacement Square Flange Motor for Pentair Pumps, 115V/208/230V 1HP, ASB841A

$35199
Nidec Neptune Variable Speed Motor 1.65 HP 115-230V 48Y Square Flange, NPTQ165
Nidec

Neptune Variable Speed Motor 1.65 HP 115-230V 48Y Square Flange, NPTQ165

$67999
Nidec U.S. Motors Pentair EQ Series Replacement Pool Motor, 7.5HP 3-Phase 208-230-460V, EEQK750
Nidec

U.S. Motors Pentair EQ Series Replacement Pool Motor, 7.5HP 3-Phase 208-230-460V, EEQK750

$1,05999
Nidec Aqua-Shield Pro Pool/Spa Pump 48Y TEFC Square Flange Motor 2.25THP 115/208-230V, TEQ225
Nidec

Aqua-Shield Pro Pool/Spa Pump 48Y TEFC Square Flange Motor 2.25THP 115/208-230V, TEQ225

$43799
Jandy Lid & Lock-Ring Assembly with Seal, PHPF/PHPM, R0448800
Jandy

Lid & Lock-Ring Assembly with Seal, PHPF/PHPM, R0448800

$7899
Century 1-1/2 HP 3450 RPM 56Y Frame Square Flange Pool Pump Motor, 115/230V, B2854V1
Century Motors

Century 1-1/2 HP 3450 RPM 56Y Frame Square Flange Pool Pump Motor, 115/230V, B2854V1

$33999
Polaris Front Housing Volute Cover with O-Ring, R0536300
Polaris

Front Housing Volute Cover with O-Ring, R0536300

$7499
Subtotal

Similar products

Other products people compare with this one.

Century Motors Magnetek Square Flange Motor .75HP Threaded Full-Rate 115V-230V | B2847 Century Motors Magnetek Square Flange Motor .75HP Threaded Full-Rate 115V-230V | B2847$31399 Century B2855 2 HP 230 V 56Y square flange pool and spa pump motor Century 56Y Frame ODP Square Flange Pool & Spa Pump Motor 2HP 230V, B2855$41199 Century USQ1072 square flange 3/4 HP up-rate pool pump motor, 115/230V Century Square Flange Up-Rate Motor .75HP 115/230V USQ1072$26599 Century USQ1152 up rated 1.5 HP square flange pool pump motor, front view Century Up Rated Pool Pump Motor, 1.5 HP, 115/230V, Square Flange, USQ1152$35899 U.S. Motors ASB848 square flange 56Y frame pool and spa motor U.S. Motors ASB848 Square Flange Pool and Spa Motor, 56Y Frame, 115/230V$32399 Century USQ1102 1 HP square flange up-rated pool pump motor, 115/230V Century 1 HP Square Flange Up-Rated Motor, 115/230V, USQ1102$31399 Century HSQ220 Centurion Pro square flange pool and spa pump motor, 48Y frame Century Pro Square Flange Motor, 2.2 THP, 3450 RPM, 230V, 48Y, Threaded Shaft, HSQ220$41599 Century B2849 1.5 HP 230V 56Y square flange pool pump motor Century 1.5 HP 230V 56Y Square Flange Motor, B2849$44799 Century SQ1072 3/4 HP square flange pool pump motor, front view Century SQ1072 3/4 HP Square Flange Pool Pump Motor, 115/230V$29599 Pentair 354815S 2 HP TEFC 56Y frame pool pump motor, 208-230V Pentair TEFC 56Y Motor 2HP 208-230V, 354815S$49699
Hayward SPX1600Z1M threaded shaft motor, 1/2 HP 115 V Hayward Threaded Shaft Motor for Super Pump and MaxFlo Pumps 1/2 HP 115V, SPX1600Z1M$37799 Century Motors AO Smith Threaded Shaft Motor 1HP 115V/230V 56 Round Frame | ST1102 Century Motors AO Smith Threaded Shaft Motor 1HP 115V/230V 56 Round Frame | ST1102$32399 Century Motors Magnetek Square Flange Motor .75HP Energy Efficient 115V-208V-230 | B2661 Century Motors Magnetek Square Flange Motor .75HP Energy Efficient 115V-208V-230 | B2661$36799 Century Motors AO Smith Threaded Shaft Motor 1HP 115V/230V 56 Round Frame Full-Rate Energy Efficient | CT1102 Century Motors AO Smith Threaded Shaft Motor 1HP 115V/230V 56 Round Frame Full-Rate Energy Efficient | CT1102$38399 Century Motors A.O. Smith Square Flange Motor 1.5HP 115-230V | UQC1152 Century Motors A.O. Smith Square Flange Motor 1.5HP 115-230V | UQC1152$36399 Century Motors A.O. Smith Keyed Motor 1HP 115V-230V Full-Rate 56 Round Frame | SK1102 Century Motors A.O. Smith Keyed Motor 1HP 115V-230V Full-Rate 56 Round Frame | SK1102$32999 Century Motors A.O. Smith Northstar Motor 1HP 115V-230V Full-Rate Threaded | SN1102 Century Motors A.O. Smith Northstar Motor 1HP 115V-230V Full-Rate Threaded | SN1102$48499 Century Centurion Pro HSQ165 1.65 THP square flange pool and spa pump motor, 48Y frame Century 1.65 HP Square Flange Pool and Spa Pump Motor, 3450 RPM 48Y, Threaded Shaft, HSQ165$33999 Century B2853V1 1 HP square flange pool pump motor, front view Century 1 HP Square Flange Pool Pump Motor, 1 Phase, 60 Hz, 230/115 V, 3450 RPM, 56Y Frame, B2853V1$31999 Hayward SPX1607Z1M 1 HP threaded shaft single phase pump motor, 115/230V Hayward 1HP Motor, Threaded Shaft, Single Phase, 60 Cycle 115/230V, SPX1607Z1M$39199

Product details

The Nidec ASB841A is a square flange pool and spa pump motor on the 56Y frame, open drip proof, in almond. It is listed for use with the Pentair WhisperFlo High Performance pump, models WFE-4 and WFE-26.

Ratings

It is a single speed, single phase, 60 Hz motor rated 115/208-230 V. Two horsepower figures appear against it: 1 HP, and 1.65 total horsepower. Both describe this motor, expressed on different rating conventions, so the safe move is to read the plate on the motor that is coming off and match it rather than choosing between the two numbers.

Before you swap it

Check that the wet end you have is the square flange type, since a threaded or C face motor will not bolt up. This part also appears under the numbers BPA450, EB841A and 355010S, so a cross reference from a parts list may lead you here under a different code. Fit a new shaft seal while the wet end is open.

From Pool School

Replace the Pool Pump Motor or the Whole Pump?The manufacturers' tests first, what each repair replaces, and the federal motor rule. Read How to Prime a Pool PumpFrom the breaker to a full pot, each manufacturer's time limit, and what to check when it won't catch prime. Read
Specifications
Brand Nidec
Manufacturer part number ASB841A
UPC 786382110888
Type Pool and spa pump motor
Frame 56Y
Enclosure ODP
Flange Square flange
Horsepower 1 HP
Total horsepower 1.65 THP
Number of speeds 1-speed
Phase 1-phase
Frequency 60 Hz
Voltage rating 115/208-230 V
Color Almond
For use with WhisperFlo High Performance Pump Model WFE-4 and WFE-26
Also listed as BPA450, EB841A, 355010S
Shipping weight 29.2 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

Customer reviews

More from Nidec

US Motors Neptune NPTQ165 1.65 HP variable speed pool pump motor, 48Y square flange Nidec Neptune Variable Speed Motor 1.65 HP 115-230V 48Y Square Flange, NPTQ165$67999 Nidec U.S. Motors EEQK750 7.5 HP three phase replacement motor for Pentair EQ series pumps Nidec U.S. Motors Pentair EQ Series Replacement Pool Motor, 7.5HP 3-Phase 208-230-460V, EEQK750$1,05999 Nidec US Motors TEQ225 Aqua-Shield Pro 48Y TEFC square flange pool and spa pump motor Nidec Aqua-Shield Pro Pool/Spa Pump 48Y TEFC Square Flange Motor 2.25THP 115/208-230V, TEQ225$43799 Nidec EZCOM1 EcoTech EZ interface adapter for variable speed pool pump motors Nidec EcoTech EZ Variable Speed Pump Motor Interface Adapter, EZCOM1$14099

Questions and answers

What people ask about this product, answered by our pool techs.

Which pumps does this motor go on?
It is given for the Pentair WhisperFlo High Performance pump, models WFE-4 and WFE-26, on the square flange 56Y mounting.
Is it 1 HP or 1.65 HP?
The source carries both figures: 1 HP and 1.65 total horsepower. Those describe the same motor rated two different ways, so match the plate on the motor you are taking off before you order.
What voltage does it run on?
115/208-230 V, single phase, 60 Hz. It is wired for the supply you have at the pad.
Does it come with a seal or a capacitor?
This listing is the motor. Plan on a fresh shaft seal whenever a wet end is opened, since the old one rarely reseals on a new shaft.
