Product details

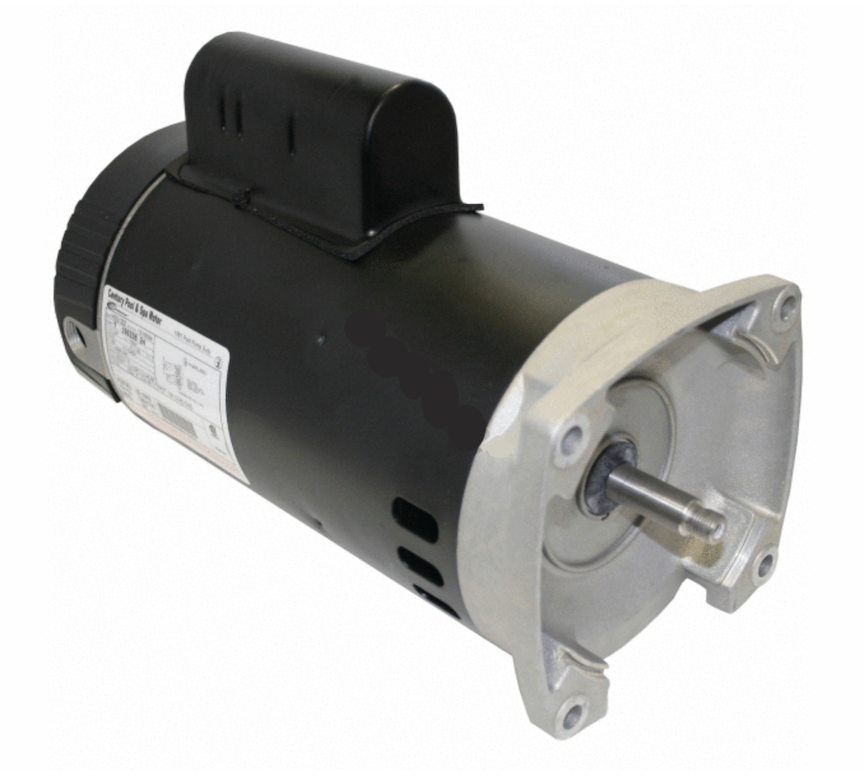

The Century HSQ220 is a Centurion Pro square flange motor for pool and spa pumps, rated 2.2 THP at 3450 RPM on 230 V. It uses the 48Y frame with a threaded shaft.

Matching it to your pump

Three things have to line up before a replacement motor fits: the frame, the mounting and the shaft. This one is a 48Y square flange motor, which bolts directly to a square flange pump housing rather than through a C face bracket, and it takes a threaded impeller. Read the label on the motor you are pulling off and compare all three.

Single speed operation

At 3450 RPM this is a full speed motor, the direct replacement for a standard single speed pool pump motor. Confirm that your service is 230 V, since the motor is set for that voltage.

Specifications
Brand Century
Manufacturer part number HSQ220
UPC 786674033260
Series Centurion Pro
Type Pool and spa pump motor
Horsepower 2.2 THP
Speed 3450 RPM
Voltage 230 V
Frame 48Y
Shaft Threaded
Flange Square flange
Shipping weight 29.8 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

Customer reviews

Questions and answers

What people ask about this product, answered by our pool techs.

What frame is this motor?
48Y, with a square flange.
What voltage does it need?
230 V.
Is the shaft threaded or keyed?
Threaded. The impeller threads on, so check that your existing impeller is the threaded type before ordering.
Is it a single speed motor?
Yes. It runs at 3450 RPM, the full speed used by standard single speed pool pumps.
