Century B2840V1 2.5 HP 230V square flange pool pump motorCentury 2.5 HP 230V 56 Frame ODP Square Flange PSC Switchless Motor, B2840V1 In stock$53499

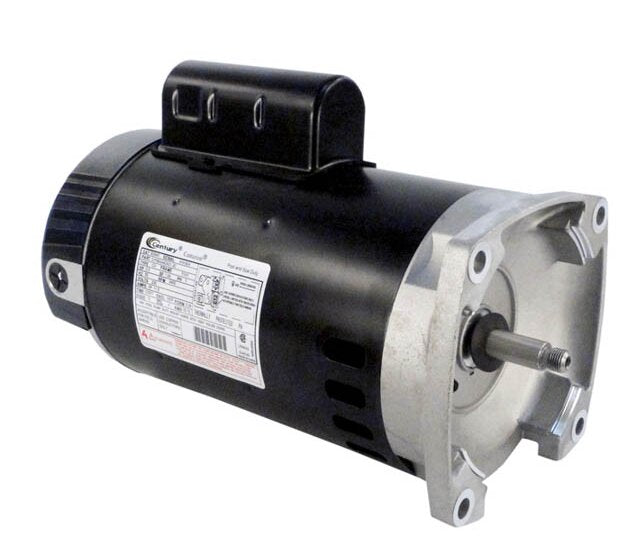

Century B2840V1 2.5 HP 230V square flange pool pump motor
Shop all Century Motors

Century 2.5 HP 230V 56 Frame ODP Square Flange PSC Switchless Motor, B2840V1

Ask a questionMPN B2840V1
$53499
FREE Delivery
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • 2.5 HP on 230V Rated 2.5 horsepower at 230 volts.
  • 56 frame Standard 56 frame body.
  • Square flange The square flange mount, so it bolts to a square flange pump.
  • ODP enclosure Open drip proof construction.
  • PSC switchless Permanent split capacitor design with no start switch to wear out.
  • Genuine Century Century part number B2840V1.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Century 2.5 HP 230V 56 Frame ODP Square Flange PSC Switchless Motor, B2840V1, SKU MGT-60-2841. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Century 2.5 HP 230V 56 Frame ODP Square Flange PSC Switchless Motor, B2840V1
Century Motors

Century 2.5 HP 230V 56 Frame ODP Square Flange PSC Switchless Motor, B2840V1

$53499
Century 1-1/2 HP 3450 RPM 56Y Frame Square Flange Pool Pump Motor, 115/230V, B2854V1
Century Motors

Century 1-1/2 HP 3450 RPM 56Y Frame Square Flange Pool Pump Motor, 115/230V, B2854V1

$33999
Century VGreen Evo Variable Speed 1.65 THP Square Flange Pool Pump Motor, 230/115 V, 48Y Frame, EVQ165
Century Motors

Century VGreen Evo Variable Speed 1.65 THP Square Flange Pool Pump Motor, 230/115 V, 48Y Frame, EVQ165

$61999
Century 56Y Frame ODP Square Flange Pool & Spa Pump Motor 2HP 230V, B2855
Century Motors

Century 56Y Frame ODP Square Flange Pool & Spa Pump Motor 2HP 230V, B2855

$41199
Century 1.65 HP Square Flange Pool and Spa Pump Motor, 3450 RPM 48Y, Threaded Shaft, HSQ165
Century Motors

Century 1.65 HP Square Flange Pool and Spa Pump Motor, 3450 RPM 48Y, Threaded Shaft, HSQ165

$33999
Century 1 HP Square Flange Pool Pump Motor, 1 Phase, 60 Hz, 230/115 V, 3450 RPM, 56Y Frame, B2853V1
Century Motors

Century 1 HP Square Flange Pool Pump Motor, 1 Phase, 60 Hz, 230/115 V, 3450 RPM, 56Y Frame, B2853V1

$31999
Century 1 HP Pump Motor, 230/115 Volt, 3450 RPM, Round Flange, 56J Frame, ODP, UST1102
Century Motors

Century 1 HP Pump Motor, 230/115 Volt, 3450 RPM, Round Flange, 56J Frame, ODP, UST1102

$28799
Subtotal

Similar products

Other products people compare with this one.

Century EVQ225 VGreen Evo 2.25 THP variable speed square flange pool pump motor Century VGreen Evo Variable Speed 2.25 THP Square Flange Pool Pump Motor, 230/115 V, 48Y Frame, EVQ225$65299 Century USQ1152 up rated 1.5 HP square flange pool pump motor, front view Century Up Rated Pool Pump Motor, 1.5 HP, 115/230V, Square Flange, USQ1152$35899 Century B2843 square flange 2 HP 208/230V pool pump motor Century Square Flange 2 HP EE 208/230V Pool Pump Motor B2843$55799 Century B985 square flange two speed pool pump motor, 230V Century Square Flange 2 HP Two Speed Pool Pump Motor, 230V, B985$66899 Century Motors Magnetek Square Flange Motor .75HP Threaded Full-Rate 115V-230V | B2847 Century Motors Magnetek Square Flange Motor .75HP Threaded Full-Rate 115V-230V | B2847$34099 Century B2844 energy efficient 3 HP square flange pool pump motor Century Energy Efficient 3 HP Square Flange Motor 208/230V, B2844$61499 U.S. Motors ASB848 square flange 56Y frame pool and spa motor U.S. Motors ASB848 Square Flange Pool and Spa Motor, 56Y Frame, 115/230V$32399 Century USQ1102 1 HP square flange up-rated pool pump motor, 115/230V Century 1 HP Square Flange Up-Rated Motor, 115/230V, USQ1102$31399 Century SQS1102R square flange 1 HP two speed 230V pool pump motor Century Square Flange Full Rated 1 HP 2 Speed 230V Pool Pump Motor SQS1102R$54299 Century HSQ220 Centurion Pro square flange pool and spa pump motor, 48Y frame Century Pro Square Flange Motor, 2.2 THP, 3450 RPM, 230V, 48Y, Threaded Shaft, HSQ220$41599
Century B2849 1.5 HP 230V 56Y square flange pool pump motor Century 1.5 HP 230V 56Y Square Flange Motor, B2849$44799 Century Pro HSQ260 square flange pool and spa pump motor, 2.6 HP, 230 V, 48Y frame Century Pro HSQ260 Square Flange Pump Motor, 2.6 HP, 3450 RPM, 230V, 48Y$56099 Century SQS1152R square flange 1.5 HP two speed 230V pool pump motor Century Square Flange Full Rated 1.5 HP 2 Speed 230V Pool Pump Motor, SQS1152R$58499 Century SQ1072 3/4 HP square flange pool pump motor, front view Century SQ1072 3/4 HP Square Flange Pool Pump Motor, 115/230V$29599 Century BN40SS 2 HP thru-bolt pool and spa pump motor, 115/230V, 48Y frame Century ODP Thru-Bolt Pool and Spa Pump Motor, 2 HP, 115/230V, 48Y Frame, BN40SS$32799 Century Motors A.O. Smith Square Flange Motor 1.5HP 115-230V | UQC1152 Century Motors A.O. Smith Square Flange Motor 1.5HP 115-230V | UQC1152$36399 Century SQS1202R 2 HP two-speed square flange pool pump motor, 230V, 48Y frame Century Motors 2 HP Two-Speed Square Flange Pool Pump Motor, 230V, 48Y, Full Rated, SQS1202R$71899 Century BN35V1 1.5 HP 115/230V 48Y frame thru bolt pool pump motor with stainless steel shaft Century BN35V1 Motor, 1.5 HP, 115/230V, 48Y Frame (SS)$28699 Century B2748 square flange full rated 2 HP pool and spa pump motor Century Square Flange Full-Rated Pool and Spa Pump Motor, 2 HP, B2748$52499 Century E-Plus B2841V1 1 HP square flange pool pump motor Century E-Plus B2841V1 Square Flange Full-Rated Pool Pump Motor, 1 HP$37999

Product details

The Century B2840V1 is a 2.5 HP pool pump motor for 230V, built in a 56 frame with an ODP square flange body and a PSC switchless design.

Reading the nameplate

Frame and flange are what decide whether a motor bolts on. This one is a 56 frame with a square flange, the mount used across a wide range of pool pumps. ODP means open drip proof, a vented enclosure shielded against dripping water. PSC means permanent split capacitor, and switchless means there is no centrifugal start switch inside to stick or burn.

Before ordering

Compare horsepower, voltage, frame and flange against the motor you are taking off, and plan on a new shaft seal while the pump is apart.

Specifications
Brand Century
Manufacturer part number B2840V1
UPC 786674077158
Type Switchless pool pump motor
Horsepower 2.5 HP
Voltage 230V
Frame 56 frame
Enclosure ODP, open drip proof
Flange Square flange
Motor design PSC, permanent split capacitor
Shipping weight 31 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

Customer reviews

Questions and answers

What people ask about this product, answered by our pool techs.

What voltage does it run on?
230V.
What is a switchless motor?
A PSC motor has no centrifugal start switch. There is one less mechanical part to stick or burn, which is why switchless motors are common on pool duty.
Will it bolt to my pump?
It is a 56 frame square flange motor, so it matches pumps built for that mount. Read the flange and frame off the motor you are replacing before ordering.
What does ODP mean?
Open drip proof. The enclosure is vented and shielded against dripping water, which suits an equipment pad under cover.
