Pentair 261142 hi-flow 2 inch side mount DE filter backwash valve kitPentair Valve Kit Hi-Flow SM DE 2" Slip, 261142 In stock$27699
Pentair 261142 hi-flow 2 inch side mount DE filter backwash valve kit
Shop all Pentair

Pentair Valve Kit Hi-Flow SM DE 2" Slip, 261142

Ask a questionMPN 261142
$27699
FREE Delivery
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Genuine Pentair Factory part 261142, the hi-flow side mount valve kit.
  • Two inch hi-flow body The larger bore valve, not the 1.5 inch side mount version.
  • Filter or backwash The side mount valve is what sends flow through the filter or out to waste.
  • Listed fitment Pentair lists it for FNS, FNS Plus and NSP filters.
  • Port spacing matters The centerline between the valve and filter ports is 7.5 in., so measure your tank before ordering.
  • Supplied as a kit Sold as the valve kit rather than a bare valve body.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Pentair Valve Kit Hi-Flow SM DE 2" Slip, 261142, SKU PAC-06-244. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Pentair Valve Kit Hi-Flow SM DE 2" Slip, 261142
Pentair

Valve Kit Hi-Flow SM DE 2" Slip, 261142

$27699
Pentair Genuine OEM High Flow Manual Air Relief Valve, 98209800
Pentair

Genuine OEM High Flow Manual Air Relief Valve, 98209800

$3999
Pentair Genuine OEM Clamp Kit with Tension Control, 190003
Pentair

Genuine OEM Clamp Kit with Tension Control, 190003

$31099
Pentair 2" Valve Kit Multiport, Side Mount DE Filters SM20-2, 261152
Pentair

2" Valve Kit Multiport, Side Mount DE Filters SM20-2, 261152

$30799
Pentair Genuine OEM FNS Plus Element Assembly Complete, 48 Sq Ft, 59023400
Pentair

Genuine OEM FNS Plus Element Assembly Complete, 48 Sq Ft, 59023400

$40599
Pentair OEM Tank O-Ring 20-7/8" ID (7/16" Thick), 39010200Z
Pentair

OEM Tank O-Ring 20-7/8" ID (7/16" Thick), 39010200Z

$6299
Pentair 60 Sq Ft Element Assembly Complete, 59023300
Pentair

60 Sq Ft Element Assembly Complete, 59023300

$45899
Subtotal

Similar products

Other products people compare with this one.

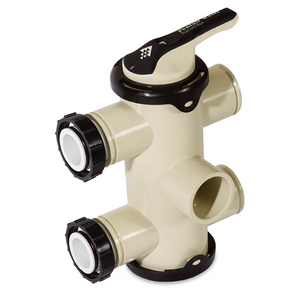

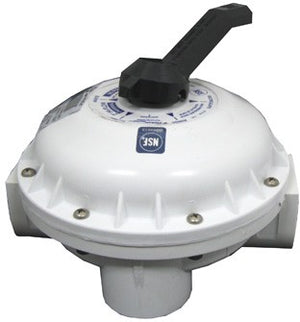

Pentair 261049 Hi-Flow side mount valve kit with 2 inch slip ports Pentair Hi-Flow Side Mount Valve Kit, 2" Slip, 261049$21699 Pentair 261177 1.5 in. side mount multiport valve kit SM10-2 for DE filters Pentair 1.5" Multiport Valve Kit for Side Mount DE Filters, SM10-2, 261177$22299 Pentair 263064 push pull valve kit, 2 inch PVC slide valve Pentair Push Pull Valve Kit, PVC Slide 2", 263064$14499 Pentair 263081 FullFloXF PVC backwash valve with union Pentair FullFloXF PVC Backwash Valve with Union, 2 Inch, 2-1/2 Inch and 3 Inch, 263081$28599

Product details

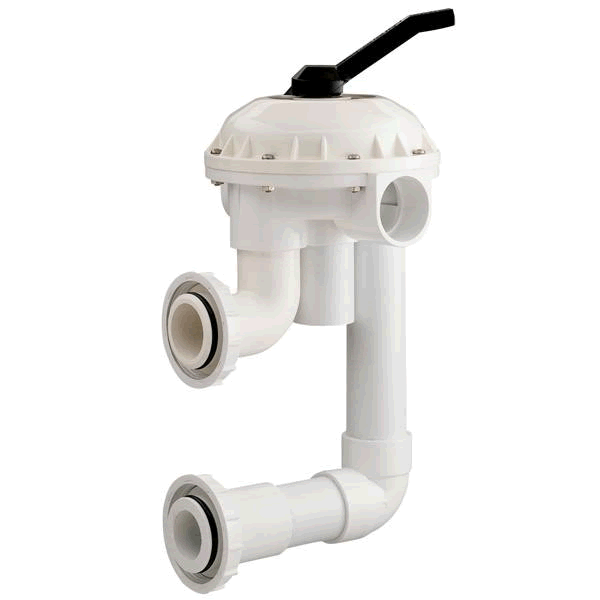

The Pentair 261142 is the hi-flow side mount valve kit in the 2 inch size, the genuine Pentair replacement for the backwash valve that sits on the side of a DE filter tank. Pentair lists it for FNS, FNS Plus and NSP filters.

What the valve does

The side mount valve is the handle you turn to send water through the filter, out to waste on a backwash, or to close the tank off for service. When the internals wear, the valve starts passing water to waste while in filter, sticks between positions, or leaks around the shaft. At that point rebuilding a badly worn body is usually poor value against fitting the complete kit.

Check before you order

Two things decide whether this valve fits. The first is size: this is the 2 inch hi-flow body, and a 1.5 inch side mount tank needs the smaller kit. The second is spacing: the valve is built around a 7.5 in. centerline between the valve and filter ports, so measure the two ports on your tank.

One note on the connections. The product title describes the valve as 2 inch slip, while the product summary describes it as 2 inch with bulkhead fittings. Both readings appear in the manufacturer supplied information, so compare the photograph against your existing plumbing before ordering.

Specifications
Brand Pentair
Manufacturer part number 261142
UPC 788379674403
Type Hi-flow backwash valve kit
Mounting Side mount
Size 2 inch
Connection, per the product title 2 inch slip
Connection, per the product summary 2 inch with bulkhead fittings
Port centerline 7.5 in. between valve and filter ports
Fits FNS, FNS Plus and NSP filters
Shipping weight 10.55 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

From Pentair

Your trusted source for all things pool. Pentair

Pentair equipment

Pentair SuperFlo VS 1.5 HP Variable Speed Pool Pump, EC-342001 Pentair MasterTemp 400 Natural Gas Pool Heater, EC-462028 Pentair Clean & Clear Plus 420 sq ft Cartridge Pool Filter, EC-160301 Pentair IntelliConnect Control & Monitoring System with Wi-Fi, EC-523317
Shop Pentair equipment

Genuine Pentair parts

Pentair Genuine OEM Seal Kit for WhisperFlo and IntelliFlo Pool Pumps, 356198 Pentair Genuine OEM High Flow Manual Air Relief Valve, 98209800 Pentair Genuine OEM FNS Plus Element Assembly Complete, 48 Sq Ft, 59023400 Pentair Genuine OEM MasterTemp/Max-E-Therm 6-Button Control Board Kit, 461105Z
Shop Pentair parts
Pool lighting: a backyard pool and spa lit in blue and green at nightPool water treatment: three people floating on rings in clear blue water, seen from abovePool cleaners: a toddler in flower sunglasses laughing in a yellow ring, held by her mother
Pentair makes pumps, filters, heaters, salt chlorinators, cleaners, lighting and automation for pools and spas.Shop all Pentair

Customer reviews

More from Pentair

Pentair SuperFlo VS EC-342001 1.5 HP variable speed pool pump, front view Pentair SuperFlo VS 1.5 HP Variable Speed Pool Pump, EC-342001$1,48900 Pentair SuperFlo EC-348190 single speed pool pump, 1 HP, 115/230V Pentair SuperFlo 1 HP Single Speed Pool Pump, 115/230V, EC-348190$74800 Pentair WhisperFlo VS EC-011533 2.6 THP variable speed pool pump, top view Pentair WhisperFlo VS 2.6 THP Variable Speed Pool Pump, 115/208-230V, EC-011533$1,79900 Pentair 262506 HiFlow 1.5 in. six way clamp style multiport valve Pentair Genuine OEM HiFlow Valve 1.5 in. 6-Way Clamp Style, 262506$20999 Pentair EC-520556 IntelliChlor 110/220V power center Pentair 110/220V IntelliChlor Salt Chlorine Generator Power Center, EC-520556$79900 Web Price Pentair 523769 IntelliChlor Plus and LT replacement sensor board Pentair IntelliChlor Plus and LT Replacement Sensor Board, 523769$40499 Pentair 350305S 3.2 kW 10 pole variable speed motor for IntelliFloXF and IntelliFlo 2 VST pumps Pentair 3.2 kW IntelliFloXF VSF, VSF, VS+SVRS, i1, i2 Motor, 350305S$78199 Pentair 523735-EC IntelliChlor Plus40 salt chlorine generator cell Pentair IntelliChlor Plus40 Salt Chlorine Generator Replacement Cell, 40,000 Gallons, 523735-EC$1,81900 Web Price Pentair Rainbow 320 in-line chlorinator R171096, front view Pentair Rainbow 320 In-Line Chlorinator, R171096$14999 Pentair 190003 tank clamp kit with tension control for Clean and Clear Plus, FNS Plus and Quad DE filters Pentair Genuine OEM Clamp Kit with Tension Control, 190003$31099
Pentair IntelliChlor LT25 salt chlorine generator cell 523747-EC Pentair IntelliChlor LT25 Salt Chlorine Generator Cell, 25,000 Gallons, 523747-EC$1,15699 Pentair IntelliFlo VS+SVRS variable speed pool pump, EC-011057 Pentair IntelliFlo VS+SVRS Variable Speed Pool Pump, EC-011057$2,39900 Pentair 170145 cartridge pack for Sta-Rite System 3 S7M120, inner and outer cartridges Sta-Rite 170145 System 3 S7M120 Large and Small Cartridge Set, 25021-0200S and 25022-0201S$47999 Pentair 261055 SM-20-3 2 in. side mount multiport valve kit, front view Pentair 2 in. Multiport Valve Kit for Side Mount Sand Filters, SM-20-3, 261055$30899 Pentair 523770 IntelliChlor Plus replacement controller (HMI), black Pentair IntelliChlor Plus Controller Replacement (HMI), Black, 523770$39599 Pentair 261152 SM20-2 2 in. side mount multiport valve kit for DE filters Pentair 2" Valve Kit Multiport, Side Mount DE Filters SM20-2, 261152$30799 Pentair 357149 WhisperFlo and IntelliFlo volute housing replacement kit, front view Pentair WhisperFlo and IntelliFlo Volute Housing Replacement Kit, 357149$29699 Pentair MicroBrite Color LED pool light EC-620425, 12 volt, 14 watt, with 100 ft cord Pentair MicroBrite Color LED Pool Light 12 Volt, 14 Watt with 100' Cord, EC-620425$61900 Pentair 59023400 FNS Plus 48 sq ft complete DE grid assembly Pentair Genuine OEM FNS Plus Element Assembly Complete, 48 Sq Ft, 59023400$40599 Pentair Amerlite EC-602128 500W 120V inground pool light with stainless steel facering Pentair Amerlite Pool Light for Inground Pools with Stainless Steel Facering, 500W 120V 50' Cord, EC-602128$43900 Web Price

Questions and answers

What people ask about this product, answered by our pool techs.

Is this the 2 inch or the 1.5 inch valve?
Two inch. Pentair 261142 is the hi-flow side mount valve kit in the larger size.
Are the connections slip or bulkhead?
The source is not consistent here. The product title calls it 2 inch slip and the product summary says it comes with bulkhead fittings. Compare the photograph with the valve you are replacing, or confirm with Pentair, before you order.
Which filters is it listed for?
FNS, FNS Plus and NSP filters.
How do I check it will line up?
Measure the centerline distance between the two filter ports the valve bolts to. This kit is built for 7.5 in. between the valve and filter ports.
Ask your own question
