Jandy SOL100 1 in. black plastic solenoid valve with flow control, 24 VACJandy Solenoid Valve with Flow Control, 1", 24 VAC, SOL100 In stock$13299
Jandy SOL100 1 in. black plastic solenoid valve with flow control, 24 VAC
Shop all Jandy

Jandy Solenoid Valve with Flow Control, 1", 24 VAC, SOL100

Ask a questionMPN SOL100
$13299
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • 24 VAC coil Low voltage coil, driven by the Levolor controller rather than by line voltage.
  • 1 in. black plastic body Plastic valve body sized at 1 in. for the fill line.
  • Flow control built in The valve includes flow control, so the fill rate can be set rather than running wide open.
  • Levolor replacement The valve used in the Levolor R-Kit for the water leveling system.
  • Jandy Pro Series Zodiac Pool Systems part SOL100.
  • The usual autofill failure A leveler that will not fill, or will not stop filling, is most often a failed solenoid valve.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Jandy Solenoid Valve with Flow Control, 1", 24 VAC, SOL100, SKU GIP-56-714. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Jandy Solenoid Valve with Flow Control, 1", 24 VAC, SOL100
Jandy

Solenoid Valve with Flow Control, 1", 24 VAC, SOL100

$13299
Hayward Cover O-Ring for SP0714T Vari-Flo XL Valve, SPX0714L
Hayward

Cover O-Ring for SP0714T Vari-Flo XL Valve, SPX0714L

$1799
Hayward Paralevel Startup Kit, 004-760-2921-00
Hayward

Paralevel Startup Kit, 004-760-2921-00

$5999
Hayward 1-1/2" Combo Hose Adapter for Filters, Pumps, Skimmers and Chlorine Feeders (2 Pack), SPX1091Z7
Hayward

1-1/2" Combo Hose Adapter for Filters, Pumps, Skimmers and Chlorine Feeders (2 Pack), SPX1091Z7

$1099
Hayward Genuine OEM SP1082 Skimmer Basket, SPX1082CA
Hayward

Genuine OEM SP1082 Skimmer Basket, SPX1082CA

$2499
Paramount 6 Port Water Valve Module, 004-302-4408-00
Paramount

6 Port Water Valve Module, 004-302-4408-00

$36099
Hayward Auto-Skim Skimmer for Vinyl/Fiberglass Pools, 1.5" FPT, Square Lid, White, SP10841
Hayward

Auto-Skim Skimmer for Vinyl/Fiberglass Pools, 1.5" FPT, Square Lid, White, SP10841

$19199
Subtotal

Similar products

Other products people compare with this one.

Jandy SOLASSEM gray solenoid valve assembly kit for the Levolor water leveler Jandy Gray Valve Solenoid Levolor Kit, SOLASSEM$7899 PoolMiser PM-101 automatic pool water leveler PoolMiser Water Leveler, PM-101$15099 Jandy S2040C Levolor slip style 2 contact sensor with 100 ft cord Jandy Levolor Slip Style 2 Contact Sensor with 100' (Static Pipe Install), S2040C$15599 CMP AquaLevel portable automatic water leveler for in ground pools, white lid CMP AquaLevel Portable Automatic Water Leveler for In Ground Pool, White Lid, 25604-000-000$10399 Pentair T40BW standard inground automatic water filler with white lid Pentair Standard Inground Pool Automatic Water Filler with Side Mounted Float Valve, White Lid, T40BW$16099 Pentair T40BG autofill water leveler in grey Pentair Autofill Water Leveler with Float Valve, Grey, T40BG$14599 Paramount Paralevel 004760290201 complete automatic pool and spa water leveler in white Paramount Paralevel Autofill, 004760290201$14899 Jandy S2046A Levolor dual style water level sensor with 50 foot cord Jandy Levolor Dual Style Sensor with 50' Cord, Skimmer or Static Pipe Install, S2046A$14599 Rola-Chem M-3000 Paradise Pool Sentry autofill water leveler Rola-Chem Paradise Pool Sentry Autofill, M-3000$9299 Pentair T40FG autofill with Fluidmaster valve in grey Pentair Autofill with Fluidmaster Valve, Grey, T40FG$15899
Pentair LETRO LEVELER FLUIDMASTER VLVE | T40FB Pentair LETRO LEVELER FLUIDMASTER VLVE | T40FB$16299 Pentair T26 3/8 inch brass float valve for pool automatic fillers Pentair OEM Replacement 3/8" Brass Float Valve$5899 Pentair T29 Fluidmaster float valve assembly for water leveler autofill Pentair Fluidmaster Float Valve Assembly$4899 Zodiac S2046G Jandy Pro Series dual style water level sensor with 200 foot cord Zodiac S2046G Levelor Sensor with 200 Foot Cord$21999 Pentair 261058 3/8 inch pipe thread autofill float valve Pentair Pipe Thread Float Valve, 3/8 Inch, 261058$4399 PoolMiser RP-310 autofill tank extension PoolMiser Autofill Tank Extension, RP-310$4399 Paramount 005-760-2901-01 white Paralevel autofill deck lid Paramount Paralevel Autofill Lid, White, 005-760-2901-01$3548 PoolMiser RP-204 white replacement auto-fill lid, 7-1/8 inch diameter PoolMiser Replacement Auto-Fill Lid, White, RP-204$3299 PoolMiser RP-204T tan replacement auto fill lid, 7-1/8 inch diameter PoolMiser Replacement Lid, Tan, RP-204T$3199 AquaStar AFBV FillStar pool water leveler float valve AquaStar FillStar Pool Water Leveler Float Valve, AFBV$3099

From Jandy

A swimmer diving from the blocks in a dark pool. Everything you need for the perfect pool. Jandy

Jandy equipment

Jandy AquaLink AquaPure 3-Port 14-Blade Replacement Salt Cell Kit, 40K Gallons, 16' Cable, PLC1400 Jandy 2" Side Mount Multi-Port Valve with Unions for DEV48/60, JS60-SM or JS100-SM, BWVL-MPV-80 Jandy TruGuard Mineral Sanitizer Replacement Cartridge, TRUGUARDR Jandy 1-1/2 in. x 2 in. Neverlube Positive Seal 3-Port Diverter Valve, 4715
Shop Jandy equipment

Genuine Jandy parts

Jandy R0693900 TruClear PCB Cell Replacement Assembly for Pro Series Chlorine Generator Jandy Lid & Lock-Ring Assembly with Seal, PHPF/PHPM, R0448800 Jandy Genuine Replacement Gauge with Air Release Assembly, R0357200 Jandy Replacement Bottom Tank Assembly for CL & DEV Model Filters, R0466500
Shop Jandy parts
Heater parts: a Jandy JXi heaterPump parts: a Jandy VS FloPro variable speed pumpSalt systems: a Jandy AquaPure salt cell
Jandy makes pumps, filters, heaters, salt chlorinators, valves, lighting and automation for pools and spas.Shop all Jandy

Product details

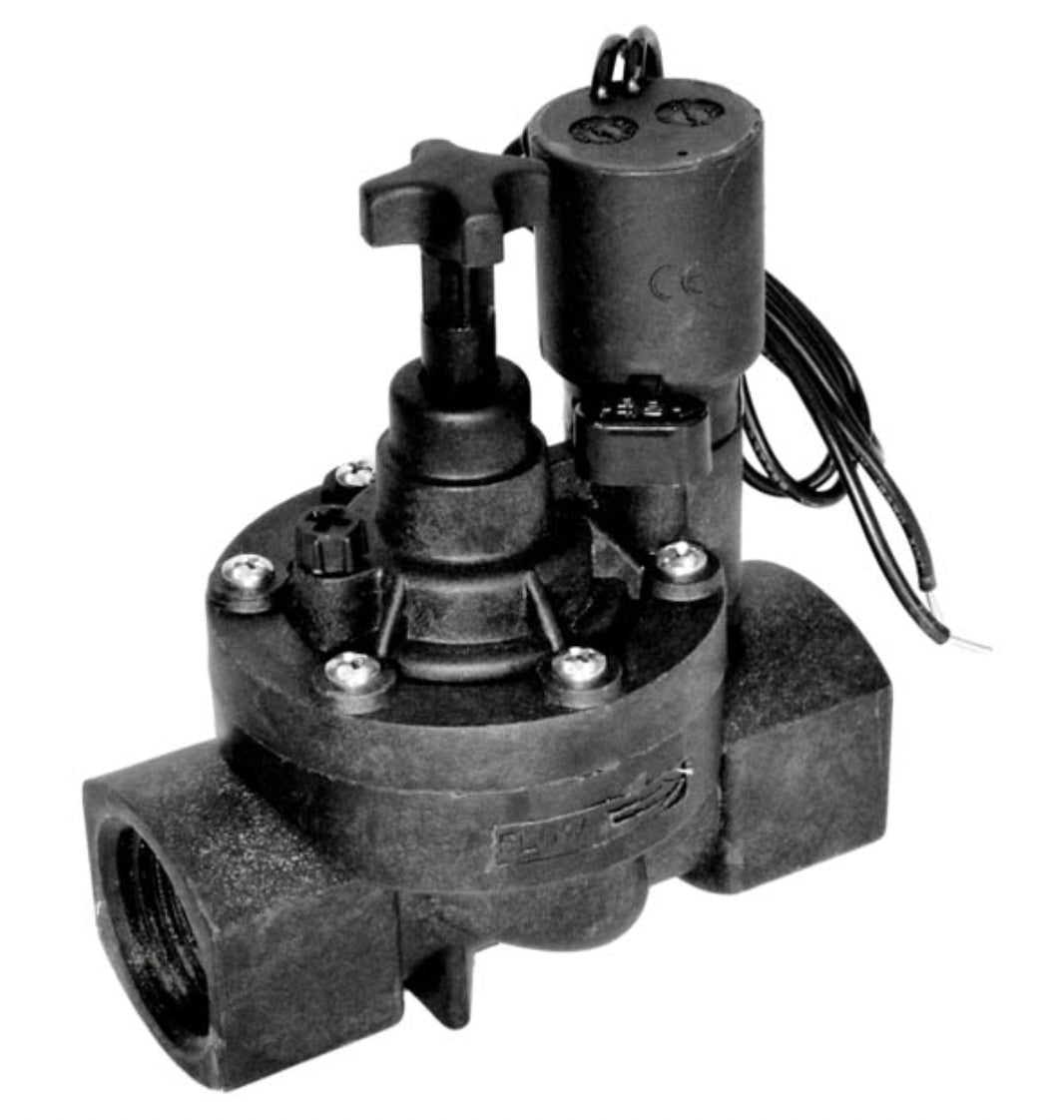

The Jandy SOL100 is a 1 in. black plastic solenoid valve with flow control, running on a 24 VAC coil. It is the Jandy Pro Series replacement valve for the Levolor water leveling system and is the valve supplied in the Levolor R-Kit.

How it works

A water leveling system watches the pool level with a sensor and opens a valve on the fill line when the water drops. This is that valve. The coil is low voltage, so the controller switches 24 VAC rather than mains power, and the built in flow control lets the fill rate be set instead of dumping water at full flow.

When to replace it

Two symptoms point here. A leveler that never fills, where the controller is calling but no water moves, and a leveler that will not stop, where the valve has failed open and keeps feeding after the signal is gone. If the system is not calling for fill at all, the level sensor is the other half of the system to check, and it is a separate part.

Specifications
Brand Jandy
Manufacturer part number SOL100
UPC 052337052351
Type Solenoid valve with flow control
Size 1 in.
Voltage 24 VAC
Material Black plastic
Series Jandy Pro Series
Fits Levolor water leveling system, Levolor R-Kit
Shipping weight 2 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

Customer reviews

More from Jandy

Jandy R0693900 TruClear PCB replacement assembly Jandy R0693900 TruClear PCB Cell Replacement Assembly for Pro Series Chlorine Generator$76799 Jandy R0452500 new style port sensor kit for 3 port AquaPure cell with 16 ft cable Jandy Port Sensor Kit for 3 Port Cell with 16' Cable, R0452500$24599 Jandy R0448800 clear pump lid and black lock ring assembly with seal, PHPF/PHPM Jandy Lid & Lock-Ring Assembly with Seal, PHPF/PHPM, R0448800$7899 Jandy PLC1400 AquaPure 3 port 14 blade replacement salt cell kit with 16 ft cable Jandy AquaLink AquaPure 3-Port 14-Blade Replacement Salt Cell Kit, 40K Gallons, 16' Cable, PLC1400$1,39500 Jandy R0452400 AquaPure PureLink 3-port 14-blade replacement salt cell Jandy AquaPure PureLink 3-Port 14-Blade 1400 Replacement Salt Cell Kit for 40,000 Gallon Pools, R0452400$1,22900 Jandy R0466500 replacement bottom tank assembly for CL and DEV filters with unions, outlet elbow and retaining ring Jandy Replacement Bottom Tank Assembly for CL & DEV Model Filters, R0466500$69499 Jandy R0984100 AquaPure power interface PCB large backboard with screws Jandy R0984100 AquaPure Power Interface PCB, Large Backboard with Screws$23999 Zodiac R0503000 Nature2 Fusion Soft 1400 replacement cell kit for pools to 40,000 gallons Zodiac Nature2 Fusion Soft 1400 Cell Kit for 40,000-Gallon Pools, R0503000$1,04900 Jandy BWVL-MPV-80 2 in. side mount multiport valve with unions Jandy 2" Side Mount Multi-Port Valve with Unions for DEV48/60, JS60-SM or JS100-SM, BWVL-MPV-80$32799 Jandy R0357200 pressure gauge with air release assembly, front view Jandy Genuine Replacement Gauge with Air Release Assembly, R0357200$8299
Jandy R0445800 pump lid and locking ring assembly with o-ring for Stealth and ePump pumps Jandy Lid & Locking Ring Assembly with O-Ring, R0445800$12099 Jandy R0554700 tank top for CV, CL, DEV and DEL series filters Jandy CV Series Cartridge Filter Tank Top R0554700$53899 Jandy R0402800 16 ft AquaPure PureLink DC cell cord for the 3-port cell Jandy 16' AquaPure PureLink DC Cell Cord, R0402800$2699 Jandy R0452300 AquaPure PureLink 3-port 7-blade replacement salt cell kit with 16 ft cord Jandy AquaPure PureLink 3-Port 7-Blade Replacement Cell Kit, R0452300$72299 Jandy 4424 JVA 24V valve actuator Jandy Valve Actuator JVA 24V, 4424$23399 Jandy R0479800 pump housing body for FloPro FHPM and VS FloPro pumps Jandy Pump Housing Body for FHPM FloPro & VS FloPro, R0479800$25699 Jandy R0461900 gray top housing assembly for CS100 and CS150 cartridge filters Jandy Top Housing Assembly CS100, CS150, R0461900$33699 Jandy TRUGUARDR TruGuard mineral sanitizer replacement cartridge Jandy TruGuard Mineral Sanitizer Replacement Cartridge, TRUGUARDR$25599 Jandy R0445601 pump body for Stealth SHPF/SHPM, WaterFall SWF and ePump JEP, rear view Jandy Pump Body for Stealth SHPF/SHPM Pumps, R0445601$39399 Jandy R0663800 cover assembly with user interface for the TruClear chlorine generating system Jandy Cover Assembly with User Interface for TruClear Chlorine Generating System, R0663800$43299

Questions and answers

What people ask about this product, answered by our pool techs.

What voltage is the coil?
24 VAC. It is switched by the Levolor controller, not wired to line voltage.
What size is the valve?
1 in., in a black plastic body.
Does it include flow control?
Yes. Flow control is part of the valve, so the fill rate can be adjusted instead of running at full flow.
My autofill will not shut off. Is this the part?
Very often. A solenoid valve that has failed open keeps feeding water even when the controller has cut the signal. Confirm the controller is not calling for fill, then replace the valve. If the leveler never fills at all, check the sensor as well.
Ask your own question
