Pentair 263045 CVA-24 24 VAC valve actuator with 25 ft. cablePentair OEM Replacement Valve Actuator, 24 VAC for 3-Way Valves, 263045 In stock$24299

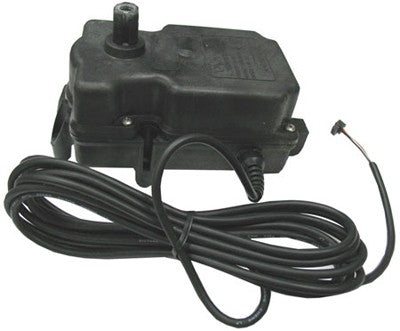

Pentair 263045 CVA-24 24 VAC valve actuator with 25 ft. cable
Shop all Pentair

Pentair OEM Replacement Valve Actuator, 24 VAC for 3-Way Valves, 263045

Ask a questionMPN 263045
$24299
FREE Delivery
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Fits three valve brands Compool, Jandy and Ortega 2-way and 3-way diverter valves.
  • 180 degree travel fully bi-directional, with multiple valve positions.
  • Automation ready driven by IntelliTouch, EasyTouch and Compool control systems, or any 24 VAC pool control.
  • Manual override can be set by hand if the automation system is down.
  • 25 ft. cable attached 3-wire cable reaches the control panel from most valve locations.
  • Weatherproof and listed corrosion-proof enclosure, UL listed and ETL recognized.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Pentair OEM Replacement Valve Actuator, 24 VAC for 3-Way Valves, 263045, SKU COM-30-699. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Pentair OEM Replacement Valve Actuator, 24 VAC for 3-Way Valves, 263045
Pentair

OEM Replacement Valve Actuator, 24 VAC for 3-Way Valves, 263045

$24299
Pentair Genuine OEM Load Center IntelliChlor SCG Surge Board PCBA, 521218
Pentair

Genuine OEM Load Center IntelliChlor SCG Surge Board PCBA, 521218

$32299
Pentair Genuine OEM Replacement UOC Motherboard, 4 Aux, EasyTouch, 520659
Pentair

Genuine OEM Replacement UOC Motherboard, 4 Aux, EasyTouch, 520659

$60199
Pentair IntelliTouch/EasyTouch to IntelliCenter Next Gen Upgrade Kit, i10PS for CLC/CPC, 522048
Pentair

IntelliTouch/EasyTouch to IntelliCenter Next Gen Upgrade Kit, i10PS for CLC/CPC, 522048

$1,27199
Pentair Genuine OEM Power Cable for IntelliTouch and EasyTouch PL4/PSL4 Control Systems, 2 ft, 520724
Pentair

Genuine OEM Power Cable for IntelliTouch and EasyTouch PL4/PSL4 Control Systems, 2 ft, 520724

$11699
Pentair Genuine OEM iS4 Spa-Side Remote, White, 100 ft., 521885
Pentair

Genuine OEM iS4 Spa-Side Remote, White, 100 ft., 521885

$31999
Pentair Genuine OEM IntelliTouch Transformer, 521233
Pentair

Genuine OEM IntelliTouch Transformer, 521233

$20799
Subtotal

Similar products

Other products people compare with this one.

Pentair 520722 transformer for EasyTouch control system Pentair Transformer for EasyTouch Control System, Input 115/230 V, Output 22/39 V, 520722$27799 Pentair 520198 genuine OEM two-speed 3HP relay for IntelliTouch and EasyTouch Pentair Genuine OEM Two-Speed 3HP Relay, 520198$18699 Pentair 520815Z battery kit for IntelliTouch and MobileTouch II Pentair Battery Kit for IntelliTouch Control System and MobileTouch II Wireless Controller, 520815Z$34199 Pentair 520106 3 HP relay for IntelliTouch and EasyTouch control systems Pentair Genuine OEM 3 HP Relay for IntelliTouch and EasyTouch, 520106$11799 Pentair 522082 new style iS4 label kit for IntelliTouch automation systems Pentair New Style iS4 Label Kit for IntelliTouch Automation Systems, 10 Pack, 522082$4999 Pentair 520946Z MobileTouch transceiver circuit board with attached antenna Pentair Genuine OEM MobileTouch Transceiver, 520946Z$45899 Pentair 8023304 four position plug-in screw terminal for ComPool and IntelliTouch Pentair 4 Position Plug-In Screw Terminal for ComPool IntelliTouch, 8023304$1799 Pentair 9321004 2-3/4 inch hose clamp for sensor hose Pentair 2-3/4 in. Hose Clamp for Sensor, ComPool, IntelliTouch and MiniMax Plus, 9321004$899 Pentair 520657 EasyTouch 8 auxiliary UOC motherboard Pentair EasyTouch 8 Auxiliary UOC Motherboard Replacement, 520657$88599 Pentair 520818 serial COM port expansion board for IntelliTouch and EasyTouch Pentair Serial COM Port Expansion Board, 520818$10199
Pentair EasyTouch UOC Motherboard with 8 Auxiliaries | Single Body System | 520711 Pentair EasyTouch UOC Motherboard with 8 Auxiliaries | Single Body System | 520711$81399

Product details

The Pentair CVA-24, part 263045, is a 24 VAC valve actuator for 2-way and 3-way diverter valves from Compool, Jandy and Ortega. It rotates 180 degrees in either direction to move the valve to the position an IntelliTouch, EasyTouch or Compool automation system calls for, and it comes with a 25 ft. 3-wire cable already attached.

Runs on automation, or by hand

The actuator is fully bi-directional and offers multiple valve positions. If the control system goes down, it can be adjusted manually, so a failed panel does not strand the valve in the wrong place.

Made for the pad

The enclosure is corrosion-proof for poolside and weather exposed installs, and the unit is UL listed and ETL recognized. Rated 24 VAC, 50/60 Hz, 0.65 amp.

Specifications
Brand Pentair
Manufacturer part number 263045
UPC 788379644390
Model CVA-24
Voltage 24 VAC, 50/60 Hz
Current 0.65 A
Rotation 180 degrees
Valve types 2-way and 3-way
Fits Compool, Jandy and Ortega valves
Control systems IntelliTouch, EasyTouch, Compool
Cable 25 ft. 3-wire, attached
Enclosure Corrosion-proof
Listings UL listed, ETL recognized
Patent 4647007
Shipping weight 3.6 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

From Pentair

Your trusted source for all things pool. Pentair

Pentair equipment

Pentair SuperFlo VS 1.5 HP Variable Speed Pool Pump, EC-342001 Pentair MasterTemp 400 Natural Gas Pool Heater, EC-462028 Pentair Clean & Clear Plus 420 sq ft Cartridge Pool Filter, EC-160301 Pentair IntelliConnect Control & Monitoring System with Wi-Fi, EC-523317
Shop Pentair equipment

Genuine Pentair parts

Pentair Genuine OEM Seal Kit for WhisperFlo and IntelliFlo Pool Pumps, 356198 Pentair Genuine OEM High Flow Manual Air Relief Valve, 98209800 Pentair Genuine OEM FNS Plus Element Assembly Complete, 48 Sq Ft, 59023400 Pentair Genuine OEM MasterTemp/Max-E-Therm 6-Button Control Board Kit, 461105Z
Shop Pentair parts
Pool lighting: a backyard pool and spa lit in blue and green at nightPool water treatment: three people floating on rings in clear blue water, seen from abovePool cleaners: a toddler in flower sunglasses laughing in a yellow ring, held by her mother
Pentair makes pumps, filters, heaters, salt chlorinators, cleaners, lighting and automation for pools and spas.Shop all Pentair

Customer reviews

More from Pentair

Pentair SuperFlo VS EC-342001 1.5 HP variable speed pool pump, front view Pentair SuperFlo VS 1.5 HP Variable Speed Pool Pump, EC-342001$1,48900 Pentair SuperFlo EC-348190 single speed pool pump, 1 HP, 115/230V Pentair SuperFlo 1 HP Single Speed Pool Pump, 115/230V, EC-348190$74800 Pentair WhisperFlo VS EC-011533 2.6 THP variable speed pool pump, top view Pentair WhisperFlo VS 2.6 THP Variable Speed Pool Pump, 115/208-230V, EC-011533$1,79900 Pentair 262506 HiFlow 1.5 in. six way clamp style multiport valve Pentair Genuine OEM HiFlow Valve 1.5 in. 6-Way Clamp Style, 262506$20999 Pentair EC-520556 IntelliChlor 110/220V power center Pentair 110/220V IntelliChlor Salt Chlorine Generator Power Center, EC-520556$79900 Web Price Pentair 523769 IntelliChlor Plus and LT replacement sensor board Pentair IntelliChlor Plus and LT Replacement Sensor Board, 523769$40499 Pentair 350305S 3.2 kW 10 pole variable speed motor for IntelliFloXF and IntelliFlo 2 VST pumps Pentair 3.2 kW IntelliFloXF VSF, VSF, VS+SVRS, i1, i2 Motor, 350305S$78199 Pentair 523735-EC IntelliChlor Plus40 salt chlorine generator cell Pentair IntelliChlor Plus40 Salt Chlorine Generator Replacement Cell, 40,000 Gallons, 523735-EC$1,81900 Web Price Pentair Rainbow 320 in-line chlorinator R171096, front view Pentair Rainbow 320 In-Line Chlorinator, R171096$14999 Pentair 190003 tank clamp kit with tension control for Clean and Clear Plus, FNS Plus and Quad DE filters Pentair Genuine OEM Clamp Kit with Tension Control, 190003$31099
Pentair IntelliChlor LT25 salt chlorine generator cell 523747-EC Pentair IntelliChlor LT25 Salt Chlorine Generator Cell, 25,000 Gallons, 523747-EC$1,15699 Pentair IntelliFlo VS+SVRS variable speed pool pump, EC-011057 Pentair IntelliFlo VS+SVRS Variable Speed Pool Pump, EC-011057$2,39900 Pentair 170145 cartridge pack for Sta-Rite System 3 S7M120, inner and outer cartridges Sta-Rite 170145 System 3 S7M120 Large and Small Cartridge Set, 25021-0200S and 25022-0201S$47999 Pentair 261055 SM-20-3 2 in. side mount multiport valve kit, front view Pentair 2 in. Multiport Valve Kit for Side Mount Sand Filters, SM-20-3, 261055$30899 Pentair 523770 IntelliChlor Plus replacement controller (HMI), black Pentair IntelliChlor Plus Controller Replacement (HMI), Black, 523770$39599 Pentair 261152 SM20-2 2 in. side mount multiport valve kit for DE filters Pentair 2" Valve Kit Multiport, Side Mount DE Filters SM20-2, 261152$30799 Pentair 357149 WhisperFlo and IntelliFlo volute housing replacement kit, front view Pentair WhisperFlo and IntelliFlo Volute Housing Replacement Kit, 357149$29699 Pentair MicroBrite Color LED pool light EC-620425, 12 volt, 14 watt, with 100 ft cord Pentair MicroBrite Color LED Pool Light 12 Volt, 14 Watt with 100' Cord, EC-620425$61900 Pentair 59023400 FNS Plus 48 sq ft complete DE grid assembly Pentair Genuine OEM FNS Plus Element Assembly Complete, 48 Sq Ft, 59023400$40599 Pentair Amerlite EC-602128 500W 120V inground pool light with stainless steel facering Pentair Amerlite Pool Light for Inground Pools with Stainless Steel Facering, 500W 120V 50' Cord, EC-602128$43900 Web Price

Questions and answers

What people ask about this product, answered by our pool techs.

Will it fit a Jandy valve?
Yes. The CVA-24 mounts on Compool, Jandy and Ortega 2-way and 3-way diverter valves.
Which automation systems drive it?
IntelliTouch, EasyTouch and Compool systems, and any other 24 VAC pool control. It runs on 24 VAC at 50/60 Hz and draws 0.65 amps.
What if the automation fails?
The actuator can be adjusted manually, so you can put the valve where you need it while the control system is repaired.
How long is the cable?
25 ft. of 3-wire cable, attached to the actuator.
