Quick overview

  • Fits A 16 x 32 ft rectangle with a right side step.
  • Step panel 8 ft wide and 4 ft back at the water line.
  • Panel 18 x 34 ft, about a foot of fabric on the deck on each side.
  • Flush anchors Brass anchors tamp level with the deck, so nothing sticks up once the cover is off for the summer.
  • Self draining Rain and snowmelt pass through, so no pump lives on the cover.
  • Warranty 20 years limited, the first 5 full.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About PoolTux King99 16 x 32 ft Mesh Safety Cover with Right Step, Green, CSPTGMP16323, SKU PT-IG-200303. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item PoolTux King99 16 x 32 ft Mesh Safety Cover with Right Step, Green, CSPTGMP16323
Pooltux

PoolTux King99 16 x 32 ft Mesh Safety Cover with Right Step, Green, CSPTGMP16323

$1,81973
Coverstar A1100 Slider Assembly for Detachable Rope, 403 and 801A Under Guide
Coverstar

A1100 Slider Assembly for Detachable Rope, 403 and 801A Under Guide

$7599
Coverstar H1070 Double Ball Bearing Rope Pulley, Stainless Steel
Coverstar

H1070 Double Ball Bearing Rope Pulley, Stainless Steel

$2799
Coverstar Complete Control Switch Assembly, A0605
Coverstar

Complete Control Switch Assembly, A0605

$22499
Coverstar E2000 115V Sealed Stainless Steel Motor
Coverstar

E2000 115V Sealed Stainless Steel Motor

$1,99899
Little Giant Adapter Fitting for 3/4", APCP-1700, 177343
Little Giant

Adapter Fitting for 3/4", APCP-1700, 177343

$2199
Coverstar 100 ft PowerFlex Rope with Semi-Rigid Tab, C6100
Coverstar

100 ft PowerFlex Rope with Semi-Rigid Tab, C6100

$19699
Subtotal

Similar products

Other products people compare with this one.

Coverstar A1100 under track slider assembly for detachable rope set, black Coverstar A1100 Slider Assembly for Detachable Rope, 403 and 801A Under Guide$7599 Coverstar H1070 stainless steel double ball bearing rope pulley Coverstar H1070 Double Ball Bearing Rope Pulley, Stainless Steel$2799 Coverstar A0605 complete lever control switch assembly with key lock door Coverstar Complete Control Switch Assembly, A0605$22499 Coverstar E2000 115V sealed stainless steel automatic pool cover motor Coverstar E2000 115V Sealed Stainless Steel Motor$1,99899 Little Giant 177343 3/4 in. adapter fitting for the APCP-1700 cover pump Little Giant Adapter Fitting for 3/4", APCP-1700, 177343$2199 Coverstar C6100 100 ft PowerFlex rope with semi-rigid tab Coverstar 100 ft PowerFlex Rope with Semi-Rigid Tab, C6100$19699 Anderson WDP150 Winter Duck Plug check valve winterizing plug for 1.5 in. PVC returns Anderson Winter Duck Plug Check Valve, Fits 1.5 in. PVC, WDP150$1499 Coverstar A1153 under track rope slider assembly, retrofit, set of 2 Coverstar Slider Assembly, UG Retro, Set of 2, A1153$7999 Little Giant APCP-1700 automatic pool cover pump with 25 ft cord Little Giant Pool Cover Pump with 25' Cord, APCP-1700, 577301$20699 Coverstar A0041 3 in. white leading edge block insert assembly Coverstar Single CS1800/CS3000/Eclipse UG 3 in. Leading Edge White Block Insert Assembly, A0041$10499
Poolguard MWUG Ultra Gizzmo skimmer freeze protection device for in ground pools Poolguard Gizzmo Ultra, 16" Length, 1.5" to 2.0", for In-Ground Pools, MWUG$2199 Horizon HV9X10 floating spa cover on the water, with close up of the material Horizon 9 ft x 10 ft Floating Spa Cover, HV9X10$28099 Coverstar C4062 semi rigid 3 inch tab for detachable rope Coverstar Tab Semi Rigid for Detach Rope 418, C4062$1499 Coverstar A0996 stainless steel guide feed with hardware for 403 and 801 series under guide systems Coverstar Guide Feed with Hardware for 403/801 Series Under Guide System, Stainless Steel, A0996$5499 Coverstar A1071 2-piece stainless steel guide feed assembly for automatic pool covers Coverstar 2-Piece Stainless Steel Guide Feed Assembly without Mounting Hardware, A1071$6099 Hayward 004-302-1672-00 2 in. winter plug, 6 pack Hayward Winter Plug, 6 Pack, 004-302-1672-00$14099 Coverstar A2365 17.75 in stainless steel lid bracket extension kit Coverstar 17.75" Stainless Steel Lid Bracket 21-23" Extension Kit, A2365$11899 Coverstar M9886 stop block slider for 805 wheel assembly and STD TG 403 Coverstar Stop Block Slider for Wheel Assembly 805, STD TG 403, M9886$2099 AquaStar WAV9WR101 9 inch by 9 inch white Wave suction cover with frame and riser AquaStar 9" x 9" Wave Suction Cover with Frame and Riser, White, WAV9WR101$14999 Coverstar A0958 pulley endcap assembly, twist lock UT 817 Coverstar Pulley Endcap Assembly, Twist Lock UT 817, A0958$5799

Product details

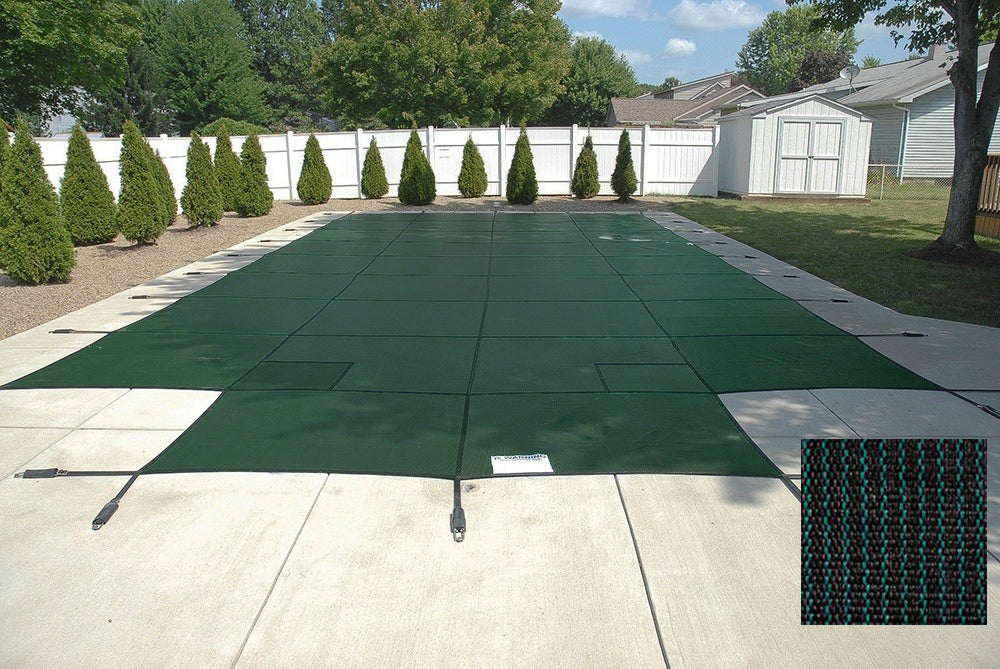

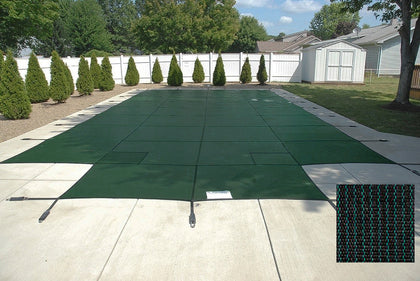

A 16 x 32 ft rectangle with a right side step is the pool this King99 cover is cut for. The mesh panel runs 18 x 34 ft, the foot of extra fabric on each side being the overlap that reaches the deck and takes the anchors. The step area measures 8 ft wide by 4 ft back at the water line.

  • Green self draining mesh, so rain and snowmelt go into the pool and nothing sits on top.
  • Listed at 7 oz with a burst strength of 670 PSI.
  • Straps on a 5 ft grid, each with a commercial grade stainless steel spring holding the tension.
  • Flush mount brass anchors that tamp level into concrete or paver decking and wind up with a hex key.

The anchors are the permanent half of this purchase. They are drilled into the deck once and stay there for the life of the cover, tamped down level with the surface each spring so the patio is clear through the swim season and wound back up each autumn to take the springs. That is also why the deck matters: it has to run around all four sides of the pool for the straps to have anywhere to go. Get the anchor layout right the first time and the rest of the install is tensioning straps evenly. The warranty is 20 years limited, 5 full.

Specifications
Brand PoolTux
Series King99
Part number CSPTGMP16323
Pool size 16 x 32 ft rectangle
Cover size 18 x 34 ft
Step Right step
Step area 8 ft wide, 4 ft back at the water line
Material Mesh, self draining
Fabric weight 7 oz
Burst strength 670 PSI
Strap spacing 5 x 5 ft
Warranty 20 year limited, first 5 years full

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

Customer reviews

More from Pooltux

PoolTux King 24 ft round solid winter cover in silver on black PoolTux 24' Solid Round Winter Cover, 15 Year King Warranty, 1228ASBL$10299 PoolTux 30' round solid Ultra Premium winter cover for above ground pools PoolTux 30' Solid Round Ultra Premium Winter Cover, 25 Year Warranty, BB0030$18699 PoolTux King 30' x 50' solid rectangle winter cover, 15 year warranty PoolTux 30' x 50' Solid Rectangle Winter Cover, 15 Year King Warranty, 123555ISBL$21599 PoolTux BB1836R Ultra Premium solid rectangle winter cover for an 18 by 36 foot pool PoolTux 18'x36' Solid Rectangle Ultra Premium Winter Cover, 25 Year Warranty, BB1836R$16199 PoolTux King 20'x40' solid rectangle winter cover, silver on black PoolTux 20'x40' Solid Rectangle Winter Cover, 15 Year King Warranty, 122545ISBL$14199 PoolTux BB0024 24 ft solid round above ground winter pool cover PoolTux 24' Solid Round Above Ground Ultra Premium Winter Pool Cover, 25 Year Warranty, BB0024$14599 PoolTux 21' round above ground ultra premium solid winter cover PoolTux 21' Round Above Ground Ultra Premium Winter Pool Cover, 25 Year Warranty, BB0021$11399 PoolTux BB1530 Ultra Premium solid oval winter cover for a 15x30 above ground pool PoolTux 15'x30' Solid Oval Ultra Premium Winter Cover, 25 Year Warranty, BB1530$12499 PoolTux CSPTBS16322 Emperor Solid 16 x 32 ft left step safety cover, blue PoolTux Emperor 16 x 32 ft Solid Safety Cover with Left Step, Blue, 20 Year Warranty, CSPTBS16322$2,42099 PoolTux BT2545R 25'x45' solid rectangle winter cover with 20 year Emperor warranty PoolTux 25'x45' Solid, Rectangle Winter Cover, 20 Yr. Emperor Warranty, BT2545R$28199
PoolTux ultra premium 30'x50' solid rectangle winter cover PoolTux Ultra Premium 30'x50' Solid Rectangle Winter Cover, 25 Year Warranty, BB3050R$29699 PoolTux round leaf guard net for 27 and 28 foot above ground pools PoolTux 27'/28' Round Leaf Guard, LN31A$13999 PoolTux BB1632R ultra premium solid rectangle winter cover for a 16'x32' in-ground pool PoolTux 16'x32' Solid Rectangle Ultra Premium Winter Cover, 25 Year Warranty, BB1632R$14199 PoolTux 30 ft round solid winter cover, silver on black PoolTux 30' Solid, Round Winter Cover, 15 Year King Warranty, 1234ASBL$14299 PoolTux WTB-1019 4 foot by 8 foot winter cover equalizer pillow PoolTux 4' x 8' Equalizer Pillow, WTB-1019$2899 PoolTux Royal solid blue winter cover for a 24 ft. round above ground pool PoolTux 24 ft. Round Solid Winter Cover, 10 Year Royal Warranty, 7728AGBLB$7399 PoolTux BB2545R 25' x 45' solid rectangle Ultra Premium winter pool cover PoolTux 25' x 45' Solid Rectangle Ultra Premium Winter Cover, 25 Year Warranty, BB2545R$25299 PoolTux BT2040R 20'x40' solid rectangle winter cover with 20 year Emperor warranty PoolTux 20'x40' Solid Rectangle Winter Cover, 20 Yr. Emperor Warranty, BT2040R$20599 PoolTux 8 ft double chamber pool cover water tube in blue 16 gauge vinyl PoolTux 1'x8' 16 Gauge Double Pool Cover Water Tube, WTB-1001$1599 PoolTux solid rectangle winter cover for an inground pool PoolTux 30'x50' Solid Rectangle Winter Cover, 8 Year Royal Warranty, 773555IU$18599

Questions and answers

What people ask about this product, answered by our pool techs.

Do the anchors leave something sticking out of my deck?
No. Flush mount brass anchors are tamped down until they sit level with concrete or paver decking, so once the cover comes off in spring the deck is walkable with nothing to catch a foot. A hex key raises them again at closing.
What pool does this cover fit?
A 16 x 32 ft rectangle with a step on the right side. The 18 x 34 ft figure is the panel, cut a foot larger on each side for the deck overlap.
How much of my step will the cover sit over?
The step section is 8 ft wide and comes 4 ft back at the water line. Measure your step on both axes at the water line and check it fits inside that, since the cutout is fixed when the cover is made.
Can I install a safety cover myself?
Many owners do. The kit includes the tamping tool for setting the anchors and a rod for hooking the springs, and the work is drilling accurate anchor holes and getting even tension across the straps. Anchor placement is the part worth taking slowly, since the holes are permanent.
