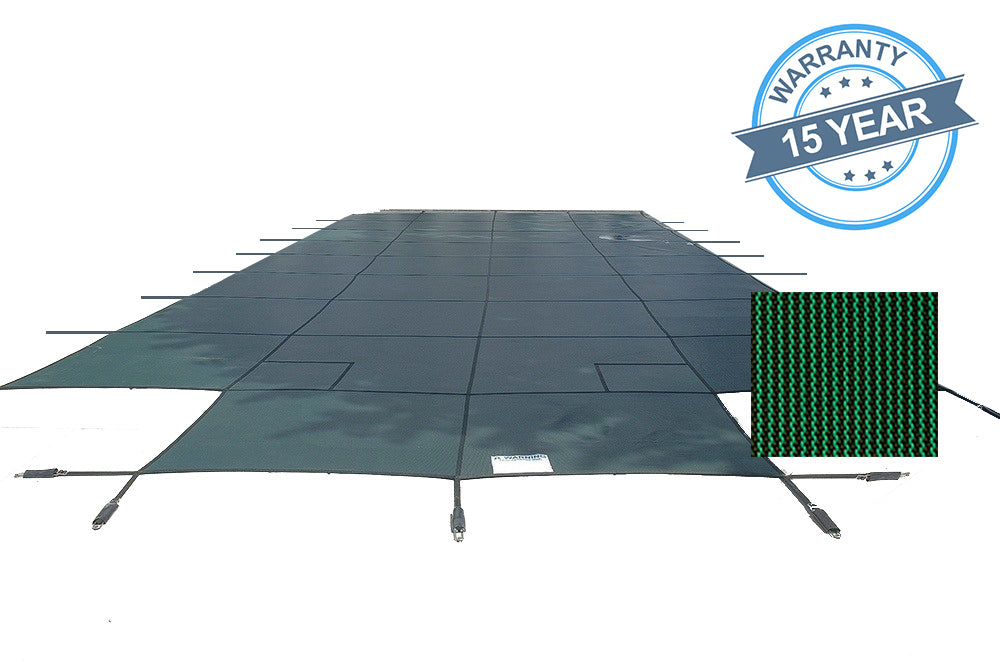

PoolTux Royal 20 x 40 ft Mesh Safety Cover with Center End Step, Green, CSPTGME20401

Ask a questionMPN CSPTGME20401
$1,14599
FREE Delivery
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Fits Ordered for a 20 x 40 ft rectangle with the step centered on an end wall.
  • Step panel The step area is 8 ft wide and reaches 4 ft back at the water line.
  • Overlap The 22 x 42 ft panel leaves about a foot of fabric on the deck on every side.
  • Mesh fabric Green mesh at 4.5 oz per square yard with a 385 PSI burst strength.
  • Self draining Rain and melted snow run through the weave into the pool.
  • Warranty 15 years limited from PoolTux, the first 3 of them full.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About PoolTux Royal 20 x 40 ft Mesh Safety Cover with Center End Step, Green, CSPTGME20401, SKU PT-IG-000313. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item PoolTux Royal 20 x 40 ft Mesh Safety Cover with Center End Step, Green, CSPTGME20401
Pooltux

PoolTux Royal 20 x 40 ft Mesh Safety Cover with Center End Step, Green, CSPTGME20401

$1,14599
Coverstar A1100 Slider Assembly for Detachable Rope, 403 and 801A Under Guide
Coverstar

A1100 Slider Assembly for Detachable Rope, 403 and 801A Under Guide

$7399
Coverstar H1070 Double Ball Bearing Rope Pulley, Stainless Steel
Coverstar

H1070 Double Ball Bearing Rope Pulley, Stainless Steel

$2699
Coverstar Complete Control Switch Assembly, A0605
Coverstar

Complete Control Switch Assembly, A0605

$21799
Little Giant Adapter Fitting for 3/4", APCP-1700, 177343
Little Giant

Adapter Fitting for 3/4", APCP-1700, 177343

$2099
Anderson Winter Duck Plug Check Valve, Fits 1.5 in. PVC, WDP150
Anderson Manufacturing

Anderson Winter Duck Plug Check Valve, Fits 1.5 in. PVC, WDP150

$1499
Coverstar 100 ft PowerFlex Rope with Semi-Rigid Tab, C6100
Coverstar

100 ft PowerFlex Rope with Semi-Rigid Tab, C6100

$19099
Subtotal

Similar products

Other products people compare with this one.

GLI Secur-A-Pool blue mesh safety cover for an 18 x 36 ft rectangle pool, 20-1836RE-SAP-BLU GLI Secur-A-Pool Mesh Safety Cover for 18 x 36 ft Rectangle Pools, Blue, 20-1836RE-SAP-BLU$1,22699 GLI Secur-A-Pool blue mesh safety cover for an 18 x 36 ft rectangle pool with 4 x 8 ft CES, 20-1836RE-CES48-SAP-BLU GLI Secur-A-Pool Mesh Safety Cover with 4 x 8 ft CES for 18 x 36 ft Rectangle Pools, Blue, 20-1836RE-CES48-SAP-BLU$1,28999 GLI Mesh Safety Cover for 18 x 36 ft Rectangle Pools, Green, 4 x 8 ft CES, 20-1836RE-CES48-SAP-GRN$1,28999 GLI Secur-A-Pool blue mesh safety cover for a 16 x 32 ft rectangle pool with 4 x 8 ft CES, 20-1632RE-CES48-SAP-BLU GLI Secur-A-Pool Mesh Safety Cover with 4 x 8 ft CES for 16 x 32 ft Rectangle Pools, Blue, 20-1632RE-CES48-SAP-BLU$1,15799 GLI Mesh Safety Cover for 16 x 32 ft Rectangle Pools, Green, 4 x 8 ft CES, 20-1632RE-CES48-SAP-GRN$1,15399 Pooltux Royal Blue Mesh Rectangle Safety Cover | CSPTBME16320 PoolTux Royal 16 x 32 ft Mesh Safety Cover, Blue, CSPTBME16320$86199 GLI Secur-A-Pool blue mesh safety cover for a 20 x 40 ft rectangle pool, 20-2040RE-CES48-SAP-BLU GLI Mesh Safety Cover for 20 x 40 ft Rectangle Pools, Blue, 4 x 8 ft CES, 20-2040RE-CES48-SAP-BLU$1,42599 Coverstar A1153 under track rope slider assembly, retrofit, set of 2 Coverstar Slider Assembly, UG Retro, Set of 2, A1153$7799 Coverstar E2000 115V sealed stainless steel automatic pool cover motor Coverstar E2000 115V Sealed Stainless Steel Motor$1,33399 Poolguard MWUG Ultra Gizzmo skimmer freeze protection device for in ground pools Poolguard Gizzmo Ultra, 16" Length, 1.5" to 2.0", for In-Ground Pools, MWUG$2099
Coverstar A1932 13 in. stainless steel adjustable walk-on lid bracket with mounting base Coverstar 13 in. Stainless Steel Adjustable Walk-on Lid Bracket with Mounting Base, A1932$18899 Coverstar C4062 semi rigid 3 inch tab for detachable rope Coverstar Tab Semi Rigid for Detach Rope 418, C4062$1499 Coverstar A0996 stainless steel guide feed with hardware for 403 and 801 series under guide systems Coverstar Guide Feed with Hardware for 403/801 Series Under Guide System, Stainless Steel, A0996$5299 Coverstar A0041 3 in. white leading edge block insert assembly Coverstar Single CS1800/CS3000/Eclipse UG 3 in. Leading Edge White Block Insert Assembly, A0041$10199 Horizon HV9X10 floating spa cover on the water, with close up of the material Horizon 9 ft x 10 ft Floating Spa Cover, HV9X10$27299 Hayward 004-302-1672-00 2 in. winter plug, 6 pack Hayward Winter Plug, 6 Pack, 004-302-1672-00$13999 Coverstar A1071 2-piece stainless steel guide feed assembly for automatic pool covers Coverstar 2-Piece Stainless Steel Guide Feed Assembly without Mounting Hardware, A1071$5999 Coverstar M9886 stop block slider for 805 wheel assembly and STD TG 403 Coverstar Stop Block Slider for Wheel Assembly 805, STD TG 403, M9886$1999 Little Giant 101375 volute with lip, front pump housing for cover pumps Little Giant Volute with Lip For Cover Pump, 101375$2699 FeherGuard FG-BPS blue UV protective sheet, 3-1/2 ft x 24 ft FeherGuard UV Protective Cover, 3-1/2 ft x 24 ft, FG-BPS$2799

Product details

This Royal panel fits a 20 x 40 ft rectangular inground pool with the step centered on one end. The cover measures 22 x 42 ft, which is the pool size plus the overlap that reaches the deck and takes the anchors. The step section is 8 ft wide and 4 ft back from the pool at the water line, so measure your own step along the wall and out into the water before ordering.

  • Green mesh, rated at 4.5 oz per square yard with a 385 PSI burst strength.
  • Rain and snowmelt drain into the pool instead of sitting on the fabric.
  • A 5 by 5 ft strap grid keeps tension even across a large opening.
  • Brass anchors tamp flush with concrete or paver decking and rise with a hex key.
  • Springs, an installation rod, a tamping tool and a storage bag are in the kit.

PoolTux covers this Royal panel for 15 years, and the first 3 of those years are full rather than limited. That distinction is worth knowing, because a limited year is normally prorated against the age of the cover, so the installation date and the paperwork matter. Warranty terms are set per line, so nothing here carries across to another PoolTux cover. As for the fabric, a 4.5 oz weave rated at 385 PSI is what lets the panel stay manageable to handle while still standing up to the static load test in ASTM F1346.

Specifications
Brand PoolTux
Series Royal
Part number CSPTGME20401
Pool size 20 x 40 ft rectangle
Cover size 22 x 42 ft
Step placement Center end step
Step area 4 x 8 ft, 8 ft wide and 4 ft back at the water line
Material Mesh, drains through into the pool
Color Green
Fabric weight 4.5 oz per square yard
Strap spacing 5 x 5 ft grid
Warranty 15 year limited, first 3 years full

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

Customer reviews

More from Pooltux

PoolTux King 24 ft round solid winter cover in silver on black PoolTux 24' Solid Round Winter Cover, 15 Year King Warranty, 1228ASBL$9999 PoolTux 30' round solid Ultra Premium winter cover for above ground pools PoolTux 30' Solid Round Ultra Premium Winter Cover, 25 Year Warranty, BB0030$19199 PoolTux King 30' x 50' solid rectangle winter cover, 15 year warranty PoolTux 30' x 50' Solid Rectangle Winter Cover, 15 Year King Warranty, 123555ISBL$20999 PoolTux BB1836R Ultra Premium solid rectangle winter cover for an 18 by 36 foot pool PoolTux 18'x36' Solid Rectangle Ultra Premium Winter Cover, 25 Year Warranty, BB1836R$15699 PoolTux King 20'x40' solid rectangle winter cover, silver on black PoolTux 20'x40' Solid Rectangle Winter Cover, 15 Year King Warranty, 122545ISBL$13799 PoolTux BB0024 24 ft solid round above ground winter pool cover PoolTux 24' Solid Round Above Ground Ultra Premium Winter Pool Cover, 25 Year Warranty, BB0024$14199 PoolTux 21' round above ground ultra premium solid winter cover PoolTux 21' Round Above Ground Ultra Premium Winter Pool Cover, 25 Year Warranty, BB0021$10999 PoolTux BB1530 Ultra Premium solid oval winter cover for a 15x30 above ground pool PoolTux 15'x30' Solid Oval Ultra Premium Winter Cover, 25 Year Warranty, BB1530$12099 PoolTux CSPTBS16322 Emperor Solid 16 x 32 ft left step safety cover, blue PoolTux Emperor 16 x 32 ft Solid Safety Cover with Left Step, Blue, 20 Year Warranty, CSPTBS16322$2,34899 PoolTux BT2545R 25'x45' solid rectangle winter cover with 20 year Emperor warranty PoolTux 25'x45' Solid, Rectangle Winter Cover, 20 Yr. Emperor Warranty, BT2545R$27399
PoolTux ultra premium 30'x50' solid rectangle winter cover PoolTux Ultra Premium 30'x50' Solid Rectangle Winter Cover, 25 Year Warranty, BB3050R$28799 PoolTux round leaf guard net for 27 and 28 foot above ground pools PoolTux 27'/28' Round Leaf Guard, LN31A$13599 PoolTux BB1632R ultra premium solid rectangle winter cover for a 16'x32' in-ground pool PoolTux 16'x32' Solid Rectangle Ultra Premium Winter Cover, 25 Year Warranty, BB1632R$13799 PoolTux 30 ft round solid winter cover, silver on black PoolTux 30' Solid, Round Winter Cover, 15 Year King Warranty, 1234ASBL$13799 PoolTux WTB-1019 4 foot by 8 foot winter cover equalizer pillow PoolTux 4' x 8' Equalizer Pillow, WTB-1019$2799 PoolTux Royal solid blue winter cover for a 24 ft. round above ground pool PoolTux 24 ft. Round Solid Winter Cover, 10 Year Royal Warranty, 7728AGBLB$7199 PoolTux BB2545R 25' x 45' solid rectangle Ultra Premium winter pool cover PoolTux 25' x 45' Solid Rectangle Ultra Premium Winter Cover, 25 Year Warranty, BB2545R$24599 PoolTux BT2040R 20'x40' solid rectangle winter cover with 20 year Emperor warranty PoolTux 20'x40' Solid Rectangle Winter Cover, 20 Yr. Emperor Warranty, BT2040R$19999 PoolTux 8 ft double chamber pool cover water tube in blue 16 gauge vinyl PoolTux 1'x8' 16 Gauge Double Pool Cover Water Tube, WTB-1001$1599 PoolTux solid rectangle winter cover for an inground pool PoolTux 30'x50' Solid Rectangle Winter Cover, 8 Year Royal Warranty, 773555IU$18099

Questions and answers

What people ask about this product, answered by our pool techs.

What size pool does this cover fit?
A 20 x 40 ft rectangular inground pool with the step centered on one end. The 22 x 42 ft figure describes the panel, and the extra foot per side is the overlap onto the deck. Measure the pool itself at the water line.
What does the warranty actually cover?
PoolTux lists this Royal cover at 15 years limited, with the first 3 years full. A full period and a limited period are different things: the limited years are usually prorated, so keep the paperwork and the installation date. Warranty terms differ between PoolTux lines, so the figure on another cover does not apply here.
What is the fabric rated at?
The Royal mesh is listed at 4.5 oz per square yard with a burst strength of 385 PSI, and it is a self draining weave. That combination is what lets the panel stay comparatively light while still meeting the load requirements ASTM F1346 sets for a safety cover.
Do I need a cover pump?
No. Mesh lets rain and snowmelt drop straight into the pool, so nothing stands on the surface for a pump to move. A solid cover would need one, since it holds water on top.
