Quick overview

  • Fits A 16 x 32 ft rectangle with a left side step.
  • Step panel 8 ft wide, 4 ft back at the water line.
  • Panel 18 x 34 ft, leaving about a foot of overlap onto the deck.
  • Edge protection Chafing strips sit where the fabric crosses the coping, so the webbing and the stone do not wear each other down.
  • Self draining Rain passes through the mesh into the pool, so nothing collects on top.
  • Warranty 20 years limited, the first 5 full.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.

Send us a message

A pool professional will get back to you, usually the same business day.

About PoolTux King99 16 x 32 ft Mesh Safety Cover with Left Step, Green, CSPTGMP16322, SKU PT-IG-200305. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item PoolTux King99 16 x 32 ft Mesh Safety Cover with Left Step, Green, CSPTGMP16322
Pooltux

PoolTux King99 16 x 32 ft Mesh Safety Cover with Left Step, Green, CSPTGMP16322

$1,81973
Coverstar A1100 Slider Assembly for Detachable Rope, 403 and 801A Under Guide
Coverstar

A1100 Slider Assembly for Detachable Rope, 403 and 801A Under Guide

$7599
Coverstar H1070 Double Ball Bearing Rope Pulley, Stainless Steel
Coverstar

H1070 Double Ball Bearing Rope Pulley, Stainless Steel

$2799
Coverstar Complete Control Switch Assembly, A0605
Coverstar

Complete Control Switch Assembly, A0605

$22499
Coverstar E2000 115V Sealed Stainless Steel Motor
Coverstar

E2000 115V Sealed Stainless Steel Motor

$1,99899
Little Giant Adapter Fitting for 3/4", APCP-1700, 177343
Little Giant

Adapter Fitting for 3/4", APCP-1700, 177343

$2199
Coverstar 100 ft PowerFlex Rope with Semi-Rigid Tab, C6100
Coverstar

100 ft PowerFlex Rope with Semi-Rigid Tab, C6100

$19699
Subtotal

Product details

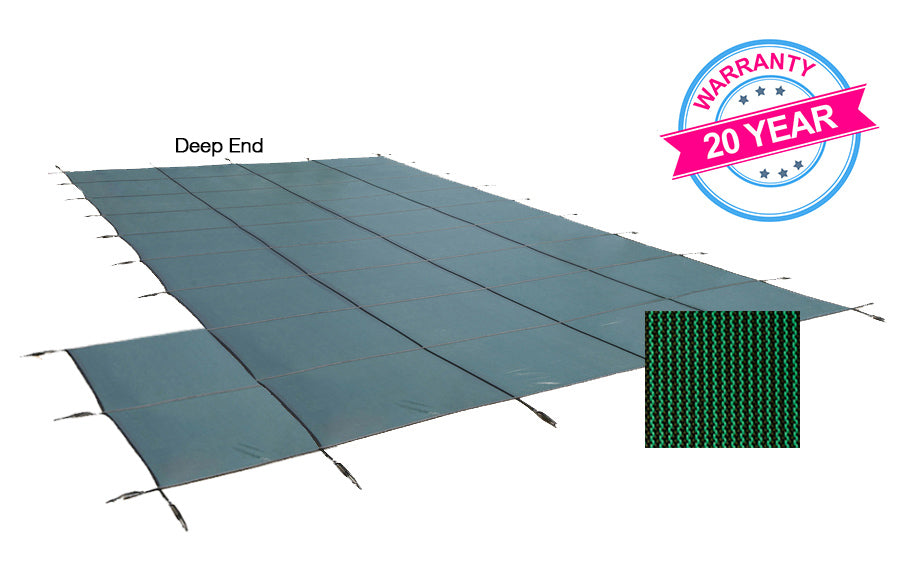

Built for a 16 x 32 ft rectangular pool with the step on the left, this King99 panel measures 18 x 34 ft. The extra foot on each side is what rests on the deck and anchors, and the step area is cut 8 ft wide by 4 ft back at the water line.

  • Green mesh that drains itself, so the cover never carries standing water or needs a pump.
  • Straps on a 5 ft grid, held down by Tension-Tech springs against flush mount brass anchors.
  • Chafing strips at the edge take the wear where the cover crosses the coping.
  • The weave blocks 99 percent of ultraviolet light, which keeps algae from making headway.

A safety cover spends the winter moving. Wind lifts the fabric, cold shrinks it, sun in a warm week loosens it again, and all of that motion concentrates at the coping where the webbing crosses the pool edge. The chafing strips and the springs are the parts that deal with it: the strips take the abrasion, the springs hold tension through the range. What is left for the owner is a look every so often at whether the straps are even and whether the water underneath has climbed, since mesh puts every rainfall into the pool. The warranty is 20 years limited, 5 of them full.

Specifications
Brand PoolTux
Series King99
Part number CSPTGMP16322
Pool size 16 x 32 ft rectangle
Cover size 18 x 34 ft
Overlap About 1 ft on each side
Step Left step
Step area 8 ft wide, 4 ft back at the water line
Material Mesh, self draining
Strap spacing 5 x 5 ft
Color Green
Warranty 20 year limited, first 5 years full

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

Customer reviews

More from Pooltux

Questions and answers

What people ask about this product, answered by our pool techs.

What wears out first on a safety cover?
The edge, usually, where the webbing crosses the coping and moves every time the wind lifts the fabric. Chafing strips are built into this cover at those points to take that wear instead of the straps and the stone. Keeping even tension across the straps helps as much as anything.
What pool size does this cover fit?
A 16 x 32 ft rectangle with a left side step. The panel is 18 x 34 ft, a foot larger on each side so the edge reaches the deck.
What are the step dimensions on this panel?
Eight feet across and 4 ft back at the water line. Measure your step the same way before ordering, because the cutout is sewn in at manufacture and a step outside those figures will not sit under the panel properly.
Will a mesh cover hold a person who falls on it?
That is the point of the safety classification. ASTM F1346 tests a cover on a pool wider than 8 ft under 485 lb, applied as 210, 225 and 50 lb weights, each over one square foot and all within a 3 ft radius, and it requires the label to state the cover's class.
