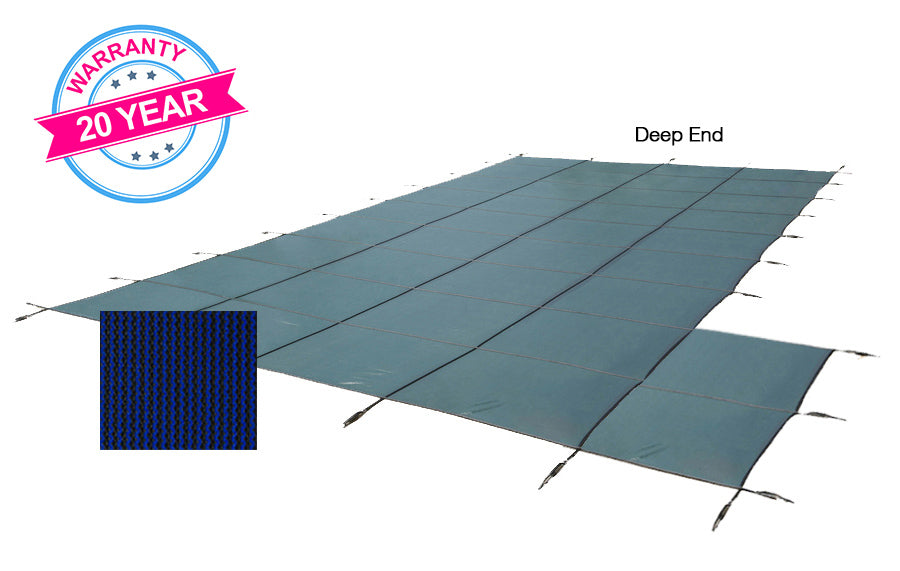

PoolTux King99 20 x 40 ft Safety Cover with Right Step, Blue, 20 Year Warranty, CSPTBMP20403PoolTux King99 20 x 40 ft Mesh Safety Cover with Right Step, Blue, CSPTBMP20403$2,33707
PoolTux King99 20 x 40 ft Safety Cover with Right Step, Blue, 20 Year Warranty, CSPTBMP20403
Shop all Pooltux

PoolTux King99 20 x 40 ft Mesh Safety Cover with Right Step, Blue, CSPTBMP20403

Ask a questionMPN CSPTBMP20403
$2,33707
FREE Delivery
Typically ships within 10 days This item ships directly from the manufacturer.
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Fits A 20 x 40 ft rectangle with a right side step.
  • Step panel 8 ft wide and 4 ft back at the water line.
  • Panel 22 x 42 ft, a foot of overlap onto the deck on each side.
  • Load The pool is over 8 ft wide, so the ASTM F1346 static load test for this class is 485 lb inside a 3 ft radius.
  • Self draining Rain and snowmelt pass through the weave, so nothing stands on a span this size.
  • Warranty 20 years limited, the first 5 full.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About PoolTux King99 20 x 40 ft Mesh Safety Cover with Right Step, Blue, CSPTBMP20403, SKU PT-IG-100647. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item PoolTux King99 20 x 40 ft Mesh Safety Cover with Right Step, Blue, CSPTBMP20403
Pooltux

PoolTux King99 20 x 40 ft Mesh Safety Cover with Right Step, Blue, CSPTBMP20403

$2,33707
Coverstar A1100 Slider Assembly for Detachable Rope, 403 and 801A Under Guide
Coverstar

A1100 Slider Assembly for Detachable Rope, 403 and 801A Under Guide

$7599
Coverstar H1070 Double Ball Bearing Rope Pulley, Stainless Steel
Coverstar

H1070 Double Ball Bearing Rope Pulley, Stainless Steel

$2799
Coverstar Complete Control Switch Assembly, A0605
Coverstar

Complete Control Switch Assembly, A0605

$22499
Little Giant Adapter Fitting for 3/4", APCP-1700, 177343
Little Giant

Adapter Fitting for 3/4", APCP-1700, 177343

$2199
Anderson Winter Duck Plug Check Valve, Fits 1.5 in. PVC, WDP150
Anderson Manufacturing

Anderson Winter Duck Plug Check Valve, Fits 1.5 in. PVC, WDP150

$1499
Coverstar 100 ft PowerFlex Rope with Semi-Rigid Tab, C6100
Coverstar

100 ft PowerFlex Rope with Semi-Rigid Tab, C6100

$19699
Subtotal

Similar products

Other products people compare with this one.

GLI Secur-A-Pool blue mesh safety cover for an 18 x 36 ft rectangle pool, 20-1836RE-SAP-BLU GLI Secur-A-Pool Mesh Safety Cover for 18 x 36 ft Rectangle Pools, Blue, 20-1836RE-SAP-BLU$1,22699 GLI Secur-A-Pool blue mesh safety cover for an 18 x 36 ft rectangle pool with 4 x 8 ft CES, 20-1836RE-CES48-SAP-BLU GLI Secur-A-Pool Mesh Safety Cover with 4 x 8 ft CES for 18 x 36 ft Rectangle Pools, Blue, 20-1836RE-CES48-SAP-BLU$1,28999 GLI Mesh Safety Cover for 18 x 36 ft Rectangle Pools, Green, 4 x 8 ft CES, 20-1836RE-CES48-SAP-GRN$1,28999 Pooltux Royal Green Mesh Rectangular Safety Cover | CSPTGME20401 PoolTux Royal 20 x 40 ft Mesh Safety Cover with Center End Step, Green, CSPTGME20401$1,18199 GLI Secur-A-Pool blue mesh safety cover for a 20 x 40 ft rectangle pool, 20-2040RE-CES48-SAP-BLU GLI Mesh Safety Cover for 20 x 40 ft Rectangle Pools, Blue, 4 x 8 ft CES, 20-2040RE-CES48-SAP-BLU$1,42599 GLI Secur-A-Pool blue mesh safety cover for a 16 x 32 ft rectangle pool with 4 x 8 ft CES, 20-1632RE-CES48-SAP-BLU GLI Secur-A-Pool Mesh Safety Cover with 4 x 8 ft CES for 16 x 32 ft Rectangle Pools, Blue, 20-1632RE-CES48-SAP-BLU$1,15799 GLI Mesh Safety Cover for 16 x 32 ft Rectangle Pools, Green, 4 x 8 ft CES, 20-1632RE-CES48-SAP-GRN$1,15399 Pooltux Royal Blue Mesh Rectangle Safety Cover | CSPTBME16320 PoolTux Royal 16 x 32 ft Mesh Safety Cover, Blue, CSPTBME16320$88899 Coverstar A1153 under track rope slider assembly, retrofit, set of 2 Coverstar Slider Assembly, UG Retro, Set of 2, A1153$7999 Coverstar E2000 115V sealed stainless steel automatic pool cover motor Coverstar E2000 115V Sealed Stainless Steel Motor$1,99899
Poolguard MWUG Ultra Gizzmo skimmer freeze protection device for in ground pools Poolguard Gizzmo Ultra, 16" Length, 1.5" to 2.0", for In-Ground Pools, MWUG$2199 Coverstar A1932 13 in. stainless steel adjustable walk-on lid bracket with mounting base Coverstar 13 in. Stainless Steel Adjustable Walk-on Lid Bracket with Mounting Base, A1932$19499 Coverstar C4062 semi rigid 3 inch tab for detachable rope Coverstar Tab Semi Rigid for Detach Rope 418, C4062$1499 Coverstar A0996 stainless steel guide feed with hardware for 403 and 801 series under guide systems Coverstar Guide Feed with Hardware for 403/801 Series Under Guide System, Stainless Steel, A0996$5499 Coverstar A0041 3 in. white leading edge block insert assembly Coverstar Single CS1800/CS3000/Eclipse UG 3 in. Leading Edge White Block Insert Assembly, A0041$10499 Horizon HV9X10 floating spa cover on the water, with close up of the material Horizon 9 ft x 10 ft Floating Spa Cover, HV9X10$28099 Hayward 004-302-1672-00 2 in. winter plug, 6 pack Hayward Winter Plug, 6 Pack, 004-302-1672-00$14099 Coverstar A1071 2-piece stainless steel guide feed assembly for automatic pool covers Coverstar 2-Piece Stainless Steel Guide Feed Assembly without Mounting Hardware, A1071$6099 Little Giant 101375 volute with lip, front pump housing for cover pumps Little Giant Volute with Lip For Cover Pump, 101375$2699 Coverstar M9886 stop block slider for 805 wheel assembly and STD TG 403 Coverstar Stop Block Slider for Wheel Assembly 805, STD TG 403, M9886$2099

Product details

The 20 x 40 ft rectangle is the most common large residential pool, and this King99 panel is the right step version for it. The fabric measures 22 x 42 ft, which is the pool plus a foot on each side to lie on the deck and carry the straps to their anchors. The step area is cut 8 ft wide and 4 ft back at the water line.

  • Blue mesh listed at 7 oz, with a burst strength of 670 PSI.
  • Self draining, so a 22 by 42 ft span never holds a pond and no pump has to run.
  • Straps on a 5 ft grid, each tensioned by a Tension-Tech spring against a flush mount brass anchor.
  • Almost all ultraviolet light stops at the weave, so algae has little to work with over the winter.

At this width the numbers behind the safety classification are worth knowing. ASTM F1346 loads a cover on a pool more than 8 ft wide with 485 lb, applied as 210, 225 and 50 lb weights, each spread across a square foot and all set within a 3 ft radius, and it asks that standing water clear within half an hour of rain ending. Compliance is self declared, so the right phrase is that a cover meets ASTM F1346, and the label is where the classification has to appear. Keep the water no lower than the maker says, because that water carries the snow load from below. The warranty is 20 years limited, 5 full.

Specifications
Brand PoolTux
Series King99
Part number CSPTBMP20403
Pool size 20 x 40 ft rectangle
Cover size 22 x 42 ft
Step Right step
Step area 8 ft wide, 4 ft back at the water line
Material Mesh, self draining
Fabric weight 7 oz
Burst strength 670 PSI
Strap spacing 5 x 5 ft
Warranty 20 year limited, first 5 years full

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

Customer reviews

More from Pooltux

PoolTux King 24 ft round solid winter cover in silver on black PoolTux 24' Solid Round Winter Cover, 15 Year King Warranty, 1228ASBL$10299 PoolTux 30' round solid Ultra Premium winter cover for above ground pools PoolTux 30' Solid Round Ultra Premium Winter Cover, 25 Year Warranty, BB0030$18699 PoolTux King 30' x 50' solid rectangle winter cover, 15 year warranty PoolTux 30' x 50' Solid Rectangle Winter Cover, 15 Year King Warranty, 123555ISBL$21599 PoolTux BB1836R Ultra Premium solid rectangle winter cover for an 18 by 36 foot pool PoolTux 18'x36' Solid Rectangle Ultra Premium Winter Cover, 25 Year Warranty, BB1836R$16199 PoolTux King 20'x40' solid rectangle winter cover, silver on black PoolTux 20'x40' Solid Rectangle Winter Cover, 15 Year King Warranty, 122545ISBL$14199 PoolTux BB0024 24 ft solid round above ground winter pool cover PoolTux 24' Solid Round Above Ground Ultra Premium Winter Pool Cover, 25 Year Warranty, BB0024$14599 PoolTux 21' round above ground ultra premium solid winter cover PoolTux 21' Round Above Ground Ultra Premium Winter Pool Cover, 25 Year Warranty, BB0021$11399 PoolTux BB1530 Ultra Premium solid oval winter cover for a 15x30 above ground pool PoolTux 15'x30' Solid Oval Ultra Premium Winter Cover, 25 Year Warranty, BB1530$12499 PoolTux CSPTBS16322 Emperor Solid 16 x 32 ft left step safety cover, blue PoolTux Emperor 16 x 32 ft Solid Safety Cover with Left Step, Blue, 20 Year Warranty, CSPTBS16322$2,42099 PoolTux BT2545R 25'x45' solid rectangle winter cover with 20 year Emperor warranty PoolTux 25'x45' Solid, Rectangle Winter Cover, 20 Yr. Emperor Warranty, BT2545R$28199
PoolTux ultra premium 30'x50' solid rectangle winter cover PoolTux Ultra Premium 30'x50' Solid Rectangle Winter Cover, 25 Year Warranty, BB3050R$29699 PoolTux round leaf guard net for 27 and 28 foot above ground pools PoolTux 27'/28' Round Leaf Guard, LN31A$13999 PoolTux BB1632R ultra premium solid rectangle winter cover for a 16'x32' in-ground pool PoolTux 16'x32' Solid Rectangle Ultra Premium Winter Cover, 25 Year Warranty, BB1632R$14199 PoolTux 30 ft round solid winter cover, silver on black PoolTux 30' Solid, Round Winter Cover, 15 Year King Warranty, 1234ASBL$14299 PoolTux WTB-1019 4 foot by 8 foot winter cover equalizer pillow PoolTux 4' x 8' Equalizer Pillow, WTB-1019$2899 PoolTux Royal solid blue winter cover for a 24 ft. round above ground pool PoolTux 24 ft. Round Solid Winter Cover, 10 Year Royal Warranty, 7728AGBLB$7399 PoolTux BB2545R 25' x 45' solid rectangle Ultra Premium winter pool cover PoolTux 25' x 45' Solid Rectangle Ultra Premium Winter Cover, 25 Year Warranty, BB2545R$25299 PoolTux BT2040R 20'x40' solid rectangle winter cover with 20 year Emperor warranty PoolTux 20'x40' Solid Rectangle Winter Cover, 20 Yr. Emperor Warranty, BT2040R$20599 PoolTux 8 ft double chamber pool cover water tube in blue 16 gauge vinyl PoolTux 1'x8' 16 Gauge Double Pool Cover Water Tube, WTB-1001$1599 PoolTux solid rectangle winter cover for an inground pool PoolTux 30'x50' Solid Rectangle Winter Cover, 8 Year Royal Warranty, 773555IU$18599

Questions and answers

What people ask about this product, answered by our pool techs.

What load does a cover this wide have to hold?
ASTM F1346 tests a cover on a pool more than 8 ft wide at 485 lb. The weight goes on as three pieces, 210 lb, 225 lb and 50 lb, each spread over one square foot, with all three placed inside a 3 ft radius. Only covers in the safety classes are tested this way.
What pool does this cover fit?
A 20 x 40 ft rectangle with the step on the right side. The panel is 22 x 42 ft, which is the pool plus a foot of overlap on each side for anchoring.
Is this cover certified to ASTM F1346?
There is no certificate to point to, and nobody should be shown one. Compliance with F1346 is declared by the maker rather than granted by the standards body, so the accurate phrasing is that a cover meets the standard. What you can check yourself is the label, which under section 8.12 has to state the classification.
How big a step will it cover?
Up to 8 ft wide and 4 ft back at the water line. On a 20 x 40 ft pool, steps are often built larger than that, so this is the one measurement on a big pool that catches people out. Take it at the water line, on both axes, before ordering.
