PoolTux King99 20 x 44 ft Mesh Safety Cover with Right Step, Green, 20 Year Warranty, CSPTGMP20443PoolTux King99 20 x 44 ft Mesh Safety Cover, Right Step, Green, CSPTGMP20443$2,49535
PoolTux King99 20 x 44 ft Mesh Safety Cover with Right Step, Green, 20 Year Warranty, CSPTGMP20443
Shop all Pooltux

PoolTux King99 20 x 44 ft Mesh Safety Cover, Right Step, Green, CSPTGMP20443

Ask a questionMPN CSPTGMP20443
$2,49535
FREE Delivery
Typically ships within 10 days This item ships directly from the manufacturer.
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Fits A 20 by 44 ft rectangle with the step on the right.
  • Overlap The panel runs 22 by 46 ft, a foot beyond the pool on every side.
  • Step area 8 ft wide, reaching 4 ft back from the waterline.
  • Weight test Meets ASTM F1346, whose static load test is 485 lb over 8 ft of pool width.
  • No standing water The weave drains into the pool as the rain falls.
  • Warranty 20 year limited, the first 5 years full.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About PoolTux King99 20 x 44 ft Mesh Safety Cover, Right Step, Green, CSPTGMP20443, SKU PT-IG-200315. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item PoolTux King99 20 x 44 ft Mesh Safety Cover, Right Step, Green, CSPTGMP20443
Pooltux

PoolTux King99 20 x 44 ft Mesh Safety Cover, Right Step, Green, CSPTGMP20443

$2,49535
Coverstar A1100 Slider Assembly for Detachable Rope, 403 and 801A Under Guide
Coverstar

A1100 Slider Assembly for Detachable Rope, 403 and 801A Under Guide

$7599
Coverstar H1070 Double Ball Bearing Rope Pulley, Stainless Steel
Coverstar

H1070 Double Ball Bearing Rope Pulley, Stainless Steel

$2799
Coverstar Complete Control Switch Assembly, A0605
Coverstar

Complete Control Switch Assembly, A0605

$22499
Coverstar E2000 115V Sealed Stainless Steel Motor
Coverstar

E2000 115V Sealed Stainless Steel Motor

$1,99899
Little Giant Adapter Fitting for 3/4", APCP-1700, 177343
Little Giant

Adapter Fitting for 3/4", APCP-1700, 177343

$2199
Coverstar 100 ft PowerFlex Rope with Semi-Rigid Tab, C6100
Coverstar

100 ft PowerFlex Rope with Semi-Rigid Tab, C6100

$19699
Subtotal

Similar products

Other products people compare with this one.

Coverstar A1100 under track slider assembly for detachable rope set, black Coverstar A1100 Slider Assembly for Detachable Rope, 403 and 801A Under Guide$7599 Coverstar H1070 stainless steel double ball bearing rope pulley Coverstar H1070 Double Ball Bearing Rope Pulley, Stainless Steel$2799 Coverstar A0605 complete lever control switch assembly with key lock door Coverstar Complete Control Switch Assembly, A0605$22499 Coverstar E2000 115V sealed stainless steel automatic pool cover motor Coverstar E2000 115V Sealed Stainless Steel Motor$1,99899 Little Giant 177343 3/4 in. adapter fitting for the APCP-1700 cover pump Little Giant Adapter Fitting for 3/4", APCP-1700, 177343$2199 Coverstar C6100 100 ft PowerFlex rope with semi-rigid tab Coverstar 100 ft PowerFlex Rope with Semi-Rigid Tab, C6100$19699 Anderson WDP150 Winter Duck Plug check valve winterizing plug for 1.5 in. PVC returns Anderson Winter Duck Plug Check Valve, Fits 1.5 in. PVC, WDP150$1499 Coverstar A1153 under track rope slider assembly, retrofit, set of 2 Coverstar Slider Assembly, UG Retro, Set of 2, A1153$7999 Little Giant APCP-1700 automatic pool cover pump with 25 ft cord Little Giant Pool Cover Pump with 25' Cord, APCP-1700, 577301$20699 Coverstar A0041 3 in. white leading edge block insert assembly Coverstar Single CS1800/CS3000/Eclipse UG 3 in. Leading Edge White Block Insert Assembly, A0041$10499
Poolguard MWUG Ultra Gizzmo skimmer freeze protection device for in ground pools Poolguard Gizzmo Ultra, 16" Length, 1.5" to 2.0", for In-Ground Pools, MWUG$2199 Horizon HV9X10 floating spa cover on the water, with close up of the material Horizon 9 ft x 10 ft Floating Spa Cover, HV9X10$28099 Coverstar C4062 semi rigid 3 inch tab for detachable rope Coverstar Tab Semi Rigid for Detach Rope 418, C4062$1499 Coverstar A0996 stainless steel guide feed with hardware for 403 and 801 series under guide systems Coverstar Guide Feed with Hardware for 403/801 Series Under Guide System, Stainless Steel, A0996$5499 Coverstar A1071 2-piece stainless steel guide feed assembly for automatic pool covers Coverstar 2-Piece Stainless Steel Guide Feed Assembly without Mounting Hardware, A1071$6099 Hayward 004-302-1672-00 2 in. winter plug, 6 pack Hayward Winter Plug, 6 Pack, 004-302-1672-00$14099 Coverstar A2365 17.75 in stainless steel lid bracket extension kit Coverstar 17.75" Stainless Steel Lid Bracket 21-23" Extension Kit, A2365$11899 Coverstar M9886 stop block slider for 805 wheel assembly and STD TG 403 Coverstar Stop Block Slider for Wheel Assembly 805, STD TG 403, M9886$2099 AquaStar WAV9WR101 9 inch by 9 inch white Wave suction cover with frame and riser AquaStar 9" x 9" Wave Suction Cover with Frame and Riser, White, WAV9WR101$14999 Coverstar A0958 pulley endcap assembly, twist lock UT 817 Coverstar Pulley Endcap Assembly, Twist Lock UT 817, A0958$5799

Product details

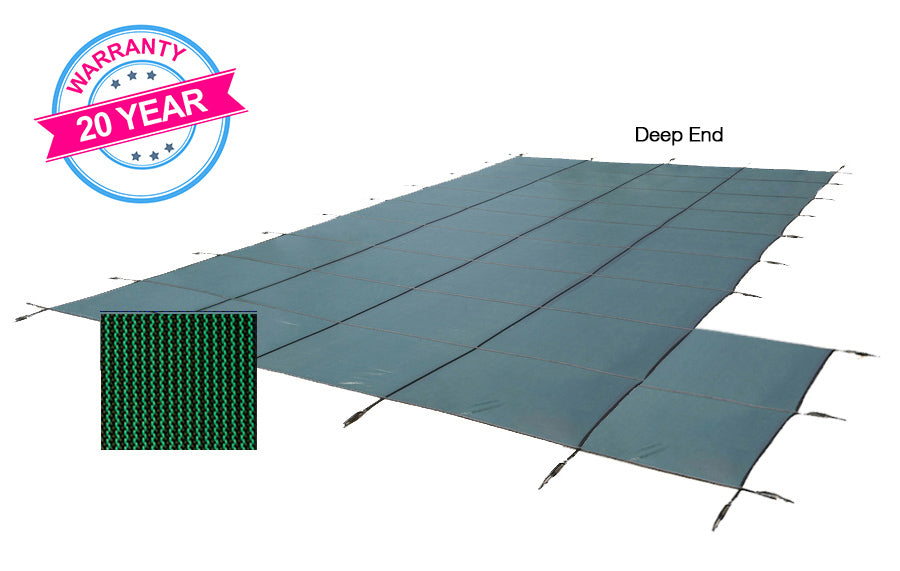

Sized for a 20 by 44 ft rectangular pool with a right hand step, this King99 mesh panel measures 22 by 46 ft. That is one foot of fabric past the pool on each of the four sides, and it is the part that reaches deck level where the anchors are set. The step section takes in 8 ft of width and 4 ft back from the waterline.

The fabric is a woven mesh rather than a coated solid sheet. Rain and snowmelt pass down into the pool instead of gathering on the surface, which is why no cover pump belongs on it, and the weave still stops 99 percent of ultraviolet light from reaching the water. Debris stays on top where you can clear it rather than sinking to the floor of the pool.

  • 7 oz green mesh with a 670 psi burst rating.
  • Straps every 5 ft in both directions, each on its own stainless steel spring.
  • Industrial grade webbing carries the load from the straps into the panel.
  • Flush brass anchors and collars, adjusted with a hex key.
  • Meets ASTM F1346 in the safety cover class.
  • 20 year limited warranty, the first 5 years full.
Specifications
Pool size 20 x 44 ft rectangle
Cover size 22 x 46 ft
Overlap 12 in per side
Step Right step
Step area 8 ft wide, 4 ft back at the waterline
Material Woven mesh
Color Green
Strap spacing 5 x 5 ft grid
Fabric weight 7 oz
Burst strength 670 psi
Warranty 20 year limited, first 5 years full
Part number CSPTGMP20443

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

Customer reviews

More from Pooltux

PoolTux King 24 ft round solid winter cover in silver on black PoolTux 24' Solid Round Winter Cover, 15 Year King Warranty, 1228ASBL$10299 PoolTux 30' round solid Ultra Premium winter cover for above ground pools PoolTux 30' Solid Round Ultra Premium Winter Cover, 25 Year Warranty, BB0030$18699 PoolTux King 30' x 50' solid rectangle winter cover, 15 year warranty PoolTux 30' x 50' Solid Rectangle Winter Cover, 15 Year King Warranty, 123555ISBL$21599 PoolTux BB1836R Ultra Premium solid rectangle winter cover for an 18 by 36 foot pool PoolTux 18'x36' Solid Rectangle Ultra Premium Winter Cover, 25 Year Warranty, BB1836R$16199 PoolTux King 20'x40' solid rectangle winter cover, silver on black PoolTux 20'x40' Solid Rectangle Winter Cover, 15 Year King Warranty, 122545ISBL$14199 PoolTux BB0024 24 ft solid round above ground winter pool cover PoolTux 24' Solid Round Above Ground Ultra Premium Winter Pool Cover, 25 Year Warranty, BB0024$14599 PoolTux 21' round above ground ultra premium solid winter cover PoolTux 21' Round Above Ground Ultra Premium Winter Pool Cover, 25 Year Warranty, BB0021$11399 PoolTux BB1530 Ultra Premium solid oval winter cover for a 15x30 above ground pool PoolTux 15'x30' Solid Oval Ultra Premium Winter Cover, 25 Year Warranty, BB1530$12499 PoolTux CSPTBS16322 Emperor Solid 16 x 32 ft left step safety cover, blue PoolTux Emperor 16 x 32 ft Solid Safety Cover with Left Step, Blue, 20 Year Warranty, CSPTBS16322$2,42099 PoolTux BT2545R 25'x45' solid rectangle winter cover with 20 year Emperor warranty PoolTux 25'x45' Solid, Rectangle Winter Cover, 20 Yr. Emperor Warranty, BT2545R$28199
PoolTux ultra premium 30'x50' solid rectangle winter cover PoolTux Ultra Premium 30'x50' Solid Rectangle Winter Cover, 25 Year Warranty, BB3050R$29699 PoolTux round leaf guard net for 27 and 28 foot above ground pools PoolTux 27'/28' Round Leaf Guard, LN31A$13999 PoolTux BB1632R ultra premium solid rectangle winter cover for a 16'x32' in-ground pool PoolTux 16'x32' Solid Rectangle Ultra Premium Winter Cover, 25 Year Warranty, BB1632R$14199 PoolTux 30 ft round solid winter cover, silver on black PoolTux 30' Solid, Round Winter Cover, 15 Year King Warranty, 1234ASBL$14299 PoolTux WTB-1019 4 foot by 8 foot winter cover equalizer pillow PoolTux 4' x 8' Equalizer Pillow, WTB-1019$2899 PoolTux Royal solid blue winter cover for a 24 ft. round above ground pool PoolTux 24 ft. Round Solid Winter Cover, 10 Year Royal Warranty, 7728AGBLB$7399 PoolTux BB2545R 25' x 45' solid rectangle Ultra Premium winter pool cover PoolTux 25' x 45' Solid Rectangle Ultra Premium Winter Cover, 25 Year Warranty, BB2545R$25299 PoolTux BT2040R 20'x40' solid rectangle winter cover with 20 year Emperor warranty PoolTux 20'x40' Solid Rectangle Winter Cover, 20 Yr. Emperor Warranty, BT2040R$20599 PoolTux 8 ft double chamber pool cover water tube in blue 16 gauge vinyl PoolTux 1'x8' 16 Gauge Double Pool Cover Water Tube, WTB-1001$1599 PoolTux solid rectangle winter cover for an inground pool PoolTux 30'x50' Solid Rectangle Winter Cover, 8 Year Royal Warranty, 773555IU$18599

Questions and answers

What people ask about this product, answered by our pool techs.

Does the cover allow for my steps, and how big is that section?
It does, on the right end. The step area is 8 ft wide and extends 4 ft back from the waterline. Measure the width of your step at the water and how far it projects into the pool, and check both against those numbers before ordering.
Why is there a foot of extra fabric on each side?
The overlap is structural. It carries the straps from the water line out over the coping to anchors set in the deck, and it keeps the edge of the fabric off the pool wall. Without it there would be nowhere to anchor.
What does the standard actually require a safety cover to hold?
For a cover on a pool more than 8 ft wide, ASTM F1346 section 7 calls for a 485 lb static load, applied as 210, 225 and 50 lb over separate square foot areas, all placed within a 3 ft radius. Narrower covers are tested at 275 lb. Compliance with the standard is self declared, so we say the cover meets ASTM F1346.
Will I have to lower the water again in the spring?
Probably. A mesh cover sends every inch of rain and snowmelt into the pool, so the level rises through the winter. Check it when you open and drain back to your skimmer height before you start up.
