Pooltux KING Blue Light Weight Solid Safety Cover | CSPTBSL20401PoolTux King 20 x 40 ft Light Weight Solid Safety Cover with Center Step, Blue, CSPTBSL20401$2,40899
Pooltux KING Blue Light Weight Solid Safety Cover | CSPTBSL20401
Shop all Pooltux

PoolTux King 20 x 40 ft Light Weight Solid Safety Cover with Center Step, Blue, CSPTBSL20401

Ask a questionMPN CSPTBSL20401
$2,40899
FREE Delivery
Typically ships within 10 days This item ships directly from the manufacturer.
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

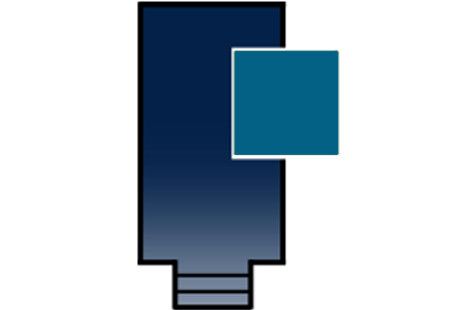

  • Fits Ordered for a 20 x 40 ft rectangle with the step at the center of one end.
  • Step panel The step area is 8 ft across and comes 4 ft back from the pool at the water line.
  • Solid fabric Blue solid material blocks all sunlight and keeps rain and debris out of the water.
  • Overlap The panel is 22 x 42 ft, giving a foot of fabric on the deck at every edge.
  • Anchor grid Straps run every 5 ft each way into brass anchors that sit flush with the deck.
  • Warranty PoolTux lists 20 years limited, the first 3 of them full.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About PoolTux King 20 x 40 ft Light Weight Solid Safety Cover with Center Step, Blue, CSPTBSL20401, SKU PT-IG-200013. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item PoolTux King 20 x 40 ft Light Weight Solid Safety Cover with Center Step, Blue, CSPTBSL20401
Pooltux

PoolTux King 20 x 40 ft Light Weight Solid Safety Cover with Center Step, Blue, CSPTBSL20401

$2,40899
Coverstar A1100 Slider Assembly for Detachable Rope, 403 and 801A Under Guide
Coverstar

A1100 Slider Assembly for Detachable Rope, 403 and 801A Under Guide

$7399
Coverstar H1070 Double Ball Bearing Rope Pulley, Stainless Steel
Coverstar

H1070 Double Ball Bearing Rope Pulley, Stainless Steel

$2699
Coverstar Complete Control Switch Assembly, A0605
Coverstar

Complete Control Switch Assembly, A0605

$21799
Little Giant Adapter Fitting for 3/4", APCP-1700, 177343
Little Giant

Adapter Fitting for 3/4", APCP-1700, 177343

$2099
Anderson Winter Duck Plug Check Valve, Fits 1.5 in. PVC, WDP150
Anderson Manufacturing

Anderson Winter Duck Plug Check Valve, Fits 1.5 in. PVC, WDP150

$1499
Coverstar 100 ft PowerFlex Rope with Semi-Rigid Tab, C6100
Coverstar

100 ft PowerFlex Rope with Semi-Rigid Tab, C6100

$19099
Subtotal

Similar products

Other products people compare with this one.

GLI Secur-A-Pool blue mesh safety cover for an 18 x 36 ft rectangle pool, 20-1836RE-SAP-BLU GLI Secur-A-Pool Mesh Safety Cover for 18 x 36 ft Rectangle Pools, Blue, 20-1836RE-SAP-BLU$1,22699 GLI Secur-A-Pool blue mesh safety cover for an 18 x 36 ft rectangle pool with 4 x 8 ft CES, 20-1836RE-CES48-SAP-BLU GLI Secur-A-Pool Mesh Safety Cover with 4 x 8 ft CES for 18 x 36 ft Rectangle Pools, Blue, 20-1836RE-CES48-SAP-BLU$1,28999 GLI Mesh Safety Cover for 18 x 36 ft Rectangle Pools, Green, 4 x 8 ft CES, 20-1836RE-CES48-SAP-GRN$1,28999 GLI Secur-A-Pool blue mesh safety cover for a 20 x 40 ft rectangle pool, 20-2040RE-CES48-SAP-BLU GLI Mesh Safety Cover for 20 x 40 ft Rectangle Pools, Blue, 4 x 8 ft CES, 20-2040RE-CES48-SAP-BLU$1,42599 GLI Secur-A-Pool blue mesh safety cover for a 16 x 32 ft rectangle pool with 4 x 8 ft CES, 20-1632RE-CES48-SAP-BLU GLI Secur-A-Pool Mesh Safety Cover with 4 x 8 ft CES for 16 x 32 ft Rectangle Pools, Blue, 20-1632RE-CES48-SAP-BLU$1,15799 GLI Mesh Safety Cover for 16 x 32 ft Rectangle Pools, Green, 4 x 8 ft CES, 20-1632RE-CES48-SAP-GRN$1,15399 Pooltux Royal Green Mesh Rectangular Safety Cover | CSPTGME20401 PoolTux Royal 20 x 40 ft Mesh Safety Cover with Center End Step, Green, CSPTGME20401$1,14599 Pooltux Royal Blue Mesh Rectangle Safety Cover | CSPTBME16320 PoolTux Royal 16 x 32 ft Mesh Safety Cover, Blue, CSPTBME16320$86199 Coverstar A1153 under track rope slider assembly, retrofit, set of 2 Coverstar Slider Assembly, UG Retro, Set of 2, A1153$7799 Coverstar E2000 115V sealed stainless steel automatic pool cover motor Coverstar E2000 115V Sealed Stainless Steel Motor$1,33399
Poolguard MWUG Ultra Gizzmo skimmer freeze protection device for in ground pools Poolguard Gizzmo Ultra, 16" Length, 1.5" to 2.0", for In-Ground Pools, MWUG$2099 Coverstar A1932 13 in. stainless steel adjustable walk-on lid bracket with mounting base Coverstar 13 in. Stainless Steel Adjustable Walk-on Lid Bracket with Mounting Base, A1932$18899 Coverstar C4062 semi rigid 3 inch tab for detachable rope Coverstar Tab Semi Rigid for Detach Rope 418, C4062$1499 Coverstar A0996 stainless steel guide feed with hardware for 403 and 801 series under guide systems Coverstar Guide Feed with Hardware for 403/801 Series Under Guide System, Stainless Steel, A0996$5299 Coverstar A0041 3 in. white leading edge block insert assembly Coverstar Single CS1800/CS3000/Eclipse UG 3 in. Leading Edge White Block Insert Assembly, A0041$10199 Horizon HV9X10 floating spa cover on the water, with close up of the material Horizon 9 ft x 10 ft Floating Spa Cover, HV9X10$27299 Hayward 004-302-1672-00 2 in. winter plug, 6 pack Hayward Winter Plug, 6 Pack, 004-302-1672-00$13999 Coverstar A1071 2-piece stainless steel guide feed assembly for automatic pool covers Coverstar 2-Piece Stainless Steel Guide Feed Assembly without Mounting Hardware, A1071$5999 Coverstar M9886 stop block slider for 805 wheel assembly and STD TG 403 Coverstar Stop Block Slider for Wheel Assembly 805, STD TG 403, M9886$1999 Little Giant 101375 volute with lip, front pump housing for cover pumps Little Giant Volute with Lip For Cover Pump, 101375$2699

Product details

This King panel is made for a 20 x 40 ft rectangular inground pool with the step centered on one end. The fabric measures 22 x 42 ft, so a foot of material reaches the deck at every edge once the straps pull down onto the anchors. The step panel is 8 ft across and comes 4 ft back from the pool at the water line, which is worth measuring on your own step before ordering.

  • Solid blue fabric at 7 oz per square yard, with a published burst strength of 350 PSI.
  • No sunlight gets through, so the water underneath stays dark for the whole closed season.
  • A drain channel runs the length of the panel and a mesh drain panel helps clear the surface; a cover pump is the other listed option.
  • Straps land on a 5 by 5 ft grid and take their tension from commercial springs.
  • Brass anchors set flush into concrete or paver deck and retract with a hex key.
  • Anti rub strips sit where the webbing crosses the coping, which is where covers wear first.

ASTM F1346 is what separates this from a winter cover. Its section 7 load test applies 485 lb to a panel on a pool more than 8 ft wide, put on as 210, 225 and 50 lb over one square foot each inside a 3 ft radius. A winter cover is an other cover under section 4 and is not a barrier. Section 8.12 requires the label to state which one a cover is.

Specifications
Brand PoolTux
Series King Light Weight Solid
Part number CSPTBSL20401
Pool size 20 x 40 ft rectangle
Cover size 22 x 42 ft
Step Center end step, 8 ft wide and 4 ft back at the water line
Material Solid, light weight
Fabric weight 7 oz per square yard
Burst strength 350 PSI
Drainage Full length drain channel and a mesh drain panel, or a cover pump
Strap spacing 5 x 5 ft
Warranty 20 year limited, first 3 years full

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

Customer reviews

More from Pooltux

PoolTux King 24 ft round solid winter cover in silver on black PoolTux 24' Solid Round Winter Cover, 15 Year King Warranty, 1228ASBL$9999 PoolTux 30' round solid Ultra Premium winter cover for above ground pools PoolTux 30' Solid Round Ultra Premium Winter Cover, 25 Year Warranty, BB0030$19199 PoolTux King 30' x 50' solid rectangle winter cover, 15 year warranty PoolTux 30' x 50' Solid Rectangle Winter Cover, 15 Year King Warranty, 123555ISBL$20999 PoolTux BB1836R Ultra Premium solid rectangle winter cover for an 18 by 36 foot pool PoolTux 18'x36' Solid Rectangle Ultra Premium Winter Cover, 25 Year Warranty, BB1836R$15699 PoolTux King 20'x40' solid rectangle winter cover, silver on black PoolTux 20'x40' Solid Rectangle Winter Cover, 15 Year King Warranty, 122545ISBL$13799 PoolTux BB0024 24 ft solid round above ground winter pool cover PoolTux 24' Solid Round Above Ground Ultra Premium Winter Pool Cover, 25 Year Warranty, BB0024$14199 PoolTux 21' round above ground ultra premium solid winter cover PoolTux 21' Round Above Ground Ultra Premium Winter Pool Cover, 25 Year Warranty, BB0021$10999 PoolTux BB1530 Ultra Premium solid oval winter cover for a 15x30 above ground pool PoolTux 15'x30' Solid Oval Ultra Premium Winter Cover, 25 Year Warranty, BB1530$12099 PoolTux CSPTBS16322 Emperor Solid 16 x 32 ft left step safety cover, blue PoolTux Emperor 16 x 32 ft Solid Safety Cover with Left Step, Blue, 20 Year Warranty, CSPTBS16322$2,34899 PoolTux BT2545R 25'x45' solid rectangle winter cover with 20 year Emperor warranty PoolTux 25'x45' Solid, Rectangle Winter Cover, 20 Yr. Emperor Warranty, BT2545R$27399
PoolTux ultra premium 30'x50' solid rectangle winter cover PoolTux Ultra Premium 30'x50' Solid Rectangle Winter Cover, 25 Year Warranty, BB3050R$28799 PoolTux round leaf guard net for 27 and 28 foot above ground pools PoolTux 27'/28' Round Leaf Guard, LN31A$13599 PoolTux BB1632R ultra premium solid rectangle winter cover for a 16'x32' in-ground pool PoolTux 16'x32' Solid Rectangle Ultra Premium Winter Cover, 25 Year Warranty, BB1632R$13799 PoolTux 30 ft round solid winter cover, silver on black PoolTux 30' Solid, Round Winter Cover, 15 Year King Warranty, 1234ASBL$13799 PoolTux WTB-1019 4 foot by 8 foot winter cover equalizer pillow PoolTux 4' x 8' Equalizer Pillow, WTB-1019$2799 PoolTux Royal solid blue winter cover for a 24 ft. round above ground pool PoolTux 24 ft. Round Solid Winter Cover, 10 Year Royal Warranty, 7728AGBLB$7199 PoolTux BB2545R 25' x 45' solid rectangle Ultra Premium winter pool cover PoolTux 25' x 45' Solid Rectangle Ultra Premium Winter Cover, 25 Year Warranty, BB2545R$24599 PoolTux BT2040R 20'x40' solid rectangle winter cover with 20 year Emperor warranty PoolTux 20'x40' Solid Rectangle Winter Cover, 20 Yr. Emperor Warranty, BT2040R$19999 PoolTux 8 ft double chamber pool cover water tube in blue 16 gauge vinyl PoolTux 1'x8' 16 Gauge Double Pool Cover Water Tube, WTB-1001$1599 PoolTux solid rectangle winter cover for an inground pool PoolTux 30'x50' Solid Rectangle Winter Cover, 8 Year Royal Warranty, 773555IU$18099

Questions and answers

What people ask about this product, answered by our pool techs.

What size pool is this cover for?
A 20 x 40 ft rectangular inground pool with the step centered on one end. Measure at the water line and order by that number. The cover is sized to the pool, and the panel comes out larger on purpose.
What is the cover size for, if I order by pool size?
The fabric is 22 x 42 ft, one foot beyond the pool on every side. That margin is the overlap that reaches the deck and takes the strap tension, so it is not spare cover and it is not a pool measurement. Ordering by the cover size is the usual way people end up two feet oversized.
Do I need a cover pump with a solid cover?
A solid panel holds water on top rather than letting it through, so something has to move it. PoolTux builds in a drain channel down the length of the cover and a mesh drain panel, and lists a cover pump as the other option. Mesh covers do not need a pump at all, which is the main reason people choose between the two.
What does the deck need for the anchors?
Deck all the way round the pool, because every strap ends in an anchor set into it. Brass anchors tamp down flush with concrete or paver decking and wind back up with a hex key when the cover comes off, so nothing sticks up through the swim season. With straps on a 5 ft grid, a 20 x 40 ft pool takes a lot of them.
