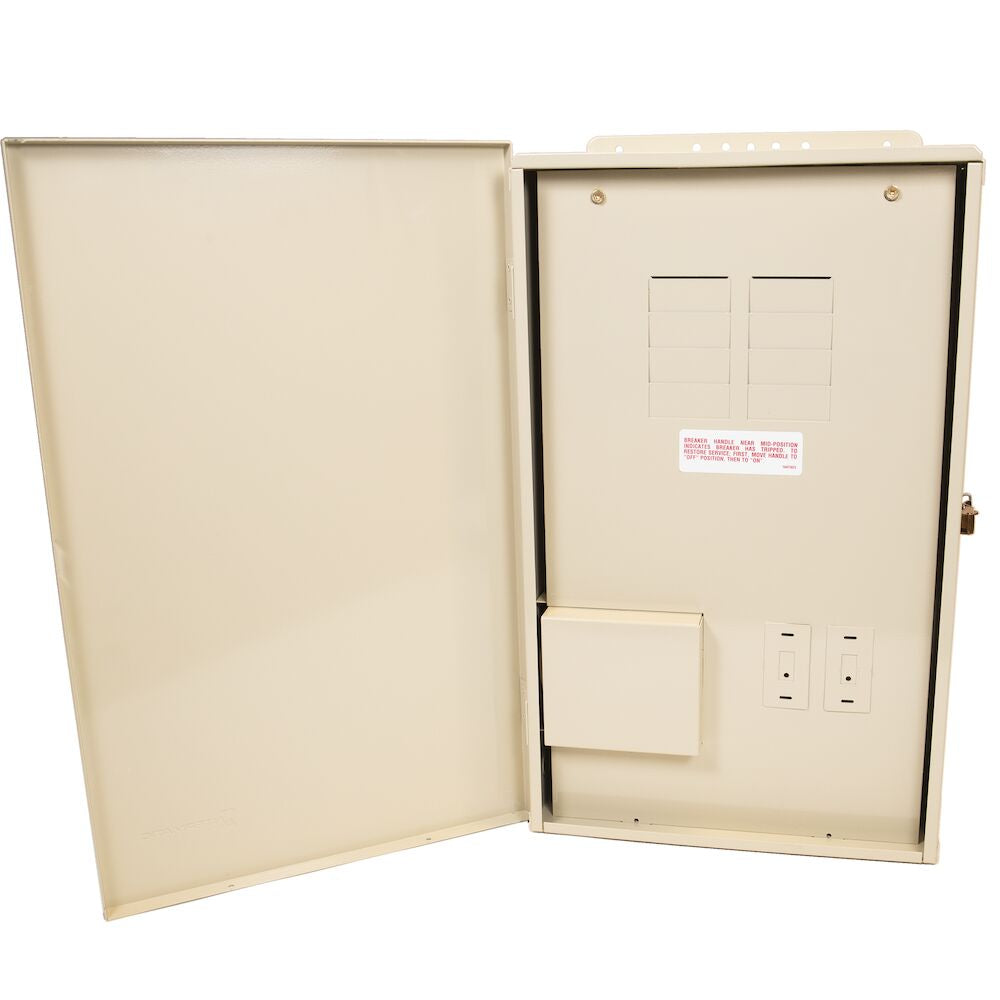

Intermatic P40000RT1 100 amp pool load center with 8 breaker spaces and 100W transformerIntermatic P40000RT1 100 Amp Load Center with 8 Breaker Spaces and 100W Transformer$34299
Intermatic P40000RT1 100 amp pool load center with 8 breaker spaces and 100W transformer
Shop all Intermatic

Intermatic P40000RT1 100 Amp Load Center with 8 Breaker Spaces and 100W Transformer

Ask a questionMPN P40000RT1
$34299
FREE Delivery
Out of stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Eight breaker spaces A built in 8 pole breaker base that suits many brands and types of circuit breaker.
  • Built in 100W transformer Feeds submersible and landscape lighting without a separate standalone transformer.
  • Quieter low voltage side The redesigned low voltage compartment and extended transformer cover minimize audible noise.
  • Type 3R enclosure Heavy duty metal indoor and outdoor power and load center.
  • Room to work Extra wiring space, and ground bars provided for both low voltage and line voltage.
  • Device brackets built in Mounting brackets for single gang switches or GFCI receptacles, with no separate stand offs needed.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Intermatic P40000RT1 100 Amp Load Center with 8 Breaker Spaces and 100W Transformer, SKU INT-30-1332. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Intermatic P40000RT1 100 Amp Load Center with 8 Breaker Spaces and 100W Transformer
Intermatic

P40000RT1 100 Amp Load Center with 8 Breaker Spaces and 100W Transformer

$34299
Intermatic 24-Hour 208-277V Mechanical Time Switch, DPST, Mechanism Only, T104M
Intermatic

24-Hour 208-277V Mechanical Time Switch, DPST, Mechanism Only, T104M

$9299
Intermatic Freeze Protection Thermostat, 178T24
Intermatic

Freeze Protection Thermostat, 178T24

$7099
Intermatic 24HR Panel Mount Timer 240V, PB914N66
Intermatic

24HR Panel Mount Timer 240V, PB914N66

$5999
Intermatic On/Off Trippers Set, 156T1978A
Intermatic

On/Off Trippers Set, 156T1978A

$1199
Intermatic Heavy Duty 15 Amp Outdoor Timer, P1121
Intermatic

Heavy Duty 15 Amp Outdoor Timer, P1121

$5499
Intermatic PX100 Safety Transformer, 100W, Steel Enclosure, Beige
Intermatic

PX100 Safety Transformer, 100W, Steel Enclosure, Beige

$12540
Subtotal

Similar products

Other products people compare with this one.

Intermatic T40004RT3 load center with 300 W transformer and T104M time switch mechanism Intermatic 100 A Load Center with 300 W Transformer and T104M Mechanism, 8-Breaker Spaces, T40004RT3$36399 Intermatic T30004R 100 A pool and spa load center with T104M mechanism Intermatic 100 A Load Center with T104M Mechanism, 8-Breaker Spaces, T30004R$28572 Web Price Intermatic PX600 600 watt pool and spa safety transformer in beige steel enclosure Intermatic 600 Watt Pool and Spa Safety Transformer, Beige Steel Enclosure, PX600$33299 Intermatic 100W 120V to 12V Transformer Stainless Housing | PX100S Intermatic 100W 120V to 12V Transformer Stainless Housing | PX100S$17199 Intermatic 300W 120V to 12 13 or 14V Transformer | PX300S Intermatic 300W 120V to 12 13 or 14V Transformer | PX300S$23799 Intermatic DUAL BOX W/SINGLE T104M 208-277V TIMER | T10004R Intermatic DUAL BOX W/SINGLE T104M 208-277V TIMER | T10004R$26699 Intermatic T30000R5 100 amp load center subpanel with eight breaker spaces Intermatic 100 Amp Load Center Subpanel, 8-Breaker Spaces, T30000R5$11099 Intermatic PX50 50 watt pool and spa safety transformer in a beige steel enclosure Intermatic 50 Watt Pool and Spa Safety Transformer, Input 120V, Output 12, 13, 14 Volt, Beige Steel Enclosure, PX50$13899 Intermatic 143T135 DPST relay with 240 VAC coil, rated 3 HP Intermatic DPST Relay with 240 VAC Coil, 3 HP, for Pool and Spa Pump Control, 143T135$7499 Intermatic 300W | 120V to 12V Transformer | PX300 Intermatic 300W | 120V to 12V Transformer | PX300$15699
Intermatic PS3000 surge protector for pool and spa equipment Intermatic PS3000 Surge Protector for Pool and Spa Equipment, 120/240V$11599 Intermatic AG3000 three mode surge protective device in an outdoor enclosure Intermatic AG3000 Surge Protective Device, 3-Mode, 120/240 VAC, Outdoor$9199 Intermatic 21T156A 3 inch standoff spacer, four pack Intermatic 3" Standoff Spacer, 4 Pack, 21T156A$1899

Product details

The Intermatic P40000RT1 is a 100 amp pool load center with eight breaker spaces and a built in 100 watt transformer, aimed at straightforward pool installations running a variable speed pump plus low voltage lighting.

One panel instead of two

The transformer lives inside the load center, so submersible pool lights and landscape lighting are fed from the same enclosure as the pump circuits rather than from a separate standalone transformer bolted to the wall beside it. The low voltage compartment was redesigned with an extended transformer cover to minimize the hum that these panels are known for.

Wiring it

The built in 8 pole breaker base accepts many brands and types of circuit breaker, and ground bars are provided for both the low voltage and line voltage sides. There is extra wiring space inside, brackets built in for single gang switches or GFCI receptacles so no separate stand offs are needed, and larger knockouts on both the low and high voltage sides. An exterior knockout was moved to the side to clear Intermatic extra duty waterproof covers, and there is a side knockout for an additional wiring device.

Enclosure

The housing is a heavy duty Type 3R metal power and load center, rated for indoor or outdoor mounting. This is line voltage equipment and should be installed by a licensed electrician to local code.

Specifications
Brand Intermatic
Manufacturer part number P40000RT1
UPC 078275152724
Type Pool load center
Amperage 100 Amp
Breaker spaces 8
Transformer 100 Watt, built in
Enclosure Heavy duty Type 3R metal, indoor and outdoor
Ground bars Provided for low voltage and line voltage
Wiring devices Built in brackets for single gang switches or GFCI receptacles
Knockouts Larger low and high voltage knockouts, plus a side knockout for an additional wiring device
Shipping weight 26.3 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

Customer reviews

More from Intermatic

Intermatic T104M 24-hour DPST mechanical time switch mechanism, 208-277V Intermatic 24-Hour 208-277V Mechanical Time Switch, DPST, Mechanism Only, T104M$9299 Intermatic 178T24 freeze protection thermostat with knob and wiring Intermatic Freeze Protection Thermostat, 178T24$7099 Intermatic PB914N66 24 hour panel mount timer, 240V Intermatic 24HR Panel Mount Timer 240V, PB914N66$5999 Intermatic 156T1978A on and off tripper set for T100 Series time clocks Intermatic On/Off Trippers Set, 156T1978A$1199 Intermatic T104P201 24 hour DPST mechanical time switch in plastic enclosure Intermatic 24-Hour DPST Mechanical Time Switch with Heater Protection, 208-277V, T104P201$17705 Intermatic PX100 100 watt pool and spa safety transformer in a beige steel enclosure Intermatic PX100 Safety Transformer, 100W, Steel Enclosure, Beige$12540 Intermatic P1121 heavy duty 15 amp outdoor plug-in timer Intermatic Heavy Duty 15 Amp Outdoor Timer, P1121$5499 Intermatic T30004R 100 A pool and spa load center with T104M mechanism Intermatic 100 A Load Center with T104M Mechanism, 8-Breaker Spaces, T30004R$28572 Web Price Intermatic PF1103MT freeze protection timer with thermostat, 120/240V mechanism Intermatic Freeze Protection Timer with Thermostat for 120/240V Applications, Mechanism, PF1103MT$26699 Intermatic PJB4175 four light pool and spa junction box Intermatic 4 Light Connection Pool & Spa Junction Box, PJB4175$6701 Web Price
Intermatic P1403ME electronic pump motor controller mechanism with seasonal adjustment Intermatic Electronic Pump Motor Controller with Seasonal Adjustment, 4-Circuit, Mechanism Only, P1403ME$26999 Intermatic T104P3 24-hour mechanical time switch in Type 3R plastic case Intermatic 24-Hour 208-277V Mechanical Time Switch, DPST, Type 3R Plastic Enclosure, T104P3$12299 Intermatic P1131 20 amp portable outdoor timer with twist-lock plug Intermatic 20A Timer with Twist-Lock Plug, P1131$11199 Intermatic RC2343PT four function air switch with 24 hour timer Intermatic 4 Function Air Switch with Timer, RC2343PT$33099 Intermatic T104R3 24 hour DPST mechanical time switch in Type 3R metal enclosure Intermatic 24-Hour 208-277V Mechanical Time Switch, DPST, Type 3R Metal Enclosure, T104R3$12799 Intermatic AG3000 three mode surge protective device in an outdoor enclosure Intermatic AG3000 Surge Protective Device, 3-Mode, 120/240 VAC, Outdoor$9199 Intermatic WG1573-10D 208/277 volt 60 Hz time clock motor Intermatic 208/277 Volt, 60 Hz Replacement Time Clock Motor, WG1573-10D$5099 Intermatic PS3000 surge protector for pool and spa equipment Intermatic PS3000 Surge Protector for Pool and Spa Equipment, 120/240V$11599 Intermatic 21T156A 3 inch standoff spacer, four pack Intermatic 3" Standoff Spacer, 4 Pack, 21T156A$1899 Intermatic T40004RT3 load center with 300 W transformer and T104M time switch mechanism Intermatic 100 A Load Center with 300 W Transformer and T104M Mechanism, 8-Breaker Spaces, T40004RT3$36399

Questions and answers

What people ask about this product, answered by our pool techs.

How many breakers does it hold?
Eight. The built in breaker base is suitable for many brands and types of circuit breaker.
Do I still need a separate lighting transformer?
No. The 100 watt transformer is built in, for submersible and landscape lighting.
Can it be mounted outdoors?
Yes. It is a heavy duty Type 3R metal enclosure rated for indoor and outdoor power and load center use.
Will it work with a variable speed pump?
It was designed for basic pool applications running variable speed pumps, with the transformer covering low voltage lighting on the same panel.
