Aquamoto Nanowave 20 in. media pool filter tankAquamoto Nanowave 20 in. Media Pool Filter with 1-1/2 in. Valve, 10-402015 In stock$28447
Aquamoto Nanowave 20 in. media pool filter tank
Shop all Aquamoto

Aquamoto Nanowave 20 in. Media Pool Filter with 1-1/2 in. Valve, 10-402015

Ask a questionMPN 10-402015
$28447
FREE Delivery
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Compact 20 in. tank A 20 in. diameter media filter tank sized for smaller pad footprints.
  • 6-position multiport valve Comes with a 1-1/2 in. multiport valve with quick-connect barrel unions for filter, backwash, rinse, waste, recirculate, and closed positions.
  • Pressure rated to 36 psi The tank is rated to 36 psi, among the higher ratings in its class.
  • Sight glass included An integral sight glass lets you watch backwash water clear without opening the tank.
  • Runs on sand or Pixel Glass Loads with 200 lb of sand or 160 lb of Pixel Glass filter media, sold separately.
  • 5-year tank warranty The tank carries a 5-year manufacturer warranty.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Aquamoto Nanowave 20 in. Media Pool Filter with 1-1/2 in. Valve, 10-402015, SKU AQM-10-402015. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Aquamoto Nanowave 20 in. Media Pool Filter with 1-1/2 in. Valve, 10-402015
Aquamoto

Nanowave 20 in. Media Pool Filter with 1-1/2 in. Valve, 10-402015

$28447
Pentair 2" Bottom Mount Pressure Gauge, 1/4" NPT, 15060-0000TZ
Sta-Rite

Pentair 2" Bottom Mount Pressure Gauge, 1/4" NPT, 15060-0000TZ

$5199
Subtotal

Similar products

Other products people compare with this one.

Aquamoto Nanowave 24 in. sand pool filter with 1-1/2 in. multiport valve Aquamoto Nanowave 24" Sand Pool Filter with 1-1/2" Valve, 10-402415$42199 Hayward W3S166T Pro Series 16 in. top mount sand filter with valve Hayward Pro Series 16 in. Top Mount Sand Filter with 1.5 in. Valve, W3S166T$34099 Hayward Pro Series 18 inch sand filter with top mount valve, part W3S180T Hayward Pro Series 18" Sand Filter with Valve, W3S180T$49900 Hayward W3S210T ProSeries 21 in. top mount sand filter with top mount valve Hayward ProSeries 21 in. Top Mount Sand Filter with Top Mount Valve W3S210T$56900 Hayward W3S166T1580S Pro Series S166T sand filter system with multi-port valve and 1 HP pump Hayward Pro Series S166T 16" Sand Filter System with Valve and 1 HP Pump, W3S166T1580S$73900 Web Price Hayward W3S270T Pro Series 27 inch top mount sand filter with 1.5 inch VariFlo valve Hayward Pro Series 27" Top Mount Sand Filter with 1.5" VariFlo Valve, W3S270T$73900 Web Price Hayward Pro Series 24 inch top mount sand filter with 2 inch valve Hayward Pro Series Top Mount Sand Filter 24" with 2" Valve, W3S244T2$75900 Pentair Sand Dollar SD80 26 in. sand filter with top mount 1-1/2 in. multiport valve Pentair Sand Dollar SD80 26" Pool Sand Filter with Top Mount 1-1/2" Multiport Valve, EC-145333$76199 Waterco Micron S600 top mount fiberglass sand filter with multiport valve Waterco S600 Micron Top Mount Sand Filter with Valve, 2201244A$79199 Hayward Pro Series 24 in. top mount sand filter with SP0714T multiport valve Hayward Pro Series Top Mount Sand Filter 24" with Valve, W3S244T$83599
Hayward ProSeries S180T 18 inch sand filter with SP0714T multiport valve and Power-Flo Matrix pump Hayward ProSeries 18" Sand Filter with 1 HP PowerFlo Matrix Pump, W3S180T92S$83900 Web Price Hayward Pro Series S180T 18 inch sand filter with multiport valve and Power-Flo Matrix pump Hayward ProSeries 18" Sand Filter with 1.5 HP PowerFlo Matrix Pump, W3S180T93S$85900 Web Price Hayward Pro Series W3S270T2 27 inch top mount sand filter with 2 inch valve Hayward Pro Series 27 Inch Top-Mount Sand Filter with 2 Inch Valve, W3S270T2$89099 Hayward W3S210T93S ProSeries 21 inch sand filter with SP0714T valve and 1.5 HP PowerFlo Matrix pump Hayward ProSeries 21" Sand Filter with 1.5 HP PowerFlo Matrix Pump, W3S210T93S$91900 Web Price Pentair Tagelus TA60D 24 in. sand filter with top mount multiport valve Pentair Tagelus TA60D 24 in. Pool Sand Filter with Top Mount 1-1/2 in. Multiport Valve, EC-145241$93499 Hayward S244SLV Pro Series 24 in. side mount sand filter tank Hayward Pro Series 24 in. Side Mount Sand Filter, Valve Not Included, S244SLV$1,05199 Hayward S244S Pro Series 24 in. side mount sand filter with 1.5 in. valve Hayward Pro Series 24" Side Mount Sand Filter with 1.5" Valve, S244S$1,11099 Pentair Triton II TR60 24 in. side mount sand filter tank, EC-140264 Pentair Triton II TR60 24" Side Mount In Ground Pool Sand Filter, EC-140264$1,24399 Hayward Pro Series 30 in. top-mount sand filter with 2 in. valve, part W3S310T2 Hayward Pro Series 30" Top-Mount Sand Filter with 2" TM Valve, W3S310T2$1,35799 Pentair Triton II TR100 30 in. side mount sand filter tank, EC-140210 Pentair Triton II TR100 30" Side Mount Sand In-Ground Pool Filter, EC-140210$1,57299

Product details

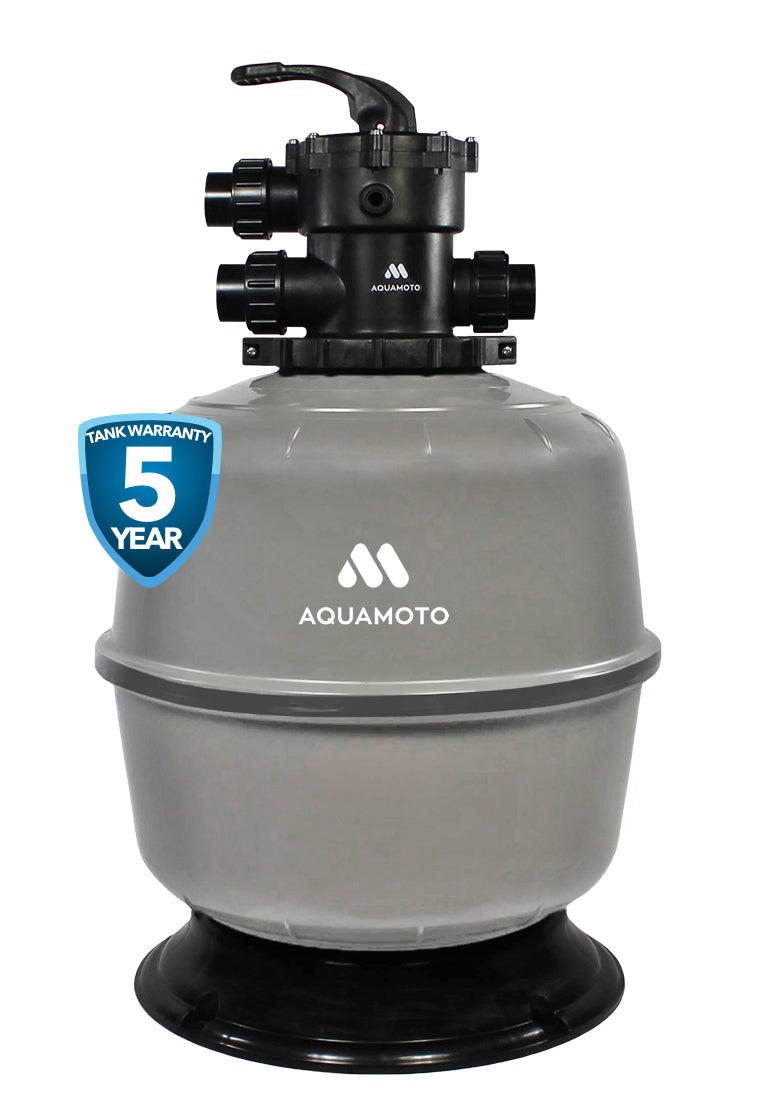

The Aquamoto Nanowave 10-402015 is a 20 in. media pool filter with a 1-1/2 in., 6-position multiport valve built in.

Tank and valve

The tank is molded from a corrosion and UV-resistant polymer and is pressure rated to 36 psi, with a large base for stable floor mounting. The multiport valve uses quick-connect barrel unions, and an integral sight glass lets you watch the backwash water run clear before switching back to filter. The valve is designed to spread flow evenly through the media bed to maximize both cleaning and backwashing, drawing on the same hydraulically balanced distribution used across the Nanowave line.

Media and warranty

The tank is designed to run on 200 lb of sand or 160 lb of Pixel Glass filter media, either one sold separately, and the tank itself carries a 5-year manufacturer warranty against defects.

Specifications
Brand Aquamoto
Manufacturer part number 10-402015
UPC 850001454063
Type Media pool filter with multiport valve
Tank size 20 in.
Valve size 1-1/2 in.
Valve positions 6-position multiport with quick-connect unions
Pressure rating 36 psi
Media required 200 lb of sand or 160 lb of Pixel Glass filter media
Warranty 5-year tank warranty
Shipping weight 30 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

Customer reviews

More from Aquamoto

Aquamoto Scrubo Zoom cordless rechargeable automatic pool cleaner Aquamoto Scrubo Zoom Automatic Pool Cleaner, Cordless Rechargeable Battery Powered, AQM301000$21908 Aquamoto Pixel Glass pool filter media, 40 lb. bag Aquamoto Pixel Glass Pool Filter Media, 40 lb. Bag, 80-0040$7899 Aquamoto Nanowave 24 in. sand pool filter with 1-1/2 in. multiport valve Aquamoto Nanowave 24" Sand Pool Filter with 1-1/2" Valve, 10-402415$42199 Aquamoto white 1 inch eyeball jet fittings, 6 pack with installation tool Aquamoto White 1" Eyeball Jets, 1-1/2" Thread, 6 Pack with Installation Tool, 25552-400-000$3399 Aquamoto 25552-200-000 white 1/2 in. directional flow eyeball inlet jets, 6 pack with installation tool Aquamoto White 1/2" Directional Flow Eyeball Inlet Jet, Standard 1-1/2" Thread, Pack of 6 Fittings with Installation Tool, 25552-200-000$3399 Aquamoto AQM-25552-407-000 grey directional flow eyeball inlet jet Aquamoto Grey 1" Directional Flow Eyeball Inlet Jet, Standard 1-1/2" Thread, 6 Pack with Installation Tool, AQM-25552-407-000$2999 Aquamoto 25552-204-000 black 1/2 inch directional flow eyeball inlet jet fittings, pack of 6 Aquamoto Black 1/2 inch Directional Flow Eyeball Inlet Jet Kit, Standard 1-1/2 inch Thread, Pack of 6 with Installation Tool, 25552-204-000$4799 Aquamoto 25552-004-000 black slotted eyeball inlet jet fittings Aquamoto Black Slotted Eyeball Inlet Jet Kit, Standard 1-1/2 in Thread, Pack of 6 with Installation Tool, 25552-004-000$1699 Aquamoto grey 1/2 in. directional flow eyeball inlet jets, pack of six with installation tool Aquamoto Grey 1/2 in. Directional Flow Eyeball Inlet Jet, 1-1/2 in. Thread, Pack of 6 with Installation Tool, 25552-207-000$2999 Aquamoto 25552-307-000 grey 3/4 inch eyeball return fitting Aquamoto Grey 3/4" Eyeball, Pack of 6 with Installation Tool, 25552-307-000$3899
Aquamoto 25552-000-000 white slotted eyeball inlet jet, standard 1-1/2 inch thread Aquamoto White Slotted Eyeball Inlet Jet, Standard 1-1/2" Thread, Pack of 6 with Installation Tool, 25552-000-000$2999 Aquamoto APC204S 4 foot automatic pool cleaner hose section Aquamoto 4 Foot Automatic Pool Cleaner Hose, Box of 20, APC204S$18799 Aquamoto APC204S 4 foot automatic pool cleaner hose, 5 pack Aquamoto 4' Silver Dark Gray Automatic Pool Cleaner Hose, 5 Pack, APC204S$6099 Aquamoto white 3/8 inch directional flow eyeball inlet jet with standard 1-1/2 inch thread Aquamoto White 3/8" Directional Flow Eyeball Inlet Jet, 1-1/2" Thread, 6 Pack with Installation Tool, 25552-100-000$3199

Questions and answers

What people ask about this product, answered by our pool techs.

What size is the Nanowave 10-402015 filter tank?
It is a 20 in. diameter media filter tank with a 1-1/2 in. multiport valve.
How much filter media does it need?
It takes 200 lb of sand or 160 lb of Pixel Glass filter media, purchased separately.
Does it come with a valve?
Yes, the 10-402015 ships with its 6-position, 1-1/2 in. multiport valve and quick-connect unions installed.
What is the pressure rating of the tank?
The Nanowave tank is pressure rated to 36 psi.
Ask your own question
