Aquamoto Nanowave 24 in. sand pool filter with 1-1/2 in. multiport valveAquamoto Nanowave 24" Sand Pool Filter with 1-1/2" Valve, 10-402415 In stock$43499
Aquamoto Nanowave 24 in. sand pool filter with 1-1/2 in. multiport valve
Shop all Aquamoto

Aquamoto Nanowave 24" Sand Pool Filter with 1-1/2" Valve, 10-402415

Ask a questionMPN 10-402415
$43499
FREE Delivery
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Holds 300 lb of sand or 240 lb of Pixel Glass media, either one sold separately.
  • Rated to 51 psi the vessel is built for the cyclic pressure of a modern pool system.

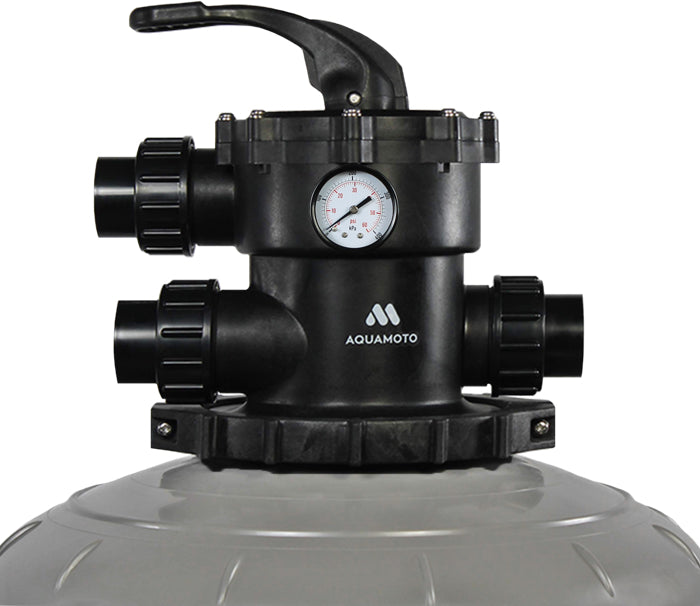

  • 6 position multiport the 1-1/2 in. valve ships with quick connect barrel unions for a simpler plumb in.
  • Balanced flow hydraulically balanced distribution improves both filtering and backwash cleaning.
  • Sight glass built in watch the backwash water clear without opening anything.
  • 5 year tank warranty corrosion and UV resistant exterior with a large base for stable floor mounting.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Aquamoto Nanowave 24" Sand Pool Filter with 1-1/2" Valve, 10-402415, SKU AQM-10-40242. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Aquamoto Nanowave 24" Sand Pool Filter with 1-1/2" Valve, 10-402415
Aquamoto

Nanowave 24" Sand Pool Filter with 1-1/2" Valve, 10-402415

$43499
Pentair 2" Bottom Mount Pressure Gauge, 1/4" NPT, 15060-0000TZ
Sta-Rite

Pentair 2" Bottom Mount Pressure Gauge, 1/4" NPT, 15060-0000TZ

$5299
Subtotal

Similar products

Other products people compare with this one.

Hayward W3S210T ProSeries 21 in. top mount sand filter with top mount valve Hayward ProSeries 21 in. Top Mount Sand Filter with Top Mount Valve W3S210T$56900 Hayward Pro Series 18 inch sand filter with top mount valve, part W3S180T Hayward Pro Series 18" Sand Filter with Valve, W3S180T$49900 Hayward W3S166T Pro Series 16 in. top mount sand filter with valve Hayward Pro Series 16 in. Top Mount Sand Filter with 1.5 in. Valve, W3S166T$34099 Aquamoto Nanowave 20 in. media pool filter tank Aquamoto Nanowave 20 in. Media Pool Filter with 1-1/2 in. Valve, 10-402015$28447 Hayward Pro Series 24 in. top mount sand filter with SP0714T multiport valve Hayward Pro Series Top Mount Sand Filter 24" with Valve, W3S244T$68900 Web Price Hayward W3S166T1580S Pro Series S166T sand filter system with multi-port valve and 1 HP pump Hayward Pro Series S166T 16" Sand Filter System with Valve and 1 HP Pump, W3S166T1580S$73900 Web Price Hayward W3S270T Pro Series 27 inch top mount sand filter with 1.5 inch VariFlo valve Hayward Pro Series 27" Top Mount Sand Filter with 1.5" VariFlo Valve, W3S270T$73900 Web Price Hayward Pro Series 24 inch top mount sand filter with 2 inch valve Hayward Pro Series Top Mount Sand Filter 24" with 2" Valve, W3S244T2$78599 Pentair Sand Dollar SD80 26 in. sand filter with top mount 1-1/2 in. multiport valve Pentair Sand Dollar SD80 26" Pool Sand Filter with Top Mount 1-1/2" Multiport Valve, EC-145333$80079 Waterco Micron S600 top mount fiberglass sand filter with multiport valve Waterco S600 Micron Top Mount Sand Filter with Valve, 2201244A$81599
Hayward ProSeries S180T 18 inch sand filter with SP0714T multiport valve and Power-Flo Matrix pump Hayward ProSeries 18" Sand Filter with 1 HP PowerFlo Matrix Pump, W3S180T92S$83900 Web Price Hayward Pro Series S180T 18 inch sand filter with multiport valve and Power-Flo Matrix pump Hayward ProSeries 18" Sand Filter with 1.5 HP PowerFlo Matrix Pump, W3S180T93S$85900 Web Price Hayward Pro Series W3S270T2 27 inch top mount sand filter with 2 inch valve Hayward Pro Series 27 Inch Top-Mount Sand Filter with 2 Inch Valve, W3S270T2$91799 Hayward W3S210T93S ProSeries 21 inch sand filter with SP0714T valve and 1.5 HP PowerFlo Matrix pump Hayward ProSeries 21" Sand Filter with 1.5 HP PowerFlo Matrix Pump, W3S210T93S$91900 Web Price Pentair Tagelus TA60D 24 in. sand filter with top mount multiport valve Pentair Tagelus TA60D 24 in. Pool Sand Filter with Top Mount 1-1/2 in. Multiport Valve, EC-145241$96399 Hayward S244SLV Pro Series 24 in. side mount sand filter tank Hayward Pro Series 24 in. Side Mount Sand Filter, Valve Not Included, S244SLV$1,06799 Hayward S244S Pro Series 24 in. side mount sand filter with 1.5 in. valve Hayward Pro Series 24" Side Mount Sand Filter with 1.5" Valve, S244S$1,11099 Pentair Triton II TR60 24 in. side mount sand filter tank, EC-140264 Pentair Triton II TR60 24" Side Mount In Ground Pool Sand Filter, EC-140264$1,28199 Hayward Pro Series 30 in. top-mount sand filter with 2 in. valve, part W3S310T2 Hayward Pro Series 30" Top-Mount Sand Filter with 2" TM Valve, W3S310T2$1,39999 Pentair Triton II TR100 30 in. side mount sand filter tank, EC-140210 Pentair Triton II TR100 30" Side Mount Sand In-Ground Pool Filter, EC-140210$1,62199

Product details

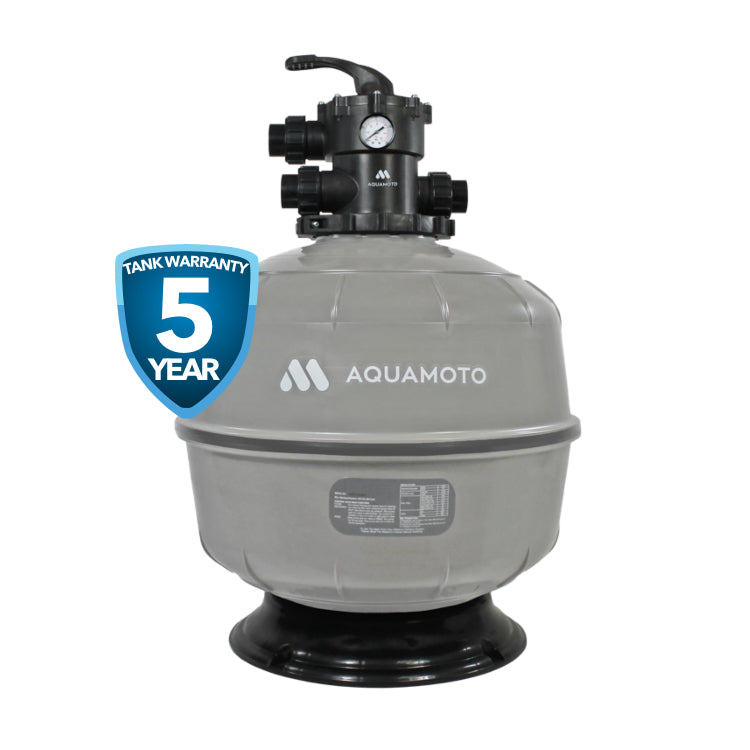

The Aquamoto Nanowave is a 24 in. sand filter built around a precision injection molded tank. It comes with a 6 position multiport valve in 1-1/2 in., complete with quick connect barrel unions, and sits on a large base for a stable footing on the pad.

Built for pressure and weather

The vessel is pressure rated at 51 psi to handle the cyclic loads of a modern pool system, and the exterior is corrosion and UV resistant so it holds up outdoors year round. Aquamoto backs the tank with a 5 year warranty.

Cleaner filtering and backwashing

Flow distribution inside the tank is hydraulically balanced, which gets more out of both the filter cycle and the backwash. An integral sight glass lets you watch the backwash water run clear before switching back to filter.

Media

The filter ships empty. It needs 300 lb of sand or 240 lb of Pixel Glass, either of which is sold separately.

Specifications
Brand Aquamoto
Manufacturer part number 10-402415
UPC 850001454070
Tank diameter 24 in.
Valve 6 position multiport with unions
Valve size 1-1/2 in.
Pressure rating 51 psi
Media required 300 lb sand or 240 lb Pixel Glass
Tank Precision injection molded, corrosion and UV resistant
Sight glass Integral
Tank warranty 5 years
Shipping weight 40 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

Customer reviews

More from Aquamoto

Aquamoto Scrubo Zoom cordless rechargeable automatic pool cleaner Aquamoto Scrubo Zoom Automatic Pool Cleaner, Cordless Rechargeable Battery Powered, AQM301000$21908 Aquamoto Pixel Glass pool filter media, 40 lb. bag Aquamoto Pixel Glass Pool Filter Media, 40 lb. Bag, 80-0040$7799 Aquamoto white 1 inch eyeball jet fittings, 6 pack with installation tool Aquamoto White 1" Eyeball Jets, 1-1/2" Thread, 6 Pack with Installation Tool, 25552-400-000$3499 Aquamoto 25552-200-000 white 1/2 in. directional flow eyeball inlet jets, 6 pack with installation tool Aquamoto White 1/2" Directional Flow Eyeball Inlet Jet, Standard 1-1/2" Thread, Pack of 6 Fittings with Installation Tool, 25552-200-000$3499 Aquamoto AQM-25552-407-000 grey directional flow eyeball inlet jet Aquamoto Grey 1" Directional Flow Eyeball Inlet Jet, Standard 1-1/2" Thread, 6 Pack with Installation Tool, AQM-25552-407-000$3099 Aquamoto 25552-204-000 black 1/2 inch directional flow eyeball inlet jet fittings, pack of 6 Aquamoto Black 1/2 inch Directional Flow Eyeball Inlet Jet Kit, Standard 1-1/2 inch Thread, Pack of 6 with Installation Tool, 25552-204-000$4899 Aquamoto 25552-004-000 black slotted eyeball inlet jet fittings Aquamoto Black Slotted Eyeball Inlet Jet Kit, Standard 1-1/2 in Thread, Pack of 6 with Installation Tool, 25552-004-000$1799 Aquamoto grey 1/2 in. directional flow eyeball inlet jets, pack of six with installation tool Aquamoto Grey 1/2 in. Directional Flow Eyeball Inlet Jet, 1-1/2 in. Thread, Pack of 6 with Installation Tool, 25552-207-000$3099 Aquamoto 25552-307-000 grey 3/4 inch eyeball return fitting Aquamoto Grey 3/4" Eyeball, Pack of 6 with Installation Tool, 25552-307-000$3999 Aquamoto 25552-000-000 white slotted eyeball inlet jet, standard 1-1/2 inch thread Aquamoto White Slotted Eyeball Inlet Jet, Standard 1-1/2" Thread, Pack of 6 with Installation Tool, 25552-000-000$3099
Aquamoto APC204S 4 foot automatic pool cleaner hose section Aquamoto 4 Foot Automatic Pool Cleaner Hose, Box of 20, APC204S$19299 Aquamoto APC204S 4 foot automatic pool cleaner hose, 5 pack Aquamoto 4' Silver Dark Gray Automatic Pool Cleaner Hose, 5 Pack, APC204S$6299 Aquamoto white 3/8 inch directional flow eyeball inlet jet with standard 1-1/2 inch thread Aquamoto White 3/8" Directional Flow Eyeball Inlet Jet, 1-1/2" Thread, 6 Pack with Installation Tool, 25552-100-000$3299 Aquamoto Nanowave 20 in. media pool filter tank Aquamoto Nanowave 20 in. Media Pool Filter with 1-1/2 in. Valve, 10-402015$28447

Questions and answers

What people ask about this product, answered by our pool techs.

Does it come with sand?
No. The tank takes 300 lb of sand or 240 lb of Pixel Glass, sold separately.
What size is the plumbing?
The multiport valve is 1-1/2 in. and comes with quick connect barrel unions. If the pad is plumbed in 2 in., the EcoPixel 24 in. filter with the 2 in. valve is the alternative.
Can I run glass media instead of sand?
Yes. Use 240 lb of Pixel Glass in place of 300 lb of sand.
What is the warranty?
The tank carries a 5 year warranty.
