Product details

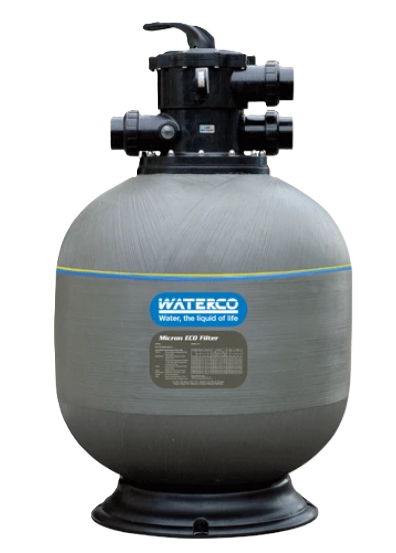

The Waterco Micron S600 is a 24 inch top mount sand filter supplied complete with a 1.5 inch multiport valve. It carries 3.05 sq ft of filter area and is rated at 59 GPM.

How it filters

Micron filters work by depth filtration. Water is pushed down through the sand bed, dirt lodges in the small spaces between the grains, and the cleaned water passes out through the laterals and back to the pool through the multiport valve. An inflow diffuser spreads the incoming water across the top of the bed so it does not cut a channel, and the laterals are hydraulically balanced to keep flow even across the tank.

Build and plumbing

The tank is fiberglass wound and specified as UV and corrosion resistant. The valve uses quick connect barrel unions, so the filter can be isolated for service without cutting pipe. A pressure gauge and a manual drain are part of the filter, and the base is wide enough to stand on the pad without extra support.

Operating limits

Working pressure is 36 psi and the maximum working temperature is 122 F, which is 50 C. Stay inside both when sizing the pump and setting up heater plumbing.

Specifications
Brand Waterco
Manufacturer part number 2201244A
Type Top mount sand filter
Series Micron S600
Tank diameter 24 in
Filter area 3.05 sq ft
Flow rate 59 GPM
Valve 1.5 in multiport with quick connect barrel unions
Tank material Fiberglass wound, UV and corrosion resistant
Working pressure 36 psi
Maximum working temperature 122 F (50 C)
Drain Manual
Included Pressure gauge, multiport valve
Shipping weight 39 lb
Ships Freight

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

Customer reviews

More from Waterco

Waterco Baker-Hydro 51B1024 skimmer vac plate with plug, cord and gasket Waterco Baker-Hydro Skimmer Vac Plate, 51B1024$10999 Baker Hydro 51B1026 skimmer strainer basket assembly with handle Baker Hydro OEM Strainer Basket Assembly (Includes Basket and Handle), 51B1026$3699 Waterco MultiCyclone 16 centrifugal pre-filter, part 200370 Waterco MultiCyclone 16 Centrifugal Pre-Filter, 200370$35899 Waterco 51B1017 Baker Hydro beige skimmer deck lid Waterco Baker Hydro Skimmer Lid, 51B1017$3999 Waterco 16V1275 Ultra-Vac portable pool vacuum cart with 3/4 HP pump and MultiCyclone 12 Ultra Waterco Portable Ultra-Vac Cart with 3/4 HP Pump, 75 sq ft Filter with MultiCyclone 12 Ultra, 16V1275$3,27799 Baker Hydro deluxe gunite in-ground pool skimmer, Waterco 50W1051 Waterco Baker Hydro Deluxe Gunite In-Ground Pool Skimmer, 50W1051$17199 Waterco 2290820 3 inch sand filter multiport valve with plumbing Waterco 3" Sand Filter Multiport Valve with Plumbing, 2290820$49099 Waterco 14652 check valve with 2 in. internal and 2-1/2 in. external ports Waterco 2" to 2-1/2" Check Valve, 14652$4199 Baker Hydro 51B1047 skimmer faceplate gasket Baker Hydro Skimmer Faceplate Gasket, 51B1047$2599 Waterco 200372 MultiCyclone support stand Waterco MultiCyclone Support Stand, 200372$8599
Waterco 63406550 2 inch to 2.5 inch union adaptor Waterco 2" to 2.5" Union Adaptor, 63406550$3799 Baker Hydro 51B1025 skimmer faceplate, 12 in. by 9.63 in. face frame Baker Hydro Skimmer Faceplate, 51B1025$3299 Waterco 634024BLK 2 inch half union with o-ring Waterco 2" Half Union with O-Ring, 634024BLK$2499 Waterco MultiCyclone 16 sediment bowl, part 61302 Waterco MultiCyclone 16 Sediment Bowl, 61302$14899 Waterco O-Ring HRV Sand Filter | 00B7027 Waterco O-Ring HRV Sand Filter | 00B7027$1599 Waterco Skimmer Basket Only | 51B1005 Waterco Skimmer Basket Only | 51B1005$3099

Questions and answers

What people ask about this product, answered by our pool techs.

Does the filter come with a valve?
Yes. The S600 is supplied with a 1.5 inch multiport valve that uses quick connect barrel unions.
How much water will it handle?
The tank is rated at 3.05 sq ft of filter area and 59 GPM. Match that against the flow your pump actually produces.
What is the tank made of?
Wound fiberglass, specified as UV and corrosion resistant so it can live outdoors on the equipment pad.
What are the pressure and temperature limits?
Working pressure is 36 psi and the maximum working temperature is 122 F, which is 50 C.
