Pentair 354053 valve top o-ring for PacFab Hi-Flo multiport valvesPentair PacFab Valve Top O-Ring, 354053 In stock$3599

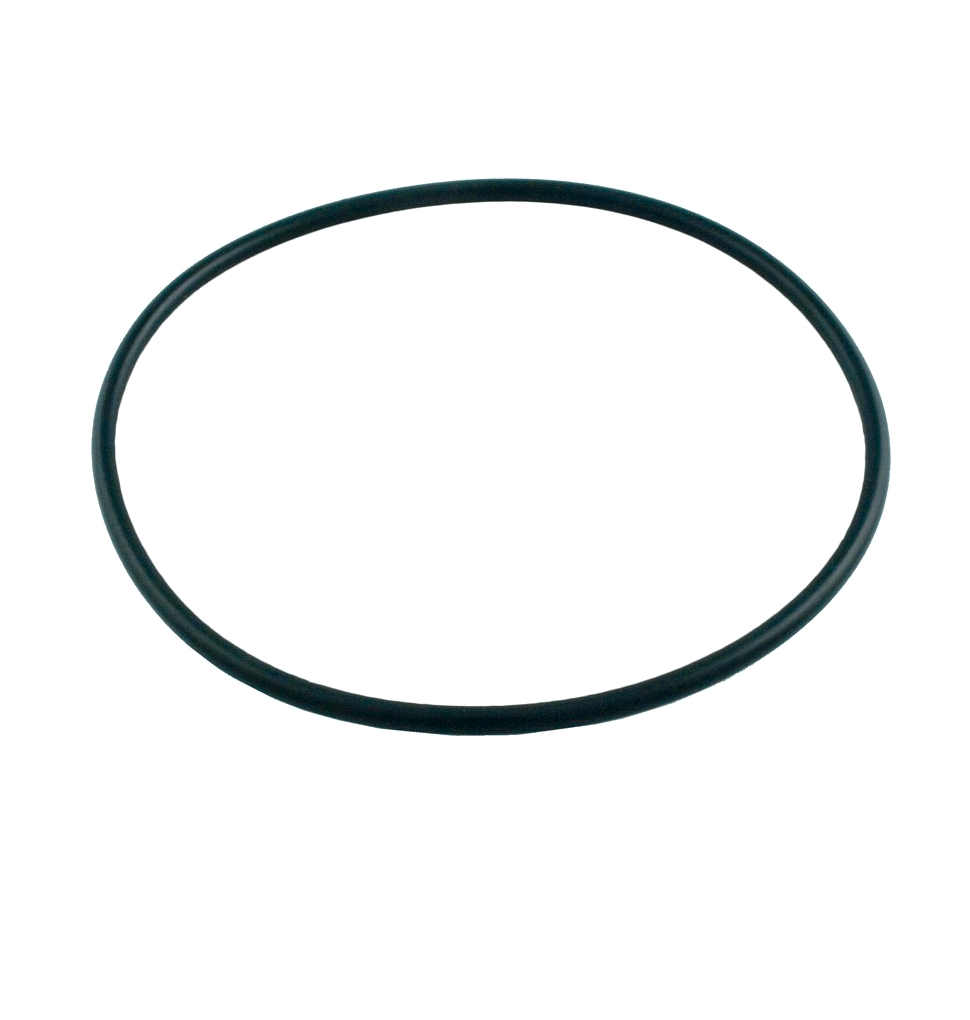

Pentair 354053 valve top o-ring for PacFab Hi-Flo multiport valves
Shop all Pentair

Pentair PacFab Valve Top O-Ring, 354053

Ask a questionMPN 354053
$3599
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Genuine Pentair The factory o-ring, part number 354053.
  • Measured size 6" outside diameter, 5 5/8" inside diameter, 3/16" thick.
  • Seals the valve top It is the o-ring between the valve top and the body.
  • Hi-Flo multiport Used on the PacFab 6-way 1-1/2 in. Hi-Flo multiport valve, models 261124, 261130 and 262506.
  • Sand Dollar filters Also listed with the PacFab Sand Dollar SD35, SD40 and SD60 sand filters.
  • Replace on reassembly Once the valve top has been off, a fresh o-ring is what stops the weep that follows.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Pentair PacFab Valve Top O-Ring, 354053, SKU PAC-061-8967. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Pentair PacFab Valve Top O-Ring, 354053
Pentair

PacFab Valve Top O-Ring, 354053

$3599
Pentair Genuine OEM 1.5" HiFlow Valve Top Assembly, 272531
Pentair

Genuine OEM 1.5" HiFlow Valve Top Assembly, 272531

$15499
Pentair Sand Filter Hose Kit 1.5 in. x 6 ft, 155151
Pentair

Sand Filter Hose Kit 1.5 in. x 6 ft, 155151

$6099
Pentair Genuine OEM Valve Body O-Ring for Cristal-Flo II and Sand Dollar Filters, 272541
Pentair

Genuine OEM Valve Body O-Ring for Cristal-Flo II and Sand Dollar Filters, 272541

$1199
Pentair Genuine OEM Sand Filter Drain Cap, 154712
Pentair

Genuine OEM Sand Filter Drain Cap, 154712

$3399
Pentair Pump Connection Assembly SD40, 155710Z
Pentair

Pump Connection Assembly SD40, 155710Z

$7099
Pentair Genuine OEM Stand Pipe Assembly SD60, 152227
Pentair

Genuine OEM Stand Pipe Assembly SD60, 152227

$12899
Subtotal

Similar products

Other products people compare with this one.

Pentair 272505 plastic washer for PacFab multiport filter valves Pentair 272505 Plastic Washer, 2 Required$1199

Product details

Pentair 354053 is the valve top o-ring for PacFab filter valves. It measures 6" outside diameter, 5 5/8" inside diameter and 3/16" thick. It is the genuine Pentair part.

What it seals

This is the o-ring that sits between the valve top and the valve body. Every time the top comes off for rotor or spider gasket work, this seal is disturbed, and it takes a permanent set against the surfaces it has been clamped to for years.

Fitment

It is used on the PacFab 6-way 1-1/2 in. Hi-Flo multiport valve in models 261124, 261130 and 262506, and it is listed with the PacFab Sand Dollar SD35, SD40 and SD60 sand filters. Measure the old ring against the dimensions above if you are unsure which valve you have.

While you are in there

The spider gasket and the rotor assembly are the other wear items behind the same valve top, so it is worth looking at both before closing the valve back up.

Specifications
Brand Pentair
Manufacturer part number 354053
UPC 788379702618
Type Valve top o-ring
Outside diameter 6"
Inside diameter 5 5/8"
Thickness 3/16"
Part type Filter valve part
Fits Pentair PacFab 6-way 1-1/2 in. Hi-Flo multiport valve, models 261124, 261130 and 262506, and PacFab Sand Dollar SD35, SD40 and SD60 sand filters
Shipping weight 0.02 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

From Pentair

Your trusted source for all things pool. Pentair

Pentair equipment

Pentair SuperFlo VS 1.5 HP Variable Speed Pool Pump, EC-342001 Pentair MasterTemp 400 Natural Gas Pool Heater, EC-462028 Pentair Clean & Clear Plus 420 sq ft Cartridge Pool Filter, EC-160301 Pentair IntelliConnect Control & Monitoring System with Wi-Fi, EC-523317
Shop Pentair equipment

Genuine Pentair parts

Pentair Genuine OEM Seal Kit for WhisperFlo and IntelliFlo Pool Pumps, 356198 Pentair Genuine OEM High Flow Manual Air Relief Valve, 98209800 Pentair Genuine OEM FNS Plus Element Assembly Complete, 48 Sq Ft, 59023400 Pentair Genuine OEM MasterTemp/Max-E-Therm 6-Button Control Board Kit, 461105Z
Shop Pentair parts
Pool lighting: a backyard pool and spa lit in blue and green at nightPool water treatment: three people floating on rings in clear blue water, seen from abovePool cleaners: a toddler in flower sunglasses laughing in a yellow ring, held by her mother
Pentair makes pumps, filters, heaters, salt chlorinators, cleaners, lighting and automation for pools and spas.Shop all Pentair

Customer reviews

More from Pentair

Pentair SuperFlo VS EC-342001 1.5 HP variable speed pool pump, front view Pentair SuperFlo VS 1.5 HP Variable Speed Pool Pump, EC-342001$1,48900 Pentair SuperFlo EC-348190 single speed pool pump, 1 HP, 115/230V Pentair SuperFlo 1 HP Single Speed Pool Pump, 115/230V, EC-348190$74800 Pentair WhisperFlo VS EC-011533 2.6 THP variable speed pool pump, top view Pentair WhisperFlo VS 2.6 THP Variable Speed Pool Pump, 115/208-230V, EC-011533$1,79900 Pentair 262506 HiFlow 1.5 in. six way clamp style multiport valve Pentair Genuine OEM HiFlow Valve 1.5 in. 6-Way Clamp Style, 262506$20399 Pentair EC-520556 IntelliChlor 110/220V power center Pentair 110/220V IntelliChlor Salt Chlorine Generator Power Center, EC-520556$79900 Web Price Pentair 523769 IntelliChlor Plus and LT replacement sensor board Pentair IntelliChlor Plus and LT Replacement Sensor Board, 523769$39299 Pentair 350305S 3.2 kW 10 pole variable speed motor for IntelliFloXF and IntelliFlo 2 VST pumps Pentair 3.2 kW IntelliFloXF VSF, VSF, VS+SVRS, i1, i2 Motor, 350305S$78199 Pentair 523735-EC IntelliChlor Plus40 salt chlorine generator cell Pentair IntelliChlor Plus40 Salt Chlorine Generator Replacement Cell, 40,000 Gallons, 523735-EC$1,81900 Web Price Pentair Rainbow 320 in-line chlorinator R171096, front view Pentair Rainbow 320 In-Line Chlorinator, R171096$14499 Pentair 190003 tank clamp kit with tension control for Clean and Clear Plus, FNS Plus and Quad DE filters Pentair Genuine OEM Clamp Kit with Tension Control, 190003$30199
Pentair IntelliChlor LT25 salt chlorine generator cell 523747-EC Pentair IntelliChlor LT25 Salt Chlorine Generator Cell, 25,000 Gallons, 523747-EC$1,14900 Pentair IntelliFlo VS+SVRS variable speed pool pump, EC-011057 Pentair IntelliFlo VS+SVRS Variable Speed Pool Pump, EC-011057$2,39900 Pentair 170145 cartridge pack for Sta-Rite System 3 S7M120, inner and outer cartridges Sta-Rite 170145 System 3 S7M120 Large and Small Cartridge Set, 25021-0200S and 25022-0201S$46499 Pentair 261055 SM-20-3 2 in. side mount multiport valve kit, front view Pentair 2 in. Multiport Valve Kit for Side Mount Sand Filters, SM-20-3, 261055$29999 Pentair 523770 IntelliChlor Plus replacement controller (HMI), black Pentair IntelliChlor Plus Controller Replacement (HMI), Black, 523770$38399 Pentair 261152 SM20-2 2 in. side mount multiport valve kit for DE filters Pentair 2" Valve Kit Multiport, Side Mount DE Filters SM20-2, 261152$29799 Pentair 357149 WhisperFlo and IntelliFlo volute housing replacement kit, front view Pentair WhisperFlo and IntelliFlo Volute Housing Replacement Kit, 357149$28799 Pentair MicroBrite Color LED pool light EC-620425, 12 volt, 14 watt, with 100 ft cord Pentair MicroBrite Color LED Pool Light 12 Volt, 14 Watt with 100' Cord, EC-620425$61900 Pentair 59023400 FNS Plus 48 sq ft complete DE grid assembly Pentair Genuine OEM FNS Plus Element Assembly Complete, 48 Sq Ft, 59023400$39399 Pentair Amerlite EC-602128 500W 120V inground pool light with stainless steel facering Pentair Amerlite Pool Light for Inground Pools with Stainless Steel Facering, 500W 120V 50' Cord, EC-602128$43900 Web Price

Questions and answers

What people ask about this product, answered by our pool techs.

What size is this o-ring?
6" outside diameter, 5 5/8" inside diameter and 3/16" thick.
Which valves does it fit?
The Pentair PacFab 6-way 1-1/2 in. Hi-Flo multiport valve in models 261124, 261130 and 262506, and it is listed with the PacFab Sand Dollar SD35, SD40 and SD60 sand filters.
Is it a genuine Pentair part?
Yes. It is Pentair part number 354053.
Do I need to replace it when I open the valve?
It is the sensible move. The o-ring takes a set against the valve top, and a reused one is the usual reason a valve seeps after service.
