Pentair 272531 1.5 in. HiFlow multiport valve top assemblyPentair Genuine OEM 1.5" HiFlow Valve Top Assembly, 272531 In stock$15999

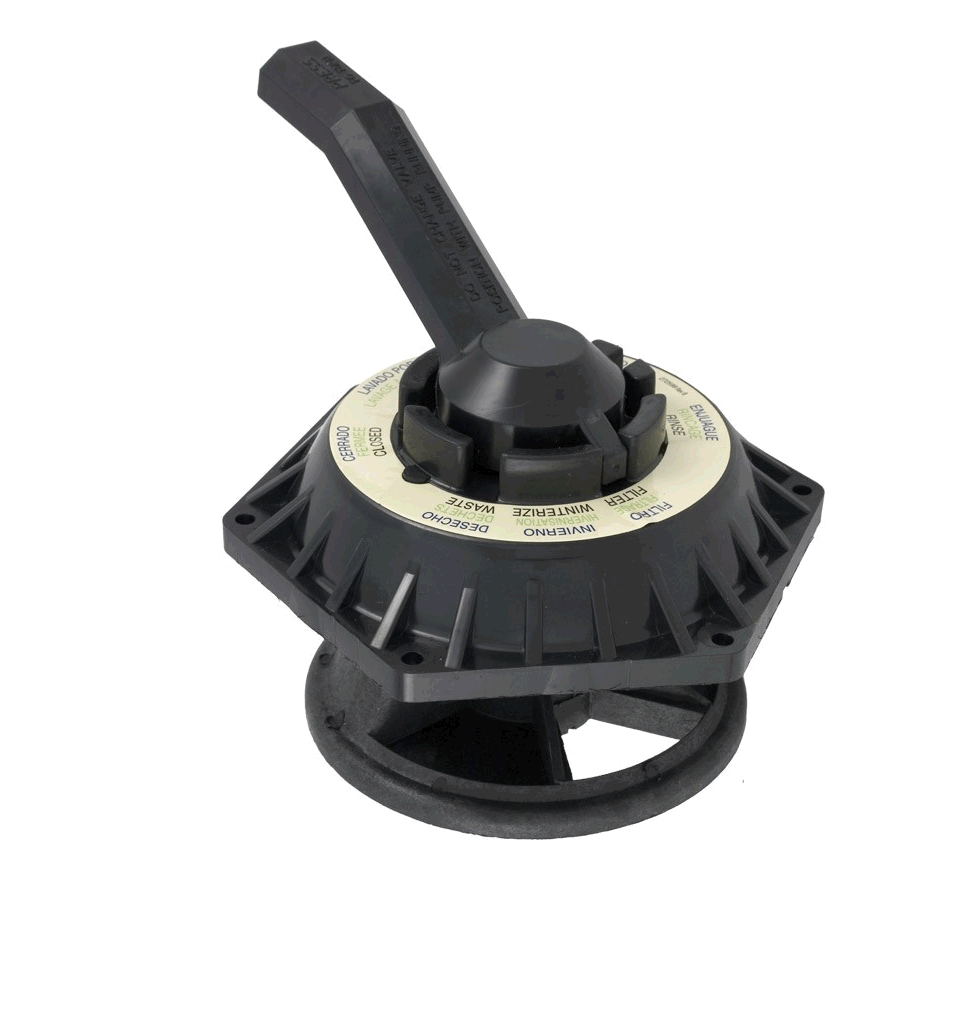

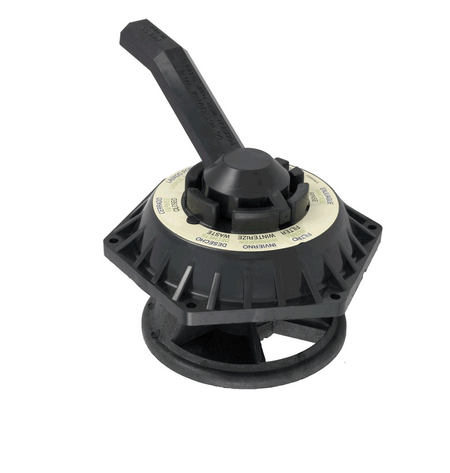

Pentair 272531 1.5 in. HiFlow multiport valve top assembly
Shop all Pentair

Pentair Genuine OEM 1.5" HiFlow Valve Top Assembly, 272531

Ask a questionMPN 272531
$15999
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

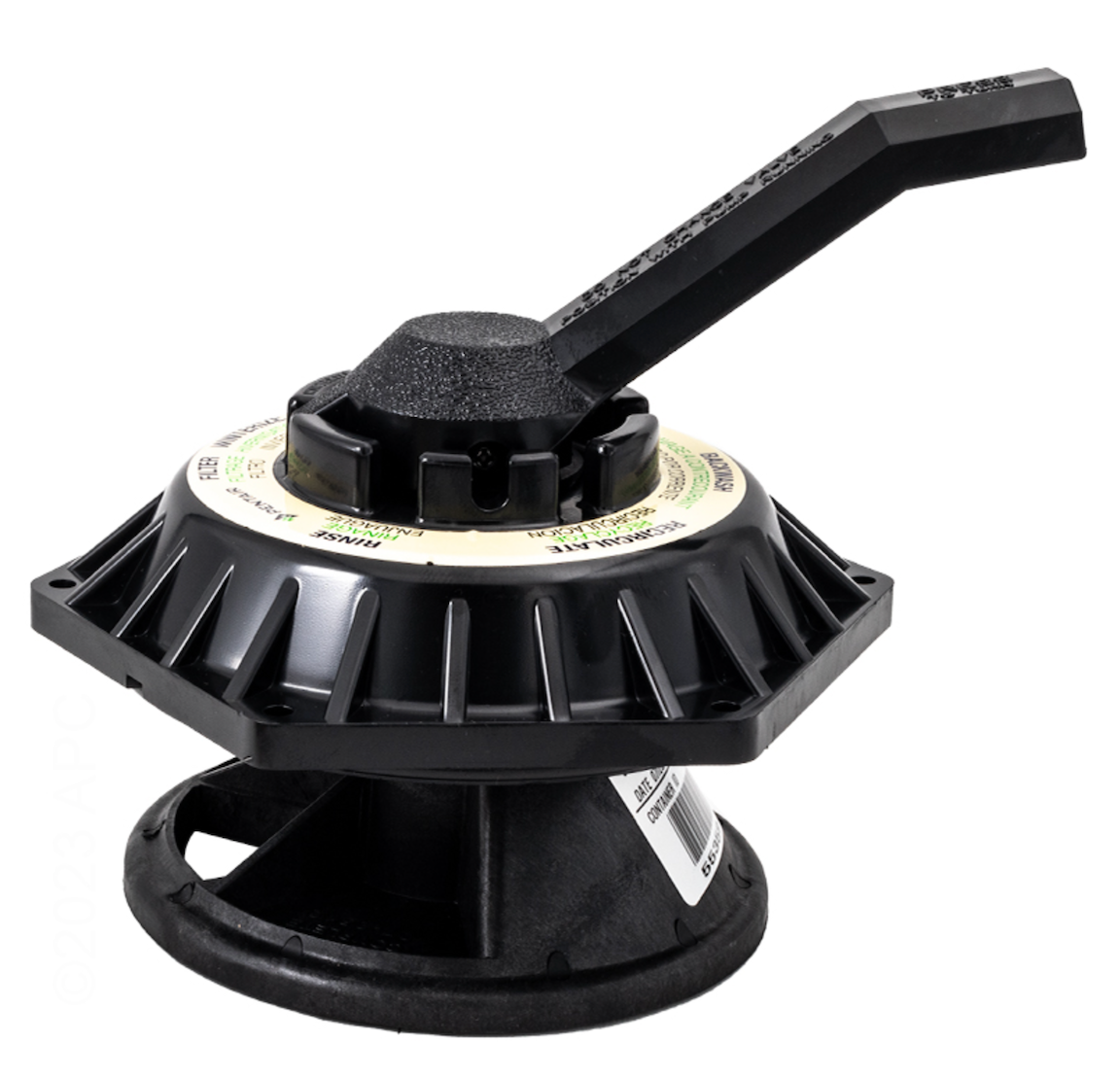

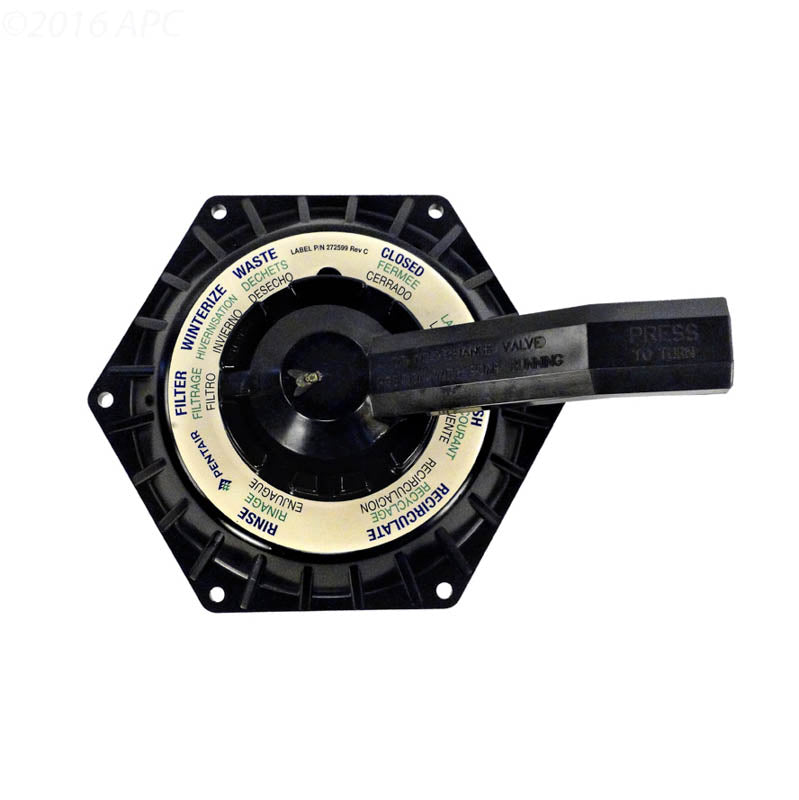

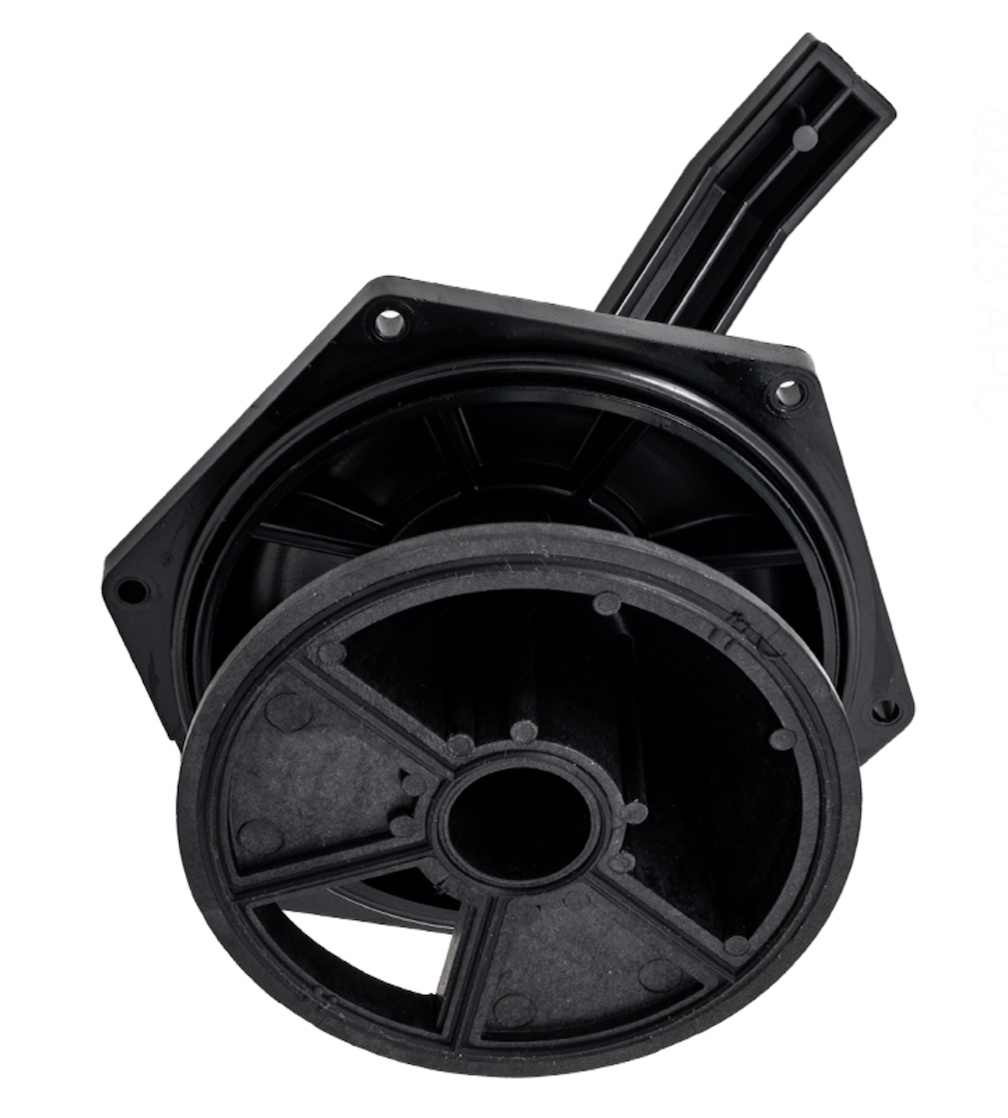

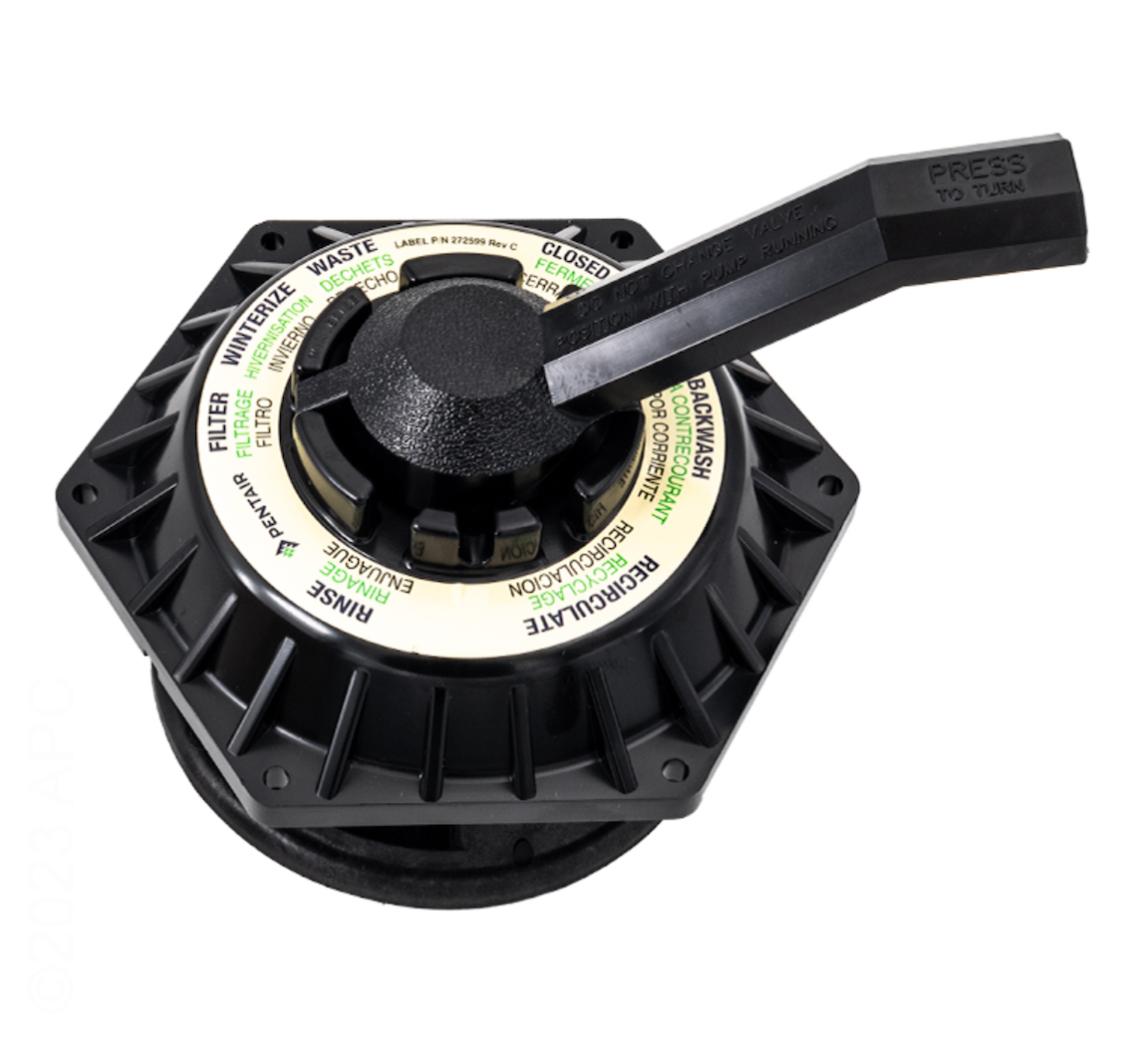

  • Top assembly with diverter Includes the valve top, the diverter and its gasket, the parts of a multiport valve that wear.
  • 1.5 in. HiFlow valves Fits the Pentair PacFab six way 1.5 in. HiFlow multiport valve.
  • Sand Dollar filters The valve fitted to the SD35, SD40 and SD60 Sand Dollar sand filters.
  • PacFab top mount valves Also listed for the 261124, 261130 and 262506 1.5 in. top mount valves.
  • Fixes a bypassing valve Replacing the top and diverter together restores the seal between positions, so water stops leaking to waste in Filter.
  • Genuine Pentair OEM part 272531, UPC 788379674885.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Pentair Genuine OEM 1.5" HiFlow Valve Top Assembly, 272531, SKU PAC-051-1776. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Pentair Genuine OEM 1.5" HiFlow Valve Top Assembly, 272531
Pentair

Genuine OEM 1.5" HiFlow Valve Top Assembly, 272531

$15999
Pentair Sand Filter Hose Kit 1.5 in. x 6 ft, 155151
Pentair

Sand Filter Hose Kit 1.5 in. x 6 ft, 155151

$5599
Pentair Genuine OEM Valve Body O-Ring for Cristal-Flo II and Sand Dollar Filters, 272541
Pentair

Genuine OEM Valve Body O-Ring for Cristal-Flo II and Sand Dollar Filters, 272541

$1199
Pentair Genuine OEM Sand Filter Drain Cap, 154712
Pentair

Genuine OEM Sand Filter Drain Cap, 154712

$3499
Pentair Pump Connection Assembly SD40, 155710Z
Pentair

Pump Connection Assembly SD40, 155710Z

$7299
Pentair Genuine OEM Stand Pipe Assembly SD60, 152227
Pentair

Genuine OEM Stand Pipe Assembly SD60, 152227

$13299
Pentair Base for Filter and Pump, 155333P
Pentair

Base for Filter and Pump, 155333P

$10399
Subtotal

Similar products

Other products people compare with this one.

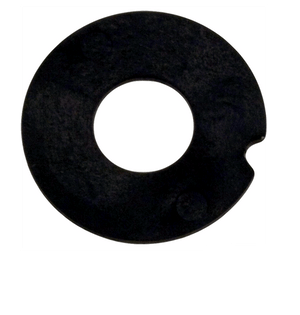

Pentair 354053 valve top o-ring for PacFab Hi-Flo multiport valves Pentair PacFab Valve Top O-Ring, 354053$3599 Pentair 272505 plastic washer for PacFab multiport filter valves Pentair 272505 Plastic Washer, 2 Required$1199

Product details

The Pentair 272531 is the top assembly for the PacFab 1.5 in. HiFlow six way multiport valve, complete with the diverter and its gasket. Those are the parts that take the wear every time the handle is moved, and replacing them as a set is the usual fix when a HiFlow valve starts leaking to waste or refuses to hold pressure.

Where it fits

The HiFlow valve is the one fitted to the Pentair PacFab Sand Dollar SD35, SD40 and SD60 sand filters, and this top is also listed for the 261124, 261130 and 262506 top mount 1.5 in. valves. Confirm your valve is the 1.5 in. HiFlow before ordering; the 2 in. valves use different parts.

What is and is not in the box

You get the valve top, diverter and gasket. The handle, the valve top o-ring and the pressure gauge are separate parts. Since the valve is apart for this job anyway, it is worth checking the top o-ring at the same time.

Specifications
Brand Pentair
Manufacturer part number 272531
UPC 788379674885
Part type Filter Valves Part
Includes Valve top, diverter, gasket
Valve size 1-1/2 in.
Valve type HiFlow 6-way multiport
Fits valves Pentair PacFab 1-1/2 in. HiFlow multiport, 261124, 261130, 262506
Fits filters Pentair PacFab Sand Dollar SD35, SD40, SD60
Shipping weight 2 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

From Pentair

Your trusted source for all things pool. Pentair

Pentair equipment

Pentair SuperFlo VS 1.5 HP Variable Speed Pool Pump, EC-342001 Pentair MasterTemp 400 Natural Gas Pool Heater, EC-462028 Pentair Clean & Clear Plus 420 sq ft Cartridge Pool Filter, EC-160301 Pentair IntelliConnect Control & Monitoring System with Wi-Fi, EC-523317
Shop Pentair equipment

Genuine Pentair parts

Pentair Genuine OEM Seal Kit for WhisperFlo and IntelliFlo Pool Pumps, 356198 Pentair Genuine OEM High Flow Manual Air Relief Valve, 98209800 Pentair Genuine OEM FNS Plus Element Assembly Complete, 48 Sq Ft, 59023400 Pentair Genuine OEM MasterTemp/Max-E-Therm 6-Button Control Board Kit, 461105Z
Shop Pentair parts
Pool lighting: a backyard pool and spa lit in blue and green at nightPool water treatment: three people floating on rings in clear blue water, seen from abovePool cleaners: a toddler in flower sunglasses laughing in a yellow ring, held by her mother
Pentair makes pumps, filters, heaters, salt chlorinators, cleaners, lighting and automation for pools and spas.Shop all Pentair

Customer reviews

More from Pentair

Pentair SuperFlo VS EC-342001 1.5 HP variable speed pool pump, front view Pentair SuperFlo VS 1.5 HP Variable Speed Pool Pump, EC-342001$1,48900 Pentair SuperFlo EC-348190 single speed pool pump, 1 HP, 115/230V Pentair SuperFlo 1 HP Single Speed Pool Pump, 115/230V, EC-348190$74800 Pentair WhisperFlo VS EC-011533 2.6 THP variable speed pool pump, top view Pentair WhisperFlo VS 2.6 THP Variable Speed Pool Pump, 115/208-230V, EC-011533$1,79900 Pentair 262506 HiFlow 1.5 in. six way clamp style multiport valve Pentair Genuine OEM HiFlow Valve 1.5 in. 6-Way Clamp Style, 262506$20999 Pentair EC-520556 IntelliChlor 110/220V power center Pentair 110/220V IntelliChlor Salt Chlorine Generator Power Center, EC-520556$79900 Web Price Pentair 523769 IntelliChlor Plus and LT replacement sensor board Pentair IntelliChlor Plus and LT Replacement Sensor Board, 523769$40499 Pentair 350305S 3.2 kW 10 pole variable speed motor for IntelliFloXF and IntelliFlo 2 VST pumps Pentair 3.2 kW IntelliFloXF VSF, VSF, VS+SVRS, i1, i2 Motor, 350305S$78199 Pentair 523735-EC IntelliChlor Plus40 salt chlorine generator cell Pentair IntelliChlor Plus40 Salt Chlorine Generator Replacement Cell, 40,000 Gallons, 523735-EC$1,81900 Web Price Pentair Rainbow 320 in-line chlorinator R171096, front view Pentair Rainbow 320 In-Line Chlorinator, R171096$14999 Pentair 190003 tank clamp kit with tension control for Clean and Clear Plus, FNS Plus and Quad DE filters Pentair Genuine OEM Clamp Kit with Tension Control, 190003$31099
Pentair IntelliChlor LT25 salt chlorine generator cell 523747-EC Pentair IntelliChlor LT25 Salt Chlorine Generator Cell, 25,000 Gallons, 523747-EC$1,15699 Pentair IntelliFlo VS+SVRS variable speed pool pump, EC-011057 Pentair IntelliFlo VS+SVRS Variable Speed Pool Pump, EC-011057$2,39900 Pentair 170145 cartridge pack for Sta-Rite System 3 S7M120, inner and outer cartridges Sta-Rite 170145 System 3 S7M120 Large and Small Cartridge Set, 25021-0200S and 25022-0201S$47999 Pentair 261055 SM-20-3 2 in. side mount multiport valve kit, front view Pentair 2 in. Multiport Valve Kit for Side Mount Sand Filters, SM-20-3, 261055$30899 Pentair 523770 IntelliChlor Plus replacement controller (HMI), black Pentair IntelliChlor Plus Controller Replacement (HMI), Black, 523770$39599 Pentair 261152 SM20-2 2 in. side mount multiport valve kit for DE filters Pentair 2" Valve Kit Multiport, Side Mount DE Filters SM20-2, 261152$30799 Pentair 357149 WhisperFlo and IntelliFlo volute housing replacement kit, front view Pentair WhisperFlo and IntelliFlo Volute Housing Replacement Kit, 357149$29699 Pentair MicroBrite Color LED pool light EC-620425, 12 volt, 14 watt, with 100 ft cord Pentair MicroBrite Color LED Pool Light 12 Volt, 14 Watt with 100' Cord, EC-620425$61900 Pentair 59023400 FNS Plus 48 sq ft complete DE grid assembly Pentair Genuine OEM FNS Plus Element Assembly Complete, 48 Sq Ft, 59023400$40599 Pentair Amerlite EC-602128 500W 120V inground pool light with stainless steel facering Pentair Amerlite Pool Light for Inground Pools with Stainless Steel Facering, 500W 120V 50' Cord, EC-602128$43900 Web Price

Questions and answers

What people ask about this product, answered by our pool techs.

Which valves does the 272531 fit?
The Pentair PacFab six way 1.5 in. HiFlow multiport valve, including the 261124, 261130 and 262506 top mount versions. It is the valve found on the Sand Dollar SD35, SD40 and SD60 sand filters.
Does it come with the diverter?
Yes. The assembly includes the top, the diverter and the diverter gasket. If you only need the diverter and gasket, that is sold separately as PAC-061-8968.
Does it include the handle or the top o-ring?
No. The HiFlow handle (PAC-061-9652) and the valve top o-ring (PAC-061-8967) are separate parts, so check whether yours are worn while the valve is apart.
How do I know the top is the problem?
Water running to waste while the handle is in Filter, pressure that will not build, or a handle that has to be forced between positions usually point to a worn diverter or gasket, both of which this assembly replaces.
Ask your own question
