Raypak 200K BTU Natural Gas ASME Digital Pool Heater, Cupro-Nickel, B-R206A-EN-X, 017399 In stock$4,16500
Raypak 200K BTU Natural Gas ASME Digital Pool Heater, Cupro-Nickel, B-R206A-EN-X, 017399
$4,16500
Web Price
Some manufacturers don’t allow us to publicly display their best prices online. When you request an Unadvertised Deal, you’re asking us to unlock a special offer that isn’t shown on the site.
Get your unadvertised price ›
Get your unadvertised price ›
FREE Delivery
Typically ships within 0 days This item ships directly from the manufacturer.
In stock
30 day returns · Easy, with prepaid labels provided
Quick overview
- ASME coded Built to the ASME code that commercial and many municipal installations are required to meet.
- Cupro-nickel heat exchanger The exchanger specified for salt pools and for water that is hard on copper.
- Bronze header Bronze rather than the standard header, matched to the same demanding water.
- Digital IID control Digital control with intermittent ignition, so there is no standing pilot to relight.
- 200,000 BTU natural gas Sized for the mid range of the Raypak lineup and plumbed for natural gas.
- Rated 0 to 2000 ft elevation The standard elevation build; higher sites take a different model.
Need a hand?
Bilingual support from pool professionals.
Frequently bought together
Current item
Raypak
200K BTU Natural Gas ASME Digital Pool Heater, Cupro-Nickel, B-R206A-EN-X, 017399
$4,16500
Web Price
Some manufacturers don’t allow us to publicly display their best prices online. When you request an Unadvertised Deal, you’re asking us to unlock a special offer that isn’t shown on the site.
Get your unadvertised price ›
Get your unadvertised price ›
Subtotal
Similar products
Other products people compare with this one.
Raypak 156A 150K BTU Above Ground Pool and Spa Heater, Digital Controls, Electronic Ignition, Natural Gas, 0-4999 ft Elevation, 014784$2,49900
Web Price
Pentair MasterTemp 250 Natural Gas Pool Heater, EC-462026$3,73900
Web Price
Pentair MasterTemp Natural Gas 125K BTU Pool Heater, EC-462024$2,21299
Raypak 266K BTU Natural Gas Pool Heater, Digital Ignition, Copper Heat Exchanger, 0-2000 Ft. Elevation, P-R266A-EN-C, 009217$3,17900
Web Price
Raypak Pool Heater, 399K BTU, Natural Gas, Digital Ignition, Copper Heat Exchanger, 0-2000 Ft. Elevation, P-R406A-EN-C, 009219$4,20000
Web Price
Pentair MasterTemp 400 Natural Gas Pool Heater, EC-462028$4,17900
Raypak AVIA 264K BTU Natural Gas Low NOx Pool Heater with WiFi, HD NiTek Heat Exchanger, 0-10,000 Ft. Elevation, P-R264A-EN-N, 018044$3,89000
Web Price
Raypak AVIA 399K BTU Natural Gas Low NOx Pool Heater with WiFi, HD Nitek Tubing, 0-10,000 ft Elevation, P-R404A-EN-N, 018045$4,78000
Web Price
Raypak Digital 333K BTU Natural Gas Pool Heater, Copper Heat Exchanger, 0-2000 Ft Elevation, P-R336A-EN-C, 009218$3,63200
Web Price
Pentair MasterTemp Digital IID Heavy Duty ASME Natural Gas Low NOx Heater 400K BTU, 461021$5,02399
Raypak 360K BTU Natural Gas Pool Heater, Digital Ignition, Cupro-Nickel Heat Exchanger, 0-2000 Ft Elevation, P-R406A-EN-X, 014941$4,54000
Web Price
Raypak High Altitude R266A Digital Natural Gas Heater, 266K BTU, Copper Exchanger, P-R266A-EN-C #51, 2000-6000 Ft Elevation, 009221$3,17900
Web Price
Raypak 156A Above Ground Pool and Spa Heater, Digital Controls, Electronic Ignition, Natural Gas 150K BTU, High Altitude 5000 to 9999 Ft, 014785$2,49900
Web Price
Raypak P-R266A-MN-C #50 Natural Gas Heater, 266K BTU, Millivolt Plus, Polymer Headers, Copper Exchanger, 009193$3,81100
Web Price
Pentair MasterTemp Natural Gas Heater 400 BTU Low NOx, 460736$4,12799
Raypak Heater, 399K BTU, Natural Gas, ASME, Digital IID, Bronze Header, Copper Heat Exchanger, 0-2000 Ft. Elevation, B-R406A-EN-C, 017374$5,00200
Raypak P-R266A-EN-X Natural Gas Pool Heater, 240K BTU, Cupro-Nickel, 0 to 2000 Ft Elevation, 014939$3,63300
Web Price
Raypak 18Kw 240V E3T Electric Heater ELS-R-0018-1-TIB, 100-10000665$2,33100
Web Price
Raypak B-R207A-EN-C Heater, 200K BTU, Low NOx Natural Gas, ASME, Digital IID, Bronze Header, Copper Heat Exchanger, 017705$3,95300
Web Price
Raypak Heater 399K BTU, Low NOx Natural Gas, ASME, Digital IID, Bronze Header, Cupro-Nickel Heat Exchanger B-R407A-EN-X, 017712$5,69600
Web Price
From Raypak
Raypak heaters
Raypak Pool Heater, 399K BTU, Natural Gas, Digital Ignition, Copper Heat Exchanger, 0-2000 Ft. Elevation, P-R406A-EN-C, 009219
Raypak 266K BTU Natural Gas Pool Heater, Digital Ignition, Copper Heat Exchanger, 0-2000 Ft. Elevation, P-R266A-EN-C, 009217
Raypak Crosswind V Heat Pump, 138,000 BTU, with Titanium Heat Exchanger and Digital Controls, TWPH-8550EHT08
Raypak 156A 150K BTU Above Ground Pool and Spa Heater, Digital Controls, Electronic Ignition, Natural Gas, 0-4999 ft Elevation, 014784
Genuine Raypak parts
Raypak Genuine OEM Protek Shield Module Assembly, 017960F
Raypak Kit-PC 3-Wire Board Controller IID for 206A-408 Pool Heaters, 100-10000345
Raypak Genuine OEM Propane and Natural Gas Pilot, 002003F
Raypak Genuine OEM 3/4" IID Pool Heater Natural Gas Electronic Valve, 003900F
Raypak makes gas pool and spa heaters, heat pumps and electric heaters, with genuine replacement parts.Shop all Raypak
Product details

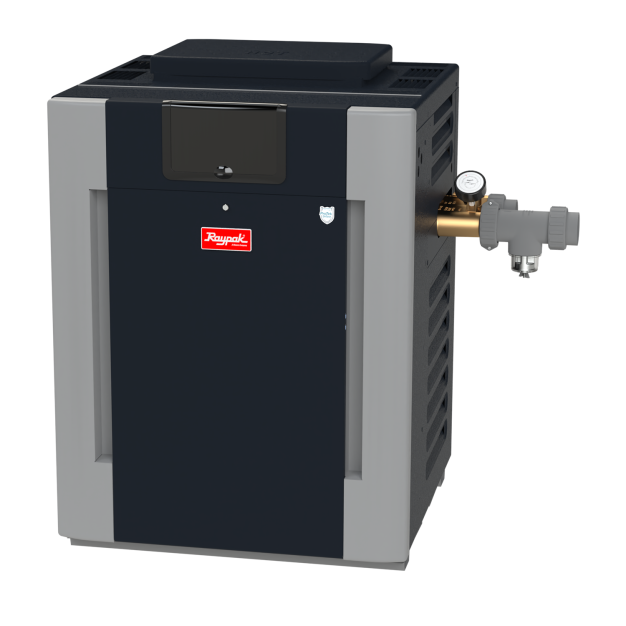

The Raypak B-R206A-EN-X, part 017399, is a 200,000 BTU natural gas pool heater built to ASME code, with a bronze header and a cupro-nickel heat exchanger.
Why this build
Three things separate this heater from a standard residential unit. It is ASME coded, which is what commercial, municipal and institutional pools are usually required to install. The heat exchanger is cupro-nickel, which handles salt water and aggressive chemistry that would shorten the life of a copper exchanger. And the header is bronze, matched to the same conditions.
Controls
Digital IID control means the heater lights electronically on demand instead of holding a standing pilot, and the digital panel gives you readable temperature control rather than a dial.
Check before ordering
This is the natural gas model, rated for sites from 0 to 2000 feet of elevation. Propane and high altitude installations use different Raypak models. The heater ships freight.
| Brand | Raypak |
|---|---|
| Manufacturer part number | 017399 |
| Model | B-R206A-EN-X |
| UPC | 840891042167 |
| Type | ASME pool and spa heater |
| Fuel | Natural gas |
| Heat input | 199,500 BTU/hr |
| Heat output | 163,590 BTU/hr at 82 percent |
| Thermal efficiency | 82 percent, by Raypak |
| Ignition | Electronic, digital IID |
| Heat exchanger | Cupronickel fin tube |
| Headers | Bronze, ASME |
| Certification | ASME |
| Elevation | 0 to 2,000 ft |
| Electrical | 120 or 240 VAC, single phase, 60 Hz |
| Amp draw | 4 A at 120 V, 2 A at 240 V |
| Water connections | 2 in |
| Gas connection | 3/4 in NPT |
| Cabinet width | 20 in |
| Shipping weight | 212 lb, 14 more with the indoor draft hood |
| Warranty | 1 year, by Raypak |
| Ships | Freight |
Request a quote
Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.
Customer reviews
Verified store reviews
SHOPPER APPROVED
See all reviews →
More from Raypak
Raypak Heat Pump Digital Control Board 9350/9353 5450-8450, 100-10000347$29699
Raypak Genuine OEM Protek Shield Module Assembly, 017960F$5099
Raypak Crosswind V Heat Pump, 138,000 BTU, with Titanium Heat Exchanger and Digital Controls, TWPH-8550EHT08$4,80000
Web Price
Raypak 156A 150K BTU Above Ground Pool and Spa Heater, Digital Controls, Electronic Ignition, Natural Gas, 0-4999 ft Elevation, 014784$2,49900
Web Price
Raypak Genuine OEM 3/4" IID Pool Heater Natural Gas Electronic Valve, 003900F$21699
Raypak WeatherKing 118K BTU Heat Pump 6560 with Powder-Coated Steel Cabinet and Digital Controls, TWPH-6560EHT01$3,39800
Web Price
Raypak Kit-PC 3-Wire Board Controller IID for 206A-408 Pool Heaters, 100-10000345$32499
Raypak Pool Heater, 399K BTU, Natural Gas, Digital Ignition, Copper Heat Exchanger, 0-2000 Ft. Elevation, P-R406A-EN-C, 009219$4,20000
Web Price
Raypak 266K BTU Natural Gas Pool Heater, Digital Ignition, Copper Heat Exchanger, 0-2000 Ft. Elevation, P-R266A-EN-C, 009217$3,17900
Web Price
Raypak Analog Natural Gas Above Ground Pool Heater 105,000 BTU, P-R106A-AN-C, 014779$1,99900
Web Price
Raypak Boiler Burner 10-Pack, 100-10000414$4199
Raypak Inlet/Outlet Header Complete with ProTek Shield, 017959F$40799
Raypak Genuine OEM Propane and Natural Gas Pilot, 002003F$8199
Raypak 100K Temp Sensor Kit, 9350/9353 and 5450-8450 Heat Pumps, H000329$10299
Raypak Burner Tray with Burners for 406A Pool Heaters, 010394F$91099
Raypak Genuine OEM Copper Tube Bundle 266/267, 010060F$81599
Raypak 266A Polymer Cu-Ni Tube Bundle, 014931F$1,29299
Raypak 11kW 240V E3T Electric Heater ELS-D-0011-1-Ti, 017122$1,15400
Web Price
Raypak Burner Tray with LP Burners Pro (Sea Level) for Heat Exchanger Models 399 and 406A, 019209F$32199
Raypak AVIA 399K BTU Natural Gas Low NOx Pool Heater with WiFi, HD Nitek Tubing, 0-10,000 ft Elevation, P-R404A-EN-N, 018045$4,78000
Web Price
Questions and answers
What people ask about this product, answered by our pool techs.
Is Raypak 017399 natural gas or propane?
Natural gas. Raypak builds the 206A for one fuel, and sells the propane heater as a separate part number. Its natural gas to propane conversion kits are sold by altitude.
What elevation is Raypak 017399 rated for?
0 to 2,000 ft, by Raypak's catalog. Raypak's catalog lists this cupronickel model for that band only.
What does the X mean in B-R206A-EN-X, 017399?
A cupronickel heat exchanger. Raypak's models ending in C have a copper fin tube exchanger.
What power and connections does Raypak 017399 need?
120 or 240 VAC, single phase. Raypak's brochure gives 4 A at 120 V and 2 A at 240 V. The water connections are 2 inch and the gas connection 3/4 inch NPT.
What warranty does Raypak give the B-R206A-EN-X, 017399?
One year, by Raypak's catalog.
Where is the manual for the Raypak B-R206A-EN-X 017399?
Under Downloads on this page. It is Raypak's Digital Installation and Operation Manual for models 206A, 266A, 336A and 406A, part number 241236, which covers the bronze header ASME versions too.
