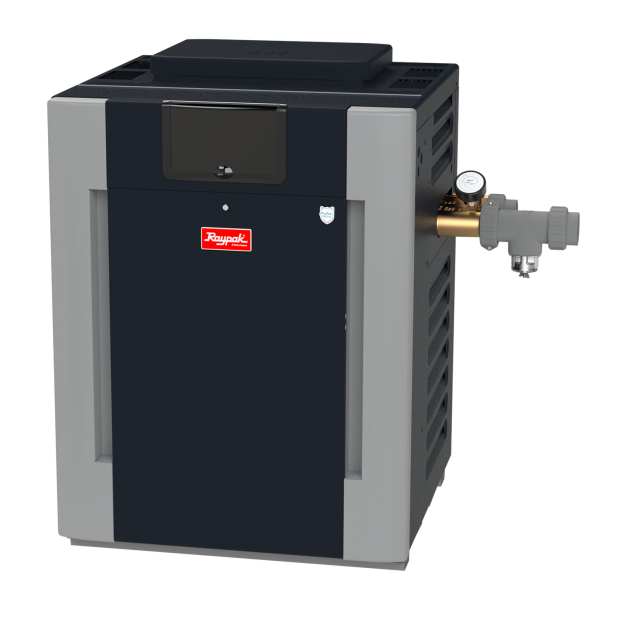

Raypak B-R406A-EN-C 399K BTU natural gas ASME pool heater, front viewRaypak Heater, 399K BTU, Natural Gas, ASME, Digital IID, Bronze Header, Copper Heat Exchanger, 0-2000 Ft. Elevation, B-R406A-EN-C, 017374 In stock$5,00200

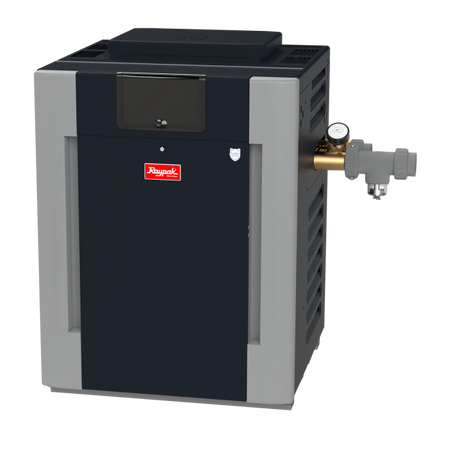

Raypak B-R406A-EN-C 399K BTU natural gas ASME pool heater, front view
Shop all Raypak

Raypak Heater, 399K BTU, Natural Gas, ASME, Digital IID, Bronze Header, Copper Heat Exchanger, 0-2000 Ft. Elevation, B-R406A-EN-C, 017374

Ask a questionMPN 017374
$5,00200
FREE Delivery
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • 399K BTU Heavy heating capacity for large pools, spas and commercial installations.
  • ASME rated Built and stamped to the ASME code, the rating commercial and public pool projects normally have to specify.
  • Bronze header Bronze in the water path for corrosion resistance where the water enters and leaves the exchanger.
  • Copper heat exchanger Copper tube exchanger for pools kept on balanced water chemistry.
  • Digital IID Intermittent ignition with no standing pilot, under digital control.
  • Natural gas, 0 to 2,000 ft Factory configured for natural gas at elevations from sea level to 2,000 ft.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Raypak Heater, 399K BTU, Natural Gas, ASME, Digital IID, Bronze Header, Copper Heat Exchanger, 0-2000 Ft. Elevation, B-R406A-EN-C, 017374, SKU BR406AENC. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Raypak Heater, 399K BTU, Natural Gas, ASME, Digital IID, Bronze Header, Copper Heat Exchanger, 0-2000 Ft. Elevation, B-R406A-EN-C, 017374
Raypak

Heater, 399K BTU, Natural Gas, ASME, Digital IID, Bronze Header, Copper Heat Exchanger, 0-2000 Ft. Elevation, B-R406A-EN-C, 017374

$5,00200
Solar Sun Rings Swimming Pool Solar Cover, Blue Sunburst, 5-Foot Diameter, 6-Pack, SSR-SB-02
Solar Sun Rings

Swimming Pool Solar Cover, Blue Sunburst, 5-Foot Diameter, 6-Pack, SSR-SB-02

$29999
Swimline Universal Solar Cover Reel Strap Kit, 5100SK
Swimline

Universal Solar Cover Reel Strap Kit, 5100SK

$3399
Rocky's Reel Systems #3A Portable Residential Reel System, End System Only with 3 in. Hubs
Rocky's Reel Systems

#3A Portable Residential Reel System, End System Only with 3 in. Hubs

$37099
Subtotal

Similar products

Other products people compare with this one.

Pentair MasterTemp 250 natural gas pool heater EC-462026 Pentair MasterTemp 250 Natural Gas Pool Heater, EC-462026$3,73900 Web Price Raypak 009217 P-R266A-EN-C 266K BTU natural gas digital pool heater, front view Raypak 266K BTU Natural Gas Pool Heater, Digital Ignition, Copper Heat Exchanger, 0-2000 Ft. Elevation, P-R266A-EN-C, 009217$3,17900 Web Price Pentair MasterTemp 400 natural gas pool heater EC-462028 Pentair MasterTemp 400 Natural Gas Pool Heater, EC-462028$4,17900 Raypak AVIA P-R264A-EN-N 264K BTU natural gas low NOx pool heater with WiFi, front view Raypak AVIA 264K BTU Natural Gas Low NOx Pool Heater with WiFi, HD NiTek Heat Exchanger, 0-10,000 Ft. Elevation, P-R264A-EN-N, 018044$3,89000 Web Price Raypak AVIA P-R404A-EN-N 399K BTU natural gas pool and spa heater Raypak AVIA 399K BTU Natural Gas Low NOx Pool Heater with WiFi, HD Nitek Tubing, 0-10,000 ft Elevation, P-R404A-EN-N, 018045$4,78000 Web Price Raypak 009216 Digital 200K BTU natural gas pool heater, model P-R206A-EN-C, front view Raypak Pool Heater, 200K BTU, Natural Gas, Digital Ignition, Copper Heat Exchanger, 0-2000 Ft. Elevation, P-R206A-EN-C, 009216$2,83800 Raypak P-R206A-EN-X 200K BTU natural gas pool and spa heater Raypak 180K BTU Natural Gas Heater, Digital Ignition, Cupro-Nickel Heat Exchanger, 0-2000 Ft. Elevation, P-R206A-EN-X, 014938$3,29100 Web Price Raypak 009218 digital 333K BTU natural gas pool heater, model P-R336A-EN-C Raypak Digital 333K BTU Natural Gas Pool Heater, Copper Heat Exchanger, 0-2000 Ft Elevation, P-R336A-EN-C, 009218$3,63200 Web Price Pentair MasterTemp 461021 400K BTU heavy duty ASME natural gas pool heater Pentair MasterTemp Digital IID Heavy Duty ASME Natural Gas Low NOx Heater 400K BTU, 461021$5,02399 Raypak 009221 P-R266A-EN-C #51 high altitude 266K BTU natural gas pool heater Raypak High Altitude R266A Digital Natural Gas Heater, 266K BTU, Copper Exchanger, P-R266A-EN-C #51, 2000-6000 Ft Elevation, 009221$3,17900 Web Price
Raypak 009193 P-R266A-MN-C 266,000 BTU natural gas pool heater Raypak P-R266A-MN-C #50 Natural Gas Heater, 266K BTU, Millivolt Plus, Polymer Headers, Copper Exchanger, 009193$3,81100 Web Price Coates 34854PHS-4 PHS Series 54 kW 480 V three phase electric pool heater Coates PHS Series Electric Heater 3 Phase 54kW 480V, 34854PHS-4$3,57599 Pentair MasterTemp 400 pool heater, three quarter view Pentair MasterTemp Natural Gas Heater 400 BTU Low NOx, 460736$4,12799 Raypak 014939 P-R266A-EN-X natural gas pool heater with cupro-nickel heat exchanger Raypak P-R266A-EN-X Natural Gas Pool Heater, 240K BTU, Cupro-Nickel, 0 to 2000 Ft Elevation, 014939$3,63300 Web Price Raypak 009220 P-R206A-EN-C #51 high altitude digital natural gas pool heater, 199.5K BTU Raypak High Altitude R206A Digital Natural Gas Heater, 199.5K BTU, P-R206A-EN-C #51, 009220$2,83800 Web Price Raypak 017705 B-R207A-EN-C 200,000 BTU low NOx natural gas pool heater Raypak B-R207A-EN-C Heater, 200K BTU, Low NOx Natural Gas, ASME, Digital IID, Bronze Header, Copper Heat Exchanger, 017705$3,95300 Web Price Raypak B-R407A-EN-X 399K BTU low NOx natural gas ASME commercial pool heater, part 017712 Raypak Heater 399K BTU, Low NOx Natural Gas, ASME, Digital IID, Bronze Header, Cupro-Nickel Heat Exchanger B-R407A-EN-X, 017712$5,69600 Web Price Coates 34836PHS-3 PHS Series 36 kW 480 V three phase electric pool heater Coates PHS Series Electric Heater 3-Phase 36kW 480V, 34836PHS-3$3,00999 Hayward Universal H-Series W3H150FDN pool heater, front view Hayward Universal H-Series Natural Gas 150,000 BTU Low NOx Pool Heater, W3H150FDN$2,99900 Web Price Pentair 460730 MasterTemp 200K BTU natural gas pool heater Pentair MasterTemp Natural Gas Heater 200K BTU, IID Low NOx, 460730$3,67399

From Raypak

A technician with a tool belt beside Raypak heaters at a pool. Designed to perform, built to last. Raypak

Raypak heaters

Raypak Pool Heater, 399K BTU, Natural Gas, Digital Ignition, Copper Heat Exchanger, 0-2000 Ft. Elevation, P-R406A-EN-C, 009219 Raypak 266K BTU Natural Gas Pool Heater, Digital Ignition, Copper Heat Exchanger, 0-2000 Ft. Elevation, P-R266A-EN-C, 009217 Raypak Crosswind V Heat Pump, 138,000 BTU, with Titanium Heat Exchanger and Digital Controls, TWPH-8550EHT08 Raypak 156A 150K BTU Above Ground Pool and Spa Heater, Digital Controls, Electronic Ignition, Natural Gas, 0-4999 ft Elevation, 014784
Shop Raypak heaters

Genuine Raypak parts

Raypak Genuine OEM Protek Shield Module Assembly, 017960F Raypak Kit-PC 3-Wire Board Controller IID for 206A-408 Pool Heaters, 100-10000345 Raypak Genuine OEM Propane and Natural Gas Pilot, 002003F Raypak Genuine OEM 3/4" IID Pool Heater Natural Gas Electronic Valve, 003900F
Shop Raypak parts
Gas pool heaters: a red and black Raypak AVIA heaterHeat pumps: a Raypak Crosswind V heat pumpHeater parts: a technician with a tool belt in front of Raypak heaters
Raypak makes gas pool and spa heaters, heat pumps and electric heaters, with genuine replacement parts.Shop all Raypak

Product details

The Raypak B-R406A-EN-C is a 399K BTU natural gas pool and spa heater built to the ASME code, with a bronze header and a copper heat exchanger. It is the configuration for installations from sea level to 2,000 ft.

ASME, bronze and copper

The ASME stamp is what commercial and public pools normally have to specify, and it does no harm on a large residential pool. The bronze header handles the water path in and out of the exchanger, and the copper tube exchanger is the standard choice for a pool kept on balanced chemistry.

Digital IID

Intermittent ignition means there is no standing pilot burning between calls for heat. The digital control lights the burner when the pool or spa needs it and shuts it down when the setpoint is reached.

Before you order

Confirm natural gas supply and an elevation of 2,000 ft or less. The heater ships by freight; plan for someone to receive the pallet. Raypak part number 017374.

Specifications
Brand Raypak
Manufacturer part number 017374
Model B-R406A-EN-C
UPC 840891041566
Type ASME pool and spa heater
Fuel Natural gas
Heat input 399,000 BTU/hr
Heat output 327,180 BTU/hr at 82 percent
Thermal efficiency 82 percent, by Raypak
Ignition Electronic, digital IID
Heat exchanger Copper fin tube
Headers Bronze, ASME
Certification ASME
Elevation 0 to 2,000 ft
Electrical 120 or 240 VAC, single phase, 60 Hz
Amp draw 4 A at 120 V, 2 A at 240 V
Water connections 2 in
Gas connection 3/4 in NPT
Cabinet width 29 in
Shipping weight 273 lb, 21 more with the indoor draft hood
Warranty 1 year, by Raypak
Ships Freight

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

Customer reviews

More from Raypak

Raypak 100-10000347 heat pump digital control board Raypak Heat Pump Digital Control Board 9350/9353 5450-8450, 100-10000347$29699 Raypak 017960F Protek Shield module assembly for Raypak pool heaters Raypak Genuine OEM Protek Shield Module Assembly, 017960F$5099 Raypak Crosswind V 138,000 BTU pool heat pump TWPH-8550EHT08, quarter view Raypak Crosswind V Heat Pump, 138,000 BTU, with Titanium Heat Exchanger and Digital Controls, TWPH-8550EHT08$4,80000 Web Price Raypak 156A 150,000 BTU natural gas above ground pool and spa heater, part 014784 Raypak 156A 150K BTU Above Ground Pool and Spa Heater, Digital Controls, Electronic Ignition, Natural Gas, 0-4999 ft Elevation, 014784$2,49900 Web Price Raypak 003900F IID natural gas electronic combination valve Raypak Genuine OEM 3/4" IID Pool Heater Natural Gas Electronic Valve, 003900F$21699 Raypak WeatherKing TWPH-6560EHT01 118K BTU pool and spa heat pump Raypak WeatherKing 118K BTU Heat Pump 6560 with Powder-Coated Steel Cabinet and Digital Controls, TWPH-6560EHT01$3,39800 Web Price Raypak 100-10000345 Kit-PC 3-wire board controller IID for 206A-408 pool heaters Raypak Kit-PC 3-Wire Board Controller IID for 206A-408 Pool Heaters, 100-10000345$32499 Raypak 009219 Digital 399K BTU natural gas pool and spa heater, model P-R406A-EN-C Raypak Pool Heater, 399K BTU, Natural Gas, Digital Ignition, Copper Heat Exchanger, 0-2000 Ft. Elevation, P-R406A-EN-C, 009219$4,20000 Web Price Raypak 009217 P-R266A-EN-C 266K BTU natural gas digital pool heater, front view Raypak 266K BTU Natural Gas Pool Heater, Digital Ignition, Copper Heat Exchanger, 0-2000 Ft. Elevation, P-R266A-EN-C, 009217$3,17900 Web Price Raypak 014779 106A analog natural gas above ground pool heater Raypak Analog Natural Gas Above Ground Pool Heater 105,000 BTU, P-R106A-AN-C, 014779$1,99900 Web Price
Raypak 100-10000414 boiler burner 10-pack Raypak Boiler Burner 10-Pack, 100-10000414$4199 Raypak 017959F inlet/outlet header complete with ProTek Shield for 206A to 407A heaters Raypak Inlet/Outlet Header Complete with ProTek Shield, 017959F$40799 Raypak 002003F genuine OEM propane and natural gas pilot Raypak Genuine OEM Propane and Natural Gas Pilot, 002003F$8199 Raypak logo, placeholder image for the H000329 100K temp sensor kit Raypak 100K Temp Sensor Kit, 9350/9353 and 5450-8450 Heat Pumps, H000329$10299 Raypak 010394F burner tray with burners for the 406A pool heater Raypak Burner Tray with Burners for 406A Pool Heaters, 010394F$91099 Raypak 010060F copper tube bundle heat exchanger for 266A and 267A heaters Raypak Genuine OEM Copper Tube Bundle 266/267, 010060F$81599 Raypak 014931F cupro-nickel tube bundle for 266A polymer header heater Raypak 266A Polymer Cu-Ni Tube Bundle, 014931F$1,29299 Raypak E3T 11 kW 240V electric pool and spa heater, Ruud ELS-D-0011-1-Ti, part 017122 Raypak 11kW 240V E3T Electric Heater ELS-D-0011-1-Ti, 017122$1,15400 Web Price Raypak 019209F burner tray with LP burners, sea level, for heat exchanger models 399 and 406A Raypak Burner Tray with LP Burners Pro (Sea Level) for Heat Exchanger Models 399 and 406A, 019209F$32199 Raypak AVIA P-R404A-EN-N 399K BTU natural gas pool and spa heater Raypak AVIA 399K BTU Natural Gas Low NOx Pool Heater with WiFi, HD Nitek Tubing, 0-10,000 ft Elevation, P-R404A-EN-N, 018045$4,78000 Web Price

Questions and answers

What people ask about this product, answered by our pool techs.

Is Raypak 017374 natural gas or propane?
Natural gas. Raypak builds the 406A for one fuel, and sells the propane heater as a separate part number. Its natural gas to propane conversion kits are sold by altitude.
What elevation is Raypak 017374 rated for?
0 to 2,000 ft, by Raypak's catalog. Raypak sells the same heater jetted for three bands: #50 for 0 to 2,000 ft, #51 for 2,000 to 6,000 and #52 for 6,000 to 9,000, each under its own part number.
What does the B mean in B-R406A-EN-C, 017374?
Bronze headers, which is Raypak's ASME certified version of the heater. Its P models have polymer headers. Whether a pool needs an ASME heater is for the local code and the inspector to say.
What power and connections does Raypak 017374 need?
120 or 240 VAC, single phase. Raypak's brochure gives 4 A at 120 V and 2 A at 240 V. The water connections are 2 inch and the gas connection 3/4 inch NPT.
What warranty does Raypak give the B-R406A-EN-C, 017374?
One year, by Raypak's catalog.
Where is the manual for the Raypak B-R406A-EN-C 017374?
Under Downloads on this page. It is Raypak's Digital Installation and Operation Manual for models 206A, 266A, 336A and 406A, part number 241236, which covers the bronze header ASME versions too.
