Waterco Micron S900 36 inch top mount fiberglass sand filter with multiport valveWaterco S900 Micron Top Mount Sand Filter with Valve, 2201364A$1,35799

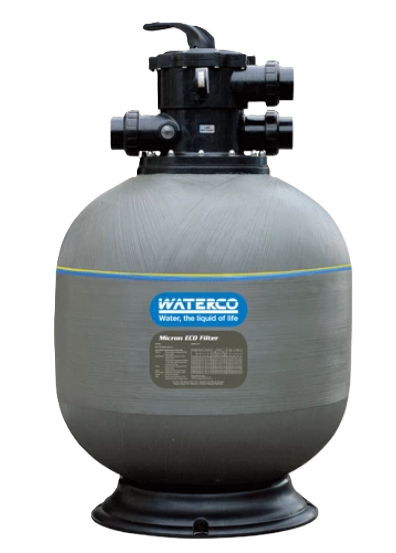

Waterco Micron S900 36 inch top mount fiberglass sand filter with multiport valve
Shop all Waterco

Waterco S900 Micron Top Mount Sand Filter with Valve, 2201364A

Ask a questionMPN 2201364A
$1,35799
FREE Delivery
Out of stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Depth filtration Dirt is driven into the sand bed and trapped between the grains, so filtering happens through the depth of the media rather than only at the surface.
  • Fiberglass wound tank UV and corrosion resistant, built for a life outdoors at the equipment pad.
  • 2 in. multiport valve Supplied with the valve, using quick connect barrel unions at the plumbing.
  • Even flow across the bed An inflow diffuser spreads incoming water so the whole bed is used, and hydraulically balanced laterals pull it back out evenly.
  • Serviceable A pressure gauge and a manual drain are built in.
  • Stable footing The large filter base is made for mounting flat on the equipment pad floor.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Waterco S900 Micron Top Mount Sand Filter with Valve, 2201364A, SKU BAK-05-2015. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Waterco S900 Micron Top Mount Sand Filter with Valve, 2201364A
Waterco

S900 Micron Top Mount Sand Filter with Valve, 2201364A

$1,35799
Pentair 2" Bottom Mount Pressure Gauge, 1/4" NPT, 15060-0000TZ
Sta-Rite

Pentair 2" Bottom Mount Pressure Gauge, 1/4" NPT, 15060-0000TZ

$5199
Subtotal

Similar products

Other products people compare with this one.

Pentair Triton II TR100 30 in. side mount sand filter tank, EC-140210 Pentair Triton II TR100 30" Side Mount Sand In-Ground Pool Filter, EC-140210$1,54900 Pentair Tagelus TA100D 30 in. top mount sand filter with 2 in. multiport valve, almond Pentair Tagelus TA100D Top Mount 30 in. Pool Sand Filter with 2 in. Multiport Valve, EC-145240$1,71599 Pentair Sand Dollar SD80 26 in. sand filter with top mount 1-1/2 in. multiport valve Pentair Sand Dollar SD80 26" Pool Sand Filter with Top Mount 1-1/2" Multiport Valve, EC-145333$76199 Pentair Triton II TR60 24 in. side mount sand filter tank, EC-140264 Pentair Triton II TR60 24" Side Mount In Ground Pool Sand Filter, EC-140264$1,24399 Pentair Tagelus TA60D 24 in. sand filter with top mount multiport valve Pentair Tagelus TA60D 24 in. Pool Sand Filter with Top Mount 1-1/2 in. Multiport Valve, EC-145241$93499 Hayward S244SLV Pro Series 24 in. side mount sand filter tank Hayward Pro Series 24 in. Side Mount Sand Filter, Valve Not Included, S244SLV$1,05199 Hayward S244S Pro Series 24 in. side mount sand filter with 1.5 in. valve Hayward Pro Series 24" Side Mount Sand Filter with 1.5" Valve, S244S$1,11099 Hayward Pro Series 24 in. top mount sand filter with SP0714T multiport valve Hayward Pro Series Top Mount Sand Filter 24" with Valve, W3S244T$83599 Hayward Pro Series 30 in. top-mount sand filter with 2 in. valve, part W3S310T2 Hayward Pro Series 30" Top-Mount Sand Filter with 2" TM Valve, W3S310T2$1,35799 Hayward Pro Series 24 inch top mount sand filter with 2 inch valve Hayward Pro Series Top Mount Sand Filter 24" with 2" Valve, W3S244T2$75900
Hayward W3S210T93S ProSeries 21 inch sand filter with SP0714T valve and 1.5 HP PowerFlo Matrix pump Hayward ProSeries 21" Sand Filter with 1.5 HP PowerFlo Matrix Pump, W3S210T93S$91900 Web Price Hayward W3S166T1580S Pro Series S166T sand filter system with multi-port valve and 1 HP pump Hayward Pro Series S166T 16" Sand Filter System with Valve and 1 HP Pump, W3S166T1580S$73900 Web Price Hayward Pro Series W3S270T2 27 inch top mount sand filter with 2 inch valve Hayward Pro Series 27 Inch Top-Mount Sand Filter with 2 Inch Valve, W3S270T2$89099 Hayward W3S270T Pro Series 27 inch top mount sand filter with 1.5 inch VariFlo valve Hayward Pro Series 27" Top Mount Sand Filter with 1.5" VariFlo Valve, W3S270T$73900 Web Price Hayward Pro Series S180T 18 inch sand filter with multiport valve and Power-Flo Matrix pump Hayward ProSeries 18" Sand Filter with 1.5 HP PowerFlo Matrix Pump, W3S180T93S$85900 Web Price Hayward ProSeries S180T 18 inch sand filter with SP0714T multiport valve and Power-Flo Matrix pump Hayward ProSeries 18" Sand Filter with 1 HP PowerFlo Matrix Pump, W3S180T92S$83900 Web Price Waterco Micron S600 top mount fiberglass sand filter with multiport valve Waterco S600 Micron Top Mount Sand Filter with Valve, 2201244A$79199 Hayward W3S210T ProSeries 21 in. top mount sand filter with top mount valve Hayward ProSeries 21 in. Top Mount Sand Filter with Top Mount Valve W3S210T$56900 Hayward Pro Series 18 inch sand filter with top mount valve, part W3S180T Hayward Pro Series 18" Sand Filter with Valve, W3S180T$49900 Aquamoto Nanowave 24 in. sand pool filter with 1-1/2 in. multiport valve Aquamoto Nanowave 24" Sand Pool Filter with 1-1/2" Valve, 10-402415$42199

Product details

The Waterco Micron S900 is a 36 inch top mount sand filter supplied with a 2 inch multiport valve. It offers 6.85 sq ft of filter area and is rated at 134 GPM, and it carries part number 2201364A.

How it filters

Micron filters work by depth filtration. Water is pushed down into the sand bed and dirt is trapped in the tiny spaces between the grains, so the whole depth of the media is doing work rather than just the top layer. Cleaned water passes through the laterals at the base and leaves through the multiport valve.

Built for the pad

The tank is fiberglass wound and rated UV and corrosion resistant. An inflow diffuser spreads incoming water evenly across the bed, and hydraulically balanced laterals draw it back out without channeling. A pressure gauge and a manual drain are built in, and the large base sits flat on the equipment slab.

Working pressure is 36 psi with a maximum working temperature of 50 C, which is 122 F.

Specifications
Brand Waterco
Manufacturer part number 2201364A
Model Micron S900
Type Top mount sand filter
Tank size 36 in.
Filter area 6.85 sq ft
Flow rate 134 GPM
Valve 2 in. multiport with quick connect barrel unions
Tank material Fiberglass wound, UV and corrosion resistant
Laterals Hydraulically balanced
Inlet Inflow diffuser
Working pressure 36 psi
Maximum working temperature 50 C (122 F)
Drain Manual
Gauge Pressure gauge
Shipping weight 92 lb
Ships Freight

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

Customer reviews

More from Waterco

Waterco Baker-Hydro 51B1024 skimmer vac plate with plug, cord and gasket Waterco Baker-Hydro Skimmer Vac Plate, 51B1024$10999 Baker Hydro 51B1026 skimmer strainer basket assembly with handle Baker Hydro OEM Strainer Basket Assembly (Includes Basket and Handle), 51B1026$3699 Waterco MultiCyclone 16 centrifugal pre-filter, part 200370 Waterco MultiCyclone 16 Centrifugal Pre-Filter, 200370$38999 Waterco 51B1017 Baker Hydro beige skimmer deck lid Waterco Baker Hydro Skimmer Lid, 51B1017$3999 Waterco 16V1275 Ultra-Vac portable pool vacuum cart with 3/4 HP pump and MultiCyclone 12 Ultra Waterco Portable Ultra-Vac Cart with 3/4 HP Pump, 75 sq ft Filter with MultiCyclone 12 Ultra, 16V1275$3,27799 Baker Hydro deluxe gunite in-ground pool skimmer, Waterco 50W1051 Waterco Baker Hydro Deluxe Gunite In-Ground Pool Skimmer, 50W1051$17199 Waterco Micron S600 top mount fiberglass sand filter with multiport valve Waterco S600 Micron Top Mount Sand Filter with Valve, 2201244A$79199 Waterco 2290820 3 inch sand filter multiport valve with plumbing Waterco 3" Sand Filter Multiport Valve with Plumbing, 2290820$49099 Waterco 14652 check valve with 2 in. internal and 2-1/2 in. external ports Waterco 2" to 2-1/2" Check Valve, 14652$4199 Waterco CC150 150 square foot replacement filter cartridge, part 62051 Waterco CC150 Replacement Cartridge Filter, 62051$14399
Baker Hydro 51B1047 skimmer faceplate gasket Baker Hydro Skimmer Faceplate Gasket, 51B1047$2599 Waterco 200372 MultiCyclone support stand Waterco MultiCyclone Support Stand, 200372$8599 Waterco 63406550 2 inch to 2.5 inch union adaptor Waterco 2" to 2.5" Union Adaptor, 63406550$3899 Baker Hydro 51B1025 skimmer faceplate, 12 in. by 9.63 in. face frame Baker Hydro Skimmer Faceplate, 51B1025$3299 Waterco 634024BLK 2 inch half union with o-ring Waterco 2" Half Union with O-Ring, 634024BLK$2499 Waterco MultiCyclone 16 sediment bowl, part 61302 Waterco MultiCyclone 16 Sediment Bowl, 61302$14899 Waterco O-Ring HRV Sand Filter | 00B7027 Waterco O-Ring HRV Sand Filter | 00B7027$1599 Waterco Skimmer Basket Only | 51B1005 Waterco Skimmer Basket Only | 51B1005$3099

Questions and answers

What people ask about this product, answered by our pool techs.

Does it come with the valve?
Yes. The filter is supplied with a 2 in. multiport valve that connects with quick connect barrel unions.
How much water will it handle?
It is rated at 134 GPM through 6.85 sq ft of filter area on a 36 in. tank.
How does a sand filter actually clean the water?
By depth filtration. Water is driven down through the bed and dirt is caught in the small spaces between the sand grains, while the clean water carries on through the laterals and out of the multiport valve.
What are the pressure and temperature limits?
Working pressure is 36 psi and the maximum working temperature is 50 C, which is 122 F.
Ask your own question
