Perma-Cast Aluminum Ladder Flange 1.5" OD Tubing, White$1718
Quick overview
- For 1.5 in. OD tubing Sized to accept a 1.5 in. outside diameter rail or ladder leg.
- White powder coated aluminum Coated finish over an aluminum body, with a stainless steel bolt.
- Three mounting holes The bottom flange carries three holes, 2-5/16 in. center to center.
- Set screw from the side A threaded hole in the flange body takes the bolt, with the center of the hole 5/8 in. down from the top.
- Usually above ground Almost always used with above ground equipment.
- Round deck mount Round body with a flat flange at the bottom, 3-3/8 in. across at the base and 2-3/8 in. tall.
Similar products
Other products people compare with this one.
Product details

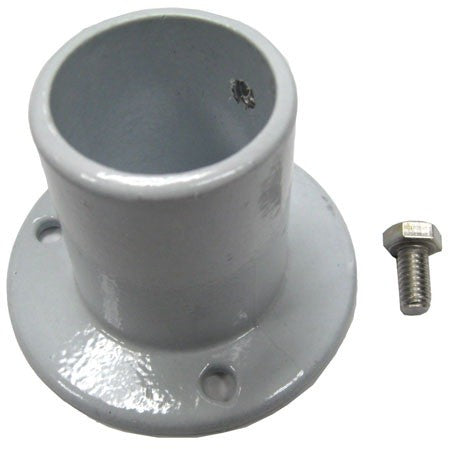

The Perma-Cast PF-2115-L is a deck mounted round flange for 1.5 in. outside diameter ladder or rail tubing. The body is white powder coated aluminum and it comes with a stainless steel bolt.
Shape and size
The flange is round, with a flat mounting flange at the bottom carrying three holes spaced 2-5/16 in. center to center. It measures 3-3/8 in. across the bottom flange, 1-3/8 in. across the top, 1-9/16 in. inside diameter at the top opening, and stands 2-3/8 in. tall. A threaded hole in the body takes the bolt that clamps the tube, with the center of that hole 5/8 in. down from the top.
Where it is used
Almost always with above ground equipment. Measure the tube before you order: this flange is built around 1.5 in. OD tubing, and a rail that measures anything else will not seat properly no matter how hard the bolt is driven.
| Brand | Perma-Cast |
|---|---|
| Manufacturer part number | PF-2115-L |
| UPC | 812163030264 |
| Type | Deck mounted round ladder flange |
| Material | White powder coated aluminum |
| Hardware | Stainless steel bolt |
| Accommodates | 1.5 in. OD rail or ladder tubing |
| Outside diameter, bottom mounting flange | 3-3/8 in. |
| Outside diameter, top of flange | 1-3/8 in. |
| Inside diameter, top inside | 1-9/16 in. |
| Height | 2-3/8 in. |
| Mounting holes | 3 |
| Mounting hole spacing | 2-5/16 in. center to center |
| Bolt hole | Threaded hole in the flange body, center bolt hole 5/8 in. from the top |
| Typical use | Above ground equipment |
| Shipping weight | 0.9 lb |
| Ships | Parcel |
