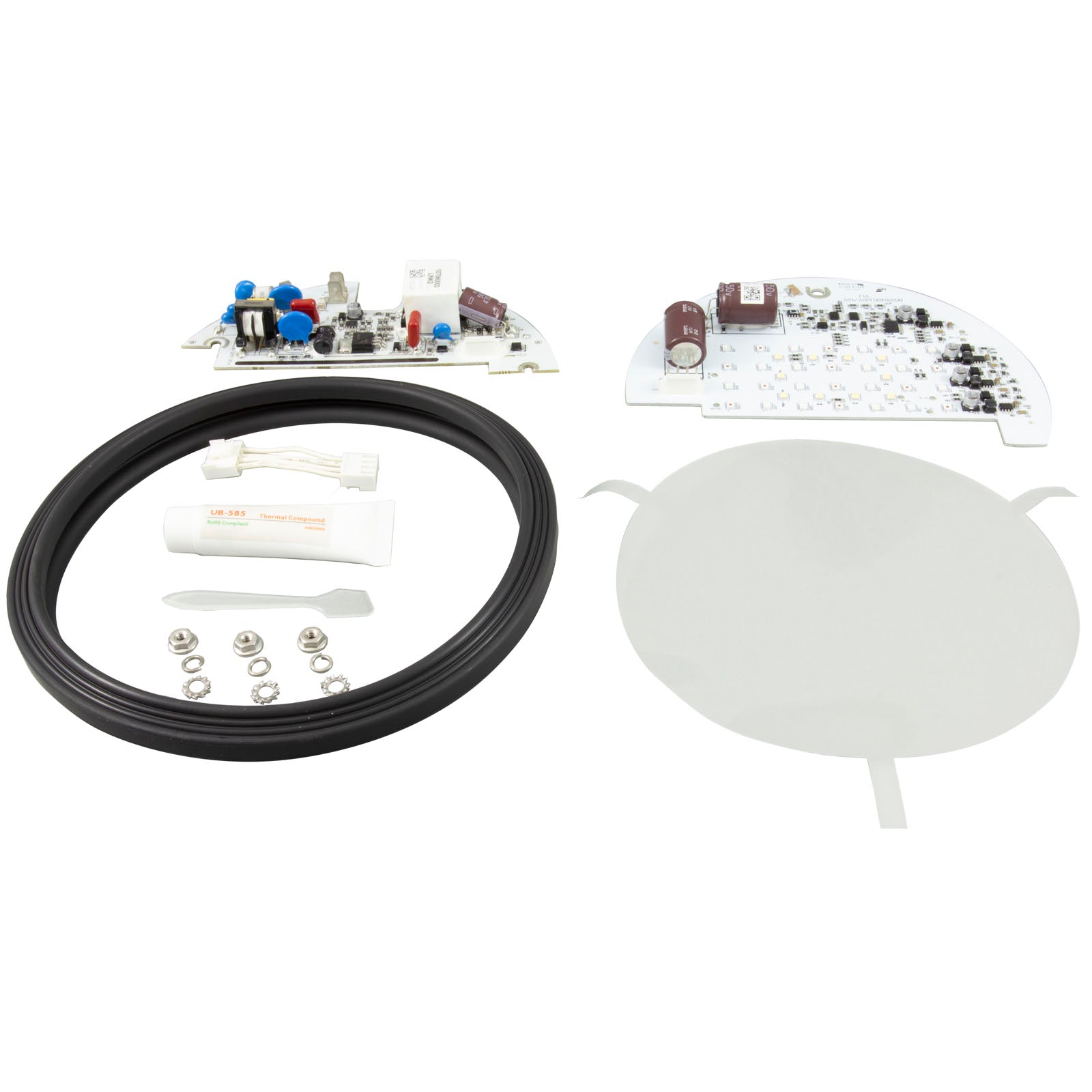

Jandy R0739400 light engine PCB for large LED pool light, light shaping diverge, 120VJandy Light Engine PCB Large LED Light with Light Shaping Diverge 120V, R0739400 In stock$1,01999
Jandy R0739400 light engine PCB for large LED pool light, light shaping diverge, 120V
Shop all Jandy

Jandy Light Engine PCB Large LED Light with Light Shaping Diverge 120V, R0739400

Ask a questionMPN R0739400
$1,01999
FREE Delivery
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Genuine Jandy factory part R0739400.
  • Light engine PCB the LED board that produces the light inside the fixture.
  • Large LED light for the large size Jandy LED pool light, not the small.
  • Light shaping diverge the diverge optic version, matched to that lens.
  • 120V for the 120V fixture, not the 12V.
  • Repair rather than replace swap the board and keep the installed niche and housing.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Jandy Light Engine PCB Large LED Light with Light Shaping Diverge 120V, R0739400, SKU JDY-301-0824. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Jandy Light Engine PCB Large LED Light with Light Shaping Diverge 120V, R0739400
Jandy

Light Engine PCB Large LED Light with Light Shaping Diverge 120V, R0739400

$1,01999
Jandy Pro Series Silicone Gasket, Large Pool Light, R0790500
Jandy

Pro Series Silicone Gasket, Large Pool Light, R0790500

$3999
Jandy Pro Series WaterColors LED RGBW Lens Gasket, Silicone, R0791100
Jandy

Pro Series WaterColors LED RGBW Lens Gasket, Silicone, R0791100

$3599
Jandy Silicone Gasket, Small Spa Light, R0400500
Jandy

Silicone Gasket, Small Spa Light, R0400500

$3599
Jandy 120V/12V PCB LED Light Engine, R0473900
Jandy

120V/12V PCB LED Light Engine, R0473900

$84099
Jandy Gray Plastic Face Ring, R0450804
Jandy

Gray Plastic Face Ring, R0450804

$4599
Jandy 25 Watt G4 12V Replacement Bulb Kit for Pool and Spa Lights, R0400300
Jandy

25 Watt G4 12V Replacement Bulb Kit for Pool and Spa Lights, R0400300

$5999
Subtotal

Similar products

Other products people compare with this one.

S.R. Smith 3TR-pLX-PL60 poolLUX Plus 60 watt kit with three Treo LED lights and remote S.R. Smith poolLUX Plus Lighting Control System with 60 Watt 120V Transformer, 3 Treo LED Lights and Remote, 3TR-pLX-PL60$1,47499 Pentair 619875Z IntelliBrite 5g white LED 300W replacement engine Pentair IntelliBrite 5g White LED 300W Replacement Engine, 619875Z$54599 Pentair 619818Z IntelliBrite 5G color LED engine replacement kit Pentair IntelliBrite 5G Color LED Engine Replacement Kit, Includes Gasket, 619818Z$68999 Pentair 619917Z IntelliBrite 5G 55 W white LED replacement light engine with gasket Pentair IntelliBrite 5G 55W White Engine, 619917Z$58399 Pentair 600095 stainless steel IntelliBrite face ring assembly with clamp and gasket Pentair Stainless Steel IntelliBrite LED Pool Light Face Ring Assembly with Gasket, 600095$10299 Pentair 79200700 standard 10 hole gasket set with double wall gasket for large stainless steel light niches Pentair Standard 10 Hole Gasket Set with Double Wall Gasket for Large Stainless Steel Light Niches, 79200700$8499 Pentair 590104Z ColorVision LED light bubbler lens with o-ring Pentair ColorVision Lens with O-Ring for LED Light Bubbler, 590104Z$2899 Hayward BPCUS11120 120V ColorLogic color LED pool light bulb Hayward BPCUS11120 120V ColorLogic Color LED Bulb, BPCUS11120$30899 Pentair 78232500 Amerlite large stainless steel light niche for vinyl and fiberglass pools, 1 in. rear hub Pentair Amerlite Large Stainless Steel Light Niche for Vinyl and Fiberglass Pools, 1 in. Rear Hub, 78232500$18999 Hayward SPX0540A light face plate with studs for Duralite underwater lights Hayward Light Face Plate with Studs, SPX0540A$6699
Blue Square VLB2501-WT Vivid 360 white LED spa bulb, 20W 120V Blue Square Vivid 360 White LED Spa Bulb 20W 120V, VLB2501-WT$6599 Pentair 620400Z 8-3/8 inch silicone gasket for IntelliBrite 5G color LED pool light Pentair 8-3/8" Silicone Gasket for IntelliBrite 5G Color LED Pool Light, 620400Z$5599 Pentair 590106Z white ColorVision LED light bubbler ring for vinyl and fiberglass pools Pentair ColorVision LED Light Bubbler Lock Ring Kit, White, for Vinyl and Fiberglass, 590106Z$5499 Pentair 590102Z gunite cover and o-ring kit for the ColorVision LED light bubbler Pentair ColorVision LED Light Bubbler Gunite Cover and O-Ring Kit, 590102Z$3999 Hayward SPX0580B pool light clamp assembly with screw, nut and washer Hayward Light Clamp Assembly with Screw, Nut and Washer, SPX0580B$3599 CMP 25503-509-400 gunite pool dry conduit wall fitting for a 1.5 inch LED light CMP Gunite Pool Dry Conduit Wall Fitting for 1.5" LED Light, 25503-509-400$3599 Pentair 590135 eyeball assembly kit for the ColorVision LED light bubbler Pentair Eyeball Assembly Kit for ColorVision LED Light Bubbler, 590135$3099 Pentair 590127Z gray color ring for the ColorVision LED light bubbler Pentair Color Ring for ColorVision LED Light Bubbler, Gray, 590127Z$2399 Waterway 630-5005 3-1/4 inch spa light wall fitting with reflector for a 2-5/8 inch hole Waterway 3-1/4" Spa Light Wall Fitting with Reflector (2-5/8" Hole Size), 630-5005$2099 CMP 25503-510-100 vinyl pool dry conduit wall fitting for a 1.5 inch LED light CMP Vinyl Pool Dry Conduit Wall Fitting 1.5" LED Light, 25503-510-100$1899

Product details

The Jandy R0739400 is a light engine PCB for the large Jandy LED pool and spa light with the light shaping diverge optic, 120V. The light engine is the circuit board that carries the LEDs, so replacing it restores a dead or failing fixture without replacing the whole light.

Match three things

Jandy makes light engines for the small and large LED lights, and the large light comes in 12V and 120V versions. Jandy's replacement kit instructions list the large LED light engine with the light shaping diverger as separate 12V and 120V parts. Confirm the large size, the diverge optic and 120V against your fixture before you order.

How Jandy replaces it

Switch off the main breaker for the light circuit first. Jandy's instructions have you take the light out of the pool wall, which can be done under water without lowering the water level. Inside the fixture you remove the three nuts and washers, unplug the quick disconnect terminals, lift out the old board, and fit the new one with two nylon washers and two nuts torqued to 9 in-lbs. On a 120V large light the white wire goes to terminal J2 and the black wire to J3.

Before you reassemble

Jandy says to install a new lens gasket whenever the light is taken apart. The work should be done by a technician qualified in pool and spa electrical installation.

Specifications
Brand Jandy
Manufacturer part number R0739400
UPC 052337074513
Type Light engine PCB
Light size Large LED light
Optics Light shaping diverge
Voltage 120V
Replacement instructions Jandy H0312000, Pool/Spa Light Parts Replacement Kit
Shipping weight 1 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

From Jandy

A swimmer diving from the blocks in a dark pool. Everything you need for the perfect pool. Jandy

Jandy equipment

Jandy AquaLink AquaPure 3-Port 14-Blade Replacement Salt Cell Kit, 40K Gallons, 16' Cable, PLC1400 Jandy 2" Side Mount Multi-Port Valve with Unions for DEV48/60, JS60-SM or JS100-SM, BWVL-MPV-80 Jandy TruGuard Mineral Sanitizer Replacement Cartridge, TRUGUARDR Jandy 1-1/2 in. x 2 in. Neverlube Positive Seal 3-Port Diverter Valve, 4715
Shop Jandy equipment

Genuine Jandy parts

Jandy TruClear PCB Cell Replacement Assembly for Pro Series Chlorine Generator, R0693900 Jandy Lid & Lock-Ring Assembly with Seal, PHPF/PHPM, R0448800 Jandy Genuine Replacement Gauge with Air Release Assembly, R0357200 Jandy Replacement Bottom Tank Assembly for CL & DEV Model Filters, R0466500
Shop Jandy parts
Heater parts: a Jandy JXi heaterPump parts: a Jandy VS FloPro variable speed pumpSalt systems: a Jandy AquaPure salt cell
Jandy makes pumps, filters, heaters, salt chlorinators, valves, lighting and automation for pools and spas.Shop all Jandy

Customer reviews

More from Jandy

Jandy R0693900 TruClear PCB replacement assembly Jandy TruClear PCB Cell Replacement Assembly for Pro Series Chlorine Generator, R0693900$75499 Jandy R0452500 new style port sensor kit for 3 port AquaPure cell with 16 ft cable Jandy Port Sensor Kit for 3 Port Cell with 16' Cable, R0452500$29999 Jandy R0448800 clear pump lid and black lock ring assembly with seal, PHPF/PHPM Jandy Lid & Lock-Ring Assembly with Seal, PHPF/PHPM, R0448800$7899 Jandy PLC1400 AquaPure 3 port 14 blade replacement salt cell kit with 16 ft cable Jandy AquaLink AquaPure 3-Port 14-Blade Replacement Salt Cell Kit, 40K Gallons, 16' Cable, PLC1400$1,39500 Jandy R0452400 AquaPure PureLink 3-port 14-blade replacement salt cell Jandy AquaPure PureLink 3-Port 14-Blade 1400 Replacement Salt Cell Kit for 40,000 Gallon Pools, R0452400$1,22900 Jandy R0466500 replacement bottom tank assembly for CL and DEV filters with unions, outlet elbow and retaining ring Jandy Replacement Bottom Tank Assembly for CL & DEV Model Filters, R0466500$76899 Jandy R0984100 AquaPure power interface PCB large backboard with screws Jandy AquaPure Power Interface PCB, Large Backboard with Screws, R0984100$23999 Zodiac R0503000 Nature2 Fusion Soft 1400 replacement cell kit for pools to 40,000 gallons Zodiac Nature2 Fusion Soft 1400 Cell Kit for 40,000-Gallon Pools, R0503000$1,04900 Jandy BWVL-MPV-80 2 in. side mount multiport valve with unions Jandy 2" Side Mount Multi-Port Valve with Unions for DEV48/60, JS60-SM or JS100-SM, BWVL-MPV-80$32799 Jandy R0357200 pressure gauge with air release assembly, front view Jandy Genuine Replacement Gauge with Air Release Assembly, R0357200$7999
Jandy R0445800 pump lid and locking ring assembly with o-ring for Stealth and ePump pumps Jandy Lid & Locking Ring Assembly with O-Ring, R0445800$11799 Jandy R0554700 tank top for CV, CL, DEV and DEL series filters Jandy CV Series Cartridge Filter Tank Top R0554700$52299 Jandy R0402800 16 ft AquaPure PureLink DC cell cord for the 3-port cell Jandy 16' AquaPure PureLink DC Cell Cord, R0402800$2499 Jandy R0452300 AquaPure PureLink 3-port 7-blade replacement salt cell kit with 16 ft cord Jandy AquaPure PureLink 3-Port 7-Blade Replacement Cell Kit, R0452300$91399 Jandy 4424 JVA 24V valve actuator Jandy Valve Actuator JVA 24V, 4424$23399 Jandy R0479800 pump housing body for FloPro FHPM and VS FloPro pumps Jandy Pump Housing Body for FHPM FloPro & VS FloPro, R0479800$24999 Jandy R0461900 gray top housing assembly for CS100 and CS150 cartridge filters Jandy Top Housing Assembly CS100, CS150, R0461900$33199 Jandy TRUGUARDR TruGuard mineral sanitizer replacement cartridge Jandy TruGuard Mineral Sanitizer Replacement Cartridge, TRUGUARDR$24899 Jandy R0445601 pump body for Stealth SHPF/SHPM, WaterFall SWF and ePump JEP, rear view Jandy Pump Body for Stealth SHPF/SHPM Pumps, R0445601$38199 Jandy R0663800 cover assembly with user interface for the TruClear chlorine generating system Jandy Cover Assembly with User Interface for TruClear Chlorine Generating System, R0663800$41999

Questions and answers

What people ask about this product, answered by our pool techs.

What is a light engine?
The circuit board carrying the LEDs inside the fixture. Replacing it restores the light without replacing the whole housing.
Which Jandy light does it fit?
The large LED light with the light shaping diverge optic, 120V version. Confirm size, optic and voltage against your existing fixture.
Will it work on a 12V light?
No. This is the 120V board.
Is it genuine Jandy?
Yes, R0739400 is the factory Jandy part.
