Pentair Amerlite Large Stainless Steel Light Niche for Vinyl and Fiberglass Pools, 1 in. Rear Hub, 78232500 In stock$18999

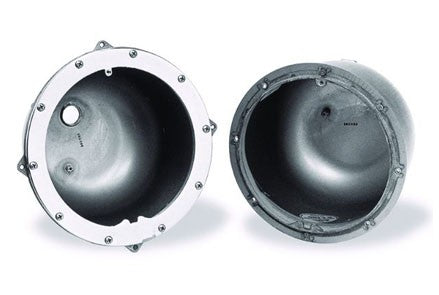

Pentair Amerlite Large Stainless Steel Light Niche for Vinyl and Fiberglass Pools, 1 in. Rear Hub, 78232500
$18999
FREE Delivery
Typically ships within 0 days This item ships directly from the manufacturer.
In stock
30 day returns · Easy, with prepaid labels provided
Quick overview
- Vinyl and fiberglass walls The large Amerlite niche for vinyl liner and fiberglass pools, separate from the concrete and gunite niches.
- 1 in. rear hub A 1 in. brass hub at the back of the niche takes the conduit.
- Standard 10 hole pattern Built on the standard 10 hole pattern and sealed with a chrome/brass sealing ring and sandwich gasket.
- Bonding lugs inside and out Internal and external bonding lugs let it run with either metal or PVC conduit.
- Stainless steel housing The niche body is 10 in. O.D. max with a 12-3/16 in. O.D. max flange.
- Pentair lights only Pentair says to install only Pentair lights in its niches so bonding and grounding connections are correct.
Need a hand?
Bilingual support from pool professionals.
Frequently bought together
Current item
Pentair
Amerlite Large Stainless Steel Light Niche for Vinyl and Fiberglass Pools, 1 in. Rear Hub, 78232500
$18999
Pentair
Amerlite Pool Light for Inground Pools with Stainless Steel Facering, 500W 120V 50' Cord, EC-602128
$43900
Web Price
Some manufacturers don’t allow us to publicly display their best prices online. When you request an Unadvertised Deal, you’re asking us to unlock a special offer that isn’t shown on the site.
Get your unadvertised price ›
Get your unadvertised price ›
Subtotal
Similar products
Other products people compare with this one.
Pentair Niche Amerlite 10 Hole Fiber Liner .75" | Stainless Steel | 78232400$22599
Pentair Amerlite Niche Sealing Ring, 79200100$15000
Web Price
Pentair Niches SS Amerlite Concrete .75" Rear | 78210700$13599
Pentair ColorVision Gunite Niche Kit, 580037$14399
Pentair Vinyl Niche for GloBrite White Pool and Spa LED Lights, 620039$2599
Pentair Vinyl Replacement Face Plate Kit for GloBrite White and Color LED Lights, 620054$4399
Pentair Stainless Steel Face Ring Assembly, 79110600$9199
Pentair Concrete Amerlite PVC Niche, 79206700$8799
Pentair SpaBrite Stainless Steel Face Ring Assembly, 79111600$8699
Pentair 8-3/8" Silicone Gasket for IntelliBrite 5G Color LED Pool Light, 620400Z$5599
Pentair Gasket for 8-3/8" Light Lens, 79101600Z$3699
Pentair 4" Rubber Lens Gasket for SpaBrite and AquaLight, 79108500Z$2099
Pentair Pilot Screw, Stainless Steel with Captive Gum Washer, 619355Z$1399
Pentair Fuse Harness Kit for 12V IntelliBrite 5G White LED Lights, 620276$3099
Pentair IntelliBrite 5G Lens Kit, 619864Z$8699
Pentair 4" AquaLight Silicone Lens Gasket, White, 79108600$4399
Product details
The Pentair 78232500 is the large Amerlite stainless steel light niche for vinyl liner and fiberglass pools, with a 1 in. brass rear hub and the standard 10 hole pattern. The niche is the fixture housing set into the pool wall that the underwater light mounts in.
What it is
A stainless steel housing, 10 in. O.D. max at the body with a 12-3/16 in. O.D. max flange, with internal and external bonding lugs so it can be run with metal or PVC conduit. It seals to the wall with a chrome/brass sealing ring and a sandwich gasket, and the screws for fastening the ring and gasket are provided.
Which lights
Pentair's vinyl liner and fiberglass niche guide lists this niche for Pentair wet niche fixtures in the 783XXX, 784XXX, 788XXX and 789XXX series, and Pentair lists its IntelliBrite 5G white LED pool lights as compatible with its stainless steel niches. Use only Pentair lights in it so the bonding and grounding connections are correct.
Installation notes
The wall panel cutout is 10-5/8 to 10-7/8 in. across. In the USA, Pentair requires the pilot screw hole at 12 o'clock, the top of the lens at least 18 in. below the water, the niche bonded to all metal within 5 ft of the pool with No. 8 AWG wire, and installation by a licensed or certified electrician. With PVC conduit, a No. 8 AWG bonding wire runs to the lug inside the niche, and the connection is sealed with a listed sealant such as Pentair 60028300.
| Brand | Pentair |
|---|---|
| Manufacturer part number | 78232500 |
| UPC | 788379648800 |
| Type | Large stainless steel light niche (fixture housing) |
| Series | Amerlite |
| Pool type | Vinyl liner and fiberglass |
| Hub | 1 in. brass, rear |
| Hole pattern | Standard 10 hole |
| Niche body | 10 in. O.D. max |
| Niche flange | 12-3/16 in. O.D. max |
| Wall panel cutout | 10-5/8 in. min to 10-7/8 in. max diameter |
| Bonding | Internal and external bonding lugs, for metal or PVC conduit |
| Sealing | Chrome/brass sealing ring and sandwich gasket |
| For use with | Pentair wet niche light fixtures 783XXX, 784XXX, 788XXX and 789XXX |
| Replacement parts | 79200200 liner sealing ring, 79200700 gasket set, 634595 back-up ring |
| Shipping weight | 8.05 lb |
| Ships | Parcel |
Request a quote
Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.
From Pentair
Pentair equipment
Pentair SuperFlo VS 1.5 HP Variable Speed Pool Pump, EC-342001
Pentair MasterTemp 400 Natural Gas Pool Heater, EC-462028
Pentair Clean & Clear Plus 420 sq ft Cartridge Pool Filter, EC-160301
Pentair IntelliConnect Control & Monitoring System with Wi-Fi, EC-523317
Genuine Pentair parts
Pentair Genuine OEM Seal Kit for WhisperFlo and IntelliFlo Pool Pumps, 356198
Pentair Genuine OEM High Flow Manual Air Relief Valve, 98209800
Pentair Genuine OEM FNS Plus Element Assembly Complete, 48 Sq Ft, 59023400
Pentair Genuine OEM MasterTemp/Max-E-Therm 6-Button Control Board Kit, 461105Z
Pentair makes pumps, filters, heaters, salt chlorinators, cleaners, lighting and automation for pools and spas.Shop all Pentair
Customer reviews
Verified store reviews
SHOPPER APPROVED
See all reviews →
More from Pentair
Pentair SuperFlo VS 1.5 HP Variable Speed Pool Pump, EC-342001$1,48900
Pentair SuperFlo 1 HP Single Speed Pool Pump, 115/230V, EC-348190$74800
Pentair WhisperFlo VS 2.6 THP Variable Speed Pool Pump, 115/208-230V, EC-011533$1,79900
Pentair Genuine OEM HiFlow Valve 1.5 in. 6-Way Clamp Style, 262506$20399
Pentair 110/220V IntelliChlor Salt Chlorine Generator Power Center, EC-520556$79900
Web Price
Pentair IntelliChlor Plus and LT Replacement Sensor Board, 523769$39299
Pentair 3.2 kW IntelliFloXF VSF, VSF, VS+SVRS, i1, i2 Motor, 350305S$78199
Pentair IntelliChlor Plus40 Salt Chlorine Generator Replacement Cell, 40,000 Gallons, 523735-EC$1,81900
Web Price
Pentair Rainbow 320 In-Line Chlorinator, R171096$14499
Pentair Genuine OEM Clamp Kit with Tension Control, 190003$30199
Pentair IntelliChlor LT25 Salt Chlorine Generator Cell, 25,000 Gallons, 523747-EC$1,14900
Pentair IntelliFlo VS+SVRS Variable Speed Pool Pump, EC-011057$2,39900
Sta-Rite 170145 System 3 S7M120 Large and Small Cartridge Set, 25021-0200S and 25022-0201S$46499
Pentair 2 in. Multiport Valve Kit for Side Mount Sand Filters, SM-20-3, 261055$29999
Pentair IntelliChlor Plus Controller Replacement (HMI), Black, 523770$38399
Pentair 2" Valve Kit Multiport, Side Mount DE Filters SM20-2, 261152$29799
Pentair WhisperFlo and IntelliFlo Volute Housing Replacement Kit, 357149$28799
Pentair MicroBrite Color LED Pool Light 12 Volt, 14 Watt with 100' Cord, EC-620425$61900
Pentair Genuine OEM FNS Plus Element Assembly Complete, 48 Sq Ft, 59023400$39399
Pentair Amerlite Pool Light for Inground Pools with Stainless Steel Facering, 500W 120V 50' Cord, EC-602128$43900
Web Price
Questions and answers
What people ask about this product, answered by our pool techs.
Which lights fit the Pentair 78232500 niche?
Pentair's vinyl liner and fiberglass niche guide lists the 78232500 style of niche for its wet niche light fixtures in the 783XXX, 784XXX, 788XXX and 789XXX series, and Pentair lists its IntelliBrite 5G white LED pool lights as compatible with Pentair stainless steel niches. Pentair says to install only Pentair lights in its niches so the bonding and grounding connections are correct.
Is the Pentair 78232500 niche for a concrete pool?
No. The Pentair 78232500 is the large niche for vinyl liner and fiberglass pool walls. Pentair makes a separate large stainless steel niche for concrete and gunite pools.
What size hole does the Pentair 78232500 niche need?
Pentair calls for a circular wall panel cutout of 10-5/8 in. minimum to 10-7/8 in. maximum diameter for this niche, which has a 12-3/16 in. O.D. flange. Pentair's Amerlite niche template, part 620002, is the reference for hole placement.
How is the Pentair 78232500 niche installed?
In the USA, Pentair requires the 78232500 niche to be installed by a licensed or certified electrician with the pilot screw hole at 12 o'clock and the top of the light's lens at least 18 in. below the water surface. The niche is bonded to all metal within 5 ft of the pool with No. 8 AWG wire, and with PVC conduit a No. 8 AWG bonding wire runs to the lug inside the niche.
