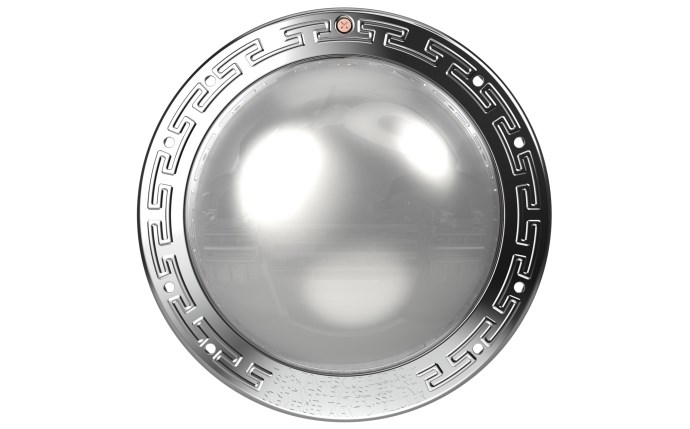

Pentair 602183 IntelliBrite Architectural Series white LED pool lightPentair IntelliBrite Architectural Series White LED Pool Light Fixture, 120V 300W Equivalent 100' Cord, 602183 In stock$84399
Pentair 602183 IntelliBrite Architectural Series white LED pool light
Shop all Pentair

Pentair IntelliBrite Architectural Series White LED Pool Light Fixture, 120V 300W Equivalent 100' Cord, 602183

Ask a questionMPN 602183
$84399
FREE Delivery
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • White LED Clean white light from an LED fixture rather than an incandescent bulb.
  • 300W equivalent Output comparable to a 300 watt incandescent pool light.
  • 120V fixture Wired for a 120 volt supply.
  • 100 ft cord Enough cord for long runs from the niche to the junction box.
  • Pool and spa lighting Pentair files the Architectural Series 120V lights under pool and spa lighting.
  • Genuine Pentair Part number 602183, UPC 788379907679.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Pentair IntelliBrite Architectural Series White LED Pool Light Fixture, 120V 300W Equivalent 100' Cord, 602183, SKU AMP-30-2037. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Pentair IntelliBrite Architectural Series White LED Pool Light Fixture, 120V 300W Equivalent 100' Cord, 602183
Pentair

IntelliBrite Architectural Series White LED Pool Light Fixture, 120V 300W Equivalent 100' Cord, 602183

$84399
Pentair GloBrite to MicroBrite Niche Adapter, 618040
Pentair

GloBrite to MicroBrite Niche Adapter, 618040

$2799
Pentair O-Ring Replacement Kit for GloBrite Light, 620057
Pentair

O-Ring Replacement Kit for GloBrite Light, 620057

$3599
Subtotal

Similar products

Other products people compare with this one.

Pentair Amerlite EC-602128 500W 120V inground pool light with stainless steel facering Pentair Amerlite Pool Light for Inground Pools with Stainless Steel Facering, 500W 120V 50' Cord, EC-602128$43900 Web Price J&J Electronics 25014P VU Retro-P RGBW nicheless LED pool light with 100 ft cord J&J Electronics VU Retro-P Replacement Nicheless LED Color RGBW Pool Light, 100' Cord, 25014P$47999 Pentair MicroBrite Color LED pool light EC-620425, 12 volt, 14 watt, with 100 ft cord Pentair MicroBrite Color LED Pool Light 12 Volt, 14 Watt with 100' Cord, EC-620425$61900 Hayward AstroLite W3SP0583L100 500W 120V underwater pool light with 100 ft cord and plastic trim ring Hayward AstroLite Series, 500W/120V, 100 Ft Cord, Plastic Trim Ring, W3SP0583L100$50900 Pentair MicroBrite Color LED pool and spa light 620426 with 150 ft cord, 12V 14W Pentair MicroBrite Color LED Light with 150' Cord, 12V 14W, 620426$55699 Pentair 620424 MicroBrite Color LED pool light, 12V 14W with 50 ft cord Pentair MicroBrite Color LED Light with 50 ft Cord, 12V 14W, 620424$44699 J&J Electronics 21075 PureWhite LED pool light, 120V cool white, 500W with 100 ft cord J&J Electronics PureWhite LED Pool Light HI Series, 120V Cool White, 500W 100 ft Cord, LPL-F3W-120-100-P, 21075$75299 Hayward W3LACUS11100 ColorLogic 320 LED accent light with 100 ft cord Hayward ColorLogic 320 LED Accent Light 12V, 100 ft Cord, W3LACUS11100$62900 Web Price J&J Electronics 21101 PureWhite LED spa light, 120V cool white, with 100 ft cord J&J Electronics PureWhite LED Spa Light, 120V Cool White, 100W Equivalent, 100' Cord, LPL-S1W-120-100-P, 21101$57299 Blue Square VLPP3030-P Vivid 360 multi-color LED pool light with plug kit, 12V 30W Blue Square Multi-Color Vivid 360 Pentair LED Pool Light with Plug Kit 12V 30W, VLPP3030-P$81899
Pentair MicroBrite warm white LED pool light with 100 ft cord Pentair MicroBrite Color and White LED Pool Light, Warm White, 100 ft Cord, EC-620457$52900 Web Price Pentair EC-602253 IntelliBrite Architectural Series warm white LED pool light, 120V, 100 ft cord Pentair 100' 120V 500W Warm White IntelliBrite Architectural Series Pool Light, EC-602253$1,03900 Web Price Pentair EC-602230 white LED spa light, IntelliBrite Architectural Series, 120V with 100 ft cord Pentair 100' 120V White Spa IntelliBrite Architectural Series Light, EC-602230$87900 Web Price Hayward LPCUS22100 Universal ColorLogic multi-color LED pool light Hayward Universal ColorLogic Multi-Color LED Pool Light, 12V, 100 ft Cord, LPCUS221005.0 (1) $1,03899 J&J Electronics PureWhite LED pool light, SwimQuip series, 120V with 50 ft cord J&J Electronics PureWhite LED Pool Light SwimQuip Series, 120V Cool White 500W 50' Cord, LPL-F3W-120-50-PSQ, 21053$73099 Pentair MicroBrite EC-620429 white LED pool and spa light with 100 foot cord Pentair MicroBrite White Pool and Spa LED Light, 12V 100' Cord, EC-620429$48900 Web Price J&J Electronics 23052 ColorSplash XG-W RGB and white LED pool light J&J Electronics ColorSplash XG-W Series RGB + White LED Pool Light, SwimQuip Version, 120V 300W 50 ft Cord, LPL-F1CW-120-50-PSQ, 23052$85899 Pentair EC-602224 IntelliBrite Architectural Series warm white spa light Pentair 100' 120V Warm White Spa IntelliBrite Architectural Series Light, EC-602224$80399 Pentair 602055 GloBrite color changing LED 12V pool light with 100 ft cord Pentair GloBrite Color Changing LED 12V Pool Light, 100 ft. Cord, 602055$47699 Pentair 602144 Intellibrite Architectural Series white 12V 300W pool light Pentair 50 ft 12V 300W White Pool Intellibrite Architectural Series Light, 602144$64999

From Pentair

Your trusted source for all things pool. Pentair

Pentair equipment

Pentair SuperFlo VS 1.5 HP Variable Speed Pool Pump, 2.2 THP, EC-342001 Pentair MasterTemp 400 Natural Gas Pool Heater, EC-462028 Pentair Clean & Clear Plus 420 sq ft Cartridge Pool Filter, EC-160301 Pentair IntelliConnect Control & Monitoring System with Wi-Fi, EC-523317
Shop Pentair equipment

Genuine Pentair parts

Pentair Genuine OEM Seal Kit for WhisperFlo and IntelliFlo Pool Pumps, 356198 Pentair Genuine OEM High Flow Manual Air Relief Valve, 98209800 Pentair Genuine OEM FNS Plus Element Assembly Complete, 48 Sq Ft, 59023400 Pentair Genuine OEM MasterTemp/Max-E-Therm 6-Button Control Board Kit, 461105Z
Shop Pentair parts
Pool lighting: a backyard pool and spa lit in blue and green at nightPool water treatment: three people floating on rings in clear blue water, seen from abovePool cleaners: a toddler in flower sunglasses laughing in a yellow ring, held by her mother
Pentair makes pumps, filters, heaters, salt chlorinators, cleaners, lighting and automation for pools and spas.Shop all Pentair

Product details

The Pentair IntelliBrite Architectural Series White LED Pool Light Fixture, part 602183, is a 120V white LED light rated at 300W incandescent equivalent, supplied with a 100 ft cord.

Where it fits in the series

Pentair files the Architectural Series 120V lights under pool and spa lighting, and lists 602183 as the 300W white light assembly with a 100 ft cord. The same white 300W assembly is sold in other cord lengths: 602181 at 30 ft, 602182 at 50 ft, 602184 at 150 ft and 602207 at 250 ft. The 500W white versions use 602177 to 602180 and 602208. Within a wattage and color, cord length is the difference, so pick the length that reaches your junction box without a splice.

Service parts

Pentair sells the pieces of this fixture separately. Its parts list for the 120V Architectural Series shows the 300W white LED board kit (618091z), the lens kit (602168), the face ring kit (79110600), the wire clamp kit (79111000), the gasket (620400z) and the fuse assembly (618085). That makes it possible to renew a worn lens, gasket or LED board without replacing the whole fixture.

Before you order

Confirm the voltage on your existing fixture. Pentair makes the Architectural Series in both 12V and 120V, and this part is the 120V version. Check the cord length and the white light color as well, since color and warm white assemblies carry different part numbers.

Specifications
Brand Pentair
Manufacturer part number 602183
UPC 788379907679
Series IntelliBrite Architectural Series
Light color White
Lamp type LED
Voltage 120V
Output 300W incandescent equivalent
Cord length 100 ft
Application Pool and spa
Lamp assembly in series 300W white, 120V; 100 ft cord is 602183 (other cords: 602181 30 ft, 602182 50 ft, 602184 150 ft, 602207 250 ft)
Replacement LED board kit 618091z, 300W white
Replacement lens kit 602168
Replacement gasket 620400z
Shipping weight 16.5 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

Customer reviews

More from Pentair

Pentair SuperFlo VS EC-342001 1.5 HP variable speed pool pump, front view Pentair SuperFlo VS 1.5 HP Variable Speed Pool Pump, 2.2 THP, EC-342001$1,48900 Pentair SuperFlo EC-348190 single speed pool pump, 1 HP, 115/230V Pentair SuperFlo 1 HP Single Speed Pool Pump, 1.1 THP, 115/208-230V, EC-3481905.0 (1) $75699 Pentair WhisperFlo VS EC-011533 2.6 THP variable speed pool pump, top view Pentair WhisperFlo VS / VST 2.6 THP Variable Speed Pool Pump, 115/208-230V, EC-011533$1,79900 Pentair 262506 HiFlow 1.5 in. six way clamp style multiport valve Pentair Genuine OEM HiFlow Valve 1.5 in. 6-Way Clamp Style, 262506$20399 Pentair EC-520556 IntelliChlor 110/220V power center Pentair 110/220V IntelliChlor Salt Chlorine Generator Power Center, EC-520556$79900 Web Price Pentair 523769 IntelliChlor Plus and LT replacement sensor board Pentair IntelliChlor Plus and LT Replacement Sensor Board, 5237695.0 (1) $39399 Pentair 350305S 3.2 kW 10 pole variable speed motor for IntelliFloXF and IntelliFlo 2 VST pumps Pentair 3.2 kW IntelliFloXF VSF, VSF, VS+SVRS, i1, i2 Motor, 350305S$78199 Pentair 523735-EC IntelliChlor Plus40 salt chlorine generator cell Pentair IntelliChlor Plus40 Salt Chlorine Generator Replacement Cell, 40,000 Gallons, 523735-EC$1,81900 Web Price Pentair Rainbow 320 in-line chlorinator R171096, front view Pentair Rainbow 320 In-Line Chlorinator, R171096$14699 Pentair 190003 tank clamp kit with tension control for Clean and Clear Plus, FNS Plus and Quad DE filters Pentair Genuine OEM Clamp Kit with Tension Control, 190003$30199
Pentair IntelliChlor LT25 salt chlorine generator cell 523747-EC Pentair IntelliChlor LT25 Salt Chlorine Generator Cell, 25,000 Gallons, 523747-EC$1,14900 Pentair IntelliFlo VS+SVRS variable speed pool pump, EC-011057 Pentair IntelliFlo VS+SVRS Variable Speed Pool Pump, 3 HP Max, 3.95 THP, 230V, EC-011057$2,67299 Pentair 170145 cartridge pack for Sta-Rite System 3 S7M120, inner and outer cartridges Sta-Rite System 3 S7M120 Large and Small Cartridge Set, 25021-0200S and 25022-0201S, 170145$48299 Pentair 261055 SM-20-3 2 in. side mount multiport valve kit, front view Pentair 2 in. Multiport Valve Kit for Side Mount Sand Filters, SM-20-3, 261055$29999 Pentair 523770 IntelliChlor Plus replacement controller (HMI), black Pentair IntelliChlor Plus Controller Replacement (HMI), Black, 5237705.0 (1) $38399 Pentair 261152 SM20-2 2 in. side mount multiport valve kit for DE filters Pentair 2" Valve Kit Multiport, Side Mount DE Filters SM20-2, 261152$29799 Pentair 357149 WhisperFlo and IntelliFlo volute housing replacement kit, front view Pentair WhisperFlo and IntelliFlo Volute Housing Replacement Kit, 357149$28799 Pentair MicroBrite Color LED pool light EC-620425, 12 volt, 14 watt, with 100 ft cord Pentair MicroBrite Color LED Pool Light 12 Volt, 14 Watt with 100' Cord, EC-620425$61900 Pentair 59023400 FNS Plus 48 sq ft complete DE grid assembly Pentair Genuine OEM FNS Plus Element Assembly Complete, 48 Sq Ft, 59023400$40199 Pentair Amerlite EC-602128 500W 120V inground pool light with stainless steel facering Pentair Amerlite Pool Light for Inground Pools with Stainless Steel Facering, 500W 120V 50' Cord, EC-602128$43900 Web Price

Questions and answers

What people ask about this product, answered by our pool techs.

Is the 602183 a pool light or a spa light?
Pentair files the Architectural Series 120V lights under pool and spa lighting. Part 602183 is the 300W white assembly with a 100 ft cord, so check the voltage and cord length against your existing fixture.
How bright is it?
Pentair rates it as the equivalent of a 300 watt incandescent pool light.
What voltage does it need?
It is a 120 volt fixture.
How long is the cord?
100 feet.
