Raypak B-R206A-EN-C 200K BTU natural gas ASME commercial pool heaterRaypak B-R206A-EN-C 200K BTU Natural Gas ASME Commercial Pool Heater, Digital IID, Bronze Header, Copper Heat Exchanger, 017371 In stock$3,68000

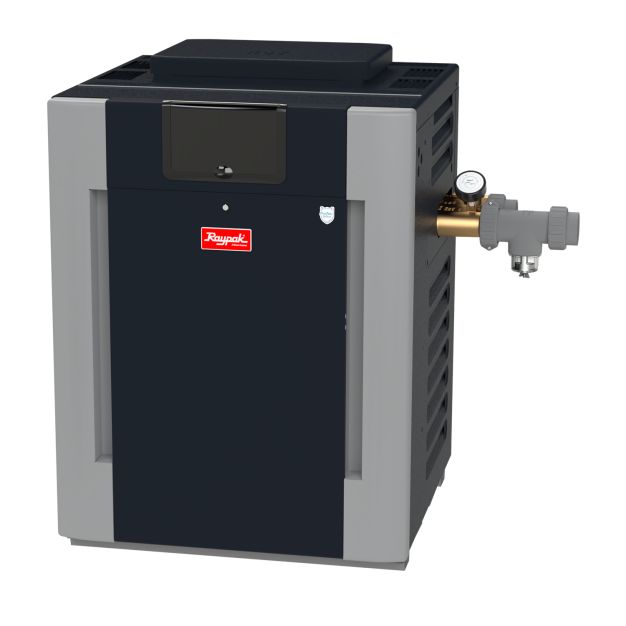

Raypak B-R206A-EN-C 200K BTU natural gas ASME commercial pool heater
Shop all Raypak

Raypak B-R206A-EN-C 200K BTU Natural Gas ASME Commercial Pool Heater, Digital IID, Bronze Header, Copper Heat Exchanger, 017371

Ask a questionMPN 017371
$3,68000
FREE Delivery
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • ASME commercial build The ASME rating is the one commercial pools and code driven jobs are written around.
  • 200K BTU on natural gas The smallest of the ASME natural gas commercial line.
  • Digital IID Digital intermittent ignition device control, so there is no standing pilot.
  • Bronze header Bronze holds up better than plastic where header temperatures and pressures run high.
  • Copper heat exchanger The standard copper exchanger, for balanced water on a maintained pool.
  • Rated to 2000 ft Factory set for installations from 0 to 2000 ft of elevation.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Raypak B-R206A-EN-C 200K BTU Natural Gas ASME Commercial Pool Heater, Digital IID, Bronze Header, Copper Heat Exchanger, 017371, SKU BR206AENC. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Raypak B-R206A-EN-C 200K BTU Natural Gas ASME Commercial Pool Heater, Digital IID, Bronze Header, Copper Heat Exchanger, 017371
Raypak

B-R206A-EN-C 200K BTU Natural Gas ASME Commercial Pool Heater, Digital IID, Bronze Header, Copper Heat Exchanger, 017371

$3,68000
Solar Sun Rings Swimming Pool Solar Cover, Blue Sunburst, 5-Foot Diameter, 6-Pack, SSR-SB-02
Solar Sun Rings

Swimming Pool Solar Cover, Blue Sunburst, 5-Foot Diameter, 6-Pack, SSR-SB-02

$29999
Swimline Universal Solar Cover Reel Strap Kit, 5100SK
Swimline

Universal Solar Cover Reel Strap Kit, 5100SK

$3399
Rocky's Reel Systems #3A Portable Residential Reel System, End System Only with 3 in. Hubs, 307
Rocky's Reel Systems

#3A Portable Residential Reel System, End System Only with 3 in. Hubs, 307

$37099
Subtotal

Similar products

Other products people compare with this one.

Raypak 156A 150,000 BTU natural gas above ground pool and spa heater, part 014784 Raypak 156A 150K BTU Above Ground Pool and Spa Heater, Digital Controls, Electronic Ignition, Natural Gas, 0-4999 ft Elevation, 014784$2,64900 Pentair MasterTemp 250 natural gas pool heater EC-462026 Pentair MasterTemp 250 Natural Gas Pool Heater, EC-462026$3,73900 Web Price Pentair MasterTemp EC-462024 125,000 BTU natural gas pool heater Pentair MasterTemp Natural Gas 125K BTU Pool Heater, EC-462024$2,21299 Raypak 014779 106A analog natural gas above ground pool heater Raypak Analog Natural Gas Above Ground Pool Heater 105,000 BTU, P-R106A-AN-C, 014779$2,11900 Raypak 009217 P-R266A-EN-C 266K BTU natural gas digital pool heater, front view Raypak 266K BTU Natural Gas Pool Heater, Digital Ignition, Copper Heat Exchanger, 0-2000 Ft. Elevation, P-R266A-EN-C, 009217$3,37400 Raypak 009219 Digital 399K BTU natural gas pool and spa heater, model P-R406A-EN-C Raypak Pool Heater, 399K BTU, Natural Gas, Digital Ignition, Copper Heat Exchanger, 0-2000 Ft. Elevation, P-R406A-EN-C, 009219$4,42600 Pentair MasterTemp 400 natural gas pool heater EC-462028 Pentair MasterTemp 400 Natural Gas Pool Heater, EC-462028$4,17900 Raypak AVIA P-R264A-EN-N 264K BTU natural gas low NOx pool heater with WiFi, front view Raypak AVIA 264K BTU Natural Gas Low NOx Pool Heater with WiFi, HD NiTek Heat Exchanger, 0-10,000 Ft. Elevation, P-R264A-EN-N, 018044$4,00700 Raypak AVIA P-R404A-EN-N 399K BTU natural gas pool and spa heater Raypak AVIA 399K BTU Natural Gas Low NOx Pool Heater with WiFi, HD Nitek Tubing, 0-10,000 ft Elevation, P-R404A-EN-N, 018045$4,92300 Raypak 009218 digital 333K BTU natural gas pool heater, model P-R336A-EN-C Raypak Digital 333K BTU Natural Gas Pool Heater, Copper Heat Exchanger, 0-2000 Ft Elevation, P-R336A-EN-C, 009218$3,84100
Pentair MasterTemp 461021 400K BTU heavy duty ASME natural gas pool heater Pentair MasterTemp Digital IID Heavy Duty ASME Natural Gas Low NOx Heater 400K BTU, 461021$5,07799 Raypak Digital P-R406A-EN-X 399K BTU natural gas pool and spa heater, part 014941 Raypak 360K BTU Natural Gas Pool Heater, Digital Ignition, Cupro-Nickel Heat Exchanger, 0-2000 Ft Elevation, P-R406A-EN-X, 014941$4,67600 Raypak 009221 P-R266A-EN-C #51 high altitude 266K BTU natural gas pool heater Raypak High Altitude R266A Digital Natural Gas Heater, 266K BTU, Copper Exchanger, P-R266A-EN-C #51, 2000-6000 Ft Elevation, 009221$3,37400 Raypak 156A above ground pool and spa heater, natural gas 150K BTU, high altitude model Raypak 156A Above Ground Pool and Spa Heater, Digital Controls, Electronic Ignition, Natural Gas 150K BTU, High Altitude 5000 to 9999 Ft, 014785$2,64900 Coates 34854PHS-4 PHS Series 54 kW 480 V three phase electric pool heater Coates PHS Series Electric Heater 3 Phase 54kW 480V, 34854PHS-4$3,57599 Raypak 009193 P-R266A-MN-C 266,000 BTU natural gas pool heater Raypak P-R266A-MN-C #50 Natural Gas Heater, 266K BTU, Millivolt Plus, Polymer Headers, Copper Exchanger, 009193$3,81100 Web Price Coates 32015CE CE Series 15kW 208V three phase electric pool and spa heater Coates CE Series Electric Heater, 3-Phase, 15kW, 208V, 32015CE$2,07899 Pentair MasterTemp 400 pool heater, three quarter view Pentair MasterTemp Natural Gas Heater 400 BTU Low NOx, 460736$4,12799 Raypak B-R406A-EN-C 399K BTU natural gas ASME pool heater, front view Raypak Heater, 399K BTU, Natural Gas, ASME, Digital IID, Bronze Header, Copper Heat Exchanger, 0-2000 Ft. Elevation, B-R406A-EN-C, 017374$5,25200 Raypak 014939 P-R266A-EN-X natural gas pool heater with cupro-nickel heat exchanger Raypak P-R266A-EN-X Natural Gas Pool Heater, 240K BTU, Cupro-Nickel, 0 to 2000 Ft Elevation, 014939$3,74200

From Raypak

A technician with a tool belt beside Raypak heaters at a pool. Designed to perform, built to last. Raypak

Raypak heaters

Raypak Pool Heater, 399K BTU, Natural Gas, Digital Ignition, Copper Heat Exchanger, 0-2000 Ft. Elevation, P-R406A-EN-C, 009219 Raypak 266K BTU Natural Gas Pool Heater, Digital Ignition, Copper Heat Exchanger, 0-2000 Ft. Elevation, P-R266A-EN-C, 009217 Raypak Crosswind V Heat Pump, 138,000 BTU, with Titanium Heat Exchanger and Digital Controls, TWPH-8550EHT08 Raypak 156A 150K BTU Above Ground Pool and Spa Heater, Digital Controls, Electronic Ignition, Natural Gas, 0-4999 ft Elevation, 014784
Shop Raypak heaters

Genuine Raypak parts

Raypak Genuine OEM Protek Shield Module Assembly, 017960F Raypak Kit-PC 3-Wire Board Controller IID for 206A-408 Pool Heaters, 100-10000345 Raypak Genuine OEM Propane and Natural Gas Pilot, 002003F Raypak Genuine OEM 3/4" IID Pool Heater Natural Gas Electronic Valve, 003900F
Shop Raypak parts
Gas pool heaters: a red and black Raypak AVIA heaterHeat pumps: a Raypak Crosswind V heat pumpHeater parts: a technician with a tool belt in front of Raypak heaters
Raypak makes gas pool and spa heaters, heat pumps and electric heaters, with genuine replacement parts.Shop all Raypak

Product details

The Raypak B-R206A-EN-C is the 200K BTU ASME commercial natural gas pool heater, built with a bronze header and a copper heat exchanger and set for elevations from 0 to 2000 ft.

Where the ASME rating matters

Commercial pools, and many municipal and code driven residential jobs, are specified around the ASME build. If the drawing calls for ASME, a standard heater will not pass inspection.

Copper or cupro-nickel

This is the copper exchanger version, which suits a pool with balanced water and regular maintenance. Where the water runs salt, low pH or high flow, the cupro-nickel version of the same size is the better buy. Digital IID ignition means no standing pilot to relight.

Specifications
Brand Raypak
Manufacturer part number 017371
Model B-R206A-EN-C
UPC 840891041535
Type ASME pool and spa heater
Fuel Natural gas
Heat input 199,500 BTU/hr
Heat output 163,590 BTU/hr at 82 percent
Thermal efficiency 82 percent, by Raypak
Ignition Electronic, digital IID
Heat exchanger Copper fin tube
Headers Bronze, ASME
Certification ASME
Elevation 0 to 2,000 ft
Electrical 120 or 240 VAC, single phase, 60 Hz
Amp draw 4 A at 120 V, 2 A at 240 V
Water connections 2 in
Gas connection 3/4 in NPT
Cabinet width 20 in
Shipping weight 210 lb, 14 more with the indoor draft hood
Warranty 1 year, by Raypak
Ships Freight

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

Customer reviews

More from Raypak

Raypak 100-10000347 heat pump digital control board Raypak Heat Pump Digital Control Board 9350/9353 5450-8450, 100-10000347$30299 Raypak 017960F Protek Shield module assembly for Raypak pool heaters Raypak Genuine OEM Protek Shield Module Assembly, 017960F$5099 Raypak Crosswind V 138,000 BTU pool heat pump TWPH-8550EHT08, quarter view Raypak Crosswind V Heat Pump, 138,000 BTU, with Titanium Heat Exchanger and Digital Controls, TWPH-8550EHT08$5,14200 Raypak 156A 150,000 BTU natural gas above ground pool and spa heater, part 014784 Raypak 156A 150K BTU Above Ground Pool and Spa Heater, Digital Controls, Electronic Ignition, Natural Gas, 0-4999 ft Elevation, 014784$2,64900 Raypak 003900F IID natural gas electronic combination valve Raypak Genuine OEM 3/4" IID Pool Heater Natural Gas Electronic Valve, 003900F$21699 Raypak WeatherKing TWPH-6560EHT01 118K BTU pool and spa heat pump Raypak WeatherKing 118K BTU Heat Pump 6560 with Powder-Coated Steel Cabinet and Digital Controls, TWPH-6560EHT01$3,53400 Raypak 100-10000345 Kit-PC 3-wire board controller IID for 206A-408 pool heaters Raypak Kit-PC 3-Wire Board Controller IID for 206A-408 Pool Heaters, 100-10000345$32499 Raypak 009219 Digital 399K BTU natural gas pool and spa heater, model P-R406A-EN-C Raypak Pool Heater, 399K BTU, Natural Gas, Digital Ignition, Copper Heat Exchanger, 0-2000 Ft. Elevation, P-R406A-EN-C, 009219$4,42600 Raypak 009217 P-R266A-EN-C 266K BTU natural gas digital pool heater, front view Raypak 266K BTU Natural Gas Pool Heater, Digital Ignition, Copper Heat Exchanger, 0-2000 Ft. Elevation, P-R266A-EN-C, 009217$3,37400 Raypak 014779 106A analog natural gas above ground pool heater Raypak Analog Natural Gas Above Ground Pool Heater 105,000 BTU, P-R106A-AN-C, 014779$2,11900
Raypak 100-10000414 boiler burner 10-pack Raypak Boiler Burner 10-Pack, 100-10000414$4199 Raypak 017959F inlet/outlet header complete with ProTek Shield for 206A to 407A heaters Raypak Inlet/Outlet Header Complete with ProTek Shield, 017959F$43099 Raypak 002003F genuine OEM propane and natural gas pilot Raypak Genuine OEM Propane and Natural Gas Pilot, 002003F$8299 Raypak logo, placeholder image for the H000329 100K temp sensor kit Raypak 100K Temp Sensor Kit, 9350/9353 and 5450-8450 Heat Pumps, H000329$10899 Raypak 010394F burner tray with burners for the 406A pool heater Raypak Burner Tray with Burners for 406A Pool Heaters, 010394F$77399 Raypak 010060F copper tube bundle heat exchanger for 266A and 267A heaters Raypak Genuine OEM Copper Tube Bundle 266/267, 010060F$69499 Raypak 014931F cupro-nickel tube bundle for 266A polymer header heater Raypak 266A Polymer Cu-Ni Tube Bundle, 014931F$1,36999 Raypak E3T 11 kW 240V electric pool and spa heater, Ruud ELS-D-0011-1-Ti, part 017122 Raypak 11kW 240V E3T Electric Heater ELS-D-0011-1-Ti, 017122$1,15400 Web Price Raypak 019209F burner tray with LP burners, sea level, for heat exchanger models 399 and 406A Raypak Burner Tray with LP Burners Pro (Sea Level) for Heat Exchanger Models 399 and 406A, 019209F$32199 Raypak AVIA P-R404A-EN-N 399K BTU natural gas pool and spa heater Raypak AVIA 399K BTU Natural Gas Low NOx Pool Heater with WiFi, HD Nitek Tubing, 0-10,000 ft Elevation, P-R404A-EN-N, 018045$4,92300

Questions and answers

What people ask about this product, answered by our pool techs.

Is Raypak 017371 natural gas or propane?
Natural gas. Raypak builds the 206A for one fuel, and sells the propane heater as a separate part number. Its natural gas to propane conversion kits are sold by altitude.
What elevation is Raypak 017371 rated for?
0 to 2,000 ft, by Raypak's catalog. Raypak sells the same heater jetted for three bands: #50 for 0 to 2,000 ft, #51 for 2,000 to 6,000 and #52 for 6,000 to 9,000, each under its own part number.
What does the B mean in B-R206A-EN-C, 017371?
Bronze headers, which is Raypak's ASME certified version of the heater. Its P models have polymer headers. Whether a pool needs an ASME heater is for the local code and the inspector to say.
What power and connections does Raypak 017371 need?
120 or 240 VAC, single phase. Raypak's brochure gives 4 A at 120 V and 2 A at 240 V. The water connections are 2 inch and the gas connection 3/4 inch NPT.
What warranty does Raypak give the B-R206A-EN-C, 017371?
One year, by Raypak's catalog.
Where is the manual for the Raypak B-R206A-EN-C 017371?
Under Downloads on this page. It is Raypak's Digital Installation and Operation Manual for models 206A, 266A, 336A and 406A, part number 241236, which covers the bronze header ASME versions too.
