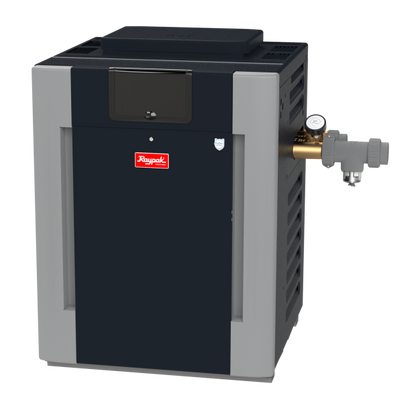

Raypak Digital Low NOx ASME Natural Gas Pool Heater, 266K BTU, Cupro-Nickel Heat Exchanger, Bronze Headers, B-R267A-EN-X #26, 017710$4,16900
Raypak Digital Low NOx ASME Natural Gas Pool Heater, 266K BTU, Cupro-Nickel Heat Exchanger, Bronze Headers, B-R267A-EN-X #26, 017710
$4,16900
$4,642.00
10% OFF
FREE Delivery
Typically ships within 0 days This item ships directly from the manufacturer.
Out of stock
30 day returns · Easy, with prepaid labels provided
Quick overview
- Low NOx A gas valve and blower keep the air fuel mixture where it should be, which Raypak says meets added standards required in Texas, California and Utah.
- ASME construction 2 inch bronze headers on an ASME heat exchanger, the build many commercial and public pool codes ask for.
- Cupronickel fin tube The X at the end of B-R267A-EN-X; the copper version of this heater ends in C.
- Natural gas only Raypak lists the Low NOx ASME heaters for natural gas, rated from sea level to 5,000 ft.
- ProTek Shield A module at the inlet that takes the corrosion in place of the heat exchanger and is easy to replace when it wears.
- Digital control An LCD for temperature and settings, with a microprocessor diagnostic readout that watches operating status.
Need a hand?
Bilingual support from pool professionals.
Frequently bought together
Current item
Raypak
Digital Low NOx ASME Natural Gas Pool Heater, 266K BTU, Cupro-Nickel Heat Exchanger, Bronze Headers, B-R267A-EN-X #26, 017710
$4,16900
Raypak
Crosswind V Heat Pump, 138,000 BTU, with Titanium Heat Exchanger and Digital Controls, TWPH-8550EHT08
$3,85900
Raypak
156A 150K BTU Above Ground Pool and Spa Heater, Digital Controls, Electronic Ignition, Natural Gas, 0-4999 ft Elevation, 014784
$1,94900
Pentair
MasterTemp 250 Natural Gas Pool Heater, EC-462026
$3,73900
Web Price
Some manufacturers don’t allow us to publicly display their best prices online. When you request an Unadvertised Deal, you’re asking us to unlock a special offer that isn’t shown on the site.
Get your unadvertised price ›
Get your unadvertised price ›
Subtotal
Similar products
Other products people compare with this one.
Raypak Crosswind V Heat Pump, 138,000 BTU, with Titanium Heat Exchanger and Digital Controls, TWPH-8550EHT08$3,85900
Raypak 156A 150K BTU Above Ground Pool and Spa Heater, Digital Controls, Electronic Ignition, Natural Gas, 0-4999 ft Elevation, 014784$1,94900
Pentair MasterTemp 250 Natural Gas Pool Heater, EC-462026$3,73900
Web Price
Raypak WeatherKing 118K BTU Heat Pump 6560 with Powder-Coated Steel Cabinet and Digital Controls, TWPH-6560EHT01$2,59900
Pentair MasterTemp 400 Natural Gas Pool Heater, EC-462028$4,17900
Pentair MasterTemp Natural Gas 125K BTU Pool Heater, EC-462024$2,21299
Raypak Pool Heater, 399K BTU, Natural Gas, Digital Ignition, Copper Heat Exchanger, 0-2000 Ft. Elevation, P-R406A-EN-C, 009219$3,62900
Raypak 266K BTU Natural Gas Pool Heater, Digital Ignition, Copper Heat Exchanger, 0-2000 Ft. Elevation, P-R266A-EN-C, 009217$2,87900
Raypak Analog Natural Gas Above Ground Pool Heater 105,000 BTU, P-R106A-AN-C, 014779$1,68900
Raypak 11kW 240V E3T Electric Heater ELS-D-0011-1-Ti, 017122$1,15400
Web Price
Raypak AVIA 399K BTU Natural Gas Low NOx Pool Heater with WiFi, HD Nitek Tubing, 0-10,000 ft Elevation, P-R404A-EN-N, 018045$4,02900
Pentair MasterTemp 125 Heater 125K BTU, Propane Gas, with Cord, EC-462025$2,24900
Raypak AVIA 264K BTU Natural Gas Low NOx Pool Heater with WiFi, HD NiTek Heat Exchanger, 0-10,000 Ft. Elevation, P-R264A-EN-N, 018044$3,42900
Pentair MasterTemp Propane Gas Heater 400k BTU, EC-462029$4,78900
Web Price
Pentair MasterTemp 400 Natural Gas Pool Heater, Low NOx HD, 460805$4,30899
Raypak 150K BTU Above Ground Pool and Spa Gas Heater, Digital Controls, Electronic Ignition, Propane Gas, 0-1999 ft Elevation, 014786$1,89900
Raypak AVIA 399K BTU Propane Gas Low NOx Pool Heater with WiFi, HD Nitek Tubing, 0-4500 Ft. Elevation, P-R404A-EP-N, 018051$4,08900
Raypak Pool Heater, 200K BTU, Natural Gas, Digital Ignition, Copper Heat Exchanger, 0-2000 Ft. Elevation, P-R206A-EN-C, 009216$2,61900
Raypak Digital 333K BTU Natural Gas Pool Heater, Copper Heat Exchanger, 0-2000 Ft Elevation, P-R336A-EN-C, 009218$3,23900
Raypak 180K BTU Natural Gas Heater, Digital Ignition, Cupro-Nickel Heat Exchanger, 0-2000 Ft. Elevation, P-R206A-EN-X, 014938$3,06900
From Raypak
Raypak heaters
Raypak Pool Heater, 399K BTU, Natural Gas, Digital Ignition, Copper Heat Exchanger, 0-2000 Ft. Elevation, P-R406A-EN-C, 009219
Raypak 266K BTU Natural Gas Pool Heater, Digital Ignition, Copper Heat Exchanger, 0-2000 Ft. Elevation, P-R266A-EN-C, 009217
Raypak Crosswind V Heat Pump, 138,000 BTU, with Titanium Heat Exchanger and Digital Controls, TWPH-8550EHT08
Raypak 156A 150K BTU Above Ground Pool and Spa Heater, Digital Controls, Electronic Ignition, Natural Gas, 0-4999 ft Elevation, 014784
Genuine Raypak parts
Raypak Genuine OEM Protek Shield Module Assembly, 017960F
Raypak Kit-PC 3-Wire Board Controller IID for 206A-408 Pool Heaters, 100-10000345
Raypak Genuine OEM Propane and Natural Gas Pilot, 002003F
Raypak Genuine OEM 3/4" IID Pool Heater Natural Gas Electronic Valve, 003900F
Raypak makes gas pool and spa heaters, heat pumps and electric heaters, with genuine replacement parts.Shop all Raypak
Product details

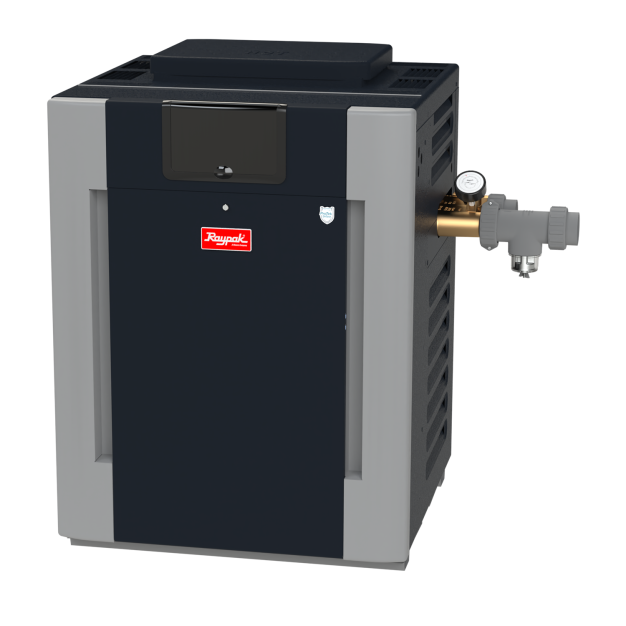

The Raypak B-R267A-EN-X #26, part number 017710, is the 267A size of Raypak's Digital Low NOx ASME pool and spa heater: 266,000 BTU/hr input on natural gas, 2 inch bronze headers and a cupronickel fin tube heat exchanger, rated for installations up to 5,000 ft.
Low NOx
On the Low NOx ASME models a gas valve and blower hold the air fuel mixture, so the heater burns clean. Raypak says these models meet the additional safety standards and regulations required for Texas, California and Utah, and offers a flow switch option that makes them Texas Boiler Code compliant.
The ASME build
The B at the front of the model number is Raypak's code for bronze ASME headers. The heater ships with a 125 psi pressure relief valve, carries the ANSI Z21.56 design certification, and can be installed indoors or out, directly on a combustible surface. Whether a pool needs an ASME heater is for the local code and the inspector to say.
Before you order
Raypak lists the Low NOx ASME heaters for natural gas only, and its manual says the rated input is suitable up to 5,000 ft. This one has a cupronickel exchanger; Raypak sells the copper version under its own part number. At the rated 82 percent thermal efficiency it puts about 218,120 BTU/hr into the water. Power is 120 or 240 VAC, single phase, at 6 A or 3 A.
| Brand | Raypak |
|---|---|
| Manufacturer part number | 017710 |
| Model | B-R267A-EN-X #26 |
| Series | Digital Low NOx ASME |
| UPC | 840891042303 |
| Type | ASME pool and spa heater, low NOx |
| Fuel | Natural gas only |
| Heat input | 266,000 BTU/hr |
| Heat output | 218,120 BTU/hr at 82 percent |
| Thermal efficiency | 82 percent, by Raypak |
| Ignition | Electronic, digital IID |
| Heat exchanger | Cupronickel fin tube |
| Headers | 2 in bronze, ASME |
| Certification | ASME; ANSI Z21.56 design certified |
| Emissions | Low NOx, with a gas valve and blower holding the air fuel mixture |
| Elevation | 0 to 5,000 ft; consult Raypak above that |
| Electrical | 120 or 240 VAC, single phase, 60 Hz |
| Amp draw | 6 A at 120 V, 3 A at 240 V |
| Water connections | 2 in |
| Gas connection | 3/4 in NPT |
| Cabinet width | 23 in |
| Included | 125 psi pressure relief valve, ProTek Shield module |
| Installation | Indoor or outdoor; can sit on a combustible surface |
| Shipping weight | 220 lb, 15 more with the indoor draft hood |
| Warranty | 1 year, parts and labor, by Raypak |
| Ships | Freight |
Downloads
Installation and Operation Manual
Request a quote
Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.
Customer reviews
Verified store reviews
SHOPPER APPROVED
See all reviews →
More from Raypak
Raypak Heat Pump Digital Control Board 9350/9353 5450-8450, 100-10000347$29699
Raypak Genuine OEM Protek Shield Module Assembly, 017960F$5199
Raypak Crosswind V Heat Pump, 138,000 BTU, with Titanium Heat Exchanger and Digital Controls, TWPH-8550EHT08$3,85900
Raypak 156A 150K BTU Above Ground Pool and Spa Heater, Digital Controls, Electronic Ignition, Natural Gas, 0-4999 ft Elevation, 014784$1,94900
Raypak Genuine OEM 3/4" IID Pool Heater Natural Gas Electronic Valve, 003900F$25199
Raypak WeatherKing 118K BTU Heat Pump 6560 with Powder-Coated Steel Cabinet and Digital Controls, TWPH-6560EHT01$2,59900
Raypak Kit-PC 3-Wire Board Controller IID for 206A-408 Pool Heaters, 100-10000345$32499
Raypak Pool Heater, 399K BTU, Natural Gas, Digital Ignition, Copper Heat Exchanger, 0-2000 Ft. Elevation, P-R406A-EN-C, 009219$3,62900
Raypak 266K BTU Natural Gas Pool Heater, Digital Ignition, Copper Heat Exchanger, 0-2000 Ft. Elevation, P-R266A-EN-C, 009217$2,87900
Raypak Analog Natural Gas Above Ground Pool Heater 105,000 BTU, P-R106A-AN-C, 014779$1,68900
Raypak Boiler Burner 10-Pack, 100-10000414$4799
Raypak Inlet/Outlet Header Complete with ProTek Shield, 017959F$40799
Raypak Genuine OEM Propane and Natural Gas Pilot, 002003F$8199
Raypak 100K Temp Sensor Kit, 9350/9353 and 5450-8450 Heat Pumps, H000329$10299
Raypak Burner Tray with Burners for 406A Pool Heaters, 010394F$91099
Raypak Genuine OEM Copper Tube Bundle 266/267, 010060F$81599
Raypak 266A Polymer Cu-Ni Tube Bundle, 014931F$1,29299
Raypak 11kW 240V E3T Electric Heater ELS-D-0011-1-Ti, 017122$1,15400
Web Price
Raypak Burner Tray with LP Burners Pro (Sea Level) for Heat Exchanger Models 399 and 406A, 019209F$37499
Raypak AVIA 399K BTU Natural Gas Low NOx Pool Heater with WiFi, HD Nitek Tubing, 0-10,000 ft Elevation, P-R404A-EN-N, 018045$4,02900
Questions and answers
What people ask about this product, answered by our pool techs.
Does the Raypak B-R267A-EN-X, 017710, come in propane?
No. Raypak's catalog lists the Low NOx ASME heaters, 207A to 407A, for natural gas only.
What elevation is the Raypak B-R267A-EN-X 017710 rated for?
Raypak's manual says the rated input is suitable up to 5,000 ft, and to consult the factory above that.
What makes the Raypak B-R267A-EN-X low NOx?
A gas valve and blower system holds the air fuel mixture so the heater burns clean. Raypak says its Low NOx ASME models meet the added standards required in Texas, California and Utah.
What power does the Raypak B-R267A-EN-X, 017710, need?
120 or 240 VAC, single phase. Raypak's catalog gives 6 A at 120 V and 3 A at 240 V for the Low NOx models. The water connections are 2 inch and the gas connection 3/4 inch NPT.
What warranty does Raypak give the Low NOx ASME B-R267A-EN-X?
One year, parts and labor, under Raypak's pool heater limited warranty, which gives every ASME pool and spa heater one year.
Where is the manual for the Raypak B-R267A-EN-X, 017710?
Under Downloads on this page. It is Raypak's Installation and Operation Manual for the bronze ASME and polymer Low NOx models 207A, 267A, 337A and 407A, part number 241793.
