Polaris Genuine OEM 360 Factory Rebuild Kit In stock$38999
Quick overview
- Complete head unit overhaul The kit replaces the internal working parts of the 360 along with a new top and bottom.
- Genuine Polaris Factory rebuild kit 9-100-9060, not an assortment of aftermarket pieces.
- Wheels, tires and belts Three Max Trax tires, two double side wheels, one single side wheel and the small and large belt kit.
- Drive train included Transfer pulley and drive shaft assembly plus the drive train gear kit with turbine bearing.
- Hose parts too All purpose bag, sweep hose complete, hose nuts, swivel, feed hose floats and the in-line back-up valve.
- Cheaper than a new cleaner A worn 360 with wobbly wheels and smooth belts can be brought back rather than replaced.
Similar products
Other products people compare with this one.
Product details

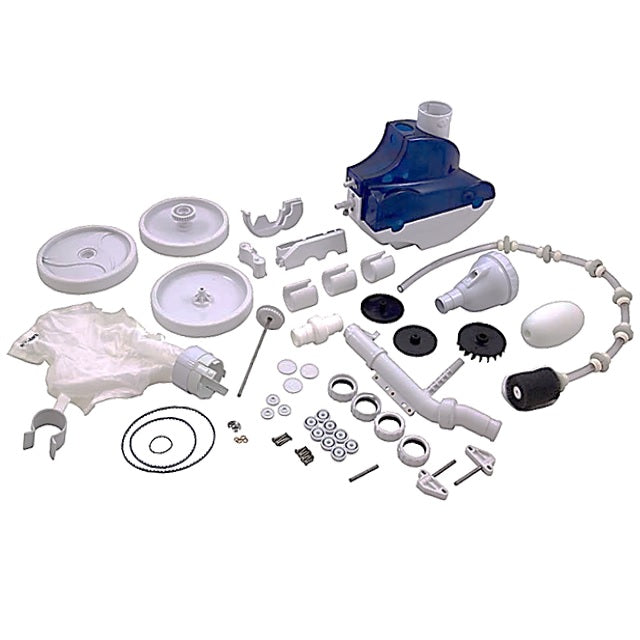

The Polaris 9-100-9060 is the factory rebuild kit for the Polaris 360 pressure side pool cleaner. It is the genuine Polaris kit, and it overhauls the head unit rather than patching one part at a time.
What is in the box
An all purpose bag, upper and lower turbine housings, hub caps, stainless e-clips, ball bearings and bearing shields, three Max Trax tires, two double side wheels and one single side wheel, the small and large belt kit, the axle block kit, bag tie collar, transfer pulley and drive shaft assembly, the drive train gear kit with turbine bearing, thrust jet kit, sweep hose barb, base weight, jet retainer clips, the water management system, base assembly, top cover, feed pipe and timer blank assembly, head float, sweep hose complete, hose nuts, hose swivel, feed hose floats and the in-line back-up valve.
When to use it
A 360 that has run for years shows it in the same places: wheels that wobble, belts worn smooth, a bag that no longer holds, and a cleaner that wanders instead of covering the pool. Those parts wear together, so replacing them together restores the whole machine at once. Install instructions are included.
| Brand | Polaris |
|---|---|
| Manufacturer part number | 9-100-9060 |
| UPC | 738919006768 |
| Type | Factory rebuild kit |
| Fits | Polaris 360 pool cleaner |
| Covers | Head unit internals, top cover and base, bag, sweep hose and feed hose parts |
| Bag | All-Purpose Bag 9-100-1014 |
| Tires | 3 x Max Trax Tire, White, C10 |
| Wheels | 2 x Double-Side Wheel 9-100-1008, 1 x Single-Side Wheel 9-100-1116 |
| Belts | Belt Kit, Small and Large 9-100-1017 |
| Drive train | Transfer Pulley/Drive Shaft Assembly 9-100-1007, Drive Train Gear Kit with Turbine Bearing 9-100-1132 |
| Turbine housings | Upper 9-100-1152, Lower 9-100-1155 |
| Bearings | 8 x Ball Bearings 9-100-1108, 3 x Bearing Shield 9-100-7011 |
| Water management | Water Management System 9-100-7014 |
| Instructions | Install instructions included |
| Shipping weight | 8.15 lb |
| Ships | Parcel |
