Product details

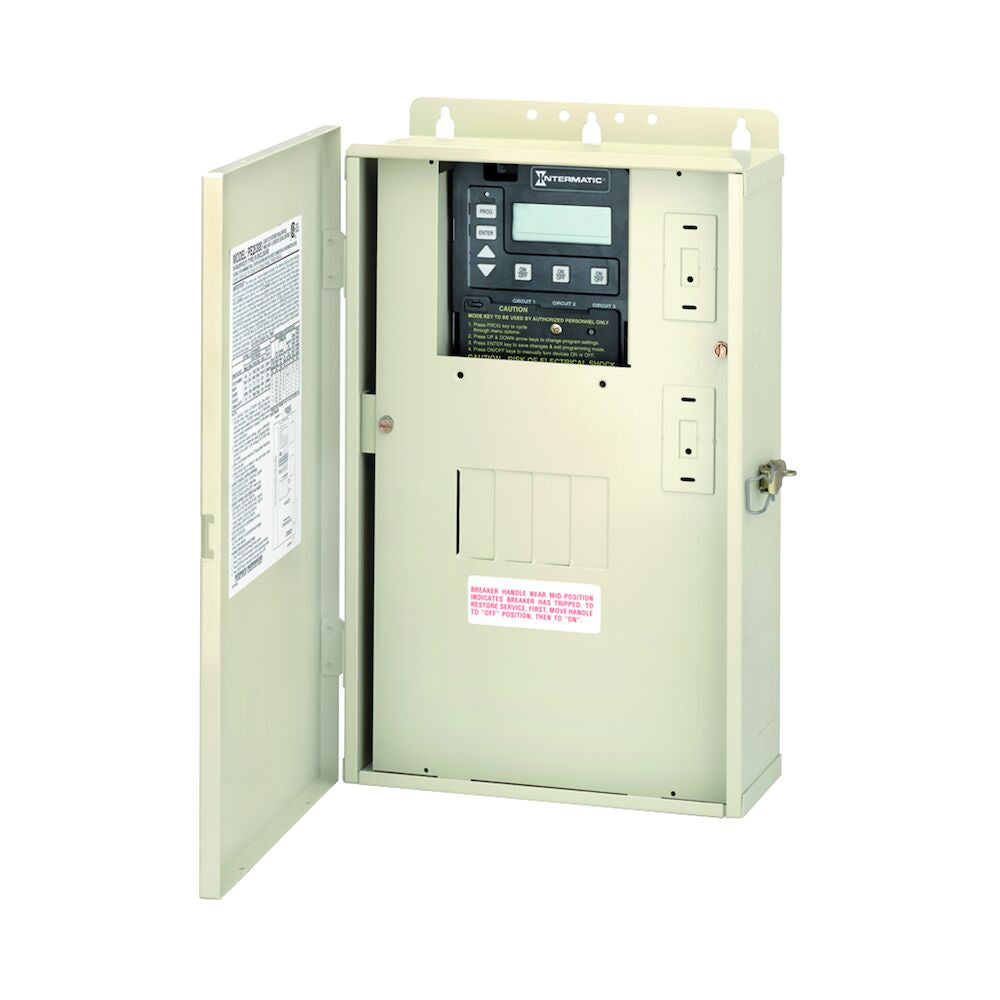

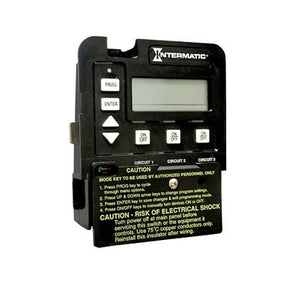

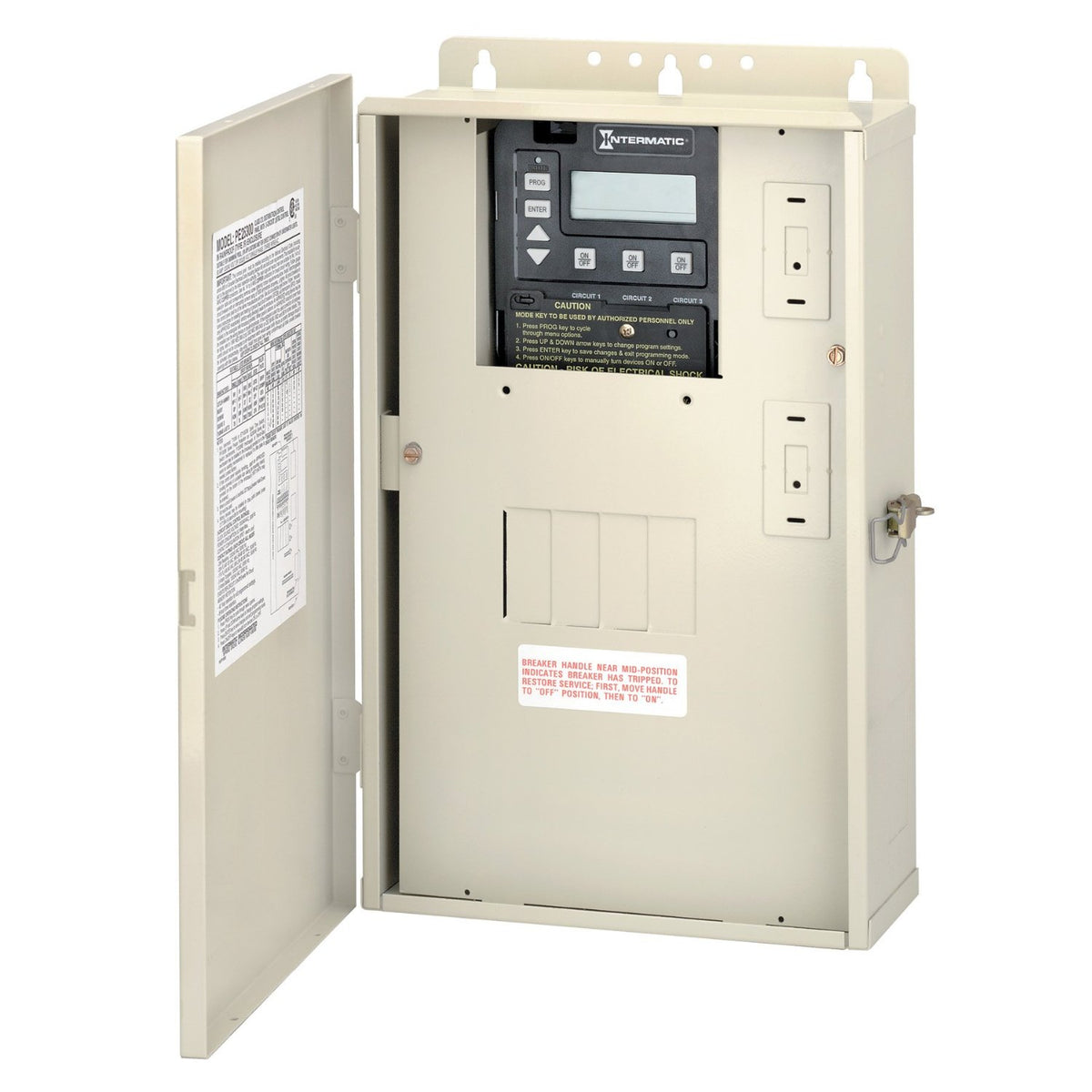

The Intermatic PE25300 combines a 60 amp load center with a P1353ME digital timer mechanism, giving a pool pad breaker protection and three timed circuits in one enclosure. The mechanism uses three SPST outputs to schedule a single speed or two speed filter pump, a cleaner or booster pump, and pool, spa or landscape lighting.

What is in the enclosure

There are four breaker spaces, and the dead front has two knockouts for switches or GFCI receptacles. Wiring devices are installed with standoffs, sold separately. The panel also accepts Intermatic T100 series mechanisms, so it can be configured with mechanical timers where that is preferred.

Part of the PE20000 series

The PE25300 belongs to the Intermatic PE20000 pool and spa control family. A version with a freeze protection probe is available under a separate part number.

Specifications
Brand Intermatic
Manufacturer part number PE25300
UPC 078275086579
Type Load center with digital timer mechanism
Amperage 60 amp
Mechanism P1353ME, 3-SPST
Timed circuits 3
Breaker spaces 4
Loads Single and two speed filter pumps, cleaner/booster pumps, pool, spa and landscape lighting
Dead front Two knockouts for switches or GFCIs
Also accepts T100 series mechanisms
Shipping weight 15 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

Customer reviews

More from Intermatic

Intermatic T104M 24-hour DPST mechanical time switch mechanism, 208-277V Intermatic 24-Hour 208-277V Mechanical Time Switch, DPST, Mechanism Only, T104M$9599 Intermatic 178T24 freeze protection thermostat with knob and wiring Intermatic Freeze Protection Thermostat, 178T24$7299 Intermatic PB914N66 24 hour panel mount timer, 240V Intermatic 24HR Panel Mount Timer 240V, PB914N66$6099 Intermatic 156T1978A on and off tripper set for T100 Series time clocks Intermatic On/Off Trippers Set, 156T1978A$1199 Intermatic T104P201 24 hour DPST mechanical time switch in plastic enclosure Intermatic 24-Hour DPST Mechanical Time Switch with Heater Protection, 208-277V, T104P201$17705 Intermatic PX100 100 watt pool and spa safety transformer in a beige steel enclosure Intermatic PX100 Safety Transformer, 100W, Steel Enclosure, Beige$12540 Intermatic P1121 heavy duty 15 amp outdoor plug-in timer Intermatic Heavy Duty 15 Amp Outdoor Timer, P1121$5599 Intermatic T30004R 100 A pool and spa load center with T104M mechanism Intermatic 100 A Load Center with T104M Mechanism, 8-Breaker Spaces, T30004R$28572 Web Price Intermatic PF1103MT freeze protection timer with thermostat, 120/240V mechanism Intermatic Freeze Protection Timer with Thermostat for 120/240V Applications, Mechanism, PF1103MT$27499 Intermatic PJB4175 four light pool and spa junction box Intermatic 4 Light Connection Pool & Spa Junction Box, PJB4175$6701 Web Price
Intermatic P1403ME electronic pump motor controller mechanism with seasonal adjustment Intermatic Electronic Pump Motor Controller with Seasonal Adjustment, 4-Circuit, Mechanism Only, P1403ME$27799 Intermatic T104P3 24-hour mechanical time switch in Type 3R plastic case Intermatic 24-Hour 208-277V Mechanical Time Switch, DPST, Type 3R Plastic Enclosure, T104P3$12699 Intermatic P1131 20 amp portable outdoor timer with twist-lock plug Intermatic 20A Timer with Twist-Lock Plug, P1131$11499 Intermatic RC2343PT four function air switch with 24 hour timer Intermatic 4 Function Air Switch with Timer, RC2343PT$34199 Intermatic T104R3 24 hour DPST mechanical time switch in Type 3R metal enclosure Intermatic 24-Hour 208-277V Mechanical Time Switch, DPST, Type 3R Metal Enclosure, T104R3$13199 Intermatic AG3000 three mode surge protective device in an outdoor enclosure Intermatic AG3000 Surge Protective Device, 3-Mode, 120/240 VAC, Outdoor$9499 Intermatic WG1573-10D 208/277 volt 60 Hz time clock motor Intermatic 208/277 Volt, 60 Hz Replacement Time Clock Motor, WG1573-10D$5199 Intermatic PS3000 surge protector for pool and spa equipment Intermatic PS3000 Surge Protector for Pool and Spa Equipment, 120/240V$11999 Intermatic 21T156A 3 inch standoff spacer, four pack Intermatic 3" Standoff Spacer, 4 Pack, 21T156A$1999 Intermatic T40004RT3 load center with 300 W transformer and T104M time switch mechanism Intermatic 100 A Load Center with 300 W Transformer and T104M Mechanism, 8-Breaker Spaces, T40004RT3$37499

Questions and answers

What people ask about this product, answered by our pool techs.

Are circuit breakers included?
The enclosure provides four breaker spaces. Breakers are sourced separately to match the circuits on your pad.
Can it run a two speed pump?
Yes. The P1353ME mechanism is rated for single speed and two speed filter pumps as well as cleaner and booster pumps.
Can I add a GFCI receptacle or a switch?
The dead front has two knockouts for switches or GFCIs. Wiring devices mount in the load center using standoffs, which are sold separately.
Does it include freeze protection?
Not this model. Intermatic offers a version of the 60 amp load center with the P1353ME and a freeze protection probe as a separate part number.
