Kreepy Krauly EC65 large wheel axle for Pentair Legend cleanersPentair Kreepy Krauly Axle, Large Wheels, EC65 In stock$1099
Kreepy Krauly EC65 large wheel axle for Pentair Legend cleaners
Shop all Pentair

Pentair Kreepy Krauly Axle, Large Wheels, EC65

Ask a questionMPN EC65
$1099
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Genuine part Kreepy Krauly EC65, the factory axle for the large wheels.
  • Legend family Listed against the Legend three wheel and four wheel versions, the Legend II LX2000 and LX5000G, and the Legend LL505G.
  • Plastic Molded in plastic, as the original is.
  • The large wheels only This is the axle for the large wheels, so check which wheel on your cleaner has failed before ordering.
  • Wheels that will not turn A seized or snapped axle stops the wheel dead, and the cleaner then drags rather than driving its pattern.
  • Look at the bearings too While the wheel is off, the wheel bearings and the wheel screw are worth inspecting, since they wear alongside the axle.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Pentair Kreepy Krauly Axle, Large Wheels, EC65, SKU LET-201-2473. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Pentair Kreepy Krauly Axle, Large Wheels, EC65
Pentair

Kreepy Krauly Axle, Large Wheels, EC65

$1099
Pentair Communication Cable with Swivel for Prowler 920 Aboveground Pool Cleaner, 360499
Pentair

Communication Cable with Swivel for Prowler 920 Aboveground Pool Cleaner, 360499

$26499
Pentair Prowler 930 Communication Cable, 360446
Pentair

Prowler 930 Communication Cable, 360446

$34399
Pentair Prowler 920/930 Motor Unit, 360365
Pentair

Prowler 920/930 Motor Unit, 360365

$67699
Pentair Prowler 930/920 Replacement Front Brush Assembly, 360366
Pentair

Prowler 930/920 Replacement Front Brush Assembly, 360366

$4399
Pentair Prowler 910 Communication Cable, 360343
Pentair

Prowler 910 Communication Cable, 360343

$8999
Pentair Letro Legend Debris Bag with Snaplock, 360002
Pentair

Letro Legend Debris Bag with Snaplock, 360002

$5399
Subtotal

Similar products

Other products people compare with this one.

Pentair Kreepy Krauly EU9 rubber debris valve for Legend cleaners Pentair Kreepy Krauly Debris Valve$899 EU147 white snap fit vac tube posts, 2 pack, for Legend pool cleaners Pentair Kreepy Krauly Vac Tube Posts, Snap Fit (2 Pack), EU147$1099 Pentair Kreepy Krauly EC55 white plastic wheel screw, 5 pack, for Letro Legend cleaners Pentair Kreepy Krauly Legend Wheel Screw, Plastic White, 5 Pack, EC55$1599 Pentair 360005 Letro Legend hub cap for Kreepy Krauly Legend cleaners Pentair Kreepy Krauly Letro Legend Hub Cap, 360005$1399 Kreepy Krauly EA20 white ballast float for Pentair Letro Legend cleaners Pentair Kreepy Krauly Ballast Float, White, EA20$1199 Pentair K12079 threaded compression adapter for Kreepy Krauly pool cleaners Pentair Kreepy Krauly Threaded Compression Adapter, K12079$1599 Pentair E24 metal wall fitting screen for Letro Legend and Kreepy Krauly pool cleaners Pentair Kreepy Krauly Wall Fitting Screen$1599 Pentair EH07 hose sleeve without insert, 4-pack, product photo Pentair Hose Sleeve without Insert for Kreepy Krauly Legend Pool Cleaners, 4-Pack, EH07$999 Kreepy Krauly ED15 white plastic hose mender nuts, two pack Kreepy Krauly Hose Mender Nuts, Plastic, White (2 Pack), ED15$1399 Pentair EB20 white plastic sweep hose adjustment screw for Letro Legend cleaners Pentair Plastic Sweep Hose Adjustment Screw, EB20$1199

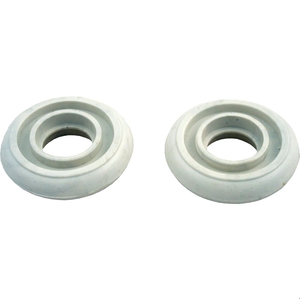

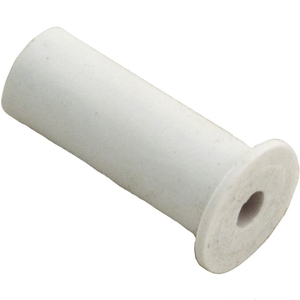

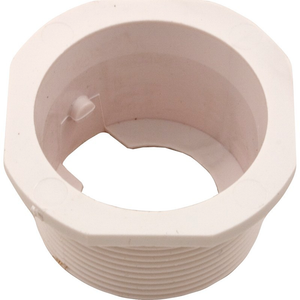

Pentair 360284 Rebel pool cleaner buckle kit, bottom view Pentair Rebel Cleaner Buckle Kit, 360284$1399 Pentair 360320 quick disconnect hose connector kit for Kreepy Krauly Racer cleaners Pentair Quick Disconnect Hose Connector Kit for Racer, 360320$1299 Pentair JV21 Letro Jet Vac cleaner tire, two pack Pentair Letro Jet Vac Tire, 2 Pack, JV21$1499 Pentair Letro E23 quick disconnect adapter for Legend and Jet Vac cleaners Pentair Letro Quick Disconnect Adapter$1299 Letro EB15 sweep hose attachment clamp for Pentair Legend pool cleaners Pentair Letro EB15 Sweep Hose Attachment Clamp$699 Pentair LXD10 feed hose float for the Letro Legend II pool cleaner Pentair Legend II Feed Hose Float, LXD10$1099 Pentair JV14 nose wheel hub for the Letro Jet Vac JV105 pool cleaner Pentair Nose Wheel Hub, JV14$799 Pentair JV4B adjustment bushing for the shell float cover on the Letro Jet Vac cleaner Pentair Adjustment Bushing, Shell Float Cover, JV4B$1099 Pentair JV49 hose mender for pool cleaner sweep hose Pentair Hose Mender for Sweep Hose, JV49$699 Pentair ED10P white universal feed hose float, product photo Pentair Universal Feed Hose Float, White, for Jet-Vac and Legend Pool Cleaners, ED10P$1399

Product details

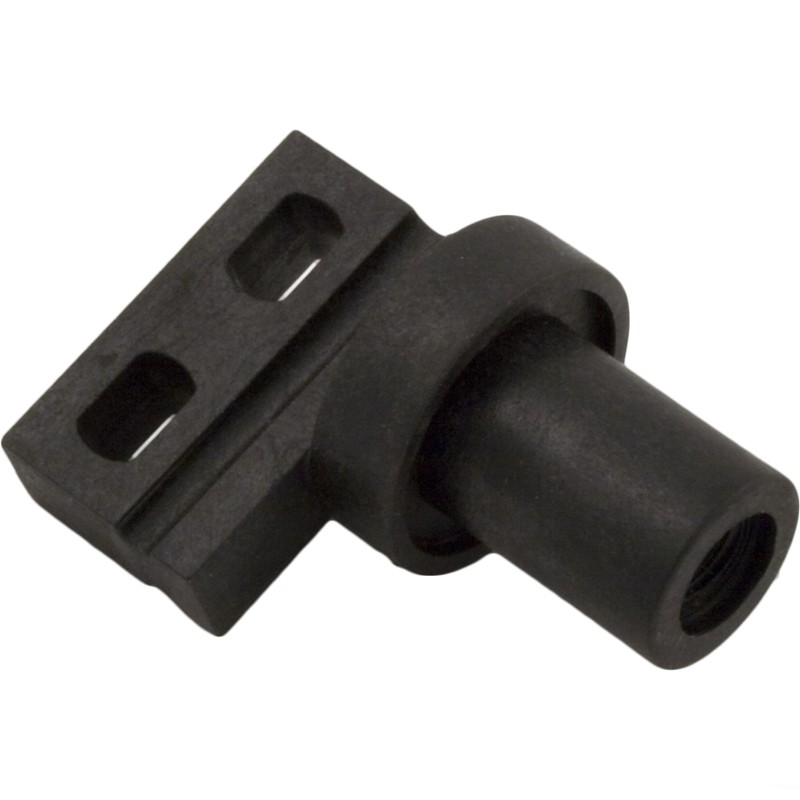

The EC65 is the genuine Kreepy Krauly axle for the large wheels on the Pentair Legend cleaners. It is molded in plastic, as the original is.

What it fits

The part is listed against a wide slice of the Legend family: the three wheel and four wheel versions of the Legend, the Legend II LX2000 and LX5000G, and the Kreepy Krauly Legend LL505G. It serves the large wheels, so identify which wheel on your cleaner has failed before ordering.

Why it matters

A Legend cleans by driving a set pattern across the pool. When an axle snaps or seizes, the wheel stops turning and the cleaner drags instead of driving, missing whole sections of floor. While the wheel is off, look at the bearings and the wheel screw as well: they sit in the same assembly and wear at much the same rate, so replacing them together avoids a second teardown.

Specifications
Brand Kreepy Krauly (Pentair)
Manufacturer part number EC65
UPC 807318017931
Part type Pool Cleaner Part
Type Axle, large wheels
Material Plastic
Fits Pentair Legend three wheel and four wheel versions, Legend II LX2000, Legend II LX5000G, Kreepy Krauly Legend LL505G
Shipping weight 0.05 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

From Pentair

Your trusted source for all things pool. Pentair

Pentair equipment

Pentair SuperFlo VS 1.5 HP Variable Speed Pool Pump, 2.2 THP, EC-342001 Pentair MasterTemp 400 Natural Gas Pool Heater, EC-462028 Pentair Clean & Clear Plus 420 sq ft Cartridge Pool Filter, EC-160301 Pentair IntelliConnect Control & Monitoring System with Wi-Fi, EC-523317
Shop Pentair equipment

Genuine Pentair parts

Pentair Genuine OEM Seal Kit for WhisperFlo and IntelliFlo Pool Pumps, 356198 Pentair Genuine OEM High Flow Manual Air Relief Valve, 98209800 Pentair Genuine OEM FNS Plus Element Assembly Complete, 48 Sq Ft, 59023400 Pentair Genuine OEM MasterTemp/Max-E-Therm 6-Button Control Board Kit, 461105Z
Shop Pentair parts
Pool lighting: a backyard pool and spa lit in blue and green at nightPool water treatment: three people floating on rings in clear blue water, seen from abovePool cleaners: a toddler in flower sunglasses laughing in a yellow ring, held by her mother
Pentair makes pumps, filters, heaters, salt chlorinators, cleaners, lighting and automation for pools and spas.Shop all Pentair

Customer reviews

More from Pentair

Pentair SuperFlo VS EC-342001 1.5 HP variable speed pool pump, front view Pentair SuperFlo VS 1.5 HP Variable Speed Pool Pump, 2.2 THP, EC-342001$1,48900 Pentair SuperFlo EC-348190 single speed pool pump, 1 HP, 115/230V Pentair SuperFlo 1 HP Single Speed Pool Pump, 1.1 THP, 115/208-230V, EC-3481905.0 (1) $74800 Pentair WhisperFlo VS EC-011533 2.6 THP variable speed pool pump, top view Pentair WhisperFlo VS / VST 2.6 THP Variable Speed Pool Pump, 115/208-230V, EC-011533$1,79900 Pentair 262506 HiFlow 1.5 in. six way clamp style multiport valve Pentair Genuine OEM HiFlow Valve 1.5 in. 6-Way Clamp Style, 262506$20399 Pentair EC-520556 IntelliChlor 110/220V power center Pentair 110/220V IntelliChlor Salt Chlorine Generator Power Center, EC-520556$79900 Web Price Pentair 523769 IntelliChlor Plus and LT replacement sensor board Pentair IntelliChlor Plus and LT Replacement Sensor Board, 523769$39399 Pentair 350305S 3.2 kW 10 pole variable speed motor for IntelliFloXF and IntelliFlo 2 VST pumps Pentair 3.2 kW IntelliFloXF VSF, VSF, VS+SVRS, i1, i2 Motor, 350305S$78199 Pentair 523735-EC IntelliChlor Plus40 salt chlorine generator cell Pentair IntelliChlor Plus40 Salt Chlorine Generator Replacement Cell, 40,000 Gallons, 523735-EC$1,81900 Web Price Pentair Rainbow 320 in-line chlorinator R171096, front view Pentair Rainbow 320 In-Line Chlorinator, R171096$14699 Pentair 190003 tank clamp kit with tension control for Clean and Clear Plus, FNS Plus and Quad DE filters Pentair Genuine OEM Clamp Kit with Tension Control, 190003$30199
Pentair IntelliChlor LT25 salt chlorine generator cell 523747-EC Pentair IntelliChlor LT25 Salt Chlorine Generator Cell, 25,000 Gallons, 523747-EC$1,14900 Pentair IntelliFlo VS+SVRS variable speed pool pump, EC-011057 Pentair IntelliFlo VS+SVRS Variable Speed Pool Pump, 3 HP Max, 3.95 THP, 230V, EC-011057$2,39900 Pentair 170145 cartridge pack for Sta-Rite System 3 S7M120, inner and outer cartridges Sta-Rite 170145 System 3 S7M120 Large and Small Cartridge Set, 25021-0200S and 25022-0201S$46499 Pentair 261055 SM-20-3 2 in. side mount multiport valve kit, front view Pentair 2 in. Multiport Valve Kit for Side Mount Sand Filters, SM-20-3, 261055$29999 Pentair 523770 IntelliChlor Plus replacement controller (HMI), black Pentair IntelliChlor Plus Controller Replacement (HMI), Black, 5237705.0 (1) $38399 Pentair 261152 SM20-2 2 in. side mount multiport valve kit for DE filters Pentair 2" Valve Kit Multiport, Side Mount DE Filters SM20-2, 261152$29799 Pentair 357149 WhisperFlo and IntelliFlo volute housing replacement kit, front view Pentair WhisperFlo and IntelliFlo Volute Housing Replacement Kit, 357149$28799 Pentair MicroBrite Color LED pool light EC-620425, 12 volt, 14 watt, with 100 ft cord Pentair MicroBrite Color LED Pool Light 12 Volt, 14 Watt with 100' Cord, EC-620425$61900 Pentair 59023400 FNS Plus 48 sq ft complete DE grid assembly Pentair Genuine OEM FNS Plus Element Assembly Complete, 48 Sq Ft, 59023400$40199 Pentair Amerlite EC-602128 500W 120V inground pool light with stainless steel facering Pentair Amerlite Pool Light for Inground Pools with Stainless Steel Facering, 500W 120V 50' Cord, EC-602128$43900 Web Price

Questions and answers

What people ask about this product, answered by our pool techs.

Which cleaners does this axle fit?
It is listed against the Pentair Legend in its three wheel and four wheel versions, the Legend II LX2000 and LX5000G, and the Kreepy Krauly Legend LL505G.
Is this for the large wheels or the small ones?
The large wheels. Check which wheel on your cleaner is affected before ordering.
What is it made of?
Plastic, matching the original.
What else should I check while I am in there?
The wheel bearings and the wheel screw. They live in the same assembly and wear at a similar rate, so it saves pulling the cleaner apart twice.
