CompuPool JD363ECM electrode o-ring for clear cell housingCompuPool Electrode O-Ring for Clear Cell Housing, JD363ECM In stock$1699

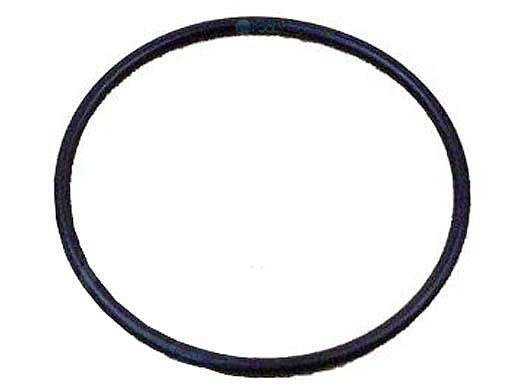

CompuPool JD363ECM electrode o-ring for clear cell housing
Shop all CompuPool

CompuPool Electrode O-Ring for Clear Cell Housing, JD363ECM

Ask a questionMPN JD363ECM
$1699
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Seals the cell The o-ring between the electrode and the clear cell housing, which is where a salt cell usually starts to weep.
  • For the CPSC series Listed for the CompuPool salt chlorine generator for inground pools, CPSC series.
  • Ordered by part number JD363ECM, so there is no measuring a cross section and guessing at a generic o-ring.
  • Replace it with the cell out Any time the electrode comes out for cleaning or inspection, a fresh o-ring is the cheapest part of the job.
  • A leak is not just water Salt water dripping onto the pad corrodes unions, fittings and anything metal underneath it.
  • Fit it clean Seat it free of grit and use a silicone based lubricant rather than a petroleum grease.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About CompuPool Electrode O-Ring for Clear Cell Housing, JD363ECM, SKU PSU-135804. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item CompuPool Electrode O-Ring for Clear Cell Housing, JD363ECM
CompuPool

Electrode O-Ring for Clear Cell Housing, JD363ECM

$1699
CompuPool 3-Port 14-Blade Replacement Salt Cell for Jandy AquaPure System, 40,000 Gallons, GRC/J1400-3
CompuPool

3-Port 14-Blade Replacement Salt Cell for Jandy AquaPure System, 40,000 Gallons, GRC/J1400-3

$56799
CompuPool Replacement Salt Cell for M0657USA Ecomatic Models ESC24, ESC36, ESC48, GRC/EM
CompuPool

Replacement Salt Cell for M0657USA Ecomatic Models ESC24, ESC36, ESC48, GRC/EM

$60099
CompuPool Salt Cell Compatible with Hayward® T-Cell-15®, with Cord, 40K Gallons, GRC40GH
CompuPool

Salt Cell Compatible with Hayward® T-Cell-15®, with Cord, 40K Gallons, GRC40GH

$56299
CompuPool Salt Cell with Cord Compatible with Hayward® T-CELL-9®, 3-Year Warranty, 25K Gallons, GRC25GH
CompuPool

Salt Cell with Cord Compatible with Hayward® T-CELL-9®, 3-Year Warranty, 25K Gallons, GRC25GH

$48999
CompuPool Salt Cell Compatible with Hayward® T-CELL-3®, with Cord, 3-Year Warranty, 15K Gallons, GRC15GH
CompuPool

Salt Cell Compatible with Hayward® T-CELL-3®, with Cord, 3-Year Warranty, 15K Gallons, GRC15GH

$34199
CompuPool Clear Electrode Housing Body for CPSC Series, JD363102Z
CompuPool

Clear Electrode Housing Body for CPSC Series, JD363102Z

$5899
Subtotal

Similar products

Other products people compare with this one.

Jandy R0694100 o-ring for the Pro Series TruClear salt cell Jandy O-Ring for TruClear Cell, R0694100$1899 CompuPool JD363108Z CPSC Series electrode housing pipe adapter CompuPool CPSC Series Electrode Housing Pipe Adapter, Sold Individually, JD363108Z$2099 Solaxx GNR00009 cell o-ring Solaxx Cell O-Ring GNR00009$1399 CompuPool JD363CPSC-O-KIT o-ring seal kit for CPSC series salt cells CompuPool CPSC O-Ring Kit, JD363CPSC-O-KIT$2099 CompuPool JD363PIPO pipe adapter O-Ring CompuPool Pipe Adapter O-Ring, Sold Individually, JD363PIPO$1499 Jandy R0402800 16 ft AquaPure PureLink DC cell cord for the 3-port cell Jandy 16' AquaPure PureLink DC Cell Cord, R0402800$2499 Solaxx GNR00004 PureChlor salt cell cleaning cap Solaxx PureChlor Salt Cell Cleaning Cap, GNR00004$2399 CMP 52000-200-101 PowerClean SCG o-ring CMP PowerClean SCG O-Ring, 52000-200-101$2199 CompuPool JD363109Z CPSC series pipe adapter collar CompuPool CPSC Series Pipe Adapter Collar, Sold Individually, JD363109Z$2099 CompuPool CPP155-143P union blanking cap for CPX Series salt cells CompuPool CPX Series Union Blanking Cap, CPP155-143P$2099
Davey M1217 Eco-Matic o-ring for ESC and ESR series cell head Davey Eco-Matic O-Ring for ESC/ESR Series Cell Head, M1217$2599 Hayward GLX-DIY-ORING o-ring for the Salt and Swim salt cell Hayward O-Ring for Salt & Swim Cell, GLX-DIY-ORING$3499 CaliMar CMARSGH clear housing for SGS Wave and Breeze and CMP PowerClean systems CaliMar Clear Housing for SGS Wave and Breeze and CMP PowerClean Systems, CMARSGH$12900 Web Price CMP 52000-200-103 Econ cell housing without unions for PowerClean salt system CMP Econ Cell Housing without Unions for PowerClean Salt System, 52000-200-103$17999 Pentair 520588 IntelliChlor pass-through cell for winter Pentair IntelliChlor Pass-through Cell for Winter, 520588$7399 Eco-Matic M2679 cell cord for all ESC model chlorinators Eco-Matic 10' Cell Cord for All ESC Models, M2679$9799 AutoPilot 952-ST/DIG-SVC 12 foot salt cell cord for DIG and ST control panels AutoPilot Salt Cell Cord for DIG & ST Control Panels, 12-Foot$12399 Jandy R0694000 housing for the Pro Series TruClear chlorine generating system Jandy Housing for TruClear Chlorine Generating System, R0694000$18699 CMP 52000-200-102 PowerClean Ultra salt cell housing CMP Salt Cell Housing, PowerClean Ultra, 52000-200-102$21299 Jandy R0452500 new style port sensor kit for 3 port AquaPure cell with 16 ft cable Jandy Port Sensor Kit for 3 Port Cell with 16' Cable, R0452500$24599

Product details

JD363ECM is the CompuPool electrode o-ring for the clear cell housing, used on the CompuPool salt chlorine generator for inground pools in the CPSC series.

The joint it seals

A salt cell puts the electrode inside a clear housing so the plates can be inspected without disassembly, and that convenience creates a sealed joint the electrode has to pass through. The o-ring is what closes it. It sits in salt water, it is warmed and cooled with every cycle, and it is compressed the whole time, so it hardens and takes a permanent set. When it does, the housing weeps, usually slowly enough that the first sign is white crust on the outside of the cell rather than an obvious drip.

When to change it

Whenever the electrode comes out. Cells are pulled routinely for inspection and acid cleaning, and an o-ring that has been sitting compressed will rarely go back and reseal properly. Replacing it while everything is already apart costs a fraction of the trip back out to the pad. Seat it clean, free of grit, and use a silicone based lubricant rather than a petroleum grease. If the clear housing itself has cracked, the o-ring will not help; the housing body is a separate CompuPool part.

From Pool School

When to Replace a Salt CellThe life each manufacturer prints, what looks like a dead cell and is not, and choosing the next one. Read How to Clean a Salt CellHose first, acid only on scale that stays, and each manufacturer's own mix and time limit. Read
Specifications
Brand CompuPool
Manufacturer part number JD363ECM
Type Electrode o-ring
Application Clear cell housing
For use with CompuPool Salt Chlorine Generator for Inground Pools, CPSC Series
Shipping weight 0.11 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

Customer reviews

More from CompuPool

CompuPool GRC/EM replacement salt cell for Ecomatic ESC24, ESC36 and ESC48 CompuPool Replacement Salt Cell for M0657USA Ecomatic Models ESC24, ESC36, ESC48, GRC/EM$60099 CompuPool GRC40GH replacement salt cell with cord for Hayward T-Cell-15 systems CompuPool Salt Cell Compatible with Hayward® T-Cell-15®, with Cord, 40K Gallons, GRC40GH$56299 CompuPool GRC25GH clear housing replacement salt cell for Hayward T-CELL-9, with cord CompuPool Salt Cell with Cord Compatible with Hayward® T-CELL-9®, 3-Year Warranty, 25K Gallons, GRC25GH$48999 CompuPool GRC15GH clear housing salt cell with cord, replacement for Hayward T-CELL-3 CompuPool Salt Cell Compatible with Hayward® T-CELL-3®, with Cord, 3-Year Warranty, 15K Gallons, GRC15GH$34199 CompuPool GRC20GH replacement salt cell for Hayward T-CELL-5 with cord CompuPool Salt Cell with Cord Compatible with Hayward® T-CELL-5, 3-Year Warranty, 20K Gallons, GRC20GH$38399 CompuPool GRC/R/AE7 seven blade replacement salt cell for Resilience A7 and E7C, up to 60,000 gallons CompuPool Resilience 7-Blade Salt Cell Replacement, For up to 60K Gallons$60399 CompuPool GRC/AP-SC48 seven blade replacement salt cell for AutoPilot SC-48, RC-42 and PPC3 CompuPool Replacement Salt Cell for AutoPilot SC-48 RC-42 PPC3, 7-Blade for up to 50K Gallons$37199 CompuPool GRC/R/5 Resilience five blade replacement salt cell with clear housing CompuPool Resilience 5-Blade Salt Cell Replacement, Up to 40K Gallons$52199 CompuPool JD363102Z clear electrode housing body for CPSC series salt chlorinators CompuPool Clear Electrode Housing Body for CPSC Series, JD363102Z$5899 CompuPool CPX24-RC CPX series replacement salt cell with 7 ft cord CompuPool OEM CPX Series Replacement Salt Cell, 30,000 Gallons with 7 ft Cord, CPX24-RC$46699
CompuPool CPX16-RC replacement salt cell for 20,000 gallon CPX series systems CompuPool OEM CPX Series Replacement Salt Cell, 20,000 Gallons with 7' Cord, CPX16-RC$41499 CompuPool CPX36-RC CPX series replacement salt cell with 7 ft. cord CompuPool OEM CPX Series Replacement Salt Cell, 40K Gallons with 7 ft. Cord, CPX36-RC$51599 CompuPool JD363130E-COMPL replacement salt cell with housing for CPSC48 CompuPool OEM Replacement Salt Cell with Housing for CPSC48, 10 Blade, up to 60K Gallons, JD363130E-COMPL$55399 CompuPool JD363130D-COMPL replacement salt cell with clear housing for the CPSC36 CompuPool OEM Replacement Salt Cell with Housing for CPSC36, 7 Blade, JD363130D-COMPL$63099 CompuPool GRC/AP/SC-36 five blade replacement salt cell for AutoPilot SC-36, RC-35/22 and PPC1 CompuPool Replacement Salt Cell for AutoPilot SC-36, RC-35/22 and PPC1, 5-Blade$32299 CompuPool i40 CELL Infinity Series replacement salt cell for pools up to 40K gallons CompuPool OEM Infinity Series Replacement Salt Cell, up to 40K Gallons, i40 CELL$65599 CompuPool JD363130C-COMPL replacement salt cell with housing for CPSC24 CompuPool OEM Replacement Salt Cell with Housing for CPSC24, 5-Blade, JD363130C-COMPL$52299 CompuPool GRC/R/AE3 Resilience 3-blade replacement salt cell for pools up to 18,000 gallons CompuPool Resilience 3-Blade Salt Cell Replacement, Up to 18K Gallons$42199 CompuPool JD363CPSC-O-KIT o-ring seal kit for CPSC series salt cells CompuPool CPSC O-Ring Kit, JD363CPSC-O-KIT$2099 CompuPool JD363130B replacement salt cell electrode for CPSC16, four titanium blades CompuPool Replacement Salt Cell Electrode for CPSC16, 4 Blade, up to 20K Gallons, JD363130B$36499

Questions and answers

What people ask about this product, answered by our pool techs.

Where does this o-ring go?
Between the electrode and the clear cell housing on a CompuPool salt chlorine generator, sealing the joint the electrode passes through.
Which systems does it fit?
CompuPool lists it for the salt chlorine generator for inground pools, the CPSC series.
Do I need one if I am only cleaning the cell?
It is worth having on hand. An o-ring that has been compressed for a season and then disturbed often will not reseal, and finding that out means a second trip to the equipment pad.
What if the housing itself is cracked?
Then a new o-ring will not fix it. The clear electrode housing body is a separate CompuPool part, and a cracked housing has to be replaced.
